iOS底层原理--024：GCD底层分析

1. 主队列分析
2. 全局队列分析
3. 创建队列
4. 继承链
5. 同步函数
6. 异步函数
7. 单例模式
- 7.1 锁的处理
- 7.2 执行任务
8. 线程池
- 8.1 创建线程
- 8.2 最大线程数
9. 栅栏函数
- 9.1 同步栅栏函数分析
- 9.2 全局队列中的栅栏函数
10. 信号量
11. 调度组
12. dispatch_source
总结

1. 主队列分析

主队列是GCD提供的特殊的串行队列，在libdispatch源码中，找到主队列的定义，找到它是串行队列的依据

1.1 找到主队列的类型实现

1.1 方式一

搜索dispatch_get_main_queue关键字

DISPATCH_INLINE DISPATCH_ALWAYS_INLINE DISPATCH_CONST DISPATCH_NOTHROW
dispatch_queue_main_t
dispatch_get_main_queue(void)
{
    return DISPATCH_GLOBAL_OBJECT(dispatch_queue_main_t, _dispatch_main_q);
}

参数2为队列类型，在源码中搜索_dispatch_main_q，找到的结果非常多，这时可以尝试搜索_dispatch_main_q =，如果是赋值操作，可以缩小结果的范围

搜索_dispatch_main_q =，找到实现代码

struct dispatch_queue_static_s _dispatch_main_q = {
    DISPATCH_GLOBAL_OBJECT_HEADER(queue_main),
#if !DISPATCH_USE_RESOLVERS
    .do_targetq = _dispatch_get_default_queue(true),
#endif
    .dq_state = DISPATCH_QUEUE_STATE_INIT_VALUE(1) |
            DISPATCH_QUEUE_ROLE_BASE_ANON,
    .dq_label = "com.apple.main-thread",
    .dq_atomic_flags = DQF_THREAD_BOUND | DQF_WIDTH(1),
    .dq_serialnum = 1,
};

1.2 方式二

在项目中，创建主队列，使用lldb，可以输出它的结构，其中包含队列标识符

dispatch_queue_t queue = dispatch_get_main_queue();
-------------------------
(lldb) po queue
<OS_dispatch_queue_main: com.apple.main-thread[0x104a6cc80] = { xref = -2147483648, ref = -2147483648, sref = 1, target = com.apple.root.default-qos.overcommit[0x104a6d100], width = 0x1, state = 0x001ffe9000000300, dirty, in-flight = 0, thread = 0x303 }>

来到libdispatch源码中，直接搜索com.apple.main-thread，也可以直接定位到它的实现代码

1.2 主队列是串行队列的依据

实现代码中，主队列的dq_atomic_flags为DQF_WIDTH(1)，我们可以通过找到串行队列的dq_atomic_flags进行对比，如果一致，即可证明主队列就是一个串行队列

在源码中，搜索dispatch_queue_create

dispatch_queue_t
dispatch_queue_create(const char *label, dispatch_queue_attr_t attr)
{
    return _dispatch_lane_create_with_target(label, attr,
            DISPATCH_TARGET_QUEUE_DEFAULT, true);
}

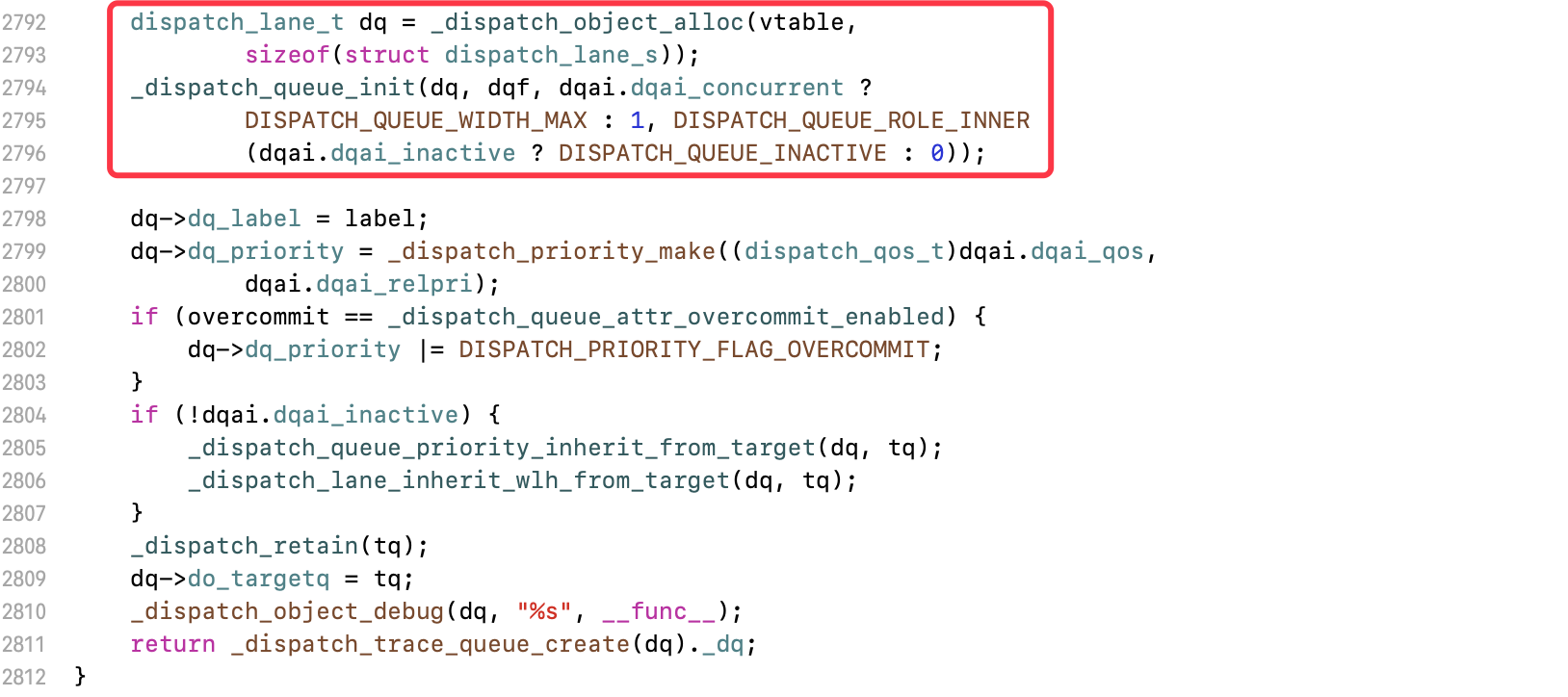

进入_dispatch_lane_create_with_target函数，找到创建队列的核心代码

创建队列，开辟空间
调用构造函数，如果dqai_concurrent非真，传入1

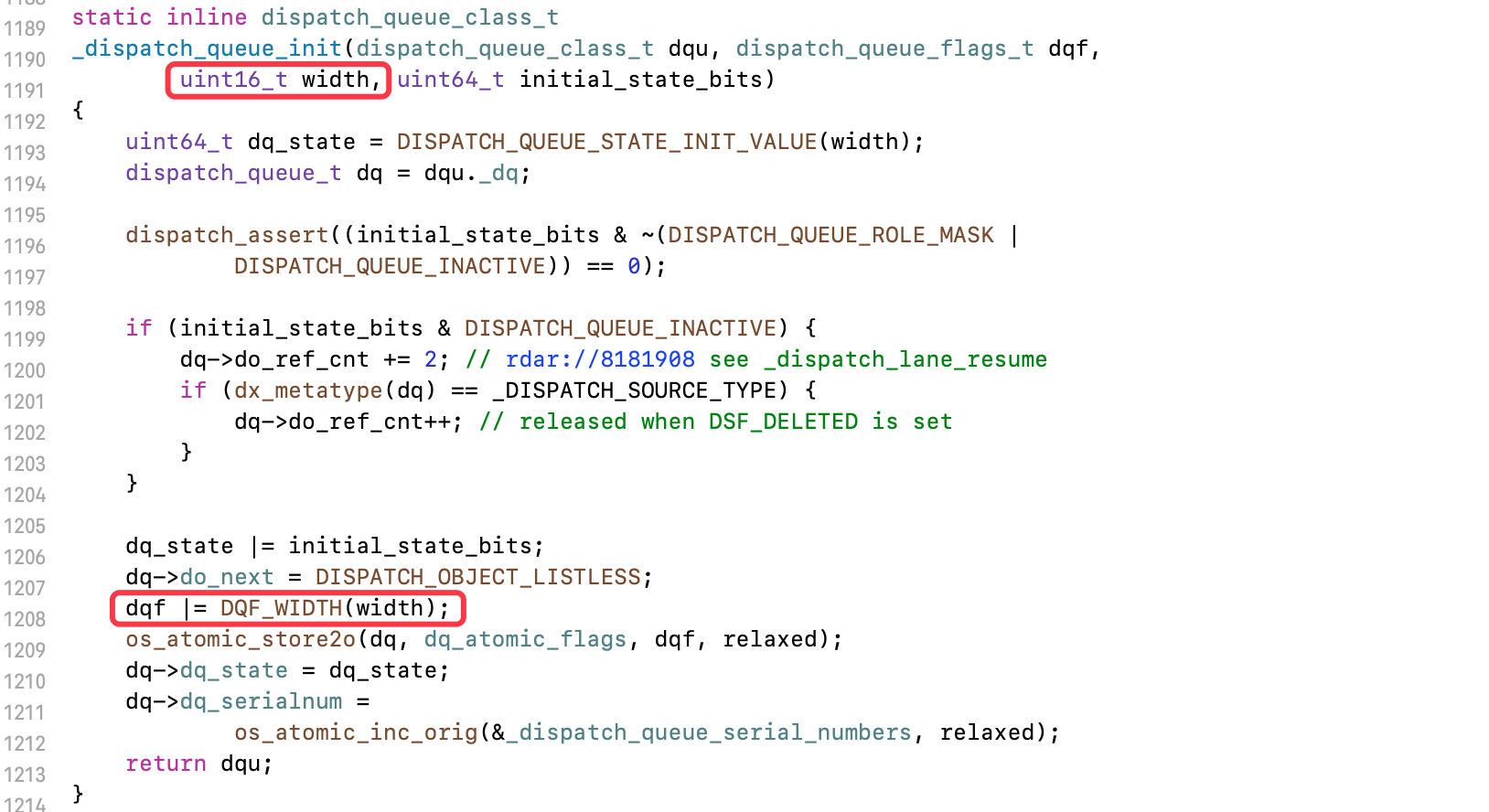

进入_dispatch_queue_init函数，找到参数3

如果是串行队列，传入的width为1，dqf为DQF_WIDTH(1)，和主队列dq_atomic_flags属性设置的值一致，所以主队列就是一个串行队列

1.3 `dq_serialnum`的作用

有一些说法，如果dq_serialnum设置为1，就是串行队列，例如：主队列的设置

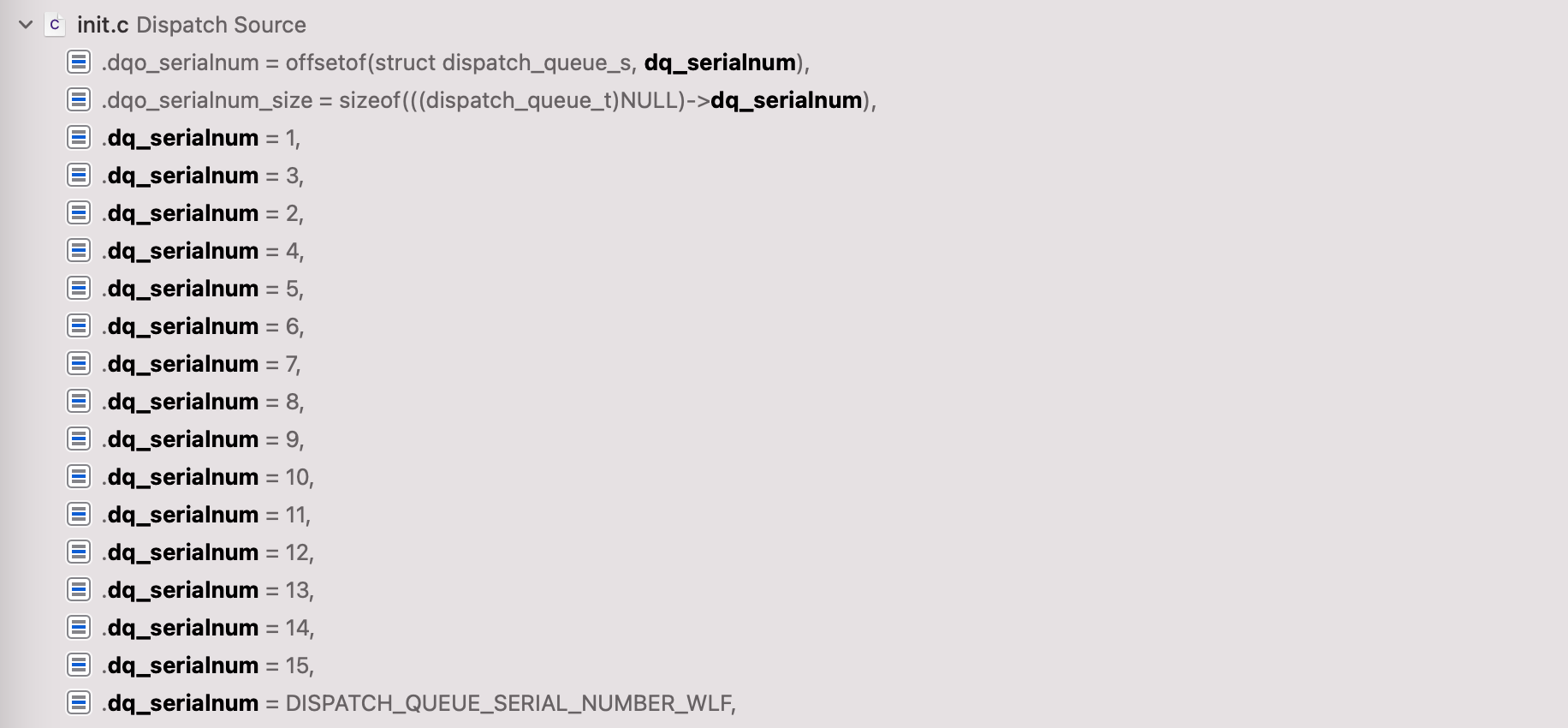

在源码中，搜索dq_serialnum，可以找到很多赋值的场景

进入DISPATCH_QUEUE_SERIAL_NUMBER_WLF的定义

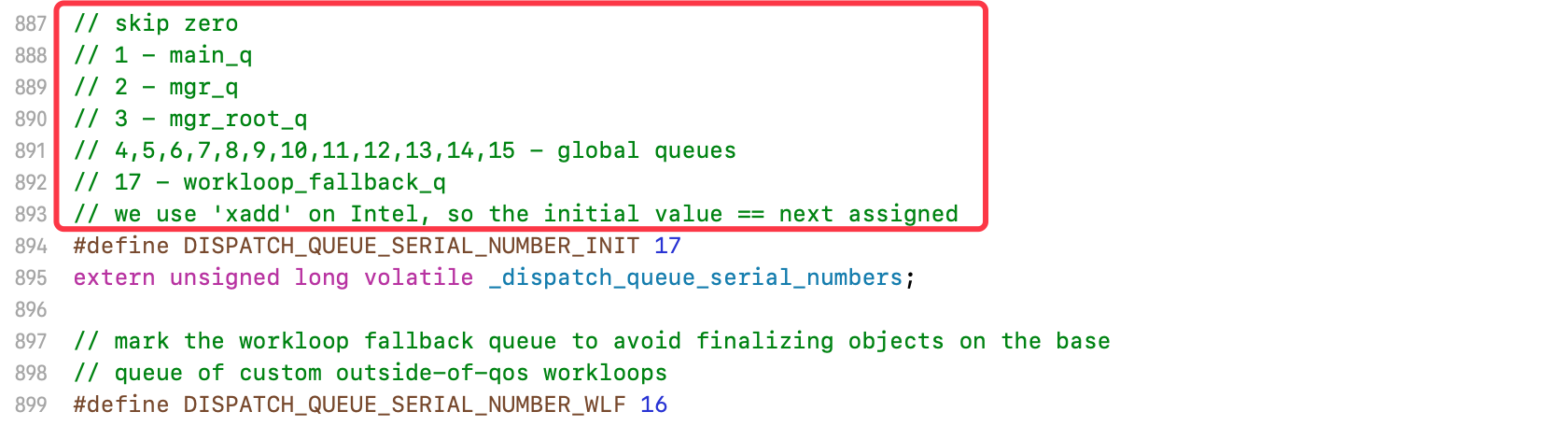

同时找到了dq_serialnum的相关注释

跳过零
主队列：1
mgr_q：2
mgr_root_q：3
全局队列：4~15
自定义队列：17

所以dq_serialnum并不是用来标记串行和并发队列的

1.4 自定义队列的`dq_serialnum`

搜索DISPATCH_QUEUE_SERIAL_NUMBER_INIT，找到被赋值的代码

unsigned long volatile _dispatch_queue_serial_numbers =
        DISPATCH_QUEUE_SERIAL_NUMBER_INIT;

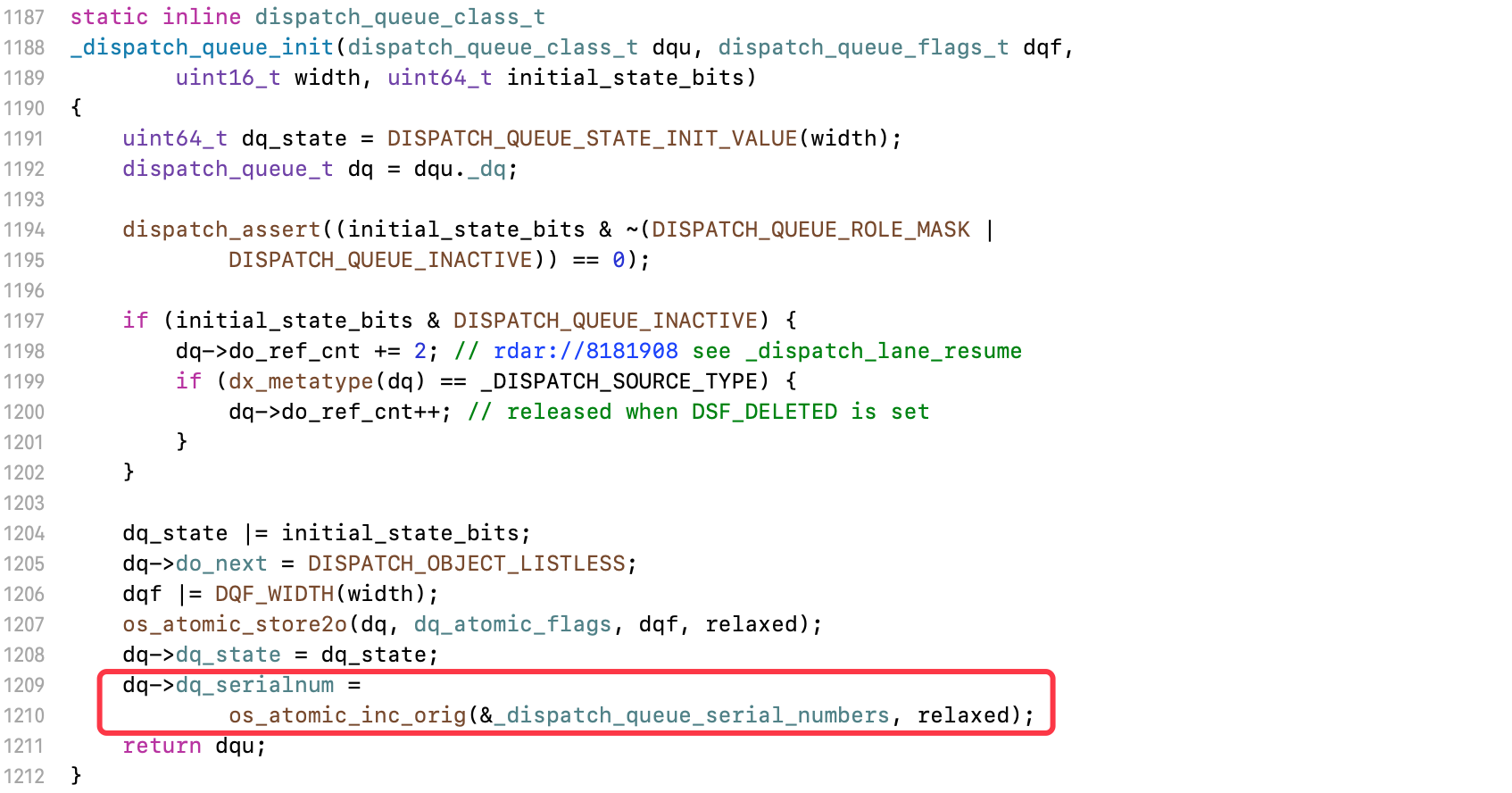

搜索_dispatch_queue_serial_numbers

找到宏定义

#define os_atomic_inc_orig(p, m) \
        os_atomic_add_orig((p), 1, m)
#define os_atomic_add_orig(p, v, m) \
        _os_atomic_c11_op_orig((p), (v), m, add, +)
#define _os_atomic_c11_op_orig(p, v, m, o, op) \
        atomic_fetch_##o##_explicit(_os_atomic_c11_atomic(p), v, \
        memory_order_##m)

atomic_fetch_##o##_explicit中的##o##为占位，替换的o传入的值为add
替换后为atomic_fetch_add_explicit，来自C++11的原子操作函数
宏的作用，传入17，之后每次+1

2. 全局队列分析

在lldb中，输出全局队列的标识符

dispatch_queue_t queue = dispatch_get_global_queue(0, 0);
-------------------------
(lldb) po queue
<OS_dispatch_queue_global: com.apple.root.default-qos[0x102b85080] = { xref = -2147483648, ref = -2147483648, sref = 1, target = [0x0], width = 0xfff, state = 0x0060000000000000, in-barrier}>

来到libdispatch源码中，搜索com.apple.root.default-qos

struct dispatch_queue_global_s _dispatch_root_queues[] = {
#define _DISPATCH_ROOT_QUEUE_IDX(n, flags) \
        ((flags & DISPATCH_PRIORITY_FLAG_OVERCOMMIT) ? \
        DISPATCH_ROOT_QUEUE_IDX_##n##_QOS_OVERCOMMIT : \
        DISPATCH_ROOT_QUEUE_IDX_##n##_QOS)
#define _DISPATCH_ROOT_QUEUE_ENTRY(n, flags, ...) \
    [_DISPATCH_ROOT_QUEUE_IDX(n, flags)] = { \
        DISPATCH_GLOBAL_OBJECT_HEADER(queue_global), \
        .dq_state = DISPATCH_ROOT_QUEUE_STATE_INIT_VALUE, \
        .do_ctxt = _dispatch_root_queue_ctxt(_DISPATCH_ROOT_QUEUE_IDX(n, flags)), \
        .dq_atomic_flags = DQF_WIDTH(DISPATCH_QUEUE_WIDTH_POOL), \
        .dq_priority = flags | ((flags & DISPATCH_PRIORITY_FLAG_FALLBACK) ? \
                _dispatch_priority_make_fallback(DISPATCH_QOS_##n) : \
                _dispatch_priority_make(DISPATCH_QOS_##n, 0)), \
        __VA_ARGS__ \
    }
    _DISPATCH_ROOT_QUEUE_ENTRY(MAINTENANCE, 0,
        .dq_label = "com.apple.root.maintenance-qos",
        .dq_serialnum = 4,
    ),
    _DISPATCH_ROOT_QUEUE_ENTRY(MAINTENANCE, DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
        .dq_label = "com.apple.root.maintenance-qos.overcommit",
        .dq_serialnum = 5,
    ),
    _DISPATCH_ROOT_QUEUE_ENTRY(BACKGROUND, 0,
        .dq_label = "com.apple.root.background-qos",
        .dq_serialnum = 6,
    ),
    _DISPATCH_ROOT_QUEUE_ENTRY(BACKGROUND, DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
        .dq_label = "com.apple.root.background-qos.overcommit",
        .dq_serialnum = 7,
    ),
    _DISPATCH_ROOT_QUEUE_ENTRY(UTILITY, 0,
        .dq_label = "com.apple.root.utility-qos",
        .dq_serialnum = 8,
    ),
    _DISPATCH_ROOT_QUEUE_ENTRY(UTILITY, DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
        .dq_label = "com.apple.root.utility-qos.overcommit",
        .dq_serialnum = 9,
    ),
    _DISPATCH_ROOT_QUEUE_ENTRY(DEFAULT, DISPATCH_PRIORITY_FLAG_FALLBACK,
        .dq_label = "com.apple.root.default-qos",
        .dq_serialnum = 10,
    ),
    _DISPATCH_ROOT_QUEUE_ENTRY(DEFAULT,
            DISPATCH_PRIORITY_FLAG_FALLBACK | DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
        .dq_label = "com.apple.root.default-qos.overcommit",
        .dq_serialnum = 11,
    ),
    _DISPATCH_ROOT_QUEUE_ENTRY(USER_INITIATED, 0,
        .dq_label = "com.apple.root.user-initiated-qos",
        .dq_serialnum = 12,
    ),
    _DISPATCH_ROOT_QUEUE_ENTRY(USER_INITIATED, DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
        .dq_label = "com.apple.root.user-initiated-qos.overcommit",
        .dq_serialnum = 13,
    ),
    _DISPATCH_ROOT_QUEUE_ENTRY(USER_INTERACTIVE, 0,
        .dq_label = "com.apple.root.user-interactive-qos",
        .dq_serialnum = 14,
    ),
    _DISPATCH_ROOT_QUEUE_ENTRY(USER_INTERACTIVE, DISPATCH_PRIORITY_FLAG_OVERCOMMIT,
        .dq_label = "com.apple.root.user-interactive-qos.overcommit",
        .dq_serialnum = 15,
    ),
};

_dispatch_root_queues为数组类型，默认将4~15的全局队列全部初始化，获取时通过不同类型，获取不同的队列
和主队列的类型差异
- 主队列：dispatch_queue_static_s
- 全局队列：dispatch_queue_global_s

3. 创建队列

搜索dispatch_queue_create，进入_dispatch_lane_create_with_target函数

DISPATCH_NOINLINE
static dispatch_queue_t
_dispatch_lane_create_with_target(const char *label, dispatch_queue_attr_t dqa,
        dispatch_queue_t tq, bool legacy)
{
    // 1、创建dqai
    dispatch_queue_attr_info_t dqai = _dispatch_queue_attr_to_info(dqa);
    // 2、规范化参数，例如：qos, overcommit, tq
    dispatch_qos_t qos = dqai.dqai_qos;
    ...
    // 3、根据队列类型，创建vtable
    if (legacy) {
        // if any of these attributes is specified, use non legacy classes
        if (dqai.dqai_inactive || dqai.dqai_autorelease_frequency) {
            legacy = false;
        }
    }
    const void *vtable;
    dispatch_queue_flags_t dqf = legacy ? DQF_MUTABLE : 0;
    if (dqai.dqai_concurrent) {
        vtable = DISPATCH_VTABLE(queue_concurrent);
    } else {
        vtable = DISPATCH_VTABLE(queue_serial);
    }
    ...
    // 4、开辟空间，初始化队列
    dispatch_lane_t dq = _dispatch_object_alloc(vtable,
            sizeof(struct dispatch_lane_s));
    _dispatch_queue_init(dq, dqf, dqai.dqai_concurrent ?
            DISPATCH_QUEUE_WIDTH_MAX : 1, DISPATCH_QUEUE_ROLE_INNER |
            (dqai.dqai_inactive ? DISPATCH_QUEUE_INACTIVE : 0));
    dq->dq_label = label;
    ...
    // 5、根据不同类型，通过模板创建队列
    dq->do_targetq = tq;
    _dispatch_object_debug(dq, "%s", __func__);
    return _dispatch_trace_queue_create(dq)._dq;
}

2.1 创建`dqai`

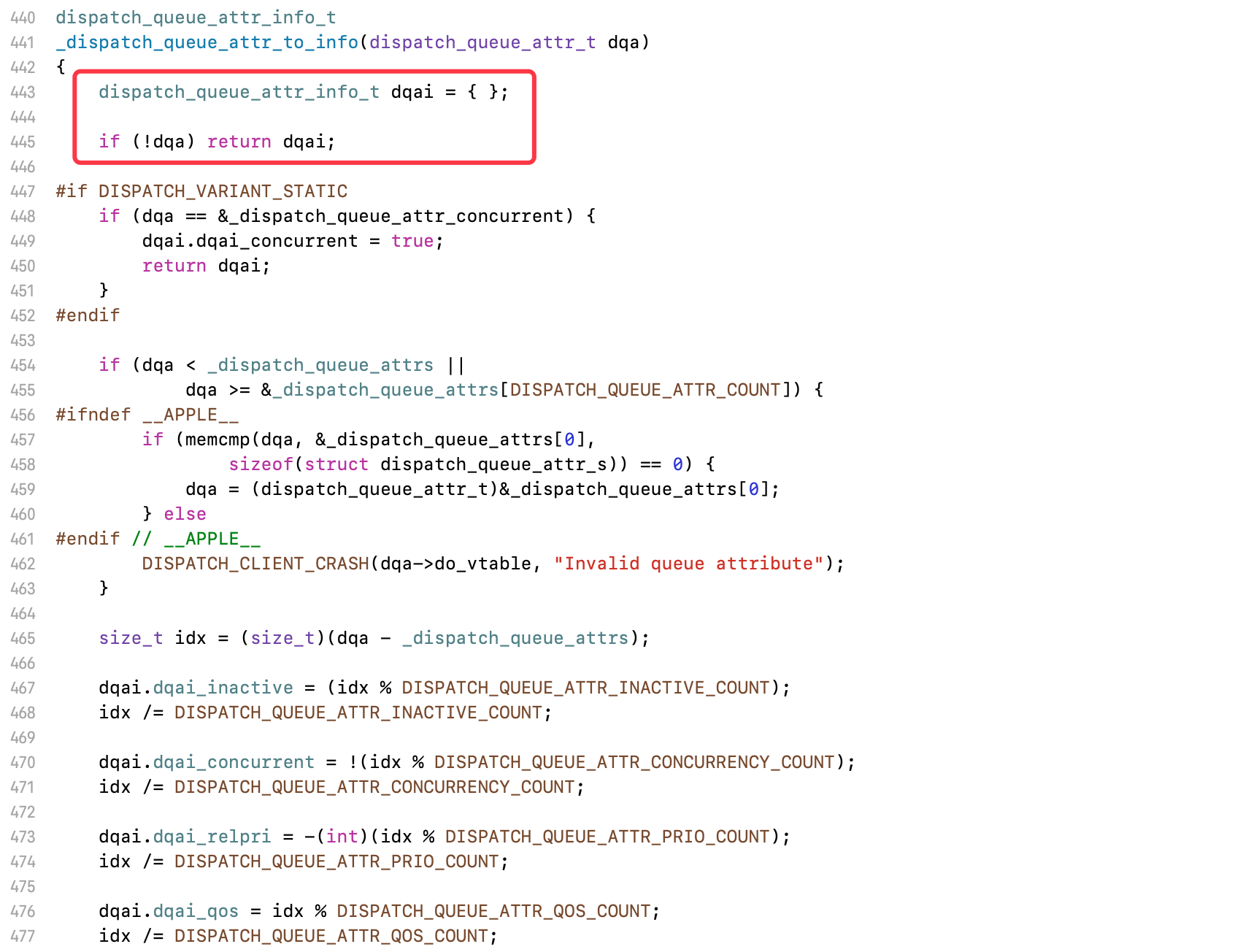

进入_dispatch_queue_attr_to_info函数

创建空的dqai，默认为串行队列。如果传入的参数为空，返回空dqai
传入的参数有值，将队列信息保存到dqai中

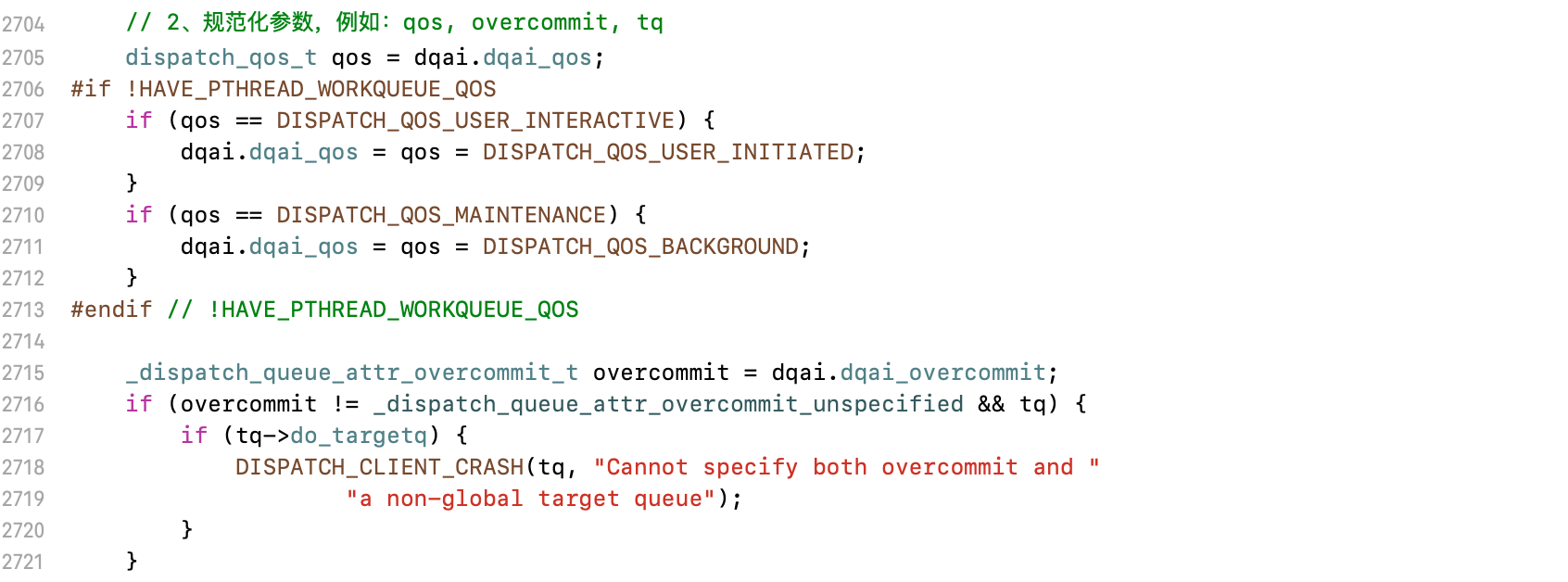

2.2 规范化参数

设置优先级、服务质量等参数

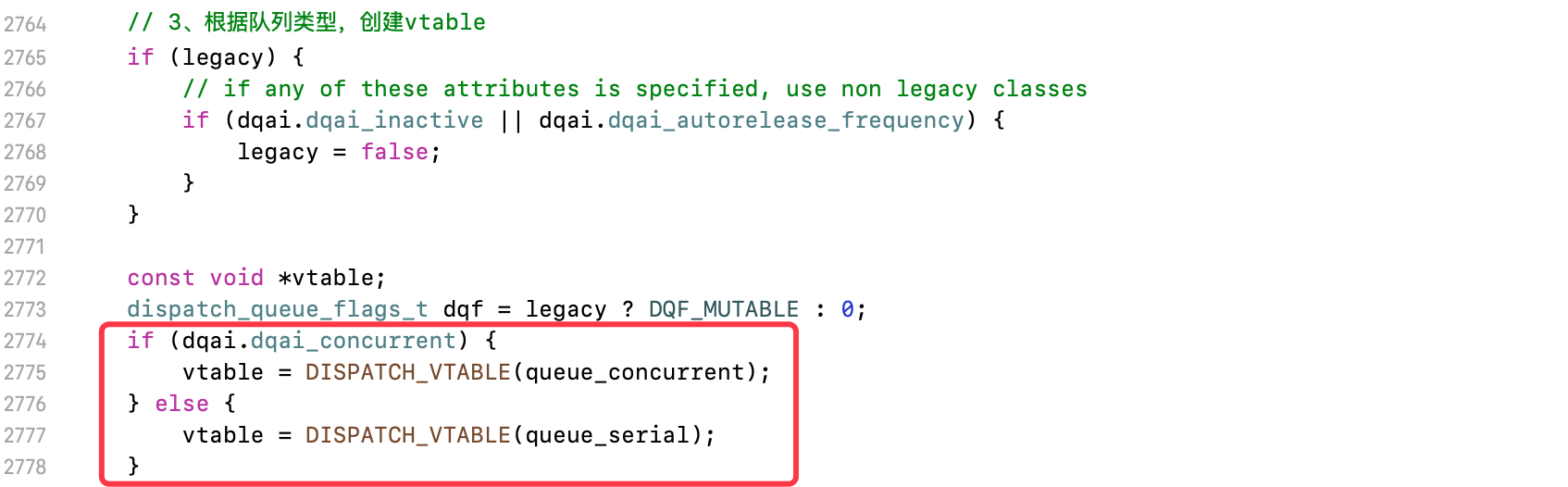

2.3 创建`vtable`

通过DISPATCH_VTABLE，将传入的队列类型拼接vtable

找到DISPATCH_VTABLE宏的定义

#define DISPATCH_VTABLE(name) DISPATCH_OBJC_CLASS(name)
#define DISPATCH_OBJC_CLASS(name)    (&DISPATCH_CLASS_SYMBOL(name))
#define DISPATCH_CLASS_SYMBOL(name) _dispatch_##name##_vtable

2.4 初始化队列

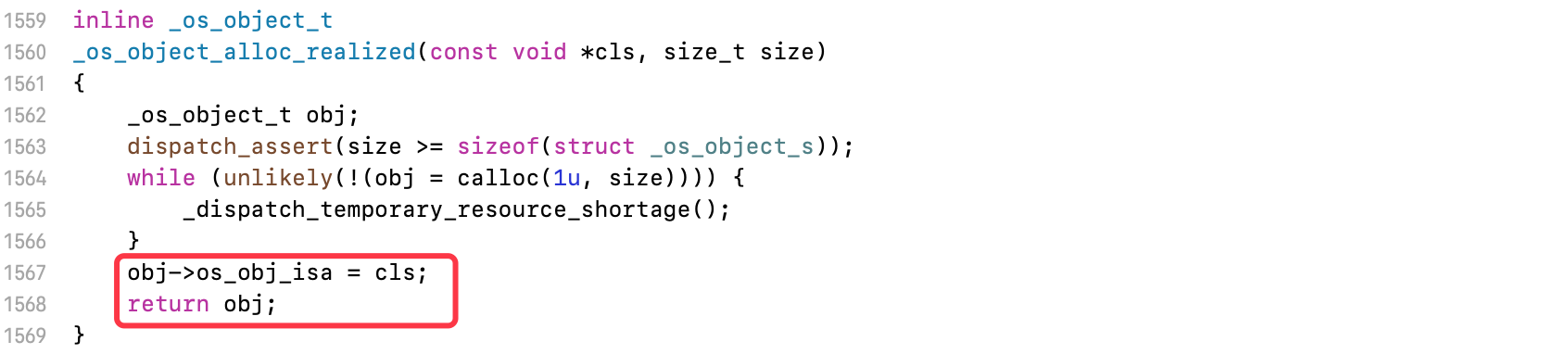

使用_dispatch_object_alloc函数开辟空间，进入_os_object_alloc_realized函数

包含isa指向，说明队列也是一个对象

使用_dispatch_queue_init函数初始化队列

队列类型为dispatch_queue_t，为队列的成员变量赋值

2.5 通过模板创建队列

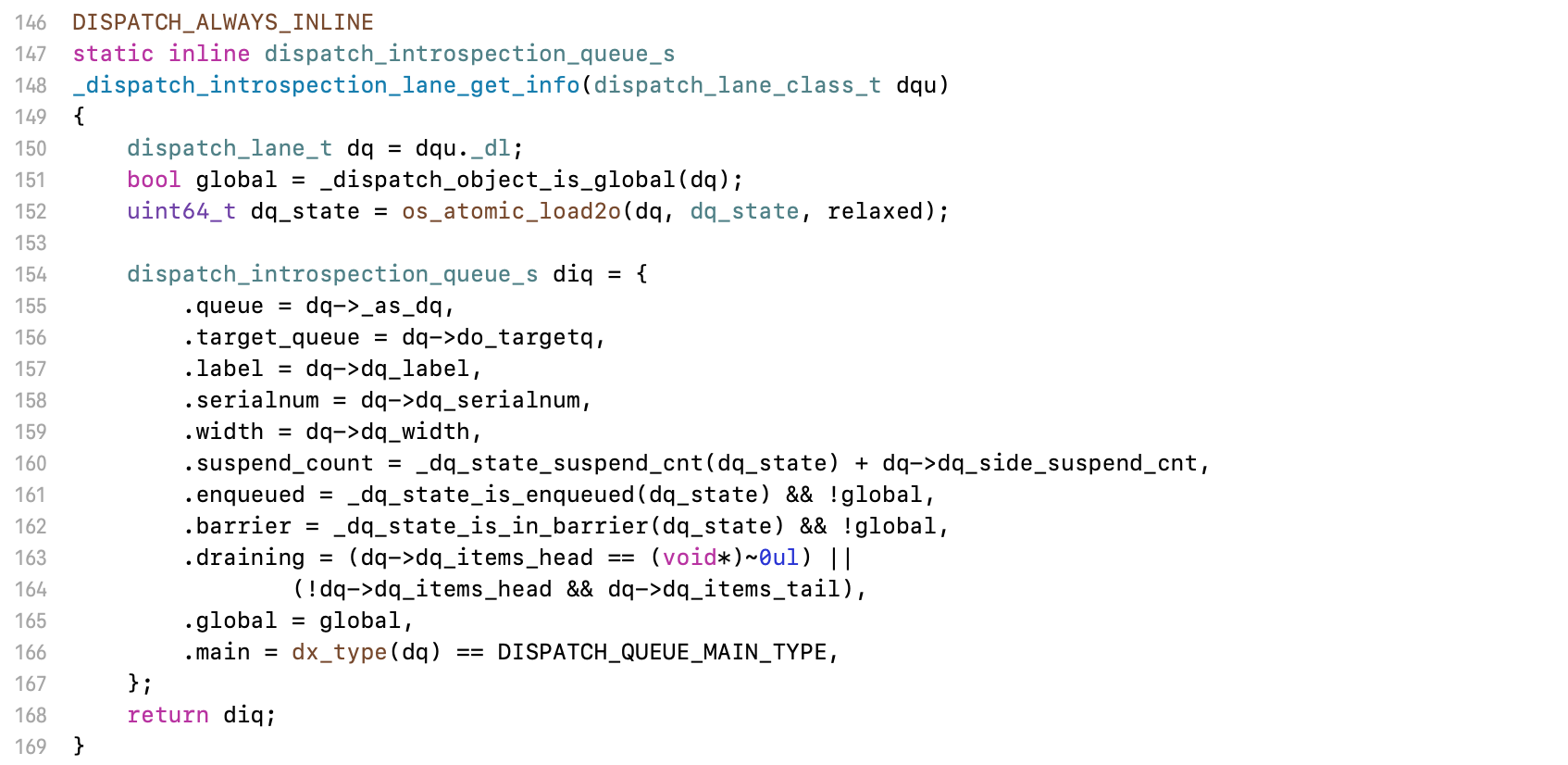

使用_dispatch_introspection_queue_create函数，传入初始化后的dq

流程：_dispatch_introspection_queue_create→_dispatch_introspection_queue_create_hook→dispatch_introspection_queue_get_info→_dispatch_introspection_lane_get_info

4. 继承链

使用_dispatch_lane_create_with_target创建队列，返回dispatch_queue_t类型

dispatch_queue_t类型来自于宏定义

DISPATCH_DECL(dispatch_queue);
#define DISPATCH_DECL(name) OS_OBJECT_DECL_SUBCLASS(name, dispatch_object)
#define OS_OBJECT_DECL_SUBCLASS(name, super) \
        OS_OBJECT_DECL_IMPL(name, NSObject, <OS_OBJECT_CLASS(super)>)
#define OS_OBJECT_DECL_IMPL(name, adhere, ...) \
        OS_OBJECT_DECL_PROTOCOL(name, __VA_ARGS__) \
        typedef adhere<OS_OBJECT_CLASS(name)> \
                * OS_OBJC_INDEPENDENT_CLASS name##_t
#define OS_OBJECT_DECL_PROTOCOL(name, ...) \
        @protocol OS_OBJECT_CLASS(name) __VA_ARGS__ \
        @end
#define OS_OBJECT_CLASS(name) OS_##name

第一步：使用OS_OBJECT_CLASS在前面拼接OS_，例如：OS_dispatch_queue
第二步：使用OS_OBJECT_DECL_PROTOCOL在结尾拼接_t，例如：OS_dispatch_queue_t
第三步：使用泛型接收，typedef adhere<OS_dispatch_queue> * OS_OBJC_INDEPENDENT_CLASS OS_dispatch_queue_t

DISPATCH_DECL宏在dispatch_object_s结构体中的定义

#define DISPATCH_DECL(name) \
        typedef struct name##_s : public dispatch_object_s {} *name##_t

typedef struct dispatch_queue_s : public dispatch_object_s {} *dispatch_queue_t
dispatch_queue_t的本质是dispatch_queue_s，dispatch_queue_s继承自dispatch_object_s

dispatch_object_s来自于dispatch_object_t的联合体

typedef union {
    struct _os_object_s *_os_obj;
    struct dispatch_object_s *_do;
    struct dispatch_queue_s *_dq;
    struct dispatch_queue_attr_s *_dqa;
    struct dispatch_group_s *_dg;
    struct dispatch_source_s *_ds;
    struct dispatch_channel_s *_dch;
    struct dispatch_mach_s *_dm;
    struct dispatch_mach_msg_s *_dmsg;
    struct dispatch_semaphore_s *_dsema;
    struct dispatch_data_s *_ddata;
    struct dispatch_io_s *_dchannel;
} dispatch_object_t DISPATCH_TRANSPARENT_UNION;

所以最终的根类是dispatch_object_t

找到dispatch_queue_s的结构

struct dispatch_queue_s {
    DISPATCH_QUEUE_CLASS_HEADER(queue, void *__dq_opaque1);
    /* 32bit hole on LP64 */
} DISPATCH_ATOMIC64_ALIGN;

找到结构体内嵌套的DISPATCH_QUEUE_CLASS_HEADER定义

#define DISPATCH_QUEUE_CLASS_HEADER(x, __pointer_sized_field__) \
    _DISPATCH_QUEUE_CLASS_HEADER(x, __pointer_sized_field__); \
    /* LP64 global queue cacheline boundary */ \
    unsigned long dq_serialnum; \
    const char *dq_label; \
    DISPATCH_UNION_LE(uint32_t volatile dq_atomic_flags, \
        const uint16_t dq_width, \
        const uint16_t __dq_opaque2 \
    ); \
    dispatch_priority_t dq_priority; \
    union { \
        struct dispatch_queue_specific_head_s *dq_specific_head; \
        struct dispatch_source_refs_s *ds_refs; \
        struct dispatch_timer_source_refs_s *ds_timer_refs; \
        struct dispatch_mach_recv_refs_s *dm_recv_refs; \
        struct dispatch_channel_callbacks_s const *dch_callbacks; \
    }; \
    int volatile dq_sref_cnt
#define _DISPATCH_QUEUE_CLASS_HEADER(x, __pointer_sized_field__) \
    DISPATCH_OBJECT_HEADER(x); \
    __pointer_sized_field__; \
    DISPATCH_UNION_LE(uint64_t volatile dq_state, \
            dispatch_lock dq_state_lock, \
            uint32_t dq_state_bits \
    )
#define DISPATCH_OBJECT_HEADER(x) \
    struct dispatch_object_s _as_do[0]; \
    _DISPATCH_OBJECT_HEADER(x)

DISPATCH_OBJECT_HEADER中包含dispatch_object_s结构体和_DISPATCH_OBJECT_HEADER

找到_DISPATCH_OBJECT_HEADER的定义

#define _DISPATCH_OBJECT_HEADER(x) \
    struct _os_object_s _as_os_obj[0]; \
    OS_OBJECT_STRUCT_HEADER(dispatch_##x); \
    struct dispatch_##x##_s *volatile do_next; \
    struct dispatch_queue_s *do_targetq; \
    void *do_ctxt; \
    union { \
        dispatch_function_t DISPATCH_FUNCTION_POINTER do_finalizer; \
        void *do_introspection_ctxt; \
    }

_DISPATCH_OBJECT_HEADER中包含_os_object_s结构体和OS_OBJECT_STRUCT_HEADER

找到OS_OBJECT_STRUCT_HEADER的定义

#define OS_OBJECT_STRUCT_HEADER(x) \
    _OS_OBJECT_HEADER(\
    const struct x##_vtable_s *__ptrauth_objc_isa_pointer do_vtable, \
    do_ref_cnt, \
    do_xref_cnt)
#define _OS_OBJECT_HEADER(isa, ref_cnt, xref_cnt) \
        isa; /* must be pointer-sized and use __ptrauth_objc_isa_pointer */ \
        int volatile ref_cnt; \
        int volatile xref_cnt

包含isa成员变量

所以dispatch_queue_s结构体还伪继承于_os_object_s，并包含isa成员变量，说明队列也是一个对象

5. 同步函数

5.1 全局队列

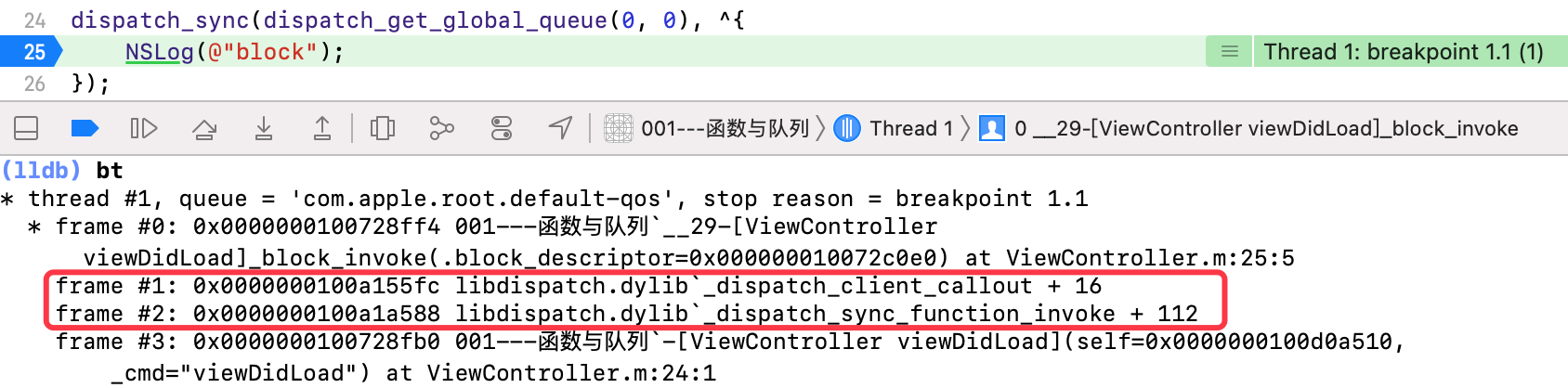

同步函数配合全局队列

dispatch_sync(dispatch_get_global_queue(0, 0), ^{
    NSLog(@"Block");
});

在libdispatch源码中，找到dispatch_sync函数的实现

void
dispatch_sync(dispatch_queue_t dq, dispatch_block_t work)
{
    uintptr_t dc_flags = DC_FLAG_BLOCK;
    if (unlikely(_dispatch_block_has_private_data(work))) {
        return _dispatch_sync_block_with_privdata(dq, work, dc_flags);
    }
    _dispatch_sync_f(dq, work, _dispatch_Block_invoke(work), dc_flags);
}

传入的work参数就是任务的block，只需要一直追寻work参数就能找到调用的代码
传入_dispatch_sync_f函数的参数3，对work进行包装

找到_dispatch_Block_invoke的定义

#define _dispatch_Block_invoke(bb) \
        ((dispatch_function_t)((struct Block_layout *)bb)->invoke)

将block下的invoke强转为dispatch_function_t结构体

进入_dispatch_sync_f函数

static void
_dispatch_sync_f(dispatch_queue_t dq, void *ctxt, dispatch_function_t func,
        uintptr_t dc_flags)
{
    _dispatch_sync_f_inline(dq, ctxt, func, dc_flags);
}

ctxt：block
func：invoke

进入_dispatch_sync_f_inline函数

static inline void
_dispatch_sync_f_inline(dispatch_queue_t dq, void *ctxt,
        dispatch_function_t func, uintptr_t dc_flags)
{
    if (likely(dq->dq_width == 1)) {
        return _dispatch_barrier_sync_f(dq, ctxt, func, dc_flags);
    }
    if (unlikely(dx_metatype(dq) != _DISPATCH_LANE_TYPE)) {
        DISPATCH_CLIENT_CRASH(0, "Queue type doesn't support dispatch_sync");
    }
    dispatch_lane_t dl = upcast(dq)._dl;
    // Global concurrent queues and queues bound to non-dispatch threads
    // always fall into the slow case, see DISPATCH_ROOT_QUEUE_STATE_INIT_VALUE
    if (unlikely(!_dispatch_queue_try_reserve_sync_width(dl))) {
        return _dispatch_sync_f_slow(dl, ctxt, func, 0, dl, dc_flags);
    }
    if (unlikely(dq->do_targetq->do_targetq)) {
        return _dispatch_sync_recurse(dl, ctxt, func, dc_flags);
    }
    _dispatch_introspection_sync_begin(dl);
    _dispatch_sync_invoke_and_complete(dl, ctxt, func DISPATCH_TRACE_ARG(
            _dispatch_trace_item_sync_push_pop(dq, ctxt, func, dc_flags)));
}

函数中出现了复杂的逻辑，可以使用符号断点，找到正确的逻辑分支

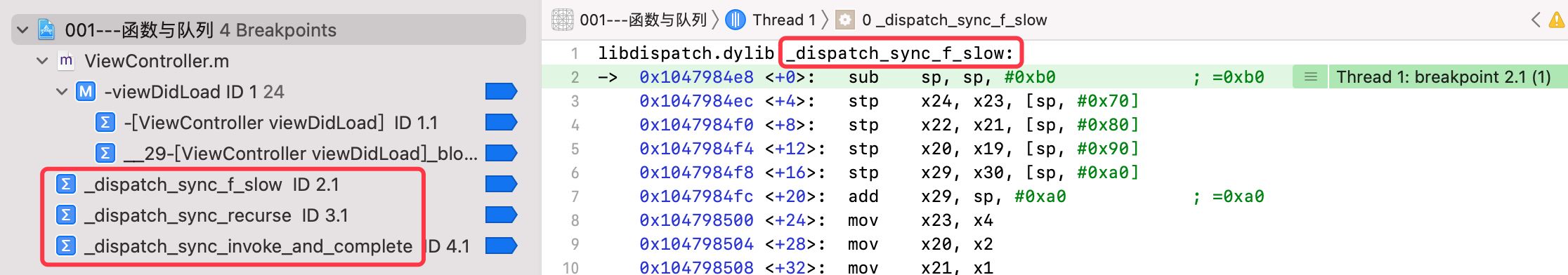

在项目中，将所有函数设置符号断点

进入_dispatch_sync_f_slow函数

进入_dispatch_sync_f_slow函数

DISPATCH_NOINLINE
static void
_dispatch_sync_f_slow(dispatch_queue_class_t top_dqu, void *ctxt,
        dispatch_function_t func, uintptr_t top_dc_flags,
        dispatch_queue_class_t dqu, uintptr_t dc_flags)
{
    dispatch_queue_t top_dq = top_dqu._dq;
    dispatch_queue_t dq = dqu._dq;
    if (unlikely(!dq->do_targetq)) {
        return _dispatch_sync_function_invoke(dq, ctxt, func);
    }
    pthread_priority_t pp = _dispatch_get_priority();
    struct dispatch_sync_context_s dsc = {
        .dc_flags    = DC_FLAG_SYNC_WAITER | dc_flags,
        .dc_func     = _dispatch_async_and_wait_invoke,
        .dc_ctxt     = &dsc,
        .dc_other    = top_dq,
        .dc_priority = pp | _PTHREAD_PRIORITY_ENFORCE_FLAG,
        .dc_voucher  = _voucher_get(),
        .dsc_func    = func,
        .dsc_ctxt    = ctxt,
        .dsc_waiter  = _dispatch_tid_self(),
    };
    _dispatch_trace_item_push(top_dq, &dsc);
    __DISPATCH_WAIT_FOR_QUEUE__(&dsc, dq);
    if (dsc.dsc_func == NULL) {
        // dsc_func being cleared means that the block ran on another thread ie.
        // case (2) as listed in _dispatch_async_and_wait_f_slow.
        dispatch_queue_t stop_dq = dsc.dc_other;
        return _dispatch_sync_complete_recurse(top_dq, stop_dq, top_dc_flags);
    }
    _dispatch_introspection_sync_begin(top_dq);
    _dispatch_trace_item_pop(top_dq, &dsc);
    _dispatch_sync_invoke_and_complete_recurse(top_dq, ctxt, func,top_dc_flags
            DISPATCH_TRACE_ARG(&dsc));
}

同样是复杂逻辑，继续使用符号断点

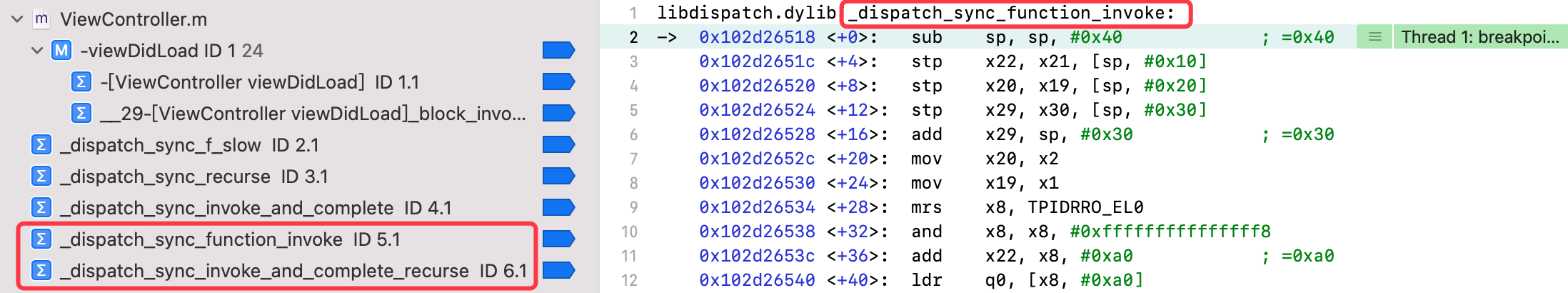

在项目中，将所有可能的条件分支，全部设置符号断点

进入_dispatch_sync_function_invoke函数

进入_dispatch_sync_function_invoke函数

DISPATCH_NOINLINE
static void
_dispatch_sync_function_invoke(dispatch_queue_class_t dq, void *ctxt,
        dispatch_function_t func)
{
    _dispatch_sync_function_invoke_inline(dq, ctxt, func);
}

进入_dispatch_sync_function_invoke_inline函数

static inline void
_dispatch_sync_function_invoke_inline(dispatch_queue_class_t dq, void *ctxt,
        dispatch_function_t func)
{
    dispatch_thread_frame_s dtf;
    _dispatch_thread_frame_push(&dtf, dq);
    _dispatch_client_callout(ctxt, func);
    _dispatch_perfmon_workitem_inc();
    _dispatch_thread_frame_pop(&dtf);
}

_dispatch_thread_frame_push：任务加入队列
_dispatch_client_callout：执行任务
_dispatch_thread_frame_pop：任务移除队列

进入_dispatch_client_callout函数

void
_dispatch_client_callout(void *ctxt, dispatch_function_t f)
{
    _dispatch_get_tsd_base();
    void *u = _dispatch_get_unwind_tsd();
    if (likely(!u)) return f(ctxt);
    _dispatch_set_unwind_tsd(NULL);
    f(ctxt);
    _dispatch_free_unwind_tsd();
    _dispatch_set_unwind_tsd(u);
}

调用f(ctxt)就是内部自动调用block任务的代码

通过lldb进行验证

和源码中的逻辑完全一致

同步函数顺序被执行，因为_dispatch_sync_function_invoke_inline中，三个函数的顺序调用：

_dispatch_thread_frame_push：任务加入队列
_dispatch_client_callout：执行任务
_dispatch_thread_frame_pop：任务移除队列

当同步函数加入串行队列，在_dispatch_sync_f_inline函数中，使用_dispatch_barrier_sync_f同步栅栏函数

5.2 并发队列

同步函数配合并发队列

dispatch_queue_t queue = dispatch_queue_create("cooci", DISPATCH_QUEUE_CONCURRENT);
dispatch_sync(queue, ^{
    NSLog(@"block---：%@",[NSThread currentThread]);
});

进入_dispatch_sync_f_inline函数，并发队列触发的代码分支和全局队列有所不同

进入_dispatch_sync_invoke_and_complete函数

static void
_dispatch_sync_invoke_and_complete(dispatch_lane_t dq, void *ctxt,
        dispatch_function_t func DISPATCH_TRACE_ARG(void *dc))
{
    _dispatch_sync_function_invoke_inline(dq, ctxt, func);
    _dispatch_trace_item_complete(dc);
    _dispatch_lane_non_barrier_complete(dq, 0);
}

最终调用的还是_dispatch_sync_function_invoke_inline函数

函数中的最后一个入参

dispatch_function_t func DISPATCH_TRACE_ARG(void *dc)
#define DISPATCH_TRACE_ARG(arg)
#define DISPATCH_TRACE_ARG(arg) , arg

将,和arg封装到一起，所以外部不用加额外的逗号

5.3 死锁

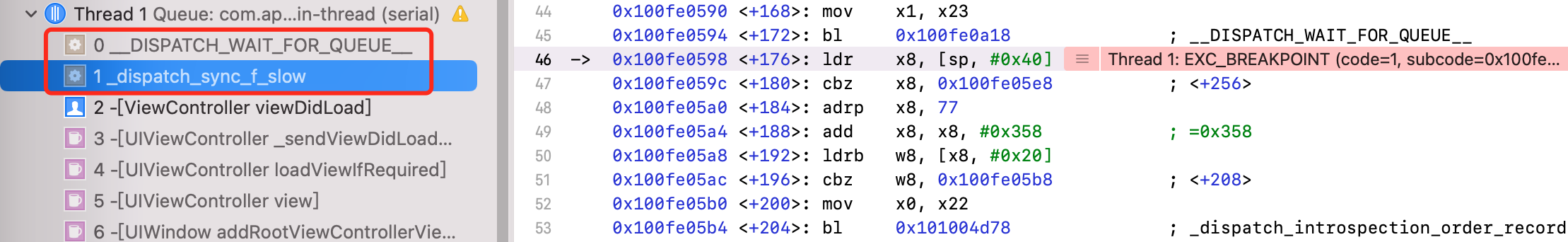

当出现死锁异常时，调用_dispatch_sync_f_slow函数
然后调用__DISPATCH_WAIT_FOR_QUEUE__，抛出异常

探索流程：dispatch_sync→_dispatch_sync_f→_dispatch_sync_f_inline→_dispatch_sync_f_inline

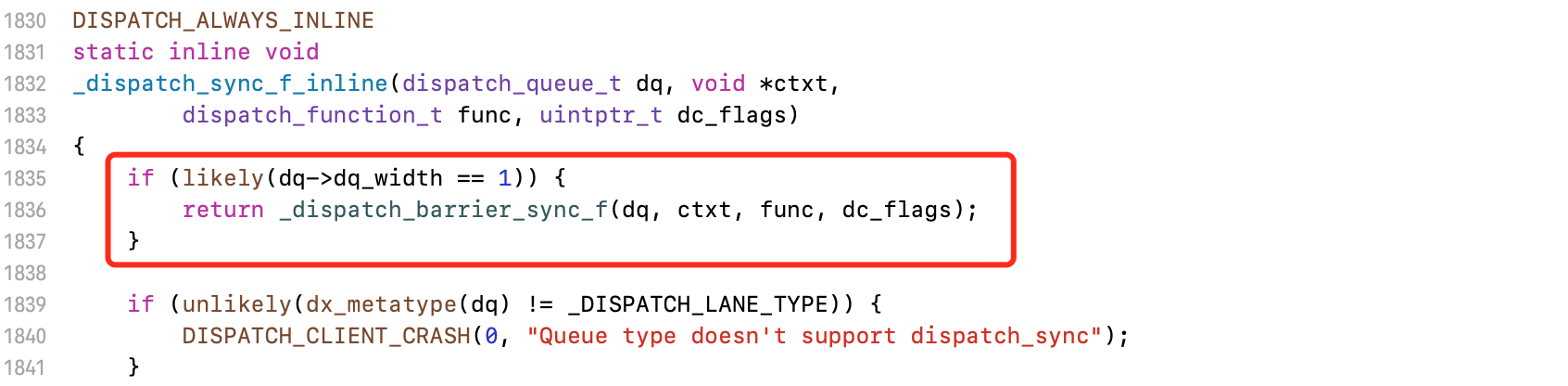

进入_dispatch_sync_f_inline函数

当前为同步函数，并且加入串行队列，调用_dispatch_barrier_sync_f函数
同步函数加入串行队列的底层，使用同步栅栏函数

进入_dispatch_barrier_sync_f函数

static void
_dispatch_barrier_sync_f(dispatch_queue_t dq, void *ctxt,
        dispatch_function_t func, uintptr_t dc_flags)
{
    _dispatch_barrier_sync_f_inline(dq, ctxt, func, dc_flags);
}

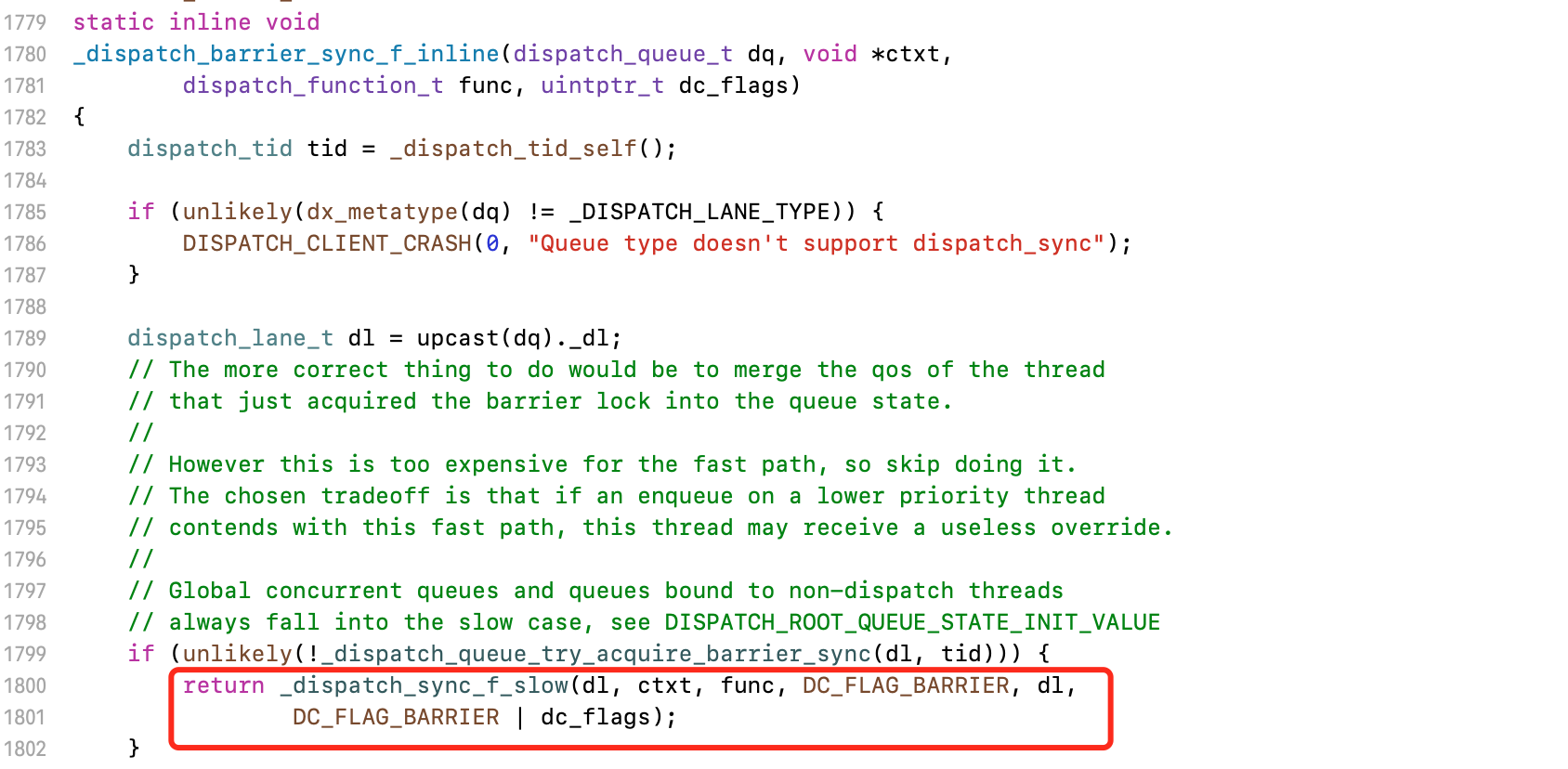

进入_dispatch_barrier_sync_f_inline函数

出现死锁异常时，已知的_dispatch_sync_f_slow函数

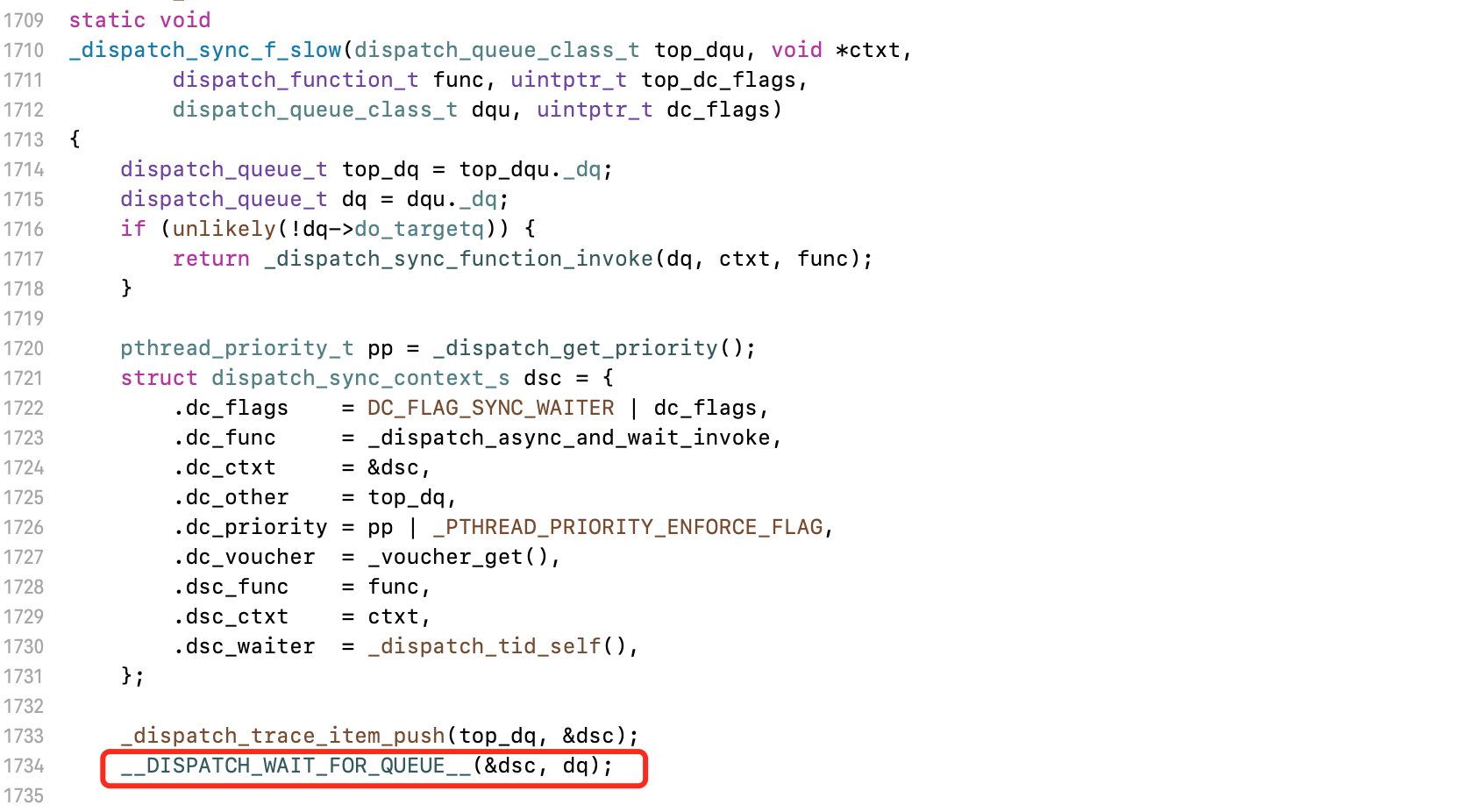

进入_dispatch_sync_f_slow函数

内部调用__DISPATCH_WAIT_FOR_QUEUE__抛出异常

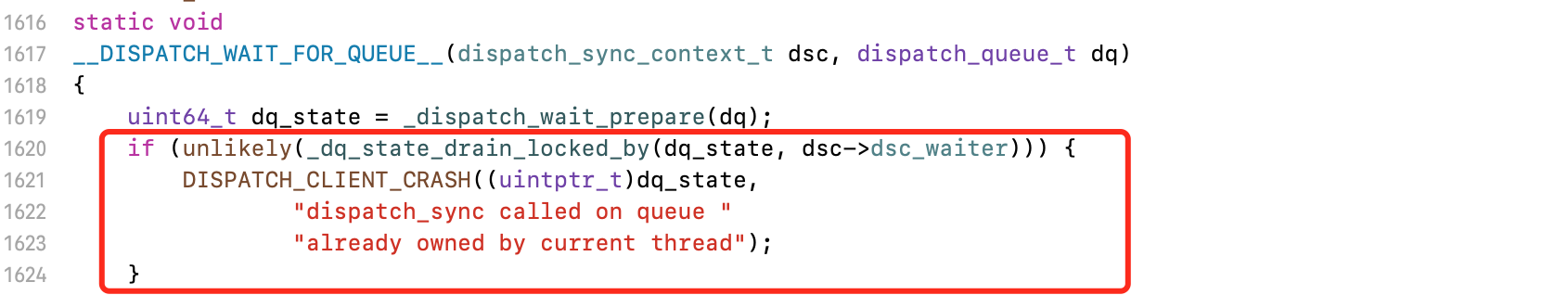

进入__DISPATCH_WAIT_FOR_QUEUE__函数

当_dq_state_drain_locked_by函数返回真，抛出异常
传入两个参数，dq_state为队列状态，dsc_waiter为线程的tid

进入_dq_state_drain_locked_by函数

static inline bool
_dq_state_drain_locked_by(uint64_t dq_state, dispatch_tid tid)
{
    return _dispatch_lock_is_locked_by((dispatch_lock)dq_state, tid);
}

进入_dispatch_lock_is_locked_by函数

static inline bool
_dispatch_lock_is_locked_by(dispatch_lock lock_value, dispatch_tid tid)
{
    // equivalent to _dispatch_lock_owner(lock_value) == tid
    return ((lock_value ^ tid) & DLOCK_OWNER_MASK) == 0;
}

找到判断依据

找到DLOCK_OWNER_MASK定义

#define DLOCK_OWNER_MASK            ((dispatch_lock)0xfffffffc)

DLOCK_OWNER_MASK定位为很大值，只要一个非零的值和它进行&运算，结果一定不为领
lock_value和tid进行按位异或，它们运算结果为零只有一种可能，就是二者的值相同

当同步函数加入到串行队列中，同一线程在等待时又被执行，就会形成相互等待的局面，造成死锁的异常

6. 异步函数

在libdispatch源码中，找到dispatch_async函数的实现

void
dispatch_async(dispatch_queue_t dq, dispatch_block_t work)
{
    dispatch_continuation_t dc = _dispatch_continuation_alloc();
    uintptr_t dc_flags = DC_FLAG_CONSUME;
    dispatch_qos_t qos;
    qos = _dispatch_continuation_init(dc, dq, work, 0, dc_flags);
    _dispatch_continuation_async(dq, dc, qos, dc->dc_flags);
}

将任务封装成dispatch_qos_t类型的qos
调用_dispatch_continuation_async函数

6.1 任务和优先级的封装

进入_dispatch_continuation_init函数

static inline dispatch_qos_t
_dispatch_continuation_init(dispatch_continuation_t dc,
        dispatch_queue_class_t dqu, dispatch_block_t work,
        dispatch_block_flags_t flags, uintptr_t dc_flags)
{
    void *ctxt = _dispatch_Block_copy(work);
    dc_flags |= DC_FLAG_BLOCK | DC_FLAG_ALLOCATED;
    if (unlikely(_dispatch_block_has_private_data(work))) {
        dc->dc_flags = dc_flags;
        dc->dc_ctxt = ctxt;
        // will initialize all fields but requires dc_flags & dc_ctxt to be set
        return _dispatch_continuation_init_slow(dc, dqu, flags);
    }
    dispatch_function_t func = _dispatch_Block_invoke(work);
    if (dc_flags & DC_FLAG_CONSUME) {
        func = _dispatch_call_block_and_release;
    }
    return _dispatch_continuation_init_f(dc, dqu, ctxt, func, flags, dc_flags);
}

进入_dispatch_continuation_init_f函数

static inline dispatch_qos_t
_dispatch_continuation_init_f(dispatch_continuation_t dc,
        dispatch_queue_class_t dqu, void *ctxt, dispatch_function_t f,
        dispatch_block_flags_t flags, uintptr_t dc_flags)
{
    pthread_priority_t pp = 0;
    dc->dc_flags = dc_flags | DC_FLAG_ALLOCATED;
    dc->dc_func = f;
    dc->dc_ctxt = ctxt;
    // in this context DISPATCH_BLOCK_HAS_PRIORITY means that the priority
    // should not be propagated, only taken from the handler if it has one
    if (!(flags & DISPATCH_BLOCK_HAS_PRIORITY)) {
        pp = _dispatch_priority_propagate();
    }
    _dispatch_continuation_voucher_set(dc, flags);
    return _dispatch_continuation_priority_set(dc, dqu, pp, flags);
}

对block任务进行封装

进入_dispatch_continuation_priority_set函数

static inline dispatch_qos_t
_dispatch_continuation_priority_set(dispatch_continuation_t dc,
        dispatch_queue_class_t dqu,
        pthread_priority_t pp, dispatch_block_flags_t flags)
{
    dispatch_qos_t qos = DISPATCH_QOS_UNSPECIFIED;
#if HAVE_PTHREAD_WORKQUEUE_QOS
    dispatch_queue_t dq = dqu._dq;
    if (likely(pp)) {
        bool enforce = (flags & DISPATCH_BLOCK_ENFORCE_QOS_CLASS);
        bool is_floor = (dq->dq_priority & DISPATCH_PRIORITY_FLAG_FLOOR);
        bool dq_has_qos = (dq->dq_priority & DISPATCH_PRIORITY_REQUESTED_MASK);
        if (enforce) {
            pp |= _PTHREAD_PRIORITY_ENFORCE_FLAG;
            qos = _dispatch_qos_from_pp_unsafe(pp);
        } else if (!is_floor && dq_has_qos) {
            pp = 0;
        } else {
            qos = _dispatch_qos_from_pp_unsafe(pp);
        }
    }
    dc->dc_priority = pp;
#else
    (void)dc; (void)dqu; (void)pp; (void)flags;
#endif
    return qos;
}

对任务优先级进行封装

异步函数的执行，优先级是衡量标准的其中一项。而且任务根据CPU的调度情况异步执行，所以一定是无序的，需要对其进行封装

6.2 并发队列

异步函数配合并发队列

dispatch_queue_t queue = dispatch_queue_create("cooci", DISPATCH_QUEUE_CONCURRENT);
dispatch_async(queue, ^{
    NSLog(@"block---：%@",[NSThread currentThread]);
});

进入_dispatch_continuation_async函数

static inline void
_dispatch_continuation_async(dispatch_queue_class_t dqu,
        dispatch_continuation_t dc, dispatch_qos_t qos, uintptr_t dc_flags)
{
#if DISPATCH_INTROSPECTION
    if (!(dc_flags & DC_FLAG_NO_INTROSPECTION)) {
        _dispatch_trace_item_push(dqu, dc);
    }
#else
    (void)dc_flags;
#endif
    return dx_push(dqu._dq, dc, qos);
}

找到dx_push的宏定义

#define dx_push(x, y, z) dx_vtable(x)->dq_push(x, y, z)

此时我们关注的是参数3的调用，可以暂时无视dx_vtable，继续跟踪dq_push
dq_push属于函数的赋值点，根据队列类型的不同赋值也不同

查看并发队列的赋值

DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_concurrent, lane,
    .do_type        = DISPATCH_QUEUE_CONCURRENT_TYPE,
    .do_dispose     = _dispatch_lane_dispose,
    .do_debug       = _dispatch_queue_debug,
    .do_invoke      = _dispatch_lane_invoke,
    .dq_activate    = _dispatch_lane_activate,
    .dq_wakeup      = _dispatch_lane_wakeup,
    .dq_push        = _dispatch_lane_concurrent_push,
);

进入_dispatch_lane_concurrent_push函数

void
_dispatch_lane_concurrent_push(dispatch_lane_t dq, dispatch_object_t dou,
        dispatch_qos_t qos)
{
    // <rdar://problem/24738102&24743140> reserving non barrier width
    // doesn't fail if only the ENQUEUED bit is set (unlike its barrier
    // width equivalent), so we have to check that this thread hasn't
    // enqueued anything ahead of this call or we can break ordering
    if (dq->dq_items_tail == NULL &&
            !_dispatch_object_is_waiter(dou) &&
            !_dispatch_object_is_barrier(dou) &&
            _dispatch_queue_try_acquire_async(dq)) {
        return _dispatch_continuation_redirect_push(dq, dou, qos);
    }
    _dispatch_lane_push(dq, dou, qos);
}

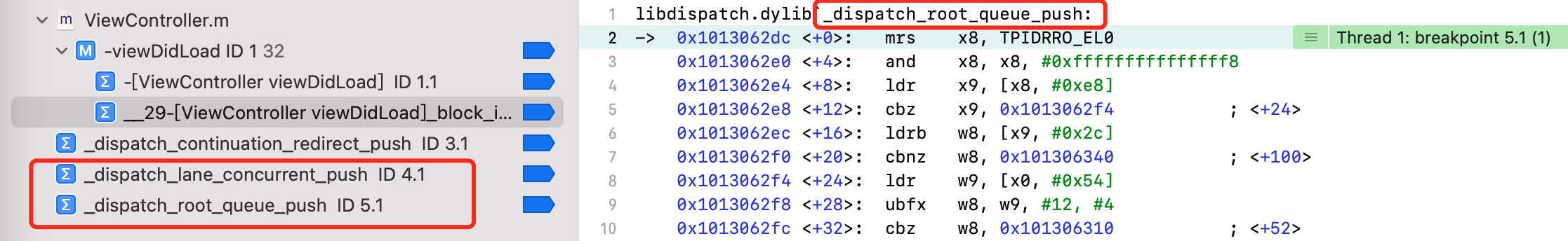

使用符号断点，先进入_dispatch_continuation_redirect_push函数

static void
_dispatch_continuation_redirect_push(dispatch_lane_t dl,
        dispatch_object_t dou, dispatch_qos_t qos)
{
    if (likely(!_dispatch_object_is_redirection(dou))) {
        dou._dc = _dispatch_async_redirect_wrap(dl, dou);
    } else if (!dou._dc->dc_ctxt) {
        // find first queue in descending target queue order that has
        // an autorelease frequency set, and use that as the frequency for
        // this continuation.
        dou._dc->dc_ctxt = (void *)
        (uintptr_t)_dispatch_queue_autorelease_frequency(dl);
    }
    dispatch_queue_t dq = dl->do_targetq;
    if (!qos) qos = _dispatch_priority_qos(dq->dq_priority);
    dx_push(dq, dou, qos);
}

再次调用dx_push，此时队列类型为queue_pthread_root，所以dx_push不是_dispatch_lane_concurrent_push函数，而是对应了_dispatch_root_queue_push函数，类似于调用了父类的方法

通过符号断点配合汇编代码查看流程：

_dispatch_root_queue_push→_dispatch_root_queue_push_override→_dispatch_root_queue_poke→_dispatch_root_queue_poke_slow

进入_dispatch_root_queue_poke_slow函数

static void
_dispatch_root_queue_poke_slow(dispatch_queue_global_t dq, int n, int floor)
{
    ...
    _dispatch_root_queues_init();
    ...
    do {
        _dispatch_retain(dq); // released in _dispatch_worker_thread
        while ((r = pthread_create(pthr, attr, _dispatch_worker_thread, dq))) {
            if (r != EAGAIN) {
                (void)dispatch_assume_zero(r);
            }
            _dispatch_temporary_resource_shortage();
        }
    } while (--remaining);
    ...
}

通过_dispatch_root_queues_init注册异步任务执行的回调
通过do...while循环创建线程，使用pthread_create函数

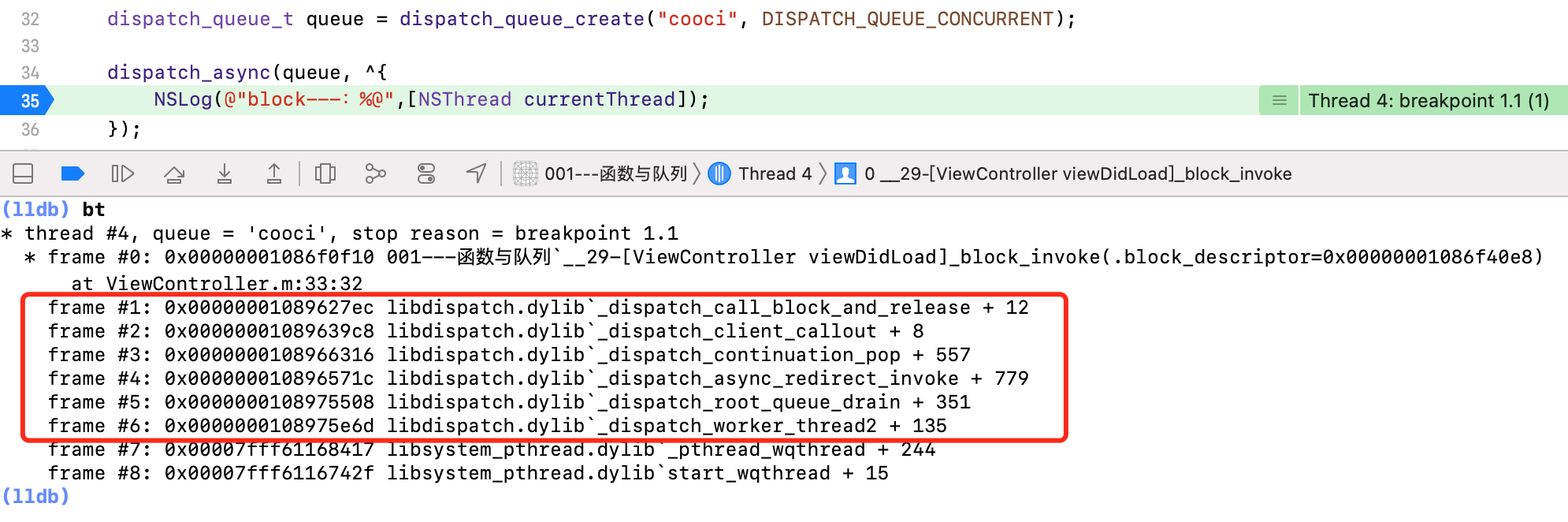

使用lldb进行反推

由系统的_pthread_wqthread调用libdispatch的_dispatch_worker_thread2函数

源码中正向推导流程：

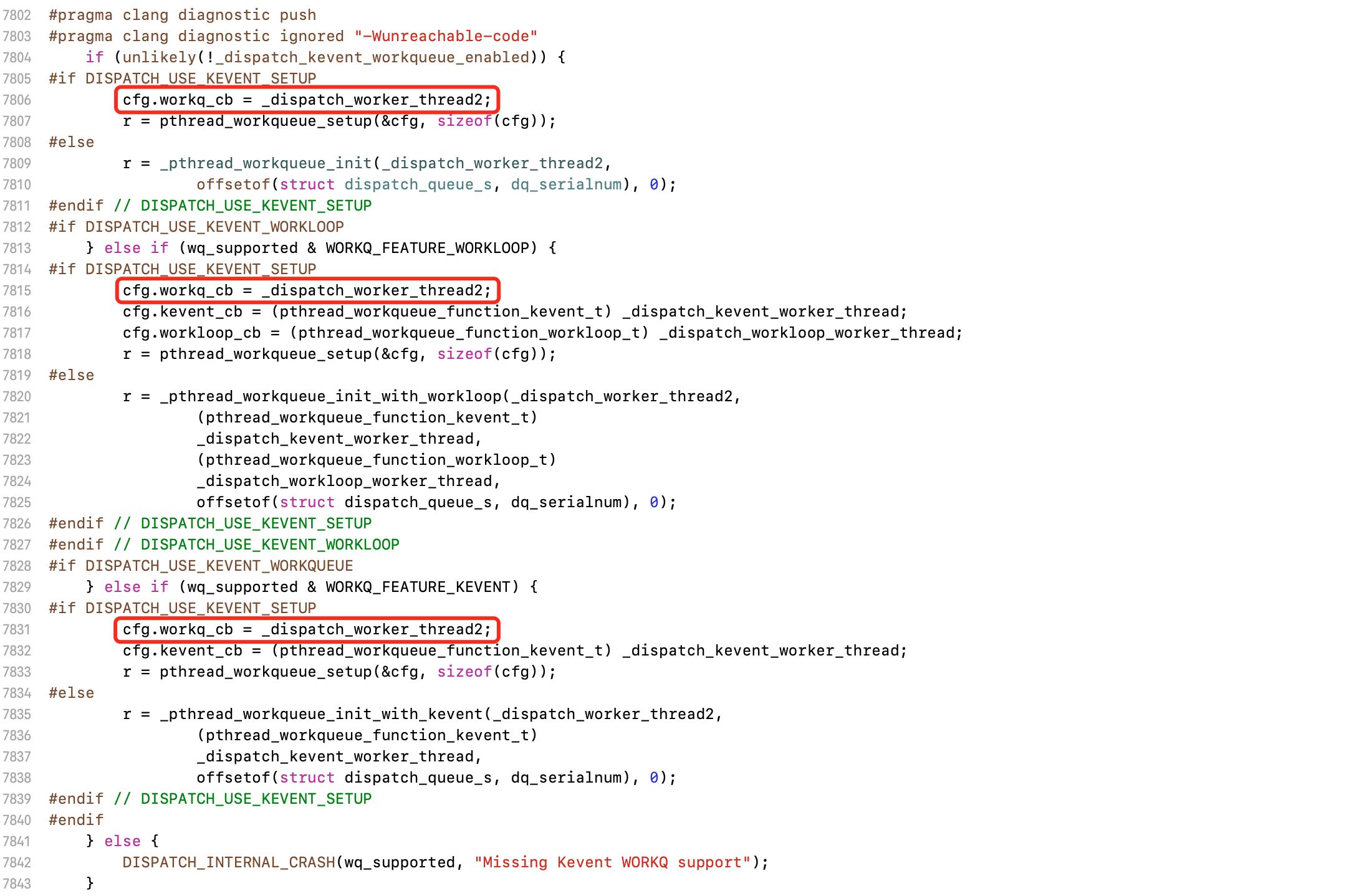

_dispatch_root_queues_init→_dispatch_root_queues_init_once→_dispatch_worker_thread2

对_dispatch_worker_thread2进行赋值，封装给pthread的API调用

异步线程被CPU调度，系统在合适的时机，通过libsystem_pthread.dylib的_pthread_wqthread函数，调用libdispatch.dylib的_dispatch_worker_thread2函数，最终执行异步函数的任务

异步任务回调流程：

_dispatch_worker_thread2→_dispatch_root_queue_drain→_dispatch_async_redirect_invoke→_dispatch_continuation_pop→_dispatch_client_callout→_dispatch_call_block_and_release

异步函数配合并发队列的逻辑：

首先对任务和优先级进行封装
多次调用dx_push，最终找到_dispatch_root_queue_push
通过_dispatch_root_queues_init注册异步任务执行的回调
通过do...while循环创建线程，使用pthread_create函数
异步线程被CPU调度，系统在合适的时机，通过libsystem_pthread.dylib调用_dispatch_worker_thread2函数，执行回调

6.3 全局队列

异步函数配全局队列

dispatch_queue_t queue = dispatch_get_global_queue(0, 0);
dispatch_async(queue, ^{
    NSLog(@"block---：%@",[NSThread currentThread]);
});

代码逻辑：dispatch_async→_dispatch_continuation_async→_dispatch_continuation_async→dx_push

此时调用的dx_push，和并发队列的赋值不同

DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_global, lane,
    .do_type        = DISPATCH_QUEUE_GLOBAL_ROOT_TYPE,
    .do_dispose     = _dispatch_object_no_dispose,
    .do_debug       = _dispatch_queue_debug,
    .do_invoke      = _dispatch_object_no_invoke,
    .dq_activate    = _dispatch_queue_no_activate,
    .dq_wakeup      = _dispatch_root_queue_wakeup,
    .dq_push        = _dispatch_root_queue_push,
);

进入_dispatch_root_queue_push函数流程：

_dispatch_root_queue_push→_dispatch_root_queue_push_override→_dispatch_root_queue_push_inline→_dispatch_root_queue_poke→_dispatch_root_queue_poke_slow

进入_dispatch_root_queue_poke_slow函数：

通过_dispatch_root_queues_init注册异步任务执行的回调
通过do...while循环创建线程，使用pthread_create函数

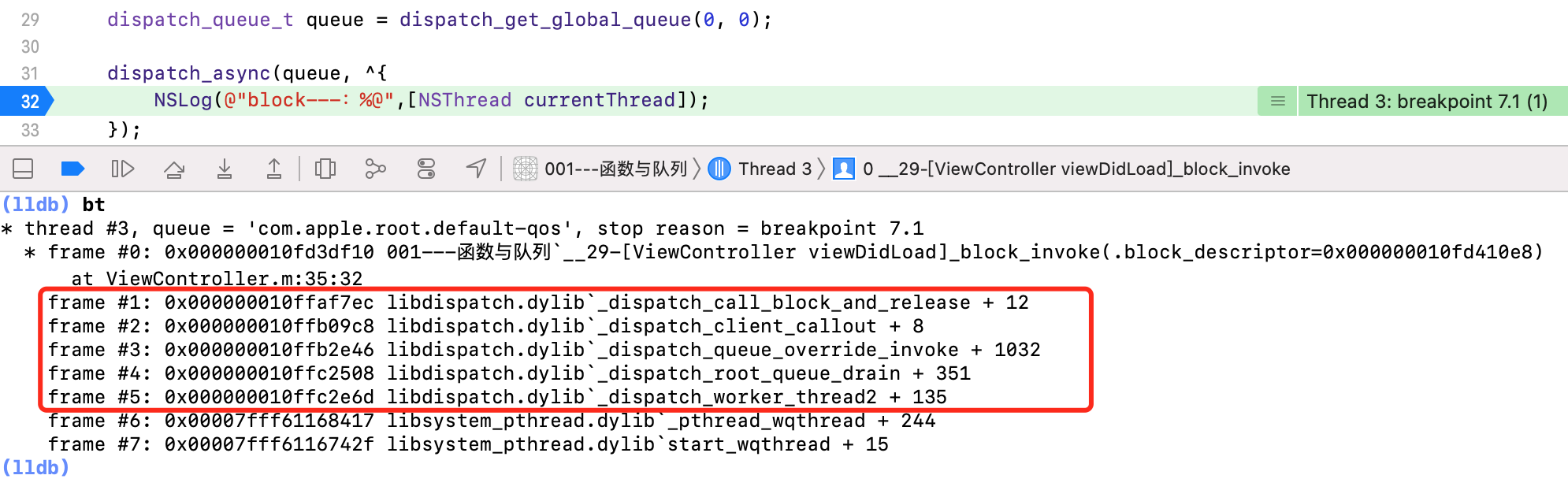

使用lldb进行反推

异步任务回调流程：

_dispatch_worker_thread2→_dispatch_root_queue_drain→_dispatch_queue_override_invoke→_dispatch_client_callout→_dispatch_call_block_and_release

7. 单例模式

static dispatch_once_t onceToken;
dispatch_once(&onceToken, ^{
    NSLog(@"block---：%@",[NSThread currentThread]);
});

来到源码，找到dispatch_once函数的实现

void
dispatch_once(dispatch_once_t *val, dispatch_block_t block)
{
    dispatch_once_f(val, block, _dispatch_Block_invoke(block));
}

进入dispatch_once_f函数

void
dispatch_once_f(dispatch_once_t *val, void *ctxt, dispatch_function_t func)
{
    dispatch_once_gate_t l = (dispatch_once_gate_t)val;
#if !DISPATCH_ONCE_INLINE_FASTPATH || DISPATCH_ONCE_USE_QUIESCENT_COUNTER
    uintptr_t v = os_atomic_load(&l->dgo_once, acquire);
    if (likely(v == DLOCK_ONCE_DONE)) {
        return;
    }
#if DISPATCH_ONCE_USE_QUIESCENT_COUNTER
    if (likely(DISPATCH_ONCE_IS_GEN(v))) {
        return _dispatch_once_mark_done_if_quiesced(l, v);
    }
#endif
#endif
    if (_dispatch_once_gate_tryenter(l)) {
        return _dispatch_once_callout(l, ctxt, func);
    }
    return _dispatch_once_wait(l);
}

将val强转为dispatch_once_gate_t类型，类似于栅栏的使用

三个条件分支：

如果执行完成，直接返回
如果第一次，执行_dispatch_once_callout函数
如果正在执行，进入_dispatch_once_wait等待

7.1 锁的处理

进入_dispatch_once_gate_tryenter函数

static inline bool
_dispatch_once_gate_tryenter(dispatch_once_gate_t l)
{
    return os_atomic_cmpxchg(&l->dgo_once, DLOCK_ONCE_UNLOCKED,
            (uintptr_t)_dispatch_lock_value_for_self(), relaxed);
}

进行原子锁的处理，防止多线程

7.2 执行任务

进入_dispatch_once_callout函数

static void
_dispatch_once_callout(dispatch_once_gate_t l, void *ctxt,
        dispatch_function_t func)
{
    _dispatch_client_callout(ctxt, func);
    _dispatch_once_gate_broadcast(l);
}
void
_dispatch_client_callout(void *ctxt, dispatch_function_t f)
{
    _dispatch_get_tsd_base();
    void *u = _dispatch_get_unwind_tsd();
    if (likely(!u)) return f(ctxt);
    _dispatch_set_unwind_tsd(NULL);
    f(ctxt);
    _dispatch_free_unwind_tsd();
    _dispatch_set_unwind_tsd(u);
}

通过f(ctxt)执行任务的回调

进入_dispatch_once_gate_broadcast函数

static inline void
_dispatch_once_gate_broadcast(dispatch_once_gate_t l)
{
    dispatch_lock value_self = _dispatch_lock_value_for_self();
    uintptr_t v;
#if DISPATCH_ONCE_USE_QUIESCENT_COUNTER
    v = _dispatch_once_mark_quiescing(l);
#else
    v = _dispatch_once_mark_done(l);
#endif
    if (likely((dispatch_lock)v == value_self)) return;
    _dispatch_gate_broadcast_slow(&l->dgo_gate, (dispatch_lock)v);
}

锁的处理，并标记为完成

单例模式的原理：

调用dispatch_once函数，传入onceToken和block。其中onceToken为静态变量，具有唯一性，在底层被强转为dispatch_once_gate_t类型的变量l，l通过os_atomic_load函数获取底层原子封装性的关联，得到变量v，通过v来查询任务的状态，如果此时v等于DLOCK_ONCE_DONE，说明任务已经处理过一次了，直接return
如果任务首次执行，将任务进行加锁，任务状态置为DLOCK_ONCE_UNLOCK，目的保证线程安全。加锁后进行block回调函数的执行，执行完成后，将当前任务解锁，将当前的任务状态置为DLOCK_ONCE_DONE，在下次进来时，就不会在执行，会直接返回
如果在当前任务执行期间，有其他任务进来，会进入无限次等待，原因是当前任务已经获取了锁，进行了加锁，其他任务是无法获取锁的

8. 线程池

8.1 创建线程

异步函数在_dispatch_root_queue_poke_slow中，如果是全局队列，使用_pthread_workqueue_addthreads函数创建并执行

#if !DISPATCH_USE_INTERNAL_WORKQUEUE
#if DISPATCH_USE_PTHREAD_ROOT_QUEUES
    if (dx_type(dq) == DISPATCH_QUEUE_GLOBAL_ROOT_TYPE)
#endif
    {
        _dispatch_root_queue_debug("requesting new worker thread for global "
                "queue: %p", dq);
        r = _pthread_workqueue_addthreads(remaining,
                _dispatch_priority_to_pp_prefer_fallback(dq->dq_priority));
        (void)dispatch_assume_zero(r);
        return;
    }
#endif // !DISPATCH_USE_INTERNAL_WORKQUEUE

如果是普通队列，使用do...while进行线程池的创建，在创建之前，还要对线程池的状态进行判断

int can_request, t_count;
// seq_cst with atomic store to tail <rdar://problem/16932833>
t_count = os_atomic_load2o(dq, dgq_thread_pool_size, ordered);
do {
    can_request = t_count < floor ? 0 : t_count - floor;
    if (remaining > can_request) {
        _dispatch_root_queue_debug("pthread pool reducing request from %d to %d",
                remaining, can_request);
        os_atomic_sub2o(dq, dgq_pending, remaining - can_request, relaxed);
        remaining = can_request;
    }
    if (remaining == 0) {
        _dispatch_root_queue_debug("pthread pool is full for root queue: "
                "%p", dq);
        return;
    }
} while (!os_atomic_cmpxchgv2o(dq, dgq_thread_pool_size, t_count,
        t_count - remaining, &t_count, acquire));

判断dgq_thread_pool_size，源码中标记为1
dgq_thread_pool_size会根据逻辑自增，加到最大值为止
remaining和floor为入参，传入1和0
计算can_request线程数，如果t_count小于floor返回0，否则返回t_count减去floor的差值
如果remaining线程数大于can_request，pthread线程池减少请求，以can_request线程数为准
如果remaining为0，表示根队列的pthread线程池已满

使用pthread_create函数，创建线程

do {
    _dispatch_retain(dq); // released in _dispatch_worker_thread
    while ((r = pthread_create(pthr, attr, _dispatch_worker_thread, dq))) {
        if (r != EAGAIN) {
            (void)dispatch_assume_zero(r);
        }
        _dispatch_temporary_resource_shortage();
    }
} while (--remaining);

8.2 最大线程数

线程池最大线程数的设定

int thread_pool_size = DISPATCH_WORKQ_MAX_PTHREAD_COUNT;
#define DISPATCH_WORKQ_MAX_PTHREAD_COUNT 255

最大线程数设置255，但实际程序中开辟的线程数，不一定能达到这个最大值

官方文档中，辅助线程为512KB，辅助线程允许的最小堆栈大小为16KB，并且堆栈大小必须是4KB 的倍数

程序启动，系统给出的虚拟内存4GB，用户态占3GB，内核态占1GB。但内核态的1GB并不能全部用来开辟线程，所以最大线程数是未知的

    do {
        _dispatch_retain(dq); // released in _dispatch_worker_thread
#if DISPATCH_DEBUG
        unsigned dwStackSize = 0;
#else
        unsigned dwStackSize = 64 * 1024;
#endif
        uintptr_t hThread = 0;
        while (!(hThread = _beginthreadex(NULL, dwStackSize, _dispatch_worker_thread_thunk, dq, STACK_SIZE_PARAM_IS_A_RESERVATION, NULL))) {
            if (errno != EAGAIN) {
                (void)dispatch_assume(hThread);
            }
            _dispatch_temporary_resource_shortage();
        }
#if DISPATCH_USE_PTHREAD_ROOT_QUEUES
        if (_dispatch_mgr_sched.prio > _dispatch_mgr_sched.default_prio) {
            (void)dispatch_assume_zero(SetThreadPriority((HANDLE)hThread, _dispatch_mgr_sched.prio) == TRUE);
        }
#endif
        CloseHandle((HANDLE)hThread);
    } while (--remaining);

按照内核态1GB满载，最小堆栈大小为16KB计算，最大线程数可开辟64 * 1024。按照辅助线程512KB计算，最大线程数可开辟2048

9. 栅栏函数

iOS中有两种栅栏函数，都是用于控制任务的执⾏顺序

dispatch_barrier_async：异步栅栏函数，前面的任务执行完毕才会来到这里
dispatch_barrier_sync：同步栅栏函数，和异步栅栏函数的作用相同，但是同步栅栏函数会堵塞线程，影响后面的任务执行

使用栅栏函数的注意事项：

栅栏函数只能控制同一并发队列
同步栅栏函数添加队列，当前线程会被锁死，直到栅栏之前的任务和栅栏本身的任务执行完毕，当前线程才会继续执行
全局并发队列不支持栅栏函数，因为可能会干扰系统级的任务执行
如果是串行队列，使用栅栏函数的作用等同于一个同步函数，没有任何意义

栅栏函数还可用于线程安全，类似于锁的作用

dispatch_queue_t concurrentQueue = dispatch_queue_create("cooci", DISPATCH_QUEUE_CONCURRENT);
for (int i = 0; i<10000; i++) {
    dispatch_async(concurrentQueue, ^{
        dispatch_barrier_async(concurrentQueue, ^{
            [self.mArray addObject:[NSString stringWithFormat:@"%d",i]];
        });
//        @synchronized (self) {
//            [self.mArray addObject:[NSString stringWithFormat:@"%d",i]];
//        }
    });
}

此案例，如果不加栅栏函数，也不加互斥锁，使用并发队列多线程对同一数组进行addObject，很有可能会发生崩溃
因为数据的写入，本质是对旧值的release，对新值的retain
当数据不断release和retain时，多线程会造成数据还没有retain完毕，就开始进行release，相当于加入空数据，进行release

9.1 同步栅栏函数分析

源码中，找到dispatch_barrier_sync函数的实现

void
dispatch_barrier_sync(dispatch_queue_t dq, dispatch_block_t work)
{
    uintptr_t dc_flags = DC_FLAG_BARRIER | DC_FLAG_BLOCK;
    if (unlikely(_dispatch_block_has_private_data(work))) {
        return _dispatch_sync_block_with_privdata(dq, work, dc_flags);
    }
    _dispatch_barrier_sync_f(dq, work, _dispatch_Block_invoke(work), dc_flags);
}}

_dispatch_barrier_sync_f→_dispatch_barrier_sync_f_inline

static inline void
_dispatch_barrier_sync_f_inline(dispatch_queue_t dq, void *ctxt,
        dispatch_function_t func, uintptr_t dc_flags)
{
    dispatch_tid tid = _dispatch_tid_self();
    if (unlikely(dx_metatype(dq) != _DISPATCH_LANE_TYPE)) {
        DISPATCH_CLIENT_CRASH(0, "Queue type doesn't support dispatch_sync");
    }
    dispatch_lane_t dl = upcast(dq)._dl;
    // The more correct thing to do would be to merge the qos of the thread
    // that just acquired the barrier lock into the queue state.
    //
    // However this is too expensive for the fast path, so skip doing it.
    // The chosen tradeoff is that if an enqueue on a lower priority thread
    // contends with this fast path, this thread may receive a useless override.
    //
    // Global concurrent queues and queues bound to non-dispatch threads
    // always fall into the slow case, see DISPATCH_ROOT_QUEUE_STATE_INIT_VALUE
    if (unlikely(!_dispatch_queue_try_acquire_barrier_sync(dl, tid))) {
        return _dispatch_sync_f_slow(dl, ctxt, func, DC_FLAG_BARRIER, dl,
                DC_FLAG_BARRIER | dc_flags);
    }
    if (unlikely(dl->do_targetq->do_targetq)) {
        return _dispatch_sync_recurse(dl, ctxt, func,
                DC_FLAG_BARRIER | dc_flags);
    }
    _dispatch_introspection_sync_begin(dl);
    _dispatch_lane_barrier_sync_invoke_and_complete(dl, ctxt, func
            DISPATCH_TRACE_ARG(_dispatch_trace_item_sync_push_pop(
                    dq, ctxt, func, dc_flags | DC_FLAG_BARRIER)));
}

逻辑中存在进入_dispatch_sync_f_slow函数的代码，证明同步栅栏函数也可能出现死锁的情况

_dispatch_sync_recurse→_dispatch_sync_invoke_and_complete_recurse→_dispatch_sync_complete_recurse

static void
_dispatch_sync_complete_recurse(dispatch_queue_t dq, dispatch_queue_t stop_dq,
        uintptr_t dc_flags)
{
    bool barrier = (dc_flags & DC_FLAG_BARRIER);
    do {
        if (dq == stop_dq) return;
        if (barrier) {
            dx_wakeup(dq, 0, DISPATCH_WAKEUP_BARRIER_COMPLETE);
        } else {
            _dispatch_lane_non_barrier_complete(upcast(dq)._dl, 0);
        }
        dq = dq->do_targetq;
        barrier = (dq->dq_width == 1);
    } while (unlikely(dq->do_targetq));
}

判断targetq，存在栅栏调用dx_wakeup等待
否则，调用_dispatch_lane_non_barrier_complete函数

并发队列的dx_wakeup实现

DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_concurrent, lane,
    .do_type        = DISPATCH_QUEUE_CONCURRENT_TYPE,
    .do_dispose     = _dispatch_lane_dispose,
    .do_debug       = _dispatch_queue_debug,
    .do_invoke      = _dispatch_lane_invoke,
    .dq_activate    = _dispatch_lane_activate,
    .dq_wakeup      = _dispatch_lane_wakeup,
    .dq_push        = _dispatch_lane_concurrent_push,
);

进入_dispatch_lane_wakeup函数

void
_dispatch_lane_wakeup(dispatch_lane_class_t dqu, dispatch_qos_t qos,
        dispatch_wakeup_flags_t flags)
{
    dispatch_queue_wakeup_target_t target = DISPATCH_QUEUE_WAKEUP_NONE;
    if (unlikely(flags & DISPATCH_WAKEUP_BARRIER_COMPLETE)) {
        return _dispatch_lane_barrier_complete(dqu, qos, flags);
    }
    if (_dispatch_queue_class_probe(dqu)) {
        target = DISPATCH_QUEUE_WAKEUP_TARGET;
    }
    return _dispatch_queue_wakeup(dqu, qos, flags, target);
}

针对栅栏函数进行判断，进入_dispatch_lane_barrier_complete函数

进入_dispatch_lane_barrier_complete函数

static void
_dispatch_lane_barrier_complete(dispatch_lane_class_t dqu, dispatch_qos_t qos,
        dispatch_wakeup_flags_t flags)
{
    dispatch_queue_wakeup_target_t target = DISPATCH_QUEUE_WAKEUP_NONE;
    dispatch_lane_t dq = dqu._dl;
    if (dq->dq_items_tail && !DISPATCH_QUEUE_IS_SUSPENDED(dq)) {
        struct dispatch_object_s *dc = _dispatch_queue_get_head(dq);
        if (likely(dq->dq_width == 1 || _dispatch_object_is_barrier(dc))) {
            if (_dispatch_object_is_waiter(dc)) {
                return _dispatch_lane_drain_barrier_waiter(dq, dc, flags, 0);
            }
        } else if (dq->dq_width > 1 && !_dispatch_object_is_barrier(dc)) {
            return _dispatch_lane_drain_non_barriers(dq, dc, flags);
        }
        if (!(flags & DISPATCH_WAKEUP_CONSUME_2)) {
            _dispatch_retain_2(dq);
            flags |= DISPATCH_WAKEUP_CONSUME_2;
        }
        target = DISPATCH_QUEUE_WAKEUP_TARGET;
    }
    uint64_t owned = DISPATCH_QUEUE_IN_BARRIER +
            dq->dq_width * DISPATCH_QUEUE_WIDTH_INTERVAL;
    return _dispatch_lane_class_barrier_complete(dq, qos, flags, target, owned);
}

如果是串行队列，栅栏相当于同步函数，调用_dispatch_lane_drain_barrier_waiter函数
如果是并发队列，调用_dispatch_lane_drain_non_barriers函数，进行栅栏相关处理
栅栏之前的任务全部完成，调用_dispatch_lane_class_barrier_complete函数

9.2 全局队列中的栅栏函数

全局队列的dx_wakeup实现

DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_global, lane,
    .do_type        = DISPATCH_QUEUE_GLOBAL_ROOT_TYPE,
    .do_dispose     = _dispatch_object_no_dispose,
    .do_debug       = _dispatch_queue_debug,
    .do_invoke      = _dispatch_object_no_invoke,
    .dq_activate    = _dispatch_queue_no_activate,
    .dq_wakeup      = _dispatch_root_queue_wakeup,
    .dq_push        = _dispatch_root_queue_push,
);

进入_dispatch_root_queue_wakeup函数

void
_dispatch_root_queue_wakeup(dispatch_queue_global_t dq,
        DISPATCH_UNUSED dispatch_qos_t qos, dispatch_wakeup_flags_t flags)
{
    if (!(flags & DISPATCH_WAKEUP_BLOCK_WAIT)) {
        DISPATCH_INTERNAL_CRASH(dq->dq_priority,
                "Don't try to wake up or override a root queue");
    }
    if (flags & DISPATCH_WAKEUP_CONSUME_2) {
        return _dispatch_release_2_tailcall(dq);
    }
}

全局队列中，没有对栅栏函数的任何判断和处理。所以，栅栏函数在全局队列中，和普通的同步或异步函数别无二致

10. 信号量

信号量可以让异步任务同步执行，可以当锁使用，并且能够控制GCD最大并发数

dispatch_semaphore_t sem = dispatch_semaphore_create(0);
for (int i = 0; i < 10; i++) {
    dispatch_async(queue, ^{
        sleep(1);
        NSLog(@"当前 - %d， 线程 - %@", i, [NSThread currentThread]);
        dispatch_semaphore_signal(sem);
    });
    dispatch_semaphore_wait(sem, DISPATCH_TIME_FOREVER);
}

dispatch_semaphore_create：初始化信号量，设置GCD最大并发数，必须>= 0
dispatch_semaphore_wait：等待，对信号量减1，相当于加锁
dispatch_semaphore_signal：释放，对信号量加1，相当于解锁

10.1 创建

进入dispatch_semaphore_create函数

dispatch_semaphore_t
dispatch_semaphore_create(intptr_t value)
{
    dispatch_semaphore_t dsema;
    // If the internal value is negative, then the absolute of the value is
    // equal to the number of waiting threads. Therefore it is bogus to
    // initialize the semaphore with a negative value.
    if (value < 0) {
        return DISPATCH_BAD_INPUT;
    }
    dsema = _dispatch_object_alloc(DISPATCH_VTABLE(semaphore),
            sizeof(struct dispatch_semaphore_s));
    dsema->do_next = DISPATCH_OBJECT_LISTLESS;
    dsema->do_targetq = _dispatch_get_default_queue(false);
    dsema->dsema_value = value;
    _dispatch_sema4_init(&dsema->dsema_sema, _DSEMA4_POLICY_FIFO);
    dsema->dsema_orig = value;
    return dsema;
}

初始化信号量，设置GCD最大并发数
最大并发数必须>= 0

10.2 等待

进入dispatch_semaphore_wait函数

intptr_t
dispatch_semaphore_wait(dispatch_semaphore_t dsema, dispatch_time_t timeout)
{
    long value = os_atomic_dec2o(dsema, dsema_value, acquire);
    if (likely(value >= 0)) {
        return 0;
    }
    return _dispatch_semaphore_wait_slow(dsema, timeout);
}

os_atomic_dec2o宏，进行减1操作
若信号量>= 0，直接返回0，执行wait之后的代码
若信号量< 0，将阻塞当前线程，进入_dispatch_semaphore_wait_slow函数

进入_dispatch_semaphore_wait_slow函数

static intptr_t
_dispatch_semaphore_wait_slow(dispatch_semaphore_t dsema,
        dispatch_time_t timeout)
{
    long orig;
    _dispatch_sema4_create(&dsema->dsema_sema, _DSEMA4_POLICY_FIFO);
    switch (timeout) {
    default:
        if (!_dispatch_sema4_timedwait(&dsema->dsema_sema, timeout)) {
            break;
        }
        // Fall through and try to undo what the fast path did to
        // dsema->dsema_value
    case DISPATCH_TIME_NOW:
        orig = dsema->dsema_value;
        while (orig < 0) {
            if (os_atomic_cmpxchgv2o(dsema, dsema_value, orig, orig + 1,
                    &orig, relaxed)) {
                return _DSEMA4_TIMEOUT();
            }
        }
        // Another thread called semaphore_signal().
        // Fall through and drain the wakeup.
    case DISPATCH_TIME_FOREVER:
        _dispatch_sema4_wait(&dsema->dsema_sema);
        break;
    }
    return 0;
}

根据timeout的值进行不同的逻辑处理

如果为DISPATCH_TIME_FOREVER类型，进入_dispatch_sema4_wait函数

void
_dispatch_sema4_wait(_dispatch_sema4_t *sema)
{
    int ret = 0;
    do {
        ret = sem_wait(sema);
    } while (ret == -1 && errno == EINTR);
    DISPATCH_SEMAPHORE_VERIFY_RET(ret);
}

核心代码为do...while，通过循环使得下面的代码无法执行

10.3 释放

进入dispatch_semaphore_signal函数

intptr_t
dispatch_semaphore_signal(dispatch_semaphore_t dsema)
{
    long value = os_atomic_inc2o(dsema, dsema_value, release);
    if (likely(value > 0)) {
        return 0;
    }
    if (unlikely(value == LONG_MIN)) {
        DISPATCH_CLIENT_CRASH(value,
                "Unbalanced call to dispatch_semaphore_signal()");
    }
    return _dispatch_semaphore_signal_slow(dsema);
}

os_atomic_inc2o宏，进行加1操作
若信号量> 0，直接返回0，继续执行后续代码
若信号量等于LONG_MIN，抛出异常。这种情况表示wait操作过多，二者之间无法匹配。之后会调用_dispatch_semaphore_signal_slow函数，进入延迟等待

11. 调度组

调度组最直接的作⽤：控制任务执⾏顺序

dispatch_group_create：创建组
dispatch_group_async：进组任务
dispatch_group_notify：进组任务执行完毕通知
dispatch_group_wait：进组任务执行等待时间
dispatch_group_enter：进组
dispatch_group_leave：出组

使用进组任务

- (void)testGCD{
    dispatch_group_t group = dispatch_group_create();
    dispatch_queue_t queue = dispatch_get_global_queue(0, 0);
    dispatch_group_async(group, queue, ^{
        NSLog(@"接口1");
    });
    dispatch_group_async(group, queue, ^{
        NSLog(@"接口2");
    });
    dispatch_group_notify(group, dispatch_get_main_queue(), ^{
        NSLog(@"刷新");
    });
}

使用进组、出组

- (void)testGCD{
    dispatch_group_t group = dispatch_group_create();
    dispatch_queue_t queue = dispatch_get_global_queue(0, 0);
    dispatch_group_enter(group);
    dispatch_async(queue, ^{
        NSLog(@"接口1");
        dispatch_group_leave(group);
    });
    dispatch_group_enter(group);
    dispatch_async(queue, ^{
        NSLog(@"接口2");
        dispatch_group_leave(group);
    });
    dispatch_group_notify(group, dispatch_get_main_queue(), ^{
        NSLog(@"刷新");
    });
}

dispatch_group_enter和dispatch_group_leave必须成对使用，否则会一直等待或出现异常

11.1 创建组

进入dispatch_group_create函数

dispatch_group_t
dispatch_group_create(void)
{
    return _dispatch_group_create_with_count(0);
}

进入_dispatch_group_create_with_count函数

static inline dispatch_group_t
_dispatch_group_create_with_count(uint32_t n)
{
    dispatch_group_t dg = _dispatch_object_alloc(DISPATCH_VTABLE(group),
            sizeof(struct dispatch_group_s));
    dg->do_next = DISPATCH_OBJECT_LISTLESS;
    dg->do_targetq = _dispatch_get_default_queue(false);
    if (n) {
        os_atomic_store2o(dg, dg_bits,
                (uint32_t)-n * DISPATCH_GROUP_VALUE_INTERVAL, relaxed);
        os_atomic_store2o(dg, do_ref_cnt, 1, relaxed); // <rdar://22318411>
    }
    return dg;
}

创建dispatch_group_t结构体，参数n默认传入0

11.2 进组

进入dispatch_group_enter函数

void
dispatch_group_enter(dispatch_group_t dg)
{
    // The value is decremented on a 32bits wide atomic so that the carry
    // for the 0 -> -1 transition is not propagated to the upper 32bits.
    uint32_t old_bits = os_atomic_sub_orig2o(dg, dg_bits,
            DISPATCH_GROUP_VALUE_INTERVAL, acquire);
    uint32_t old_value = old_bits & DISPATCH_GROUP_VALUE_MASK;
    if (unlikely(old_value == 0)) {
        _dispatch_retain(dg); // <rdar://problem/22318411>
    }
    if (unlikely(old_value == DISPATCH_GROUP_VALUE_MAX)) {
        DISPATCH_CLIENT_CRASH(old_bits,
                "Too many nested calls to dispatch_group_enter()");
    }
}

使用os_atomic_sub_orig2o宏，对dg_bits进行减1操作
old_bits只可能是-1和0两种可能
old_bits和DISPATCH_GROUP_VALUE_MASK进行&运算，将结果赋值给old_value
- 如果old_bits为0，old_value为0，调用_dispatch_retain函数
- 如果old_bits为-1，old_value为DISPATCH_GROUP_VALUE_MASK，表示进组和出组函数使用不平衡，报出异常

11.3 出组

进入dispatch_group_leave函数

void
dispatch_group_leave(dispatch_group_t dg)
{
    // The value is incremented on a 64bits wide atomic so that the carry for
    // the -1 -> 0 transition increments the generation atomically.
    uint64_t new_state, old_state = os_atomic_add_orig2o(dg, dg_state,
            DISPATCH_GROUP_VALUE_INTERVAL, release);
    uint32_t old_value = (uint32_t)(old_state & DISPATCH_GROUP_VALUE_MASK);
    if (unlikely(old_value == DISPATCH_GROUP_VALUE_1)) {
        old_state += DISPATCH_GROUP_VALUE_INTERVAL;
        do {
            new_state = old_state;
            if ((old_state & DISPATCH_GROUP_VALUE_MASK) == 0) {
                new_state &= ~DISPATCH_GROUP_HAS_WAITERS;
                new_state &= ~DISPATCH_GROUP_HAS_NOTIFS;
            } else {
                // If the group was entered again since the atomic_add above,
                // we can't clear the waiters bit anymore as we don't know for
                // which generation the waiters are for
                new_state &= ~DISPATCH_GROUP_HAS_NOTIFS;
            }
            if (old_state == new_state) break;
        } while (unlikely(!os_atomic_cmpxchgv2o(dg, dg_state,
                old_state, new_state, &old_state, relaxed)));
        return _dispatch_group_wake(dg, old_state, true);
    }
    if (unlikely(old_value == 0)) {
        DISPATCH_CLIENT_CRASH((uintptr_t)old_value,
                "Unbalanced call to dispatch_group_leave()");
    }
}

使用os_atomic_add_orig2o宏，进行加1操作
&运算后的旧值等于DISPATCH_GROUP_VALUE_1，等待do...while停止循环，调用_dispatch_group_wake函数
DISPATCH_GROUP_VALUE_1等同于DISPATCH_GROUP_VALUE_MASK
如果旧值为0，表示进组和出组函数使用不平衡，报出异常

进入_dispatch_group_wake函数

static void
_dispatch_group_wake(dispatch_group_t dg, uint64_t dg_state, bool needs_release)
{
    uint16_t refs = needs_release ? 1 : 0; // <rdar://problem/22318411>
    if (dg_state & DISPATCH_GROUP_HAS_NOTIFS) {
        dispatch_continuation_t dc, next_dc, tail;
        // Snapshot before anything is notified/woken <rdar://problem/8554546>
        dc = os_mpsc_capture_snapshot(os_mpsc(dg, dg_notify), &tail);
        do {
            dispatch_queue_t dsn_queue = (dispatch_queue_t)dc->dc_data;
            next_dc = os_mpsc_pop_snapshot_head(dc, tail, do_next);
            _dispatch_continuation_async(dsn_queue, dc,
                    _dispatch_qos_from_pp(dc->dc_priority), dc->dc_flags);
            _dispatch_release(dsn_queue);
        } while ((dc = next_dc));
        refs++;
    }
    if (dg_state & DISPATCH_GROUP_HAS_WAITERS) {
        _dispatch_wake_by_address(&dg->dg_gen);
    }
    if (refs) _dispatch_release_n(dg, refs);
}

函数的作用，唤醒dispatch_group_notify函数
核心代码在do...while循环中，调用_dispatch_continuation_async函数

进入_dispatch_continuation_async函数

static inline void
_dispatch_continuation_async(dispatch_queue_class_t dqu,
        dispatch_continuation_t dc, dispatch_qos_t qos, uintptr_t dc_flags)
{
#if DISPATCH_INTROSPECTION
    if (!(dc_flags & DC_FLAG_NO_INTROSPECTION)) {
        _dispatch_trace_item_push(dqu, dc);
    }
#else
    (void)dc_flags;
#endif
    return dx_push(dqu._dq, dc, qos);
}

最终调用dx_push

11.4 通知

进入dispatch_group_notify函数

static inline void
_dispatch_group_notify(dispatch_group_t dg, dispatch_queue_t dq,
        dispatch_continuation_t dsn)
{
    uint64_t old_state, new_state;
    dispatch_continuation_t prev;
    dsn->dc_data = dq;
    _dispatch_retain(dq);
    prev = os_mpsc_push_update_tail(os_mpsc(dg, dg_notify), dsn, do_next);
    if (os_mpsc_push_was_empty(prev)) _dispatch_retain(dg);
    os_mpsc_push_update_prev(os_mpsc(dg, dg_notify), prev, dsn, do_next);
    if (os_mpsc_push_was_empty(prev)) {
        os_atomic_rmw_loop2o(dg, dg_state, old_state, new_state, release, {
            new_state = old_state | DISPATCH_GROUP_HAS_NOTIFS;
            if ((uint32_t)old_state == 0) {
                os_atomic_rmw_loop_give_up({
                    return _dispatch_group_wake(dg, new_state, false);
                });
            }
        });
    }
}

判断状态为0，调用_dispatch_group_wake函数
所以通知并不需要一直等待，因为dispatch_group_notify和dispatch_group_leave中，都有_dispatch_group_wake函数的调用

11.5 任务

进入dispatch_group_async函数

void
dispatch_group_async(dispatch_group_t dg, dispatch_queue_t dq,
        dispatch_block_t db)
{
    dispatch_continuation_t dc = _dispatch_continuation_alloc();
    uintptr_t dc_flags = DC_FLAG_CONSUME | DC_FLAG_GROUP_ASYNC;
    dispatch_qos_t qos;
    qos = _dispatch_continuation_init(dc, dq, db, 0, dc_flags);
    _dispatch_continuation_group_async(dg, dq, dc, qos);
}

进入_dispatch_continuation_group_async函数

static inline void
_dispatch_continuation_group_async(dispatch_group_t dg, dispatch_queue_t dq,
        dispatch_continuation_t dc, dispatch_qos_t qos)
{
    dispatch_group_enter(dg);
    dc->dc_data = dg;
    _dispatch_continuation_async(dq, dc, qos, dc->dc_flags);
}

调用dispatch_group_enter函数，进行进组操作

源码中搜索_dispatch_client_callout函数，在_dispatch_continuation_with_group_invoke函数中，同样调用dispatch_group_leave函数，进行出组操作

static inline void
_dispatch_continuation_with_group_invoke(dispatch_continuation_t dc)
{
    struct dispatch_object_s *dou = dc->dc_data;
    unsigned long type = dx_type(dou);
    if (type == DISPATCH_GROUP_TYPE) {
        _dispatch_client_callout(dc->dc_ctxt, dc->dc_func);
        _dispatch_trace_item_complete(dc);
        dispatch_group_leave((dispatch_group_t)dou);
    } else {
        DISPATCH_INTERNAL_CRASH(dx_type(dou), "Unexpected object type");
    }
}

12. dispatch_source

dispatch_source是基础数据类型，用于协调特定底层系统事件的处理

12.1 基本介绍

dispatch_source替代了异步回调函数，来处理系统相关的事件。当配置一个dispatch时，你需要指定监测的事件、队列、以及任务回调。当事件发生时，dispatch source会提交block或函数到指定的queue去执行

使用dispatch_source代替dispatch_async的原因在于联结的优势

联结：在任一线程上调用它的一个函数dispatch_source_merge_data后，会执行Dispatch Source事先定义好的句柄（可以把句柄简单理解为一个block），这个过程叫Custom event，用户事件。是dispatch source支持处理的一种事件

句柄：是一种指向指针的指针，它指向的就是一个类或者结构，它和系统有密切的关系，包含：

实例句柄HINSTANCE
位图句柄HBITMAP
设备表句柄HDC
图标句柄HICON
通用句柄HANDLE

简单来说：这种事件是由你调用dispatch_source_merge_data函数来向自己发出的信号

使用dispatch_source的优点：

其CPU负荷非常小，尽量不占用资源
联结的优势

12.2 创建`dispatch source`

使用dispatch_source_create函数

dispatch_source_t source = dispatch_source_create(dispatch_source_type_t type, uintptr_t handle, unsigned long mask, dispatch_queue_t queue)

type：dispatch源可处理的事件
handle：可以理解为句柄、索引或ID，假如要监听进程，需要传入进程ID
mask：可以理解为描述，提供更详细的描述，让它知道具体要监听什么
queue：自定义源需要的一个队列，用来处理所有的响应句柄

dispatch source中type的类型：

DISPATCH_SOURCE_TYPE_DATA_ADD：自定义的事件，变量增加
DISPATCH_SOURCE_TYPE_DATA_OR：自定义的事件，变量OR
DISPATCH_SOURCE_TYPE_MACH_SENDMACH：端口发送
DISPATCH_SOURCE_TYPE_MACH_RECVMACH：端口接收
DISPATCH_SOURCE_TYPE_MEMORYPRESSURE：内存压力 (注：iOS8后可用)
DISPATCH_SOURCE_TYPE_PROC：进程监听,如进程的退出、创建一个或更多的子线程、进程收到UNIX信号
DISPATCH_SOURCE_TYPE_READ：IO操作，如对文件的操作、socket操作的读响应
DISPATCH_SOURCE_TYPE_SIGNAL：接收到UNIX信号时响应
DISPATCH_SOURCE_TYPE_TIMER：定时器
DISPATCH_SOURCE_TYPE_VNODE：文件状态监听，文件被删除、移动、重命名
DISPATCH_SOURCE_TYPE_WRITE：IO操作，如对文件的操作、socket操作的写响应

12.3 常用`API`

//挂起队列
dispatch_suspend(queue)
//分派源创建时默认处于暂停状态，在分派源分派处理程序之前必须先恢复
dispatch_resume(source)
//向分派源发送事件，需要注意的是，不可以传递0值(事件不会被触发)，同样也不可以传递负数。
dispatch_source_merge_data
//设置响应分派源事件的block，在分派源指定的队列上运行
dispatch_source_set_event_handler
//得到分派源的数据
dispatch_source_get_data
//得到dispatch源创建，即调用dispatch_source_create的第二个参数
uintptr_t dispatch_source_get_handle(dispatch_source_t source);
//得到dispatch源创建，即调用dispatch_source_create的第三个参数
unsigned long dispatch_source_get_mask(dispatch_source_t source);
////取消dispatch源的事件处理--即不再调用block。如果调用dispatch_suspend只是暂停dispatch源。
void dispatch_source_cancel(dispatch_source_t source);
//检测是否dispatch源被取消，如果返回非0值则表明dispatch源已经被取消
long dispatch_source_testcancel(dispatch_source_t source);
//dispatch源取消时调用的block，一般用于关闭文件或socket等，释放相关资源
void dispatch_source_set_cancel_handler(dispatch_source_t source, dispatch_block_t cancel_handler);
//可用于设置dispatch源启动时调用block，调用完成后即释放这个block。也可在dispatch源运行当中随时调用这个函数。
void dispatch_source_set_registration_handler(dispatch_source_t source, dispatch_block_t registration_handler);

12.4 `timer`的封装

打开SparkTimer.h文件，写入以下代码：

#import <Foundation/Foundation.h>
@class SparkTimer;
typedef void (^TimerBlock)(SparkTimer * _Nonnull timer);
@interface SparkTimer : NSObject
+ (SparkTimer *)scheduledTimerWithTimeInterval:(NSTimeInterval)ti target:(id)aTarget selector:(SEL)aSelector userInfo:(nullable id)userInfo repeats:(BOOL)yesOrNo immediately:(BOOL)isImmediately;
+ (SparkTimer *)scheduledTimerWithTimeInterval:(NSTimeInterval)ti userInfo:(nullable id)userInfo repeats:(BOOL)yesOrNo immediately:(BOOL)isImmediately timerBlock:(TimerBlock)block;
- (void)invalidate;
@property (nonatomic, readonly, getter=isValid) BOOL valid;
@property (nonatomic, nullable, readonly, retain) id userInfo;
@end

打开SparkTimer.m文件，写入以下代码：

#import "SparkTimer.h"
@interface SparkTimer ()
@property (nonatomic, assign) NSTimeInterval interval;
@property (nonatomic, nullable, readwrite, retain) id userInfo;
@property (nonatomic, assign) BOOL repeats;
@property (nonatomic, assign) BOOL immediately;
@property (nonatomic, strong) dispatch_source_t timer;
@property (nonatomic, readwrite, getter=isValid) BOOL valid;
@end
@implementation SparkTimer
+ (SparkTimer *)scheduledTimerWithTimeInterval:(NSTimeInterval)ti target:(id)aTarget selector:(SEL)aSelector userInfo:(nullable id)userInfo repeats:(BOOL)yesOrNo immediately:(BOOL)isImmediately{
    return [[SparkTimer alloc] initWithInterval:ti target:aTarget selector:aSelector userInfo:userInfo repeats:yesOrNo immediately:isImmediately timerBlock:nil isBlock:NO];
}
+ (SparkTimer *)scheduledTimerWithTimeInterval:(NSTimeInterval)ti userInfo:(nullable id)userInfo repeats:(BOOL)yesOrNo immediately:(BOOL)isImmediately timerBlock:(TimerBlock)block{
    return [[SparkTimer alloc] initWithInterval:ti target:nil selector:nil userInfo:userInfo repeats:yesOrNo immediately:isImmediately timerBlock:block isBlock:YES];
}
- (instancetype)initWithInterval:(NSTimeInterval)ti target:(id)aTarget selector:(SEL)aSelector userInfo:(nullable id)userInfo repeats:(BOOL)yesOrNo immediately:(BOOL)isImmediately timerBlock:(TimerBlock)block isBlock:(BOOL)isBlock
{
    self = [super init];
    if (self) {
        _interval       = ti;
        _userInfo       = userInfo;
        _repeats        = yesOrNo;
        _immediately    = isImmediately;
        _valid          = NO;
        @weakify(self)
        [self createTimer:^{
            @strongify(self)
            if(!isBlock){
                [self callOutWithTarget:aTarget selector:aSelector];
                return;
            }
            [self callOutWithTimerBlock:block];
        }];
    }
    return self;
}
- (void)callOutWithTarget:(id)aTarget selector:(SEL)aSelector{
    if(!aTarget || !aSelector){
        [self invalidate];
        return;
    }
    [aTarget performSelector:aSelector withObject:self];
    [self checkRepeats];
}
- (void)callOutWithTimerBlock:(TimerBlock)block{
    if(!block){
        [self invalidate];
        return;
    }
    block(self);
    [self checkRepeats];
}
- (void)checkRepeats{
    if(self.repeats){
        return;
    }
    [self invalidate];
}
- (void)createTimer:(void(^)(void))block{
    _valid = YES;
    //1.创建队列
    dispatch_queue_t queue = dispatch_get_global_queue(0, 0);
    //2.创建timer
    _timer = dispatch_source_create(DISPATCH_SOURCE_TYPE_TIMER, 0, 0, queue);
    dispatch_time_t start;
    if(self.immediately){
        start = DISPATCH_TIME_NOW;
    }
    else{
        start = dispatch_time(DISPATCH_TIME_NOW, self.interval * NSEC_PER_SEC);
    }
    //3.设置timer首次执行时间，间隔，精确度
    dispatch_source_set_timer(_timer, start, self.interval * NSEC_PER_SEC, 0.1 * NSEC_PER_SEC);
    //4.设置timer事件回调
    dispatch_source_set_event_handler(_timer, ^{
        NSLog(@"计时");
        block();
    });
    //5.默认是挂起状态，需要手动激活
    dispatch_resume(_timer);
}
- (void)invalidate{
    if(!self.isValid){
        return;
    }
    _valid = NO;
    dispatch_source_cancel(_timer);
}
- (id)userInfo{
    return _userInfo;
}
@end

总结

创建队列：

串行队列的dq_atomic_flags为1
dq_serialnum：标记队列类型
队列也是对象，也有isa指向
队列通过模板创建

同步函数：

当同步函数加入到串行队列中，同一线程在等待时又被执行，就会形成相互等待的局面，造成死锁的异常

异步函数：

通过dx_push递归，会重定向到根队列，然后通过pthread_creat创建线程，最后通过dx_invoke执行block回调

单例模式：

底层包含锁的处理，线程安全

线程池：

使用pthread_create函数，创建线程
最大线程数是未知的
如果按照内核态1GB满载，最小堆栈大小为16KB计算，最大线程数可开辟64 * 1024。按照辅助线程512KB计算，最大线程数可开辟2048

栅栏函数：

异步栅栏函数阻塞的是队列，而且必须是自定义的并发队列，不影响主线程任务的执行
同步栅栏函数阻塞的是线程，且是主线程，会影响主线程其他任务的执行

信号量：

dispatch_semaphore_create：初始化信号量，设置GCD最大并发数，必须>= 0
dispatch_semaphore_wait：等待，对信号量减1，相当于加锁
- 若信号量>= 0，直接返回0，执行wait之后的代码
- 若信号量< 0，将阻塞当前线程，进入_dispatch_semaphore_wait_slow函数
dispatch_semaphore_signal：释放，对信号量加1，相当于解锁

调度组：

dispatch_group_enter和dispatch_group_leave必须成对使用
dispatch_group_enter：进行减1操作，执行后为-1
dispatch_group_leave：进行加1操作，执行后为0
dispatch_group_notify：判断状态为0，调用_dispatch_group_wake函数
- 通知函数不需要一直等待，因为在dispatch_group_leave中也有_dispatch_group_wake函数的调用，同样可以唤醒block任务
dispatch_group_async：内部封装了dispatch_group_enter和dispatch_group_leave
