Compileflow使用教程

compileflow-idea-designer是一款Idea插件。能够让你轻松完成compileflow引擎的流程的编码设计和属性编辑。

compileflow引擎开源地址：https://github.com/alibaba/compileflow

插件最新安装包下载，下载地址: https://github.com/compileflow/compileflow-designer-upgrade
web界面：https://github.com/compileflow/compileflow-web-designer

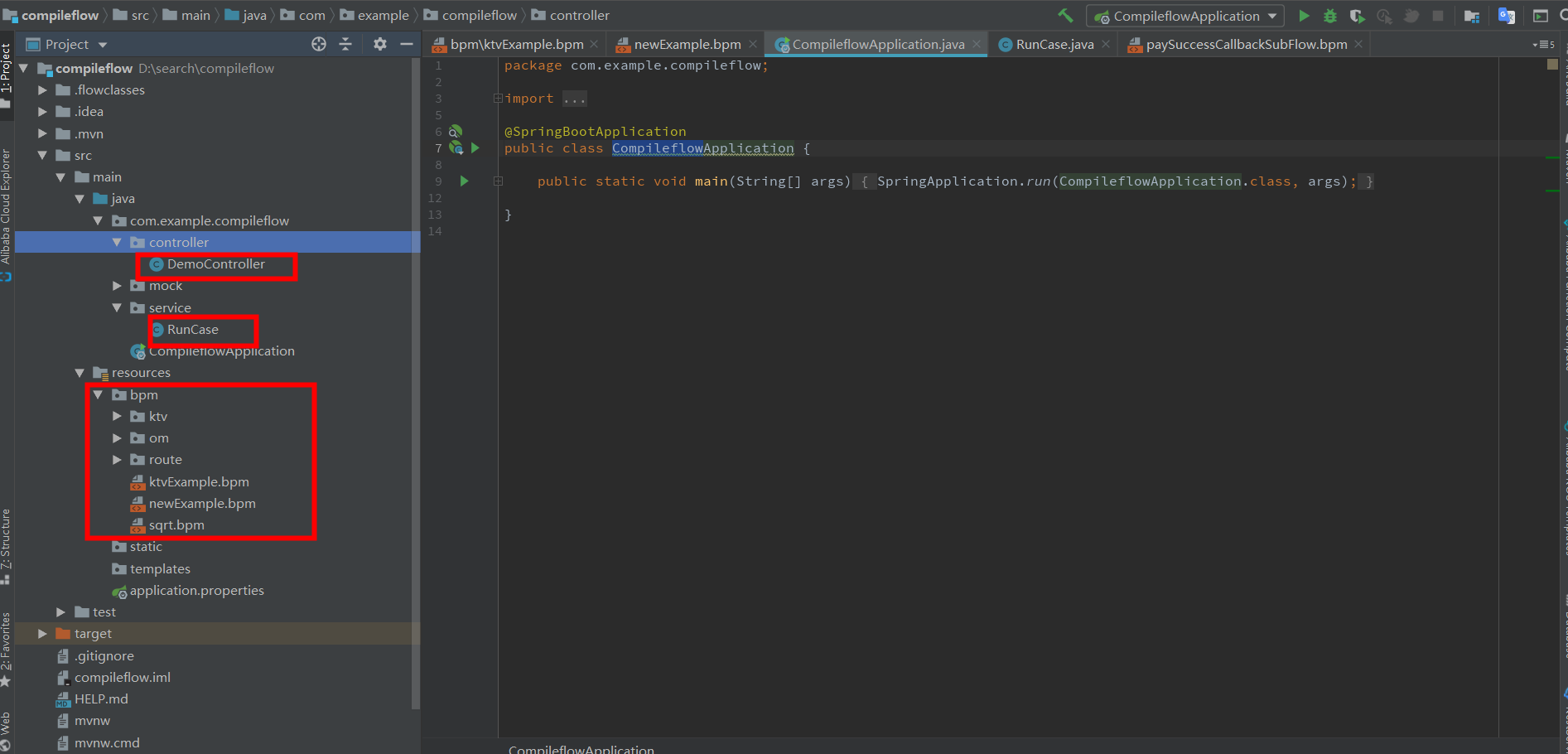

项目结构：

maven依赖：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.2</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>compileflow</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>compileflow</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>11</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba.compileflow</groupId>
            <artifactId>compileflow</artifactId>
            <version>1.0.0</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

代码使用：

package com.example.compileflow.service;
import com.alibaba.compileflow.engine.ProcessEngine;
import com.alibaba.compileflow.engine.ProcessEngineFactory;
import com.alibaba.compileflow.engine.definition.tbbpm.TbbpmModel;
import com.alibaba.compileflow.engine.process.preruntime.converter.impl.TbbpmModelConverter;
import com.ql.util.express.DefaultContext;
import com.ql.util.express.ExpressRunner;
import org.springframework.stereotype.Component;
import java.io.OutputStream;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
/**
 * 参考：https://www.jianshu.com/p/a3ff29cf579d
 * 参考：https://www.jianshu.com/p/9bb2f01ad816
 */
@Component
public class RunCase {
    public void run() {
        //code在bpm文件中定义
        String code = "bpm.ktvExample";
        //执行流程的入参
        Map<String, Object> context = new HashMap<>(1);
        List<String> pList = new ArrayList<>();
        pList.add("wuxiang");
        pList.add("yusu");
        pList.add("xugong");
        pList.add("fandu");
        context.put("pList", pList);
        try {
            ProcessEngine processEngine = ProcessEngineFactory.getProcessEngine();
            Map<String, Object> result = processEngine.execute(code, context);
            System.out.println(result.get("price"));
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
    public void run2() {
        //code在bpm文件中定义
        String code = "bpm.sqrt";
        //执行流程的入参
        Map<String, Object> context = new HashMap<>(1);
        context.put("num", 4);
        try {
            ProcessEngine processEngine = ProcessEngineFactory.getProcessEngine();
            Map<String, Object> result = processEngine.execute(code, context);
            System.out.println(result.get("numSqrt"));
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
    public void getProcessEngine() {
        final String code = "bpm.ktv.ktvExample";
        final Map<String, Object> context = new HashMap<>(1);
        final List<String> pList = new ArrayList<>();
        pList.add("wuxiang");
        pList.add("xuan");
        pList.add("yusu");
        context.put("pList", pList);
        final ProcessEngine<TbbpmModel> processEngine = ProcessEngineFactory.getProcessEngine();
        final TbbpmModel tbbpmModel = processEngine.load(code);
        final OutputStream outputStream = TbbpmModelConverter.getInstance().convertToStream(tbbpmModel);
        System.out.println(outputStream);
        System.out.println(processEngine.getTestCode(code));
        processEngine.preCompile(code);
        System.out.println(processEngine.execute(code, context));
    }
    public void run3() {
        //code在bpm文件中定义
        String code = "bpm.ktvExample";
        //执行流程的入参
        Map<String, Object> context = new HashMap<>(1);
        List<String> pList = new ArrayList<>();
        pList.add("a1");
        pList.add("a2");
        pList.add("a3");
        pList.add("a4");
        pList.add("a5");
        pList.add("a6");
        pList.add("a7");
        pList.add("a8");
        pList.add("a9");
        pList.add("a10");
        pList.add("a11");
        context.put("pList", pList);
        try {
            ProcessEngine processEngine = ProcessEngineFactory.getProcessEngine();
            Map<String, Object> result = processEngine.execute(code, context);
            System.out.println(result.get("price"));
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
    public void quick_start() throws Exception {
        ExpressRunner runner = new ExpressRunner();
        DefaultContext<String, Object> context = new DefaultContext<>();
        context.put("a", 1);
        context.put("b", 2);
        context.put("c", 3);
        //下面五个参数意义分别是 表达式，上下文，errorList，是否缓存，是否输出日志
        Object result = runner.execute("a+b+c", context, null, true, false);
        System.out.println("a+b+c=" + result);
    }
}

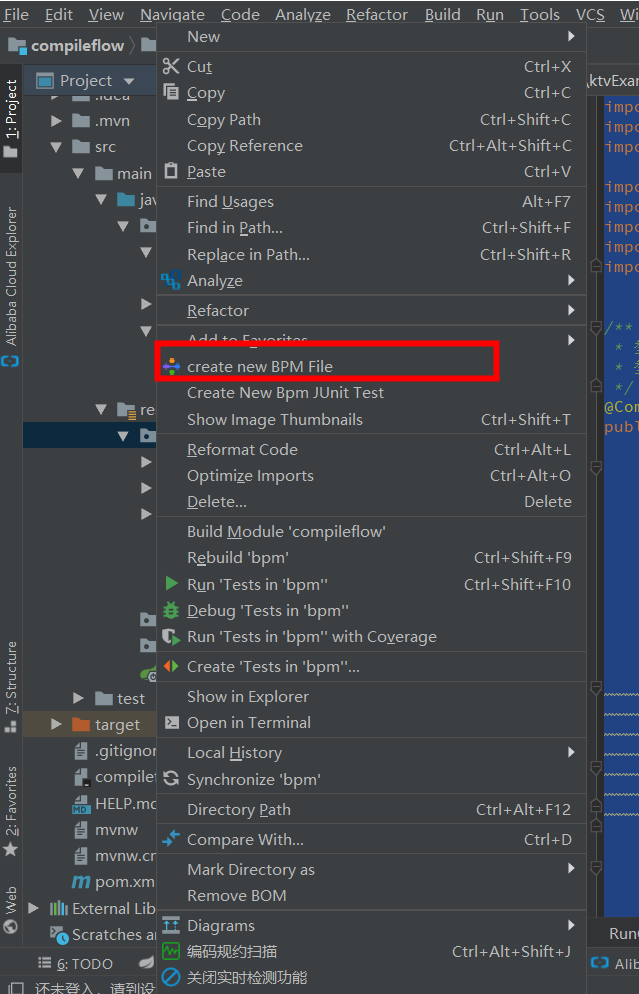

创建文件流程：

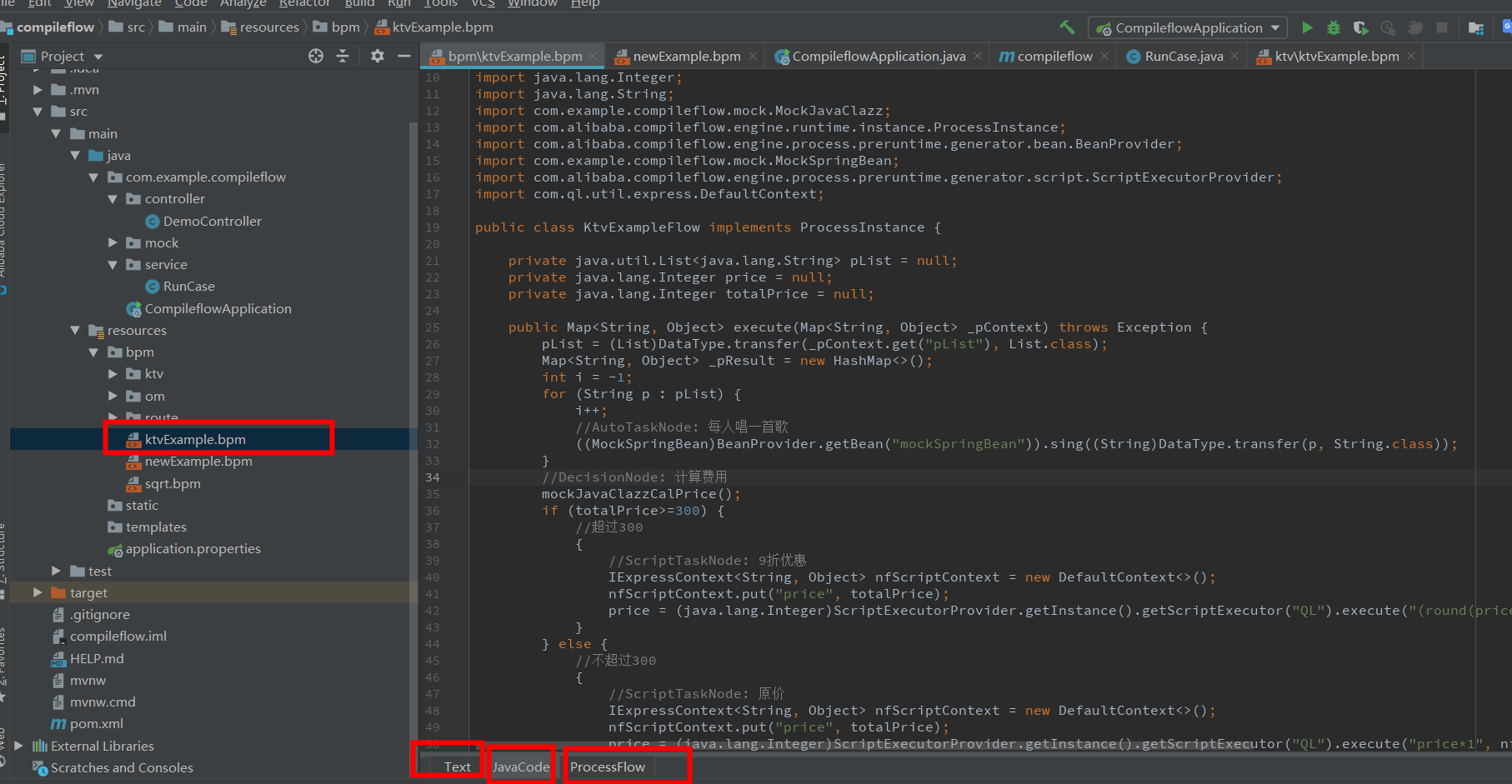

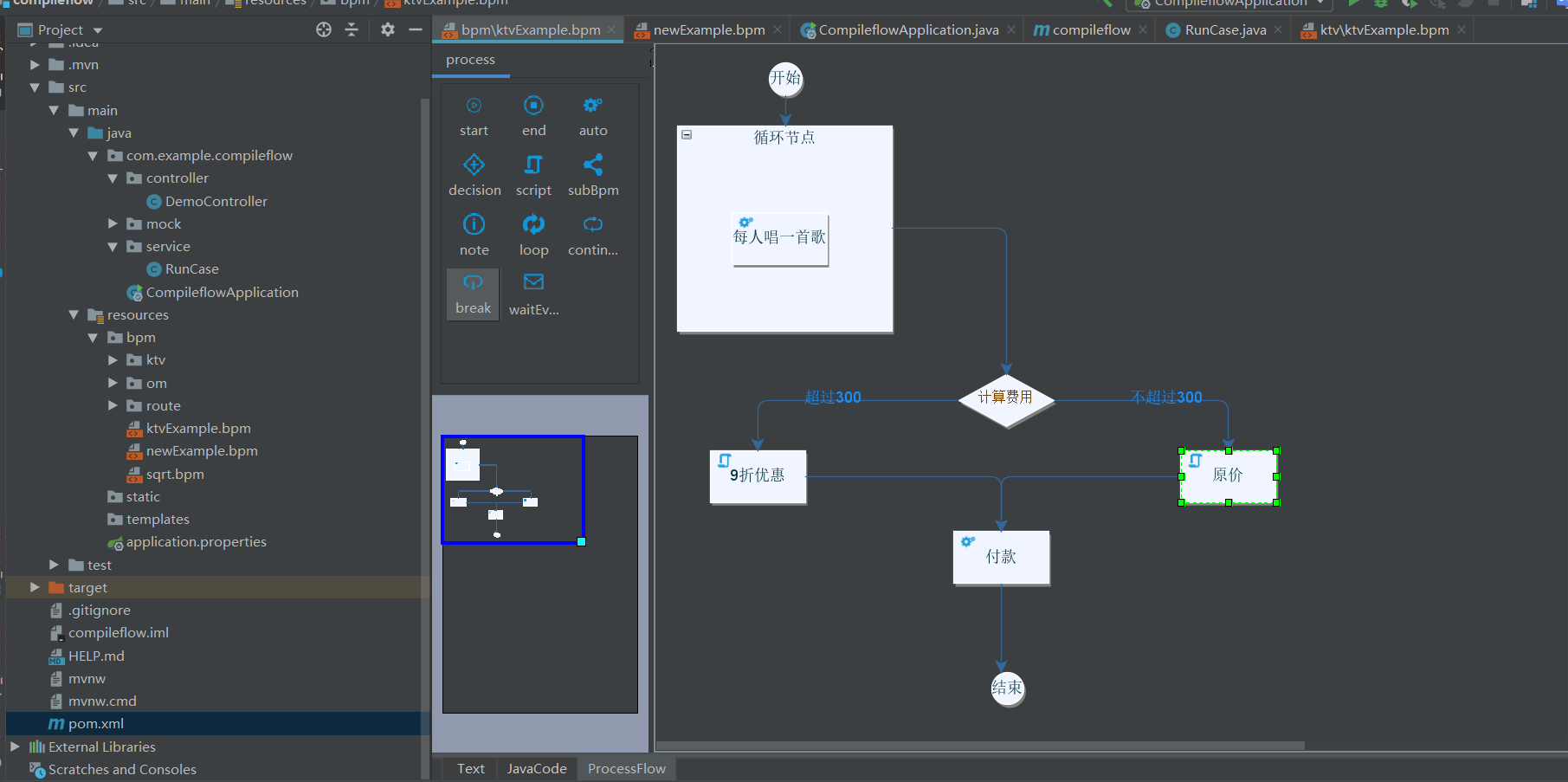

查看流程：


其他操作方法：

 @Test
    public void testProcessEngine() {
        final String code = "bpm.ktv.ktvExample";
        final Map<String, Object> context = new HashMap<>();
        List<String> pList = new ArrayList<>();
        pList.add("wuxiang");
        pList.add("yusu");
        context.put("pList", pList);
        final ProcessEngine processEngine = ProcessEngineFactory.getProcessEngine();
        System.out.println(processEngine.getTestCode(code));
        System.out.println(processEngine.execute(code, context));
    }
    @Test
    public void testProcessEngineBpmn20() {
        final String code = "bpmn20.ktv.ktvExample";
        final Map<String, Object> context = new HashMap<>();
        List<String> pList = new ArrayList<>();
        pList.add("wuxiang");
        pList.add("yusu");
        context.put("pList", pList);
        final ProcessEngine processEngine = ProcessEngineFactory.getStatelessProcessEngine(FlowModelType.BPMN);
        System.out.println(processEngine.start(code, context));
    }
    @Test
    public void testTbbpmModelConvert() {
//        final String code = "bpm.ktv.ktvExample";
        String code = "bpm.om.waitpaySuccessflow";
        final ProcessEngine<TbbpmModel> processEngine = ProcessEngineFactory.getProcessEngine();
        final TbbpmModel tbbpmModel = processEngine.load(code);
        final OutputStream outputStream = TbbpmModelConverter.getInstance().convertToStream(tbbpmModel);
        System.out.println(outputStream.toString());
        final String srcCode = processEngine.getJavaCode(code);
        System.out.println(srcCode);
    }
    @Test
    public void testWaitPayProcess(){
        String code = "bpm.om.waitpaySuccessflow";
        System.out.println(ProcessEngineFactory.getProcessEngine().getJavaCode(code));
        Map<String, Object> context = new HashMap<>();
        context.put("num", 100d);
        ProcessEngineFactory.getProcessEngine().execute(code,context);
    }
    @Test
    public void testTiggerWaitPayProcess() {
        String code = "bpm.om.waitpaySuccessflow";
        Map<String, Object> context = new HashMap<>();
        context.put("num", 100d);
        StatefulProcessEngine processEngine = ProcessEngineFactory.getStatefulProcessEngine();
        try {
            System.out.println(processEngine.getJavaCode(code));
            System.out.println("------receiver not real event------");
            System.out.println(processEngine.trigger(code, "randomEvent", context));
            System.out.println("------receiver real event------");
            context.put("eventName","PaymentPendingCallback");
            System.out.println(processEngine.trigger(code, "PaymentPendingCallback", context));
        } catch (Exception e) {
            e.printStackTrace();
            Assert.fail(e.getMessage());
        }
    }
    @Test
    public void testStatefulProcessEngine() {
        String code = "bpm.om.generalOrderFulfillmentFlow";
        //String code = "bpm.route.uopOrderFullLinkRouteDecide";
        StatefulProcessEngine processEngine = ProcessEngineFactory.getStatefulProcessEngine();
        System.out.println(ProcessEngineFactory.getProcessEngine().getJavaCode(code));
        Map<String, Object> context = new HashMap<>();
        List<String> pList = new ArrayList<>();
        pList.add("wuxiang");
        pList.add("yusu");
        context.put("pList", pList);
        try {
            System.out.println(processEngine.getJavaCode(code));
            System.out.println(processEngine.trigger(code, "PaymentPendingCallback", context));
        } catch (Exception e) {
            e.printStackTrace();
            Assert.fail(e.getMessage());
        }
    }
  /**
     * 测试代码中的异常
     *
     */
    @Test(expected=IllegalArgumentException.class)
    public void test_process_runtime() {
        TbbpmModel model = Mockito.mock(TbbpmModel.class);
        TbbpmStatelessProcessRuntime runtime = TbbpmStatelessProcessRuntime.of(model);
        when(runtime.generateTestCode()).thenReturn("hello world");
        System.out.println(runtime.generateTestCode());
        runtime.registerNodeGenerator(null);
    }

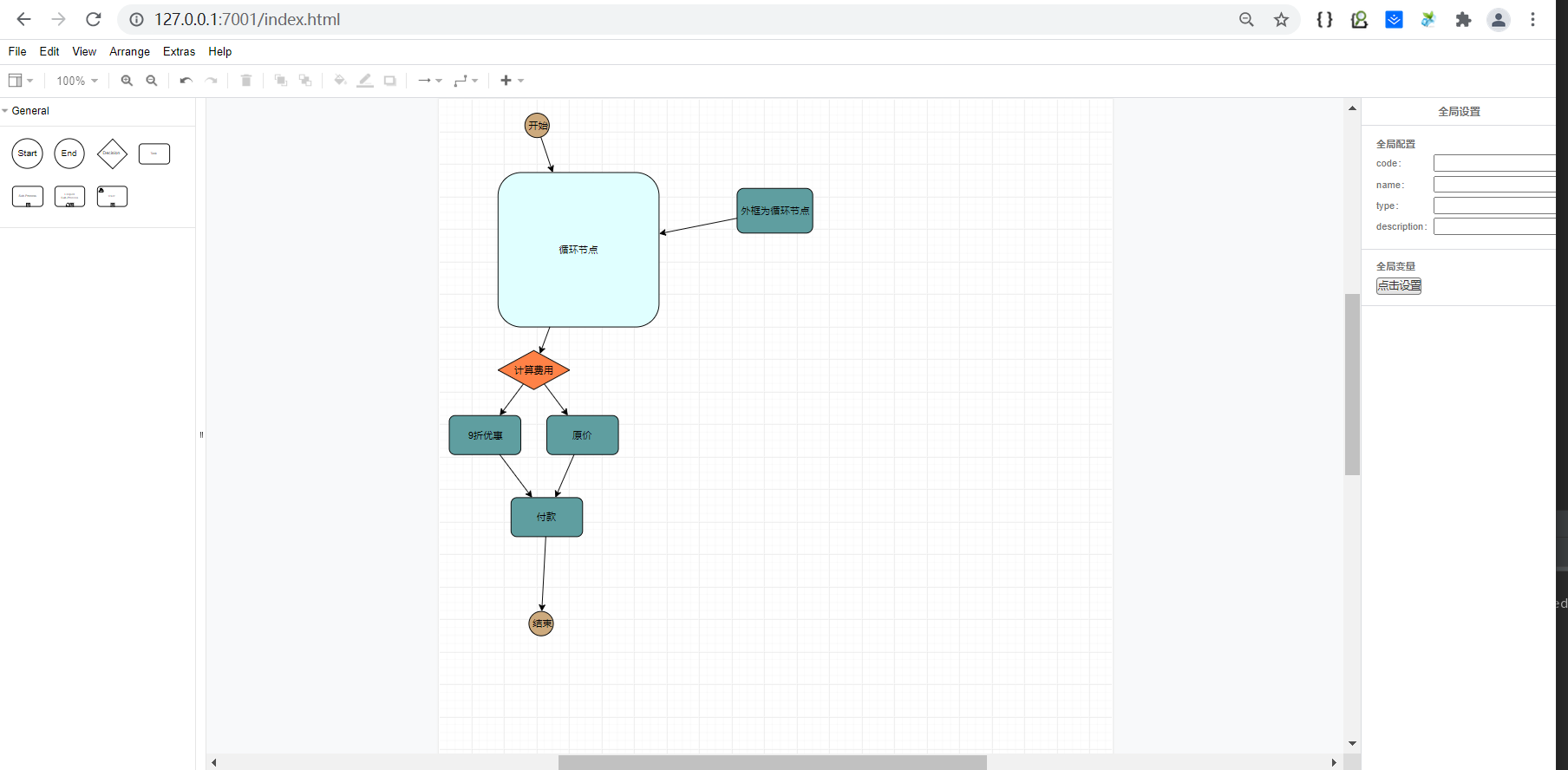

如何启动web界面：将所以前端放到static文件目录下即可
