黑盒监控既已用户的身份测试服务的外部可见性，常见的黑盒监控包括 HTTP探针、 TCP探针 等用于检测站点或者服务的可访问性，以及访问效率等。

黑盒相比于白盒的不同之处在于黑盒是以故障为导向的，当故障发生时能够快速发现故障；而白盒是侧重主动发现或预测潜在的问题。

Blackbox Exporter 是 Prometheus 社区提供的官方黑盒监控解决方案，其允许用户通过：HTTP、 HTTPS、 DNS、 TCP 以及 ICMP 的方式对网络进行探测。

同样首先需要在 Kubernetes 集群中运行 blackbox-exporter 服务，同样通过一个 ConfigMap 资源对象来为 Blackbox 提供配置，如下所示：（blackbox.yaml）

  1. apiVersion: v1
  2. kind: Service
  3. metadata:
  4.   name: blackbox
  5.   namespace: monitoring
  6. spec:
  7.   selector:
  8.     app: blackbox
  9.   ports:
  10.   - port: 9115
  11.     targetPort: 9115
  12. ---
  13. apiVersion: v1
  14. kind: ConfigMap
  15. metadata:
  16.   name: blackbox-config
  17.   namespace: monitoring
  18. data:
  19.   blackbox.yaml: |-
  20.     modules:
  21.       http_2xx:
  22.         prober: http
  23.         timeout: 10s
  24.         http:
  25.           valid_http_versions: ["HTTP/1.1", "HTTP/2"]
  26.           valid_status_codes: [200]
  27.           method: GET
  28.           preferred_ip_protocol: "ip4"
  29.       http_post_2xx:
  30.         prober: http
  31.         timeout: 10s
  32.         http:
  33.           valid_http_versions: ["HTTP/1.1", "HTTP/2"]
  34.           valid_status_codes: [200]
  35.           method: POST
  36.           preferred_ip_protocol: "ip4"
  37.       tcp_connect:
  38.          prober: tcp
  39.          timeout: 10s
  40.       ping:
  41.         prober: icmp
  42.         timeout: 5s
  43.         icmp:
  44.           preferred_ip_protocol: "ip4"
  45.       dns:
  46.          prober: dns
  47.          dns:
  48.            transport_protocol: "tcp"
  49.            preferred_ip_protocol: "ip4"
  50.            query_name: "kubernetes.defalut.svc.cluster.local"
  51. ---
  52. apiVersion: apps/v1
  53. kind: Deployment
  54. metadata:
  55.   name: blackbox
  56.   namespace: monitoring
  57. spec:
  58.   selector:
  59.     matchLabels:
  60.       app: blackbox
  61.   template:
  62.     metadata:
  63.       labels:
  64.         app: blackbox
  65.     spec:
  66.       containers:
  67.       - name: blackbox
  68.         image: prom/blackbox-exporter:v0.16.0
  69.         args:
  70.         - "--config.file=/etc/blackbox_exporter/blackbox.yaml"
  71.         - "--log.level=error"
  72.         ports:
  73.         - containerPort: 9115
  74.         volumeMounts:
  75.         - name: config
  76.           mountPath: /etc/blackbox_exporter
  77.       volumes:
  78.       - name: config
  79.         configMap:
  80.           name: blackbox-config

然后创建资源清单：

  1. # kubectl apply -f .
  2. service/blackbox created
  3. configmap/blackbox-config created
  4. deployment.apps/blackbox created

然后在Prometheus中加入Blackbox的抓取配置（因为我们是用的Prometheus operator部署的，所以就以add的形式加入配置，如下）：
prometheus-additional.yaml

  1. - job_name: 'kubernetes-service-endpoints'
  2.   kubernetes_sd_configs:
  3.   - role: endpoints
  4.   relabel_configs:
  5.   - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
  6.     action: keep
  7.     regex: true
  8.   - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
  9.     action: replace
  10.     target_label: __scheme__
  11.     regex: (https?)
  12.   - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
  13.     action: replace
  14.     target_label: __metrics_path__
  15.     regex: (.+)
  16.   - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
  17.     action: replace
  18.     target_label: __address__
  19.     regex: ([^:]+)(?::\d+)?;(\d+)
  20.     replacement: $1:$2
  21.   - action: labelmap
  22.     regex: __meta_kubernetes_service_label_(.+)
  23.   - source_labels: [__meta_kubernetes_namespace]
  24.     action: replace
  25.     target_label: kubernetes_namespace
  26.   - source_labels: [__meta_kubernetes_service_name]
  27.     action: replace
  28.     target_label: kubernetes_name
  30. - job_name: "kubernetes-service-dns"
  31.   metrics_path: /probe
  32.   params:
  33.     module: [dns]
  34.   static_configs:
  35.   - targets:
  36.     - kube-dns.kube-system:53
  37.   relabel_configs:
  38.   - source_labels: [__address__]
  39.     target_label: __param_target
  40.   - source_labels: [__param_target]
  41.     target_label: instance
  42.   - target_label: __address__
  43.     replacement: blackbox.monitoring:9115

然后重新创建secret：

  1. # kubectl delete secret additional-config -n monitoring
  2. # kubectl -n monitoring create secret generic additional-config --from-file=prometheus-additional.yaml

然后重新加载一下prometheus

  1. # curl -X POST "http://10.68.215.41:9090/-/reload"

现在就可以在targets中看到已经发现。

然后在Graph查看probe_success{job=”kubernetes-service-dns”}

除了 DNS 的配置外，上面我们还配置了一个 http_2xx 的模块，也就是 HTTP 探针，HTTP 探针是进行黑盒监控时最常用的探针之一，通过 HTTP 探针能够对网站或者 HTTP 服务建立有效的监控，包括其本身的可用性，以及用户体验相关的如响应时间等等。除了能够在服务出现异常的时候及时报警，还能帮助系统管理员分析和优化网站体验。这里我们可以使用他来对 http 服务进行检测。
因为前面已经给 Blackbox 配置了 http_2xx 模块，所以这里只需要在 Prometheus 中加入抓取任务，这里我们可以结合前面的 Prometheus 的服务发现功能来做黑盒监控，对于 Service 和 Ingress 类型的服务发现，用来进行黑盒监控是非常合适的，配置如下所示：

  1. - job_name: 'kubernetes-service-endpoints'
  2.   kubernetes_sd_configs:
  3.   - role: endpoints
  4.   relabel_configs:
  5.   - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
  6.     action: keep
  7.     regex: true
  8.   - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
  9.     action: replace
  10.     target_label: __scheme__
  11.     regex: (https?)
  12.   - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
  13.     action: replace
  14.     target_label: __metrics_path__
  15.     regex: (.+)
  16.   - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
  17.     action: replace
  18.     target_label: __address__
  19.     regex: ([^:]+)(?::\d+)?;(\d+)
  20.     replacement: $1:$2
  21.   - action: labelmap
  22.     regex: __meta_kubernetes_service_label_(.+)
  23.   - source_labels: [__meta_kubernetes_namespace]
  24.     action: replace
  25.     target_label: kubernetes_namespace
  26.   - source_labels: [__meta_kubernetes_service_name]
  27.     action: replace
  28.     target_label: kubernetes_name
  30. - job_name: "kubernetes-service-dns"
  31.   metrics_path: /probe
  32.   params:
  33.     module: [dns]
  34.   static_configs:
  35.   - targets:
  36.     - kube-dns.kube-system:53
  37.   relabel_configs:
  38.   - source_labels: [__address__]
  39.     target_label: __param_target
  40.   - source_labels: [__param_target]
  41.     target_label: instance
  42.   - target_label: __address__
  43.     replacement: blackbox.monitoring:9115
  44. - job_name: "kubernetes-http-service"
  45.   metrics_path: /probe
  46.   params:
  47.     module: [http_2xx]
  48.   kubernetes_sd_configs:
  49.     - role: service
  50.   relabel_configs:
  51.   - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_http_probe]
  52.     action: keep
  53.     regex: true
  54.   - source_labels: [__address__]
  55.     target_label: __param_target
  56.   - target_label: __address__
  57.     replacement: blackbox.monitoring:9115
  58.   - source_labels: [__param_target]
  59.     target_label: instance
  60.   - action: labelmap
  61.     regex: __meta_kubernetes_service_label_(.+)
  62.   - source_labels: [__meta_kubernetes_namespace]
  63.     target_label: kubernetes_namespace
  64.   - source_labels: [__meta_kubernetes_service_name]
  65.     target_label: kubernetes_name
  66. - job_name: "kubernetes-ingresses"
  67.   metrics_path: /probe
  68.   params:
  69.     module: [http_2xx]
  70.   kubernetes_sd_configs:
  71.     - role: ingress
  72.   relabel_configs:
  73.   - source_labels: [__meta_kubernetes_ingress_annotation_prometheus_io_http_probe]
  74.     action: keep
  75.     regex: true
  76.   - source_labels: [__meta_kubernetes_ingress_scheme,__address__,__meta_kubernetes_ingress_path]
  77.     regex: (.+);(.+);(.+)
  78.     replacement: ${1}://${2}${3}
  79.     target_label: __param_target
  80.   - target_label: __address__
  81.     replacement: blackbox.monitoring:9115
  82.   - source_labels: [__param_target]
  83.     target_label: instance
  84.   - action: labelmap
  85.     regex: __meta_kubernetes_service_label_(.+)
  86.   - source_labels: [__meta_kubernetes_namespace]
  87.     target_label: kubernetes_namespace
  88.   - source_labels: [__meta_kubernetes_service_name]
  89.     target_label: kubernetes_name

然后重新创建secret：

  1. # kubectl delete secret additional-config -n monitoring
  2. # kubectl -n monitoring create secret generic additional-config --from-file=prometheus-additional.yaml

然后重新加载一下prometheus

  1. # curl -X POST "http://10.68.215.41:9090/-/reload"

但是我们发现日志有报错如下
这是因为RBAC权限不足导致的，我们修改prometheus-clusterRole.yaml

  1. apiVersion: rbac.authorization.k8s.io/v1
  2. kind: ClusterRole
  3. metadata:
  4.   name: prometheus-k8s
  5. rules:
  6. - apiGroups:
  7.   - ""
  8.   resources:
  9.   - nodes/metrics
  10.   - configmaps
  11.   verbs:
  12.   - get
  13. - apiGroups:
  14.   - ""
  15.   resources:
  16.   - nodes
  17.   - pods
  18.   - services
  19.   - endpoints
  20.   - nodes/proxy
  21.   verbs:
  22.   - get
  23.   - list
  24.   - watch
  25. - apiGroups:
  26.   - "extensions"
  27.   resources:
  28.   - ingresses
  29.   verbs:
  30.   - get
  31.   - list
  32.   - watch
  33. - nonResourceURLs:
  34.   - /metrics
  35.   verbs:
  36.   - get

然后重新创建

  1. # kubectl apply -f prometheus-clusterRole.yaml

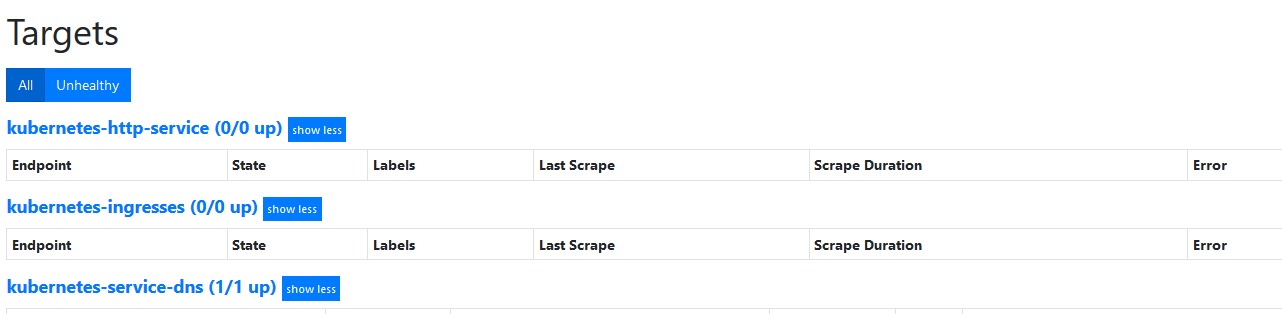

然我们我们在面板查看

但是现在还没有任何数据，这是因为上面是匹配 __meta_kubernetes_ingress_annotation_prometheus_io_http_probe 这个元信息，所以如果我们需要让这两个任务发现的话需要在 Service 或者 Ingress 中配置对应的 annotation：

  1. annotations:
  2.   prometheus.io/http-probe: "true"

比如：

  1. apiVersion: extensions/v1beta1
  2. kind: Deployment
  3. metadata:
  4.   name: redis
  5.   namespace: kube-ops
  6. spec:
  7.   template:
  8.     metadata:
  9.       annotations:
  10.         prometheus.io/scrape: "true"
  11.         prometheus.io/port: "9121"
  12.       labels:
  13.         app: redis
  14.     spec:
  15.       containers:
  16.       - name: redis
  17.         image: redis:4
  18.         resources:
  19.           requests:
  20.             cpu: 100m
  21.             memory: 100Mi
  22.         ports:
  23.         - containerPort: 6379
  24.       - name: redis-exporter
  25.         image: oliver006/redis_exporter:latest
  26.         resources:
  27.           requests:
  28.             cpu: 100m
  29.             memory: 100Mi
  30.         ports:
  31.         - containerPort: 9121
  32. ---
  33. kind: Service
  34. apiVersion: v1
  35. metadata:
  36.   name: redis
  37.   namespace: kube-ops
  38.   annotations:
  39.     prometheus.io/scrape: "true"
  40.     prometheus.io/port: "9121"
  41.     prometheus.io/http-probe: "true"
  42. spec:
  43.   selector:
  44.     app: redis
  45.   ports:
  46.   - name: redis
  47.     port: 6379
  48.     targetPort: 6379
  49.   - name: prom
  50.     port: 9121
  51.     targetPort: 9121

然后在WEB页面查看如下：

在Graph上也可以看到监控的指标：

如果你需要对监控的路径、端口这些做控制，我们可以自己在 relabel_configs 中去做相应的配置，比如我们想对 Service 的黑盒做自定义配置，可以想下面这样配置：

  1. - source_labels: [__meta_kubernetes_service_name, __meta_kubernetes_namespace, __meta_kubernetes_service_annotation_prometheus_io_http_probe_port, __meta_kubernetes_service_annotation_prometheus_io_http_probe_path]
  2.   action: replace
  3.   target_label: __param_target
  4.   regex: (.+);(.+);(.+);(.+)
  5.   replacement: $1.$2:$3$4

这样我们就需要在 Service 中配置这样的 annotation 了：

  1. annotation:
  2.   prometheus.io/http-probe: "true"
  3.   prometheus.io/http-probe-port: "8080"
  4.   prometheus.io/http-probe-path: "/healthz"

附

ping检测

  1. - job_name: 'ping_all'
  2.     scrape_interval: 1m
  3.     metrics_path: /probe
  4.     params:
  5.       module: [ping]
  6.     static_configs:
  7.      - targets:
  8.         - 192.168.1.2
  9.        labels:
  10.          instance: node2
  11.      - targets:
  12.         - 192.168.1.3
  13.        labels:
  14.          instance: node3
  15.     relabel_configs:
  16.       - source_labels: [__address__]
  17.         target_label: __param_target
  18.       - target_label: __address__
  19.         replacement: 127.0.0.1:9115    # black_exporter地址

http检测

  1. - job_name: 'http_get_all'  # blackbox_export module
  2.     scrape_interval: 30s
  3.     metrics_path: /probe
  4.     params:
  5.       module: [http_2xx]
  6.     static_configs:
  7.       - targets:
  8.         - https://www.coolops.cn
  9.     relabel_configs:
  10.       - source_labels: [__address__]
  11.         target_label: __param_target
  12.       - source_labels: [__param_target]
  13.         target_label: instance
  14.       - target_label: __address__
  15.         replacement: 127.0.0.1:9115    # black_exporter地址

监控主机存活状态

  1. - job_name: node_status
  2.     metrics_path: /probe
  3.     params:
  4.       module: [icmp]
  5.     static_configs:
  6.       - targets: ['10.165.94.31']
  7.         labels:
  8.           instance: node_status
  9.           group: 'node'
  10.     relabel_configs:
  11.       - source_labels: [__address__]
  12.         target_label: __param_target
  13.       - target_label: __address__
  14.         replacement: 127.0.0.1:9115    # black_exporter地址

监控端口状态

  1. - job_name: 'prometheus_port_status'
  2.     metrics_path: /probe
  3.     params:
  4.       module: [tcp_connect]
  5.     static_configs:
  6.       - targets: ['172.19.155.133:8765']
  7.         labels:
  8.           instance: 'port_status'
  9.           group: 'tcp'
  10.     relabel_configs:
  11.       - source_labels: [__address__]
  12.         target_label: __param_target
  13.       - source_labels: [__param_target]
  14.         target_label: instance
  15.       - target_label: __address__
  16.         replacement: 127.0.0.1:9115    # black_exporter地址

告警

  1. groups:
  2. - name: example
  3.   rules:
  4.   - alert: curlHttpStatus
  5.     expr:  probe_http_status_code{job="blackbox-http"}>=400 and probe_success{job="blackbox-http"}==0
  6.     #for: 1m
  7.     labels:
  8.       docker: number
  9.     annotations:
  10.       summary: '业务报警: 网站不可访问'
  11.       description: '{{$labels.instance}} 不可访问,请及时查看,当前状态码为{{$value}}'

Prometheus 配置文件可以参考官方仓库：https://github.com/prometheus/prometheus/blob/master/documentation/examples/prometheus-kubernetes.yml
Blackbox 的配置文件可以参考官方参考：https://github.com/prometheus/blackbox_exporter/blob/master/example.yml
