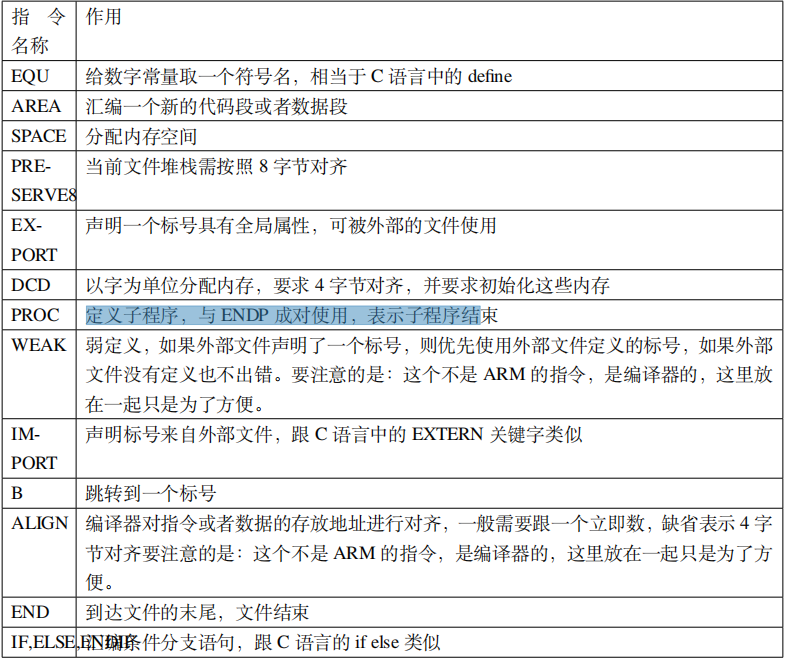

ARM汇编指令的查找

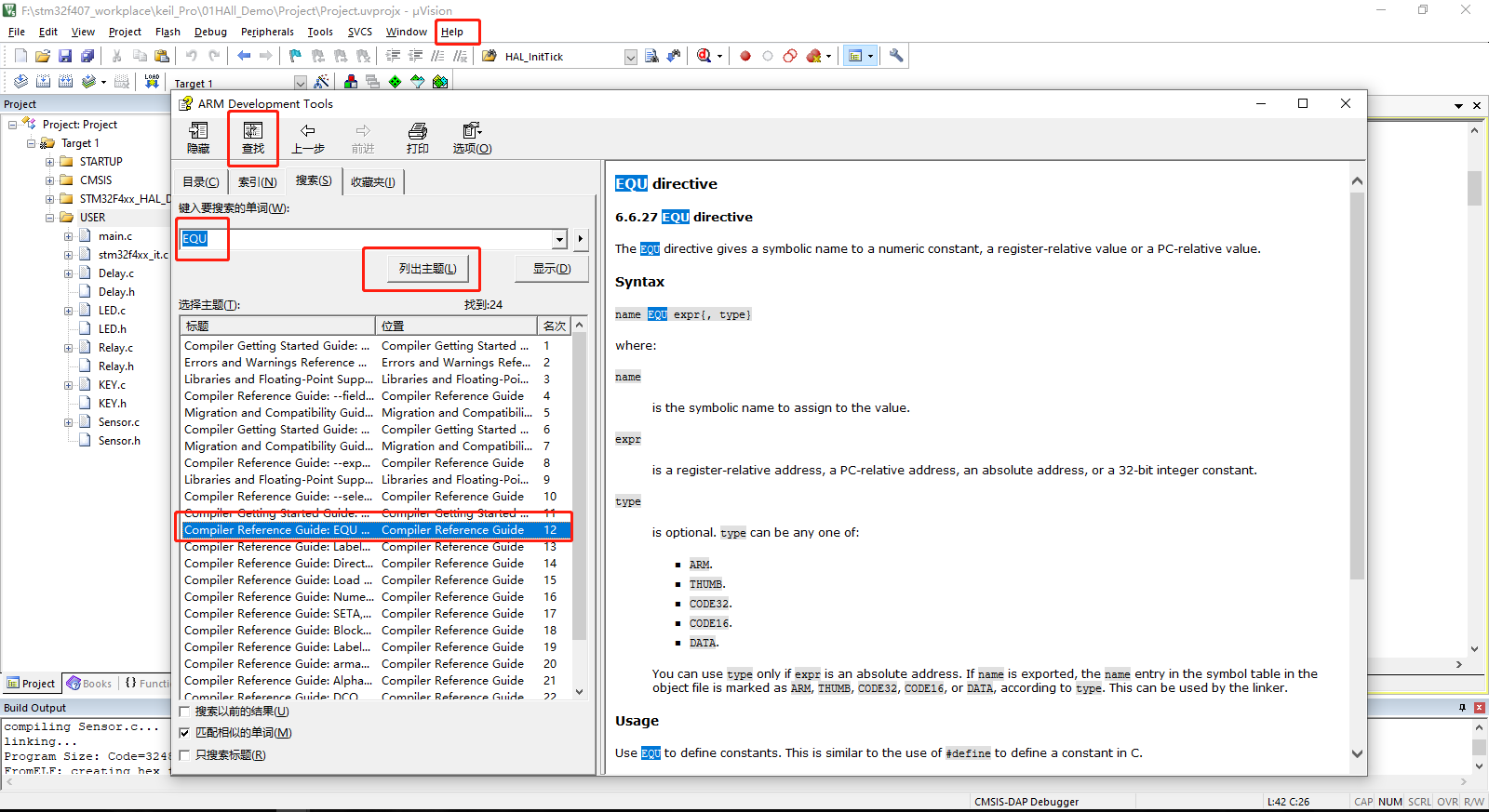

在KEIL的HELP中
启动代码详解

;******************** (C) COPYRIGHT 2017 STMicroelectronics ********************
;* File Name          : startup_stm32f407xx.s
;* Author             : MCD Application Team
;* Description        : STM32F407xx devices vector table for MDK-ARM toolchain.
;*                      This module performs:
;*                      - Set the initial SP
;*                      - Set the initial PC == Reset_Handler
;*                      - Set the vector table entries with the exceptions ISR address
;*                      - Branches to __main in the C library (which eventually
;*                        calls main()).
;*                      After Reset the CortexM4 processor is in Thread mode,
;*                      priority is Privileged, and the Stack is set to Main.
;* <<< Use Configuration Wizard in Context Menu >>>
;*******************************************************************************
;
;* Redistribution and use in source and binary forms, with or without modification,
;* are permitted provided that the following conditions are met:
;*   1. Redistributions of source code must retain the above copyright notice,
;*      this list of conditions and the following disclaimer.
;*   2. Redistributions in binary form must reproduce the above copyright notice,
;*      this list of conditions and the following disclaimer in the documentation
;*      and/or other materials provided with the distribution.
;*   3. Neither the name of STMicroelectronics nor the names of its contributors
;*      may be used to endorse or promote products derived from this software
;*      without specific prior written permission.
;*
;* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
;* AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
;* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
;* DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE
;* FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
;* DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
;* SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
;* CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
;* OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
;* OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
;
;*******************************************************************************
; Amount of memory (in bytes) allocated for Stack
; Tailor this value to your application needs
; <h> Stack Configuration
;   <o> Stack Size (in Bytes) <0x0-0xFFFFFFFF:8>
; </h>
Stack_Size      EQU     0x00000400            //开辟栈的大小为 0X00000400（1KB），名字为 STACK，NOINIT 即不初始化，可读可写，8（2^3）字节对齐。
                AREA    STACK, NOINIT, READWRITE, ALIGN=3
Stack_Mem       SPACE   Stack_Size
__initial_sp
; <h> Heap Configuration
;   <o>  Heap Size (in Bytes) <0x0-0xFFFFFFFF:8>
; </h>
Heap_Size       EQU     0x00000200        //开辟堆的大小为 0X00000200（512 字节），名字为 HEAP，NOINIT 即不初始化，可读可写，8（2^3）字节对齐。
                                            //__heap_base 表示对的起始地址，__heap_limit 表示堆的结束地址。堆是由低向高生长的，跟栈的生长方向相反。
                AREA    HEAP, NOINIT, READWRITE, ALIGN=3
__heap_base
Heap_Mem        SPACE   Heap_Size
__heap_limit
                PRESERVE8
                THUMB
; Vector Table Mapped to Address 0 at Reset
                AREA    RESET, DATA, READONLY    //定义一个数据段，名字为 RESET，可读。
                EXPORT  __Vectors                //声明 __Vectors、__Vectors_End 和 __Vectors_Size 这三个标号具有全局属性，可供外部的文件调用。
                EXPORT  __Vectors_End
                EXPORT  __Vectors_Size
//向量表从 FLASH 的 0 地址开始放置，以 4 个字节为一个单位，地址 0 存放的是栈顶地址，0X04
//存放的是复位程序的地址，以此类推。从代码上看，向量表中存放的都是中断服务函数的函数名，
//可我们知道 C 语言中的函数名就是一个地址。
__Vectors       DCD     __initial_sp               ; Top of Stack    //栈顶地址
                DCD     Reset_Handler              ; Reset Handler    //复位程序地址
                DCD     NMI_Handler                ; NMI Handler
                DCD     HardFault_Handler          ; Hard Fault Handler
                DCD     MemManage_Handler          ; MPU Fault Handler
                DCD     BusFault_Handler           ; Bus Fault Handler
                DCD     UsageFault_Handler         ; Usage Fault Handler
                DCD     0                          ; Reserved
                DCD     0                          ; Reserved
                DCD     0                          ; Reserved
                DCD     0                          ; Reserved
                DCD     SVC_Handler                ; SVCall Handler
                DCD     DebugMon_Handler           ; Debug Monitor Handler
                DCD     0                          ; Reserved
                DCD     PendSV_Handler             ; PendSV Handler
                DCD     SysTick_Handler            ; SysTick Handler
                ; External Interrupts//外部中断开始
                DCD     WWDG_IRQHandler                   ; Window WatchDog
                DCD     PVD_IRQHandler                    ; PVD through EXTI Line detection
                DCD     TAMP_STAMP_IRQHandler             ; Tamper and TimeStamps through the EXTI line
                DCD     RTC_WKUP_IRQHandler               ; RTC Wakeup through the EXTI line
                DCD     FLASH_IRQHandler                  ; FLASH
                DCD     RCC_IRQHandler                    ; RCC
                DCD     EXTI0_IRQHandler                  ; EXTI Line0
                DCD     EXTI1_IRQHandler                  ; EXTI Line1
                DCD     EXTI2_IRQHandler                  ; EXTI Line2
                DCD     EXTI3_IRQHandler                  ; EXTI Line3
                DCD     EXTI4_IRQHandler                  ; EXTI Line4
                DCD     DMA1_Stream0_IRQHandler           ; DMA1 Stream 0
                DCD     DMA1_Stream1_IRQHandler           ; DMA1 Stream 1
                DCD     DMA1_Stream2_IRQHandler           ; DMA1 Stream 2
                DCD     DMA1_Stream3_IRQHandler           ; DMA1 Stream 3
                DCD     DMA1_Stream4_IRQHandler           ; DMA1 Stream 4
                DCD     DMA1_Stream5_IRQHandler           ; DMA1 Stream 5
                DCD     DMA1_Stream6_IRQHandler           ; DMA1 Stream 6
                DCD     ADC_IRQHandler                    ; ADC1, ADC2 and ADC3s
                DCD     CAN1_TX_IRQHandler                ; CAN1 TX
                DCD     CAN1_RX0_IRQHandler               ; CAN1 RX0
                DCD     CAN1_RX1_IRQHandler               ; CAN1 RX1
                DCD     CAN1_SCE_IRQHandler               ; CAN1 SCE
                DCD     EXTI9_5_IRQHandler                ; External Line[9:5]s
                DCD     TIM1_BRK_TIM9_IRQHandler          ; TIM1 Break and TIM9
                DCD     TIM1_UP_TIM10_IRQHandler          ; TIM1 Update and TIM10
                DCD     TIM1_TRG_COM_TIM11_IRQHandler     ; TIM1 Trigger and Commutation and TIM11
                DCD     TIM1_CC_IRQHandler                ; TIM1 Capture Compare
                DCD     TIM2_IRQHandler                   ; TIM2
                DCD     TIM3_IRQHandler                   ; TIM3
                DCD     TIM4_IRQHandler                   ; TIM4
                DCD     I2C1_EV_IRQHandler                ; I2C1 Event
                DCD     I2C1_ER_IRQHandler                ; I2C1 Error
                DCD     I2C2_EV_IRQHandler                ; I2C2 Event
                DCD     I2C2_ER_IRQHandler                ; I2C2 Error
                DCD     SPI1_IRQHandler                   ; SPI1
                DCD     SPI2_IRQHandler                   ; SPI2
                DCD     USART1_IRQHandler                 ; USART1
                DCD     USART2_IRQHandler                 ; USART2
                DCD     USART3_IRQHandler                 ; USART3
                DCD     EXTI15_10_IRQHandler              ; External Line[15:10]s
                DCD     RTC_Alarm_IRQHandler              ; RTC Alarm (A and B) through EXTI Line
                DCD     OTG_FS_WKUP_IRQHandler            ; USB OTG FS Wakeup through EXTI line
                DCD     TIM8_BRK_TIM12_IRQHandler         ; TIM8 Break and TIM12
                DCD     TIM8_UP_TIM13_IRQHandler          ; TIM8 Update and TIM13
                DCD     TIM8_TRG_COM_TIM14_IRQHandler     ; TIM8 Trigger and Commutation and TIM14
                DCD     TIM8_CC_IRQHandler                ; TIM8 Capture Compare
                DCD     DMA1_Stream7_IRQHandler           ; DMA1 Stream7
                DCD     FMC_IRQHandler                    ; FMC
                DCD     SDIO_IRQHandler                   ; SDIO
                DCD     TIM5_IRQHandler                   ; TIM5
                DCD     SPI3_IRQHandler                   ; SPI3
                DCD     UART4_IRQHandler                  ; UART4
                DCD     UART5_IRQHandler                  ; UART5
                DCD     TIM6_DAC_IRQHandler               ; TIM6 and DAC1&2 underrun errors
                DCD     TIM7_IRQHandler                   ; TIM7
                DCD     DMA2_Stream0_IRQHandler           ; DMA2 Stream 0
                DCD     DMA2_Stream1_IRQHandler           ; DMA2 Stream 1
                DCD     DMA2_Stream2_IRQHandler           ; DMA2 Stream 2
                DCD     DMA2_Stream3_IRQHandler           ; DMA2 Stream 3
                DCD     DMA2_Stream4_IRQHandler           ; DMA2 Stream 4
                DCD     ETH_IRQHandler                    ; Ethernet
                DCD     ETH_WKUP_IRQHandler               ; Ethernet Wakeup through EXTI line
                DCD     CAN2_TX_IRQHandler                ; CAN2 TX
                DCD     CAN2_RX0_IRQHandler               ; CAN2 RX0
                DCD     CAN2_RX1_IRQHandler               ; CAN2 RX1
                DCD     CAN2_SCE_IRQHandler               ; CAN2 SCE
                DCD     OTG_FS_IRQHandler                 ; USB OTG FS
                DCD     DMA2_Stream5_IRQHandler           ; DMA2 Stream 5
                DCD     DMA2_Stream6_IRQHandler           ; DMA2 Stream 6
                DCD     DMA2_Stream7_IRQHandler           ; DMA2 Stream 7
                DCD     USART6_IRQHandler                 ; USART6
                DCD     I2C3_EV_IRQHandler                ; I2C3 event
                DCD     I2C3_ER_IRQHandler                ; I2C3 error
                DCD     OTG_HS_EP1_OUT_IRQHandler         ; USB OTG HS End Point 1 Out
                DCD     OTG_HS_EP1_IN_IRQHandler          ; USB OTG HS End Point 1 In
                DCD     OTG_HS_WKUP_IRQHandler            ; USB OTG HS Wakeup through EXTI
                DCD     OTG_HS_IRQHandler                 ; USB OTG HS
                DCD     DCMI_IRQHandler                   ; DCMI
                DCD     0                                 ; Reserved
                DCD     HASH_RNG_IRQHandler               ; Hash and Rng
                DCD     FPU_IRQHandler                    ; FPU
__Vectors_End    //__Vectors_End 为向量表结束地址
__Vectors_Size  EQU  __Vectors_End - __Vectors
                AREA    |.text|, CODE, READONLY            //定义一个名称为.text 的代码段，可读。

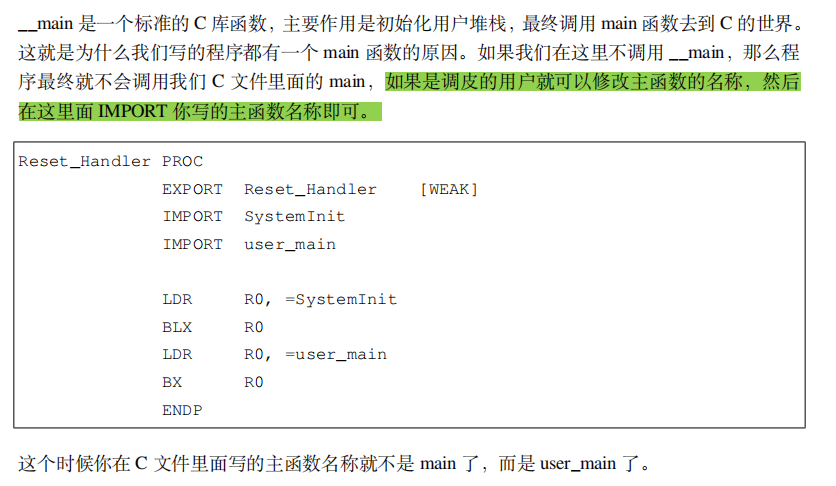

; Reset handler //复位子程序是系统上电后第一个执行的程序，调用 SystemInit 函数初始化系统时钟，然后调用 C库函数 _mian，最终调用 main 函数去到 C 的世界。
Reset_Handler    PROC
                 EXPORT  Reset_Handler             [WEAK]
        IMPORT  SystemInit
        IMPORT  __main
                 LDR     R0, =SystemInit//SystemInit() 是一个标准的库函数，在 system_stm32f103xe.c 这个库文件中定义。
                                            //主要作用是配置系统时钟，这里调用这个函数之后，单片机的系统时钟配被配置为 72M。
                 BLX     R0
                 LDR     R0, =__main
                 BX      R0
                 ENDP
; Dummy Exception Handlers (infinite loops which can be modified)
NMI_Handler     PROC //系统异常
                EXPORT  NMI_Handler                [WEAK]
                B       .
                ENDP
HardFault_Handler\
                PROC
                EXPORT  HardFault_Handler          [WEAK]
                B       .
                ENDP
MemManage_Handler\
                PROC
                EXPORT  MemManage_Handler          [WEAK]
                B       .
                ENDP
BusFault_Handler\
                PROC
                EXPORT  BusFault_Handler           [WEAK]
                B       .
                ENDP
UsageFault_Handler\
                PROC
                EXPORT  UsageFault_Handler         [WEAK]
                B       .
                ENDP
SVC_Handler     PROC
                EXPORT  SVC_Handler                [WEAK]
                B       .
                ENDP
DebugMon_Handler\
                PROC
                EXPORT  DebugMon_Handler           [WEAK]
                B       .
                ENDP
PendSV_Handler  PROC
                EXPORT  PendSV_Handler             [WEAK]
                B       .
                ENDP
SysTick_Handler PROC
                EXPORT  SysTick_Handler            [WEAK]
                B       .
                ENDP
Default_Handler PROC    //外部中断
                EXPORT  WWDG_IRQHandler                   [WEAK]
                EXPORT  PVD_IRQHandler                    [WEAK]
                EXPORT  TAMP_STAMP_IRQHandler             [WEAK]
                EXPORT  RTC_WKUP_IRQHandler               [WEAK]
                EXPORT  FLASH_IRQHandler                  [WEAK]
                EXPORT  RCC_IRQHandler                    [WEAK]
                EXPORT  EXTI0_IRQHandler                  [WEAK]
                EXPORT  EXTI1_IRQHandler                  [WEAK]
                EXPORT  EXTI2_IRQHandler                  [WEAK]
                EXPORT  EXTI3_IRQHandler                  [WEAK]
                EXPORT  EXTI4_IRQHandler                  [WEAK]
                EXPORT  DMA1_Stream0_IRQHandler           [WEAK]
                EXPORT  DMA1_Stream1_IRQHandler           [WEAK]
                EXPORT  DMA1_Stream2_IRQHandler           [WEAK]
                EXPORT  DMA1_Stream3_IRQHandler           [WEAK]
                EXPORT  DMA1_Stream4_IRQHandler           [WEAK]
                EXPORT  DMA1_Stream5_IRQHandler           [WEAK]
                EXPORT  DMA1_Stream6_IRQHandler           [WEAK]
                EXPORT  ADC_IRQHandler                    [WEAK]
                EXPORT  CAN1_TX_IRQHandler                [WEAK]
                EXPORT  CAN1_RX0_IRQHandler               [WEAK]
                EXPORT  CAN1_RX1_IRQHandler               [WEAK]
                EXPORT  CAN1_SCE_IRQHandler               [WEAK]
                EXPORT  EXTI9_5_IRQHandler                [WEAK]
                EXPORT  TIM1_BRK_TIM9_IRQHandler          [WEAK]
                EXPORT  TIM1_UP_TIM10_IRQHandler          [WEAK]
                EXPORT  TIM1_TRG_COM_TIM11_IRQHandler     [WEAK]
                EXPORT  TIM1_CC_IRQHandler                [WEAK]
                EXPORT  TIM2_IRQHandler                   [WEAK]
                EXPORT  TIM3_IRQHandler                   [WEAK]
                EXPORT  TIM4_IRQHandler                   [WEAK]
                EXPORT  I2C1_EV_IRQHandler                [WEAK]
                EXPORT  I2C1_ER_IRQHandler                [WEAK]
                EXPORT  I2C2_EV_IRQHandler                [WEAK]
                EXPORT  I2C2_ER_IRQHandler                [WEAK]
                EXPORT  SPI1_IRQHandler                   [WEAK]
                EXPORT  SPI2_IRQHandler                   [WEAK]
                EXPORT  USART1_IRQHandler                 [WEAK]
                EXPORT  USART2_IRQHandler                 [WEAK]
                EXPORT  USART3_IRQHandler                 [WEAK]
                EXPORT  EXTI15_10_IRQHandler              [WEAK]
                EXPORT  RTC_Alarm_IRQHandler              [WEAK]
                EXPORT  OTG_FS_WKUP_IRQHandler            [WEAK]
                EXPORT  TIM8_BRK_TIM12_IRQHandler         [WEAK]
                EXPORT  TIM8_UP_TIM13_IRQHandler          [WEAK]
                EXPORT  TIM8_TRG_COM_TIM14_IRQHandler     [WEAK]
                EXPORT  TIM8_CC_IRQHandler                [WEAK]
                EXPORT  DMA1_Stream7_IRQHandler           [WEAK]
                EXPORT  FMC_IRQHandler                    [WEAK]
                EXPORT  SDIO_IRQHandler                   [WEAK]
                EXPORT  TIM5_IRQHandler                   [WEAK]
                EXPORT  SPI3_IRQHandler                   [WEAK]
                EXPORT  UART4_IRQHandler                  [WEAK]
                EXPORT  UART5_IRQHandler                  [WEAK]
                EXPORT  TIM6_DAC_IRQHandler               [WEAK]
                EXPORT  TIM7_IRQHandler                   [WEAK]
                EXPORT  DMA2_Stream0_IRQHandler           [WEAK]
                EXPORT  DMA2_Stream1_IRQHandler           [WEAK]
                EXPORT  DMA2_Stream2_IRQHandler           [WEAK]
                EXPORT  DMA2_Stream3_IRQHandler           [WEAK]
                EXPORT  DMA2_Stream4_IRQHandler           [WEAK]
                EXPORT  ETH_IRQHandler                    [WEAK]
                EXPORT  ETH_WKUP_IRQHandler               [WEAK]
                EXPORT  CAN2_TX_IRQHandler                [WEAK]
                EXPORT  CAN2_RX0_IRQHandler               [WEAK]
                EXPORT  CAN2_RX1_IRQHandler               [WEAK]
                EXPORT  CAN2_SCE_IRQHandler               [WEAK]
                EXPORT  OTG_FS_IRQHandler                 [WEAK]
                EXPORT  DMA2_Stream5_IRQHandler           [WEAK]
                EXPORT  DMA2_Stream6_IRQHandler           [WEAK]
                EXPORT  DMA2_Stream7_IRQHandler           [WEAK]
                EXPORT  USART6_IRQHandler                 [WEAK]
                EXPORT  I2C3_EV_IRQHandler                [WEAK]
                EXPORT  I2C3_ER_IRQHandler                [WEAK]
                EXPORT  OTG_HS_EP1_OUT_IRQHandler         [WEAK]
                EXPORT  OTG_HS_EP1_IN_IRQHandler          [WEAK]
                EXPORT  OTG_HS_WKUP_IRQHandler            [WEAK]
                EXPORT  OTG_HS_IRQHandler                 [WEAK]
                EXPORT  DCMI_IRQHandler                   [WEAK]
                EXPORT  HASH_RNG_IRQHandler               [WEAK]
                EXPORT  FPU_IRQHandler                    [WEAK]
WWDG_IRQHandler
PVD_IRQHandler
TAMP_STAMP_IRQHandler
RTC_WKUP_IRQHandler
FLASH_IRQHandler
RCC_IRQHandler
EXTI0_IRQHandler
EXTI1_IRQHandler
EXTI2_IRQHandler
EXTI3_IRQHandler
EXTI4_IRQHandler
DMA1_Stream0_IRQHandler
DMA1_Stream1_IRQHandler
DMA1_Stream2_IRQHandler
DMA1_Stream3_IRQHandler
DMA1_Stream4_IRQHandler
DMA1_Stream5_IRQHandler
DMA1_Stream6_IRQHandler
ADC_IRQHandler
CAN1_TX_IRQHandler
CAN1_RX0_IRQHandler
CAN1_RX1_IRQHandler
CAN1_SCE_IRQHandler
EXTI9_5_IRQHandler
TIM1_BRK_TIM9_IRQHandler
TIM1_UP_TIM10_IRQHandler
TIM1_TRG_COM_TIM11_IRQHandler
TIM1_CC_IRQHandler
TIM2_IRQHandler
TIM3_IRQHandler
TIM4_IRQHandler
I2C1_EV_IRQHandler
I2C1_ER_IRQHandler
I2C2_EV_IRQHandler
I2C2_ER_IRQHandler
SPI1_IRQHandler
SPI2_IRQHandler
USART1_IRQHandler
USART2_IRQHandler
USART3_IRQHandler
EXTI15_10_IRQHandler
RTC_Alarm_IRQHandler
OTG_FS_WKUP_IRQHandler
TIM8_BRK_TIM12_IRQHandler
TIM8_UP_TIM13_IRQHandler
TIM8_TRG_COM_TIM14_IRQHandler
TIM8_CC_IRQHandler
DMA1_Stream7_IRQHandler
FMC_IRQHandler
SDIO_IRQHandler
TIM5_IRQHandler
SPI3_IRQHandler
UART4_IRQHandler
UART5_IRQHandler
TIM6_DAC_IRQHandler
TIM7_IRQHandler
DMA2_Stream0_IRQHandler
DMA2_Stream1_IRQHandler
DMA2_Stream2_IRQHandler
DMA2_Stream3_IRQHandler
DMA2_Stream4_IRQHandler
ETH_IRQHandler
ETH_WKUP_IRQHandler
CAN2_TX_IRQHandler
CAN2_RX0_IRQHandler
CAN2_RX1_IRQHandler
CAN2_SCE_IRQHandler
OTG_FS_IRQHandler
DMA2_Stream5_IRQHandler
DMA2_Stream6_IRQHandler
DMA2_Stream7_IRQHandler
USART6_IRQHandler
I2C3_EV_IRQHandler
I2C3_ER_IRQHandler
OTG_HS_EP1_OUT_IRQHandler
OTG_HS_EP1_IN_IRQHandler
OTG_HS_WKUP_IRQHandler
OTG_HS_IRQHandler
DCMI_IRQHandler
HASH_RNG_IRQHandler
FPU_IRQHandler
                B       .        //B：跳转到一个标号。这里跳转到一个‘.’，即表示无线循环。
                ENDP
                ALIGN
;*******************************************************************************
; User Stack and Heap initialization    //用户堆栈初始化
;*******************************************************************************
                 IF      :DEF:__MICROLIB        //这个宏在 KEIL 里面开启
                                                //首先判断是否定义了 __MICROLIB，如果定义了这个宏则赋予标号
                                                //__initial_sp（栈顶地址）、__heap_base（堆起始地址）、__heap_limit（堆结束地址）全局属性，可供外部文件调用。
                 EXPORT  __initial_sp
                 EXPORT  __heap_base
                 EXPORT  __heap_limit
                 ELSE
                 IMPORT  __use_two_region_memory
                 EXPORT  __user_initial_stackheap
__user_initial_stackheap
                 LDR     R0, =  Heap_Mem
                 LDR     R1, =(Stack_Mem + Stack_Size)
                 LDR     R2, = (Heap_Mem +  Heap_Size)
                 LDR     R3, = Stack_Mem
                 BX      LR
                 ALIGN
                 ENDIF
                 END
;************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE*****
main入口函数也能改

修改之后发现，下载程序很慢
总结

初始化堆栈指针 SP=_initial_sp
初始化 PC 指针 =Reset_Handler
初始化中断向量表
配置系统时钟
调用 C 库函数 _main 初始化用户堆栈，从而最终调用 main 函数去到 C 的世界
电机

启动文件详解

ARM汇编指令的查找

启动代码详解

main入口函数也能改

总结
