实验01 - Static Crypto Map

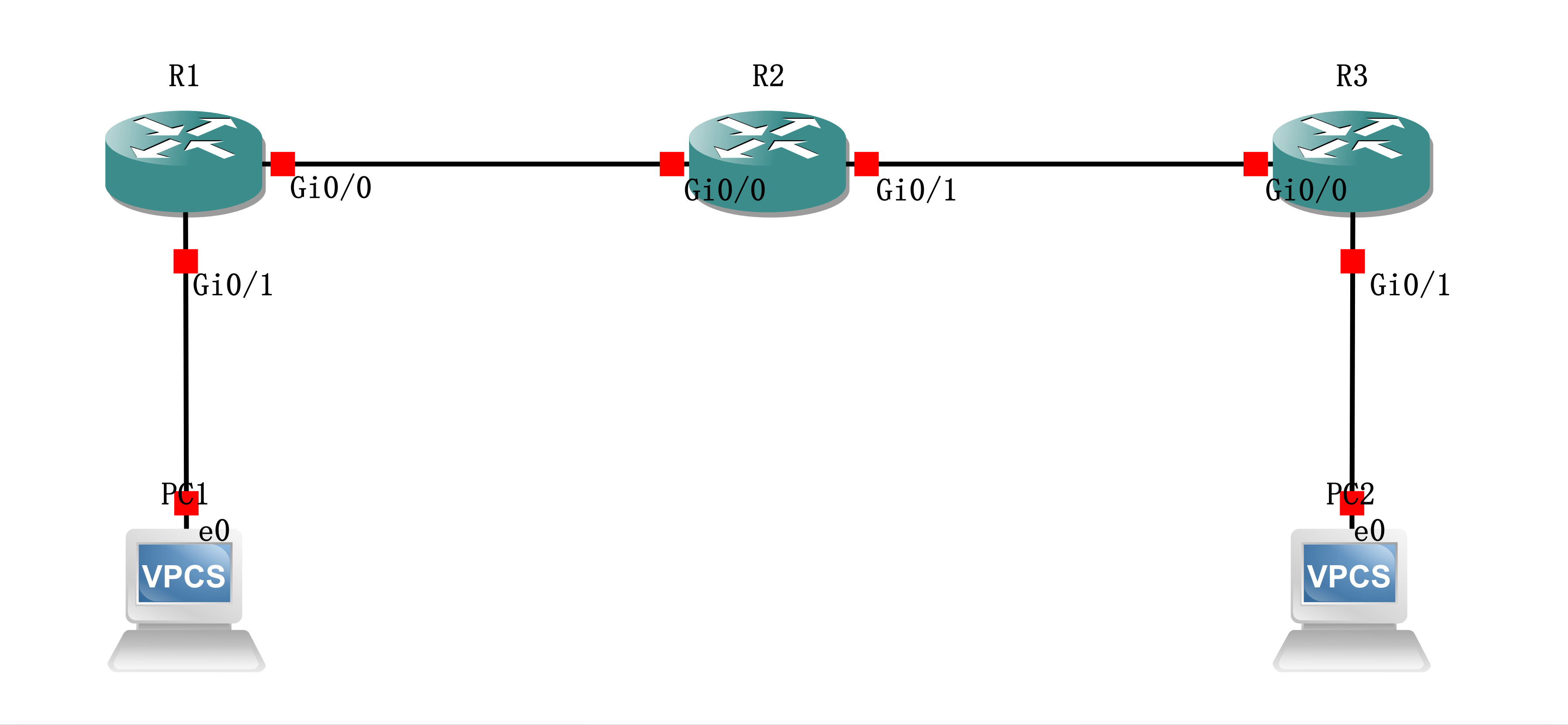

拓扑

步骤

IPsec

• crypto ipsec transform-set MT_TS esp-sha256-hmac esp-aes 256 前半部分是 auth，后半部分是 cipher
• ip access-list extended VPN_TRAFFIC permit ip 172.16.1.0 0.0.0.255 192.168.1.0 0.0.0.255 —— 其实设置的就是Proxy-ID

!!!!!!!!R1
crypto isakmp policy 1
 encr aes 256
 hash sha256
 authentication pre-share
 group 5
crypto isakmp key CISCO address 10.23.1.3
crypto ipsec transform-set MT_TS esp-sha256-hmac esp-aes 256
 mode tunnel
crypto map MY_CRYPTO 10 ipsec-isakmp
 set peer 10.23.1.3
 set transform-set VPN_TS
 match address VPN_TRAFFIC
!!!!!!!!!R3
crypto isakmp policy 1
 encr aes 256
 hash sha256
 authentication pre-share
 group 5
crypto isakmp key CISCO address 10.12.1.1
crypto ipsec transform-set MT_TS esp-sha256-hmac esp-aes 256
crypto map MY_CRYPTO_MAP 10 ipsec-isakmp
 set peer 10.12.1.1
 set transform-set VPN_TS
 match address VPN_TRAFFIC
!!!!!
ip access-list extended VPN_TRAFFIC
 permit ip 172.16.1.0 0.0.0.255 192.168.1.0 0.0.0.255
!!!!!
interface GigabitEthernet0/0
 crypto map MY_CRYPTO_MAP

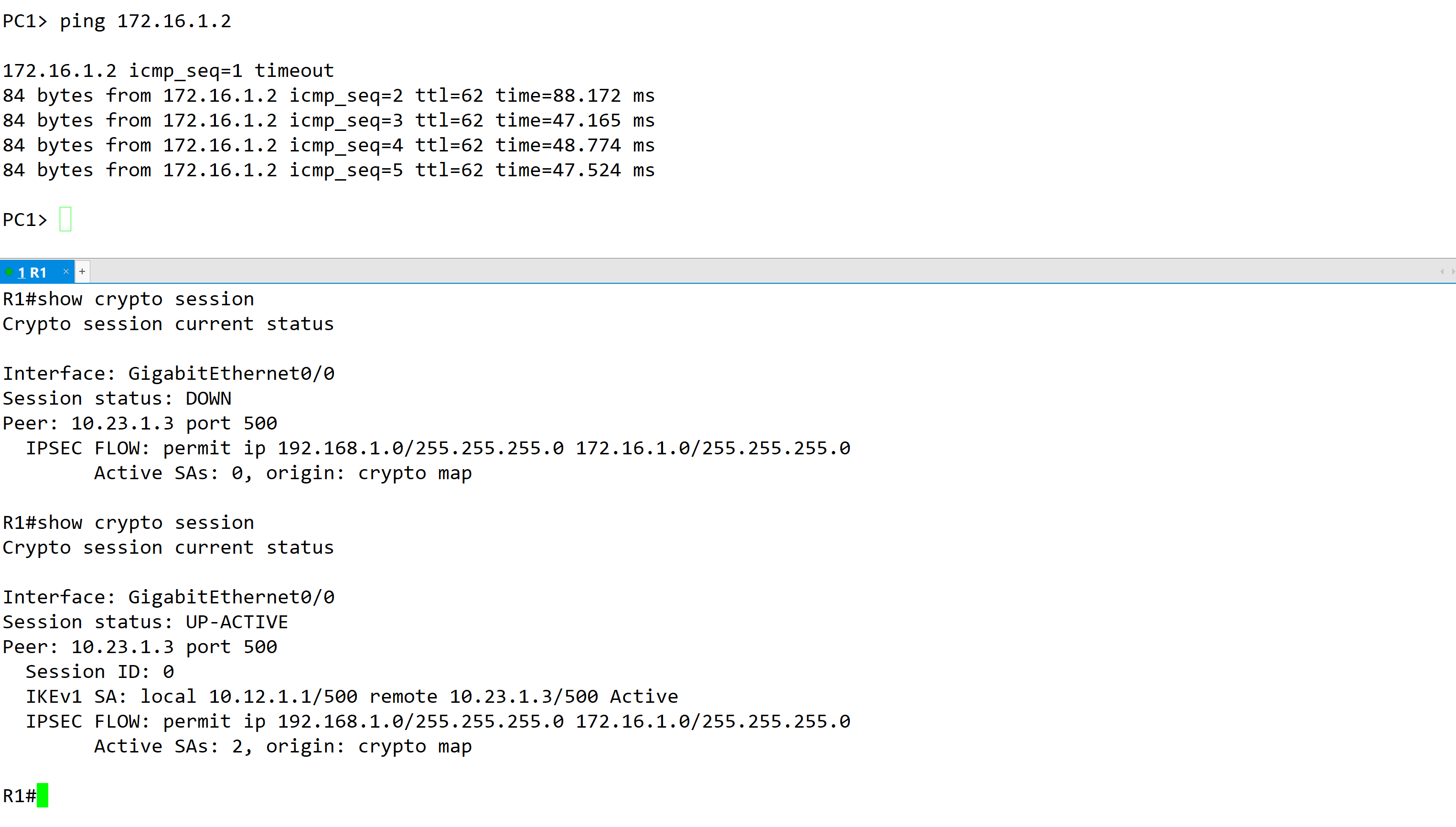

• ip access-list extended VPN_TRAFFIC permit ip 172.16.1.0 0.0.0.255 192.168.1.0 0.0.0.255 —— 这种配置方式，端口状态需要在有流量时才会被激活，当前是DOWN

• show crypto ipsec sa —— 查看Phase2 的结果
  • Proxy-ID
  • 数据包数量
  • 建立IPsec 的地址/端口
  • inbound 和 outbound SA

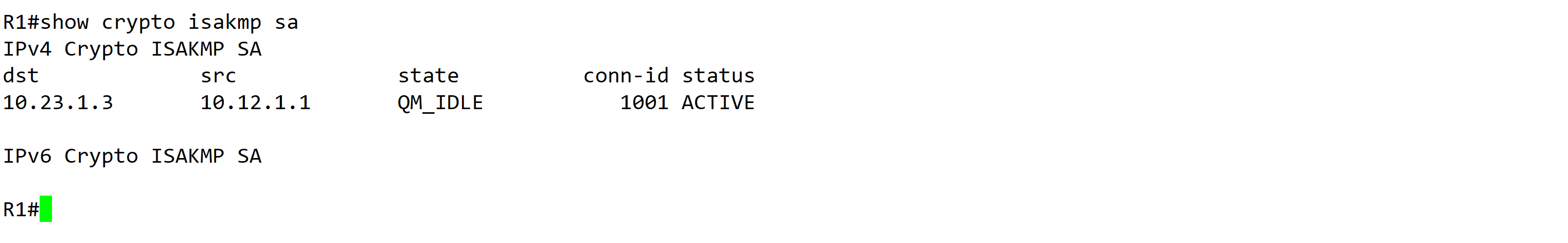

• show crypto isakmp sa —— 查看Phase1 的结果。此时状态为QM_IDLE (Phase 2的状态）

• 我们在R3 上修改key 为 CISOC123，然后清理下缓存 （clear crypto session)，就可以看到网络断开。
