核心：过滤器链

SpringSecurity官方文档中有这么一句话：

Spring Security’s web infrastructure is based entirely on standard servlet filters.

也就是说，SpringSecurity的核心基础就是Servlet过滤器链
一个Web请求会通过一条完整的过滤器链，在经过过滤器链的时候对完成认证和授权，如果中间发现这条请求未认证或未授权，会根据被保护API的权限去抛出异常，然后由异常处理器去处理这些异常。
SpringSecurity整合JWT - 图1
上图中的UsernamePasswordAuthenticationFilter和BasicAuthenticationFilter对应着config配置类中的formLogin和httpBasic的配置项，在配置项如果对这两个属性进行了配置，那么就会将上述两个过滤器加载到我们的过滤器链中

  • formLogin对应着你form表单认证方式，即UsernamePasswordAuthenticationFilter。
  • httpBasic对应着Basic认证方式，即BasicAuthenticationFilter。

重要概念

  • SecurityContext：上下文对象，会存放Authentication对象
  • SecurityContextHolder：用于拿到上下文对象的静态工具类
  • Authentication：认证接口，定义了认证对象的数据形式

  • AuthenticationManager：用于校验Authentication，返回一个认证完成后的Authentication对象

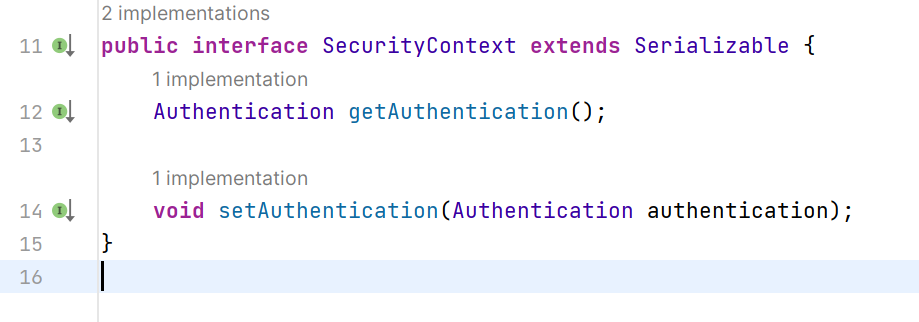

    1. SecurityContext

    其中只有两个方法，对Authenticationset 或者 get

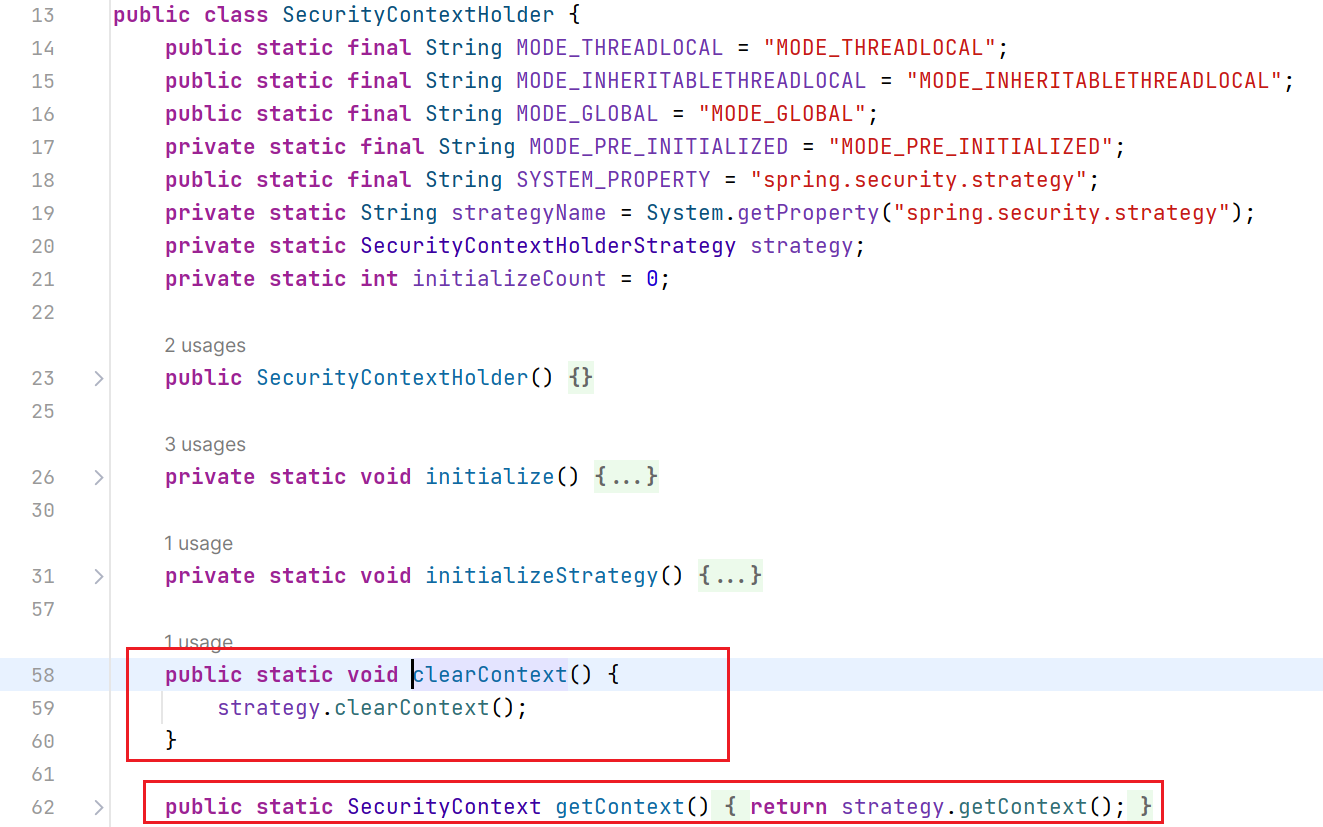

    2. SecurityContextHolder

    相当于是SecurityContext的工具类，可以用来获取或者清除SecurityContext

    3. Authentication

    几个方法的作用如下：

  • getAuthorities：获取用户权限，一般情况下获取到的是用户的角色信息

  • getCredentials：获取证明用户认证的信息，一般获取到的是密码等信息
  • getDetails：获取用户的额外信息
  • getPrincipal：获取用户身份信息，在未认证的情况下获取到的是用户名，已认证的情况下获取到的是UserDetails
  • isAuthenticated：获取当前Authentication 是否已完成认证
  • setAuthenticated：设置当前Authentication是否已认证

    4. AuthenticationManager

    1. public interface AuthenticationManager {
    2. // 认证方法
    3. Authentication authenticate(Authentication authentication)
    4.  throws AuthenticationException;
    5. }
    AuthenticationManager定义了一个认证方法，它将一个未认证的Authentication传入，返回一个已认证的Authentication，默认使用的实现类为：ProviderManager。

那么，如何将上述四个部分串联起来，从而构建出基于SpringSecurity的登录认证流程？

  • ✔️先是一个请求，携带着用户信息进来
  • ✔️通过AuthenticationManager或者AuthenticationProvider的认证
  • ✔️然后通过SecurityContextHolder获取SecurityContext
  • ✔️将认证的信息放到SecurityContext中

自定义登录逻辑处理器

  1. package com.sheep.securitylearning.handler;
  4. import cn.hutool.log.Log;
  5. import cn.hutool.log.LogFactory;
  6. import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
  7. import com.sheep.securitylearning.entity.Users;
  8. import com.sheep.securitylearning.mapper.UserMapper;
  9. import org.springframework.beans.factory.annotation.Autowired;
  10. import org.springframework.security.authentication.AuthenticationProvider;
  11. import org.springframework.security.authentication.BadCredentialsException;
  12. import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
  13. import org.springframework.security.core.Authentication;
  14. import org.springframework.security.core.AuthenticationException;
  15. import org.springframework.security.core.GrantedAuthority;
  16. import org.springframework.security.core.authority.AuthorityUtils;
  17. import org.springframework.security.core.userdetails.UsernameNotFoundException;
  18. import org.springframework.stereotype.Component;
  20. import java.util.List;
  21. import java.util.Objects;
  23. /**
  24.  * Created By Intellij IDEA
  25.  *
  26.  * @author ssssheep
  27.  * @package com.sheep.securitylearning.handler
  28.  * @datetime 2022/8/8 星期一
  29.  */
  30. @Component
  31. public class UserAuthenticationProvider implements AuthenticationProvider {
  33.     private static final Log log = LogFactory.get(UserAuthenticationProvider.class);
  35.     @Autowired
  36.     private UserMapper userMapper;
  39.     @Override
  40.     public Authentication authenticate(Authentication authentication) throws AuthenticationException {
  41.         log.info("on authenticate");
  42.         // 获取表单输入中返回的用户名
  43.         String username = (String) authentication.getPrincipal();
  44.         // 获取表单中输入的密码
  45.         String password = (String) authentication.getCredentials();
  47.         QueryWrapper<Users> queryWrapper = new QueryWrapper<>();
  48.         queryWrapper.eq("username", username);
  49.         Users users = userMapper.selectOne(queryWrapper);
  50.         if (Objects.isNull(users)) {
  51.             throw new UsernameNotFoundException("用户名不存在");
  52.         }
  53.         if (!users.getPassword().equalsIgnoreCase(password)) {
  54.             throw new BadCredentialsException("密码不正确");
  55.         }
  56.         List<GrantedAuthority> auths = AuthorityUtils.commaSeparatedStringToAuthorityList("ROLE_admins");
  57.         return new UsernamePasswordAuthenticationToken(users, password, auths);
  58.     }
  60.     @Override
  61.     public boolean supports(Class<?> authentication) {
  62.         return true;
  63.     }
  64. }

封装TokenUtil

由于我们前后端分离需要基于JWT来进行认证，因此我们需要自行封装一个帮我们操作Token的工具类，主要需要以下三个方法

  • 生成token
  • 验证token
  • 反解析token ```java package com.sheep.securitylearning.utils;

import cn.hutool.core.lang.UUID; import cn.hutool.json.JSONUtil; import io.jsonwebtoken.Claims; import io.jsonwebtoken.Jwts; import io.jsonwebtoken.SignatureAlgorithm; import io.jsonwebtoken.SignatureException; import org.apache.tomcat.util.codec.binary.Base64; import org.springframework.security.core.userdetails.UserDetails;

import javax.crypto.SecretKey; import javax.crypto.spec.SecretKeySpec; import java.util.Date; import java.util.HashMap;

/**

  • Created By Intellij IDEA *
  • @author ssssheep
  • @package com.sheep.securitylearning.utils

  • @datetime 2022/8/8 星期一 */ public class JwtUtil {

    private static final Long DEFAULT_EXPIRATION_TIME = 259200000L;

    public static SecretKey generalKey() {

    1.  String stringKey = "ssssheep";
    2.  byte[] decodedKey = Base64.decodeBase64(stringKey);
    3.  return new SecretKeySpec(decodedKey, "AES");

    }

    public static String createKey(String username, Long ttl) {

    1.  if (ttl <= 0) {
    2.      ttl = DEFAULT_EXPIRATION_TIME;
    3.  }
    4.  SignatureAlgorithm signatureAlgorithm = SignatureAlgorithm.HS256;
    5.  long nowMillis = System.currentTimeMillis();
    6.  Date now = new Date(nowMillis);
    7.  HashMap<String, Object> claims = new HashMap<>();
    8.  claims.put("username", username);
    9.  SecretKey key = generalKey();
    10.  return Jwts.builder()
    11.          .setClaims(claims)
    12.          .setId(UUID.randomUUID().toString())
    13.          .setIssuedAt(now)
    14.          .setIssuer("yxr")
    15.          .setSubject(JSONUtil.toJsonStr(claims))
    16.          .signWith(signatureAlgorithm, key)
    17.          .setExpiration(new Date(nowMillis + DEFAULT_EXPIRATION_TIME))
    18.          .compact();

    }

    public static boolean isTokenExpired(Claims claims) {

    1.  return claims.getExpiration().before(new Date());

    }

    /**

    • 验证token是否合法 *
    • @param token token值
    • @param userDetails 用户信息
    • @return 是否合法 */ public static boolean checkValid(String token, UserDetails userDetails) { Claims claims = parseKey(token); System.out.println(claims.getSubject()); String username = JSONUtil.parseObj(claims.getSubject()).getStr(“username”); return username.equals(userDetails.getUsername())
      1.      && !isTokenExpired(claims);
      }
  1. public static Claims parseKey(String token) throws SignatureException {
  2.     SecretKey key = generalKey();
  3.     return Jwts.parser()
  4.             .setSigningKey(key)
  5.             .parseClaimsJws(token)
  6.             .getBody();
  7. }

// public static void main(String[] args) { // String token = “eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJ7XCJpc3NcIjpcInl4clwiLFwiaWF0XCI6MTY2MDAxMjY3NSxcImp0aVwiOlwiZTY2YzlmZmYtYzRjYi00NDU5LWJhOWQtMmQzZTZlZTBmNDE3XCIsXCJ1c2VybmFtZVwiOlwiYWRtaW5cIn0iLCJpc3MiOiJ5eHIiLCJleHAiOjE2NjAyNzE4NzUsImlhdCI6MTY2MDAxMjY3NSwianRpIjoiZTY2YzlmZmYtYzRjYi00NDU5LWJhOWQtMmQzZTZlZTBmNDE3IiwidXNlcm5hbWUiOiJhZG1pbiJ9.P2j2CgQNrDOLdA7HtYUPBFu2DT91wDAFYQj1rWpZXv8”; // Users users = new Users(1, “admin”, “123”); // System.out.println(checkValid(token, users)); // } }

  1. <a name="WuQ1i"></a>
  2. ## 编写请求登录接口

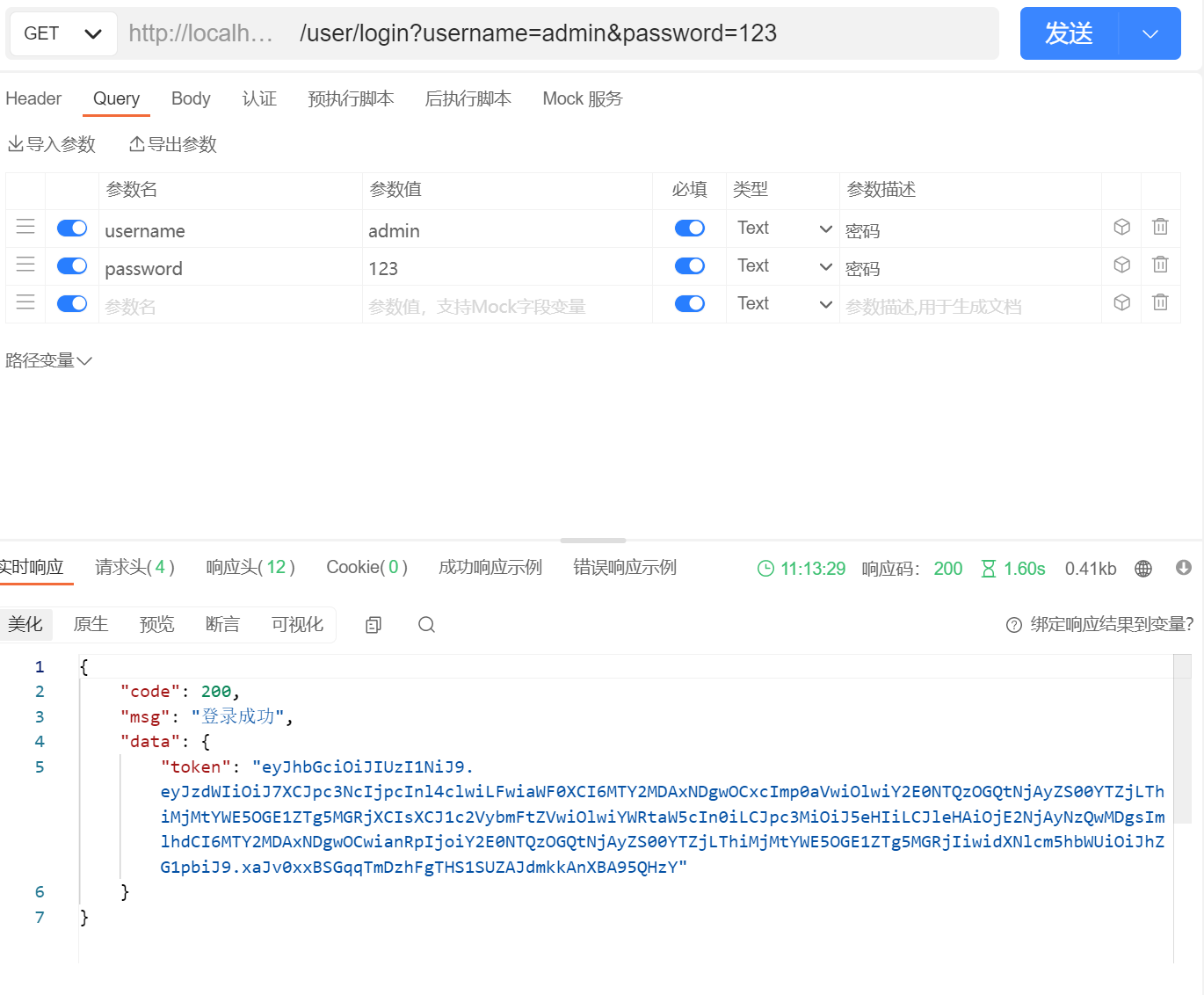

  3. 访问任何一个系统，最先访问的就是认证方法，如下是根据最简单的登录逻辑编写了一个登录接口
  4. ```java
  5. @GetMapping("/login")
  6. public ApiResult login(String username, String password) {
  7.     UsernamePasswordAuthenticationToken authenticationToken = new UsernamePasswordAuthenticationToken(username, password);
  8.     Authentication authentication = userAuthenticationProvider.authenticate(authenticationToken);
  9.     SecurityContextHolder.getContext().setAuthentication(authentication);
  10.     Users principal = (Users) authentication.getPrincipal();
  11.     String token = JwtUtil.createKey(principal.getUsername(), -1L);
  12.     HashMap<String, Object> result = new HashMap<>();
  13.     result.put("token", token);
  14.     return ApiResult.success("登录成功", result);
  15. }
  • 🌈根据传入的用户名和密码构建一个UsernamePasswordAuthenticationToken
  • 🌈将UsernamePasswordAuthenticationToken传入我们的自定义登录逻辑处理器中，返回一个Authentication对象
  • 🌈如果认证成功，那么就会走到第三步。就可以通过SecurityContextHolder获取SecurityContext，然后将认证之后的Authentication对象，放入上下文对象中
  • 🌈从Authentication对象中拿到我们的UserDetails，然后根据封装的JwtUtil创建token，返回给前端

🗝️将token返回给前端后，前端之后的每次请求都要在请求头中携带上token

JWT过滤器

  1. package com.sheep.securitylearning.filter;
  3. import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
  4. import com.sheep.securitylearning.config.ApiResult;
  5. import com.sheep.securitylearning.entity.Users;
  6. import com.sheep.securitylearning.mapper.UserMapper;
  7. import com.sheep.securitylearning.utils.JwtUtil;
  8. import com.sheep.securitylearning.utils.ResultUtil;
  9. import io.jsonwebtoken.Claims;
  10. import io.jsonwebtoken.SignatureException;
  11. import lombok.RequiredArgsConstructor;
  12. import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
  13. import org.springframework.security.core.GrantedAuthority;
  14. import org.springframework.security.core.authority.AuthorityUtils;
  15. import org.springframework.security.core.context.SecurityContextHolder;
  16. import org.springframework.stereotype.Component;
  17. import org.springframework.util.StringUtils;
  18. import org.springframework.web.filter.OncePerRequestFilter;
  20. import javax.servlet.FilterChain;
  21. import javax.servlet.ServletException;
  22. import javax.servlet.http.HttpServletRequest;
  23. import javax.servlet.http.HttpServletResponse;
  24. import java.io.IOException;
  25. import java.util.List;
  26. import java.util.Objects;
  28. /**
  29.  * Created By Intellij IDEA
  30.  *
  31.  * @author ssssheep
  32.  * @package com.sheep.securitylearning.filter
  33.  * @datetime 2022/8/8 星期一
  34.  */
  36. @Component
  37. @RequiredArgsConstructor
  38. public class JwtAuthTokenFilter extends OncePerRequestFilter {
  40.     final UserMapper userMapper;
  42.     @Override
  43.     protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {
  44.         System.out.println("进入了JwtAuthTokenFilter");
  45.         // 获取token
  46.         String token = request.getHeader("token");
  47.         if (!StringUtils.hasText(token)) {
  48.             filterChain.doFilter(request, response);
  49.             return;
  50.         }
  52.         // 解析token
  53.         Claims claims;
  54.         try {
  55.             claims = JwtUtil.parseKey(token);
  56.         } catch (SignatureException e) {
  57.             e.printStackTrace();
  58.             ResultUtil.responseJson(response, ApiResult.error("token已失效"));
  59.             return;
  60.         }
  61.         Integer uid = claims.get("uid", Integer.class);
  62.         // 从数据库中获取用户信息
  63.         QueryWrapper<Users> queryWrapper = new QueryWrapper<>();
  64.         queryWrapper.eq("id", uid);
  65.         Users users = userMapper.selectOne(queryWrapper);
  66.         if (Objects.isNull(users)) {
  67.             ResultUtil.responseJson(response, ApiResult.notLogin());
  68.             return;
  69.         }
  70.         // 判断token是否合法
  71.         if (!JwtUtil.checkValid(token, users)) {
  72.             ResultUtil.responseJson(response, ApiResult.notLogin());
  73.             return;
  74.         }
  75.         // 存储SecurityContextHolder
  76.         List<GrantedAuthority> auths
  77.                 = AuthorityUtils.commaSeparatedStringToAuthorityList("ROLE_admins");
  78.         UsernamePasswordAuthenticationToken authenticationToken
  79.                 = new UsernamePasswordAuthenticationToken(users, users.getPassword(), auths);
  80.         SecurityContextHolder.getContext().setAuthentication(authenticationToken);
  82.         // 放行
  83.         filterChain.doFilter(request, response);
  84.     }
  85. }

在过滤器中主要是获取请求头中的token并且验证其是否合法
判断token合法后，获取用户的信息并组装好一个authentication对象，将它放在上下文的对象中，这样后面的过滤器就可以获取authentication对象，就相当于已经认证过了

对Security进行配置

  1. package com.sheep.securitylearning.config;
  3. import com.sheep.securitylearning.filter.JwtAuthTokenFilter;
  4. import com.sheep.securitylearning.handler.*;
  5. import lombok.RequiredArgsConstructor;
  6. import org.springframework.context.annotation.Bean;
  7. import org.springframework.context.annotation.Configuration;
  8. import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
  9. import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
  10. import org.springframework.security.config.annotation.web.builders.HttpSecurity;
  11. import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
  12. import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
  13. import org.springframework.security.config.http.SessionCreationPolicy;
  14. import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
  15. import org.springframework.security.crypto.password.PasswordEncoder;
  16. import org.springframework.security.web.access.expression.DefaultWebSecurityExpressionHandler;
  17. import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
  19. /**
  20.  * Created By Intellij IDEA
  21.  *
  22.  * @author ssssheep
  23.  * @package com.sheep.securitylearning.config
  24.  * @datetime 2022/8/8 星期一
  25.  */
  26. @Configuration
  27. @RequiredArgsConstructor
  28. @EnableGlobalMethodSecurity(securedEnabled = true, prePostEnabled = true)
  29. @EnableWebSecurity
  30. public class SecurityConfig extends WebSecurityConfigurerAdapter {
  32.     final JwtAuthTokenFilter jwtAuthTokenFilter;
  33.     final UserLogoutSuccessHandler userLogoutSuccessHandler;
  34.     final UserAuthAccessDeniedHandler userAuthAccessDeniedHandler;
  35.     final UserAuthenticationProvider userAuthenticationProvider;
  36.     final UserAuthenticationEntryPoint userAuthenticationEntryPoint;
  38.     @Bean
  39.     public DefaultWebSecurityExpressionHandler userSecurityExpressionHandler() {
  40.         DefaultWebSecurityExpressionHandler handler = new DefaultWebSecurityExpressionHandler();
  41.         handler.setPermissionEvaluator(new UserPermissionEvaluator());
  42.         return handler;
  43.     }
  45.     @Override
  46.     protected void configure(HttpSecurity http) throws Exception {
  47.         http.csrf().disable()
  48.                 .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
  49.                 .and()
  50.                 .authorizeRequests()
  51.                 .antMatchers("/user/login").anonymous()
  52.                 //除了登录接口以外的所有接口都需要认证访问
  53.                 .anyRequest().authenticated()
  54.                 .and()
  55.                 .formLogin()
  56.                 .disable()
  57.                 .logout()
  58.                 .logoutSuccessHandler(userLogoutSuccessHandler)
  59.                 .and()
  60.                 .exceptionHandling()
  61.                 .authenticationEntryPoint(userAuthenticationEntryPoint)
  62.                 .accessDeniedHandler(userAuthAccessDeniedHandler)
  63.                 .and()
  64.                 .cors()
  65.                 .and()
  66.                 .csrf().disable();
  67.         http.headers().cacheControl();
  68.         // 将我们自定义的JWT过滤器加入到过滤器链中
  69.         http.addFilterBefore(jwtAuthTokenFilter, UsernamePasswordAuthenticationFilter.class);
  70.     }
  72.     @Override
  73.     protected void configure(AuthenticationManagerBuilder auth) throws Exception {
  74.         auth.authenticationProvider(userAuthenticationProvider);
  75.     }
  77.     @Bean
  78.     PasswordEncoder passwordEncoder() {
  79.         return new BCryptPasswordEncoder();
  80.     }

测试

准备三个接口

  • 登录接口
  • 权限接口1（有权限）
  • 权限接口2（无权限）

    访问登录接口

    首先请求登录接口，获取用户的token

    访问权限接口1

    在请求头中携带上token，发起请求
    由于我们拥有此接口需要的权限，所以可以正常请求

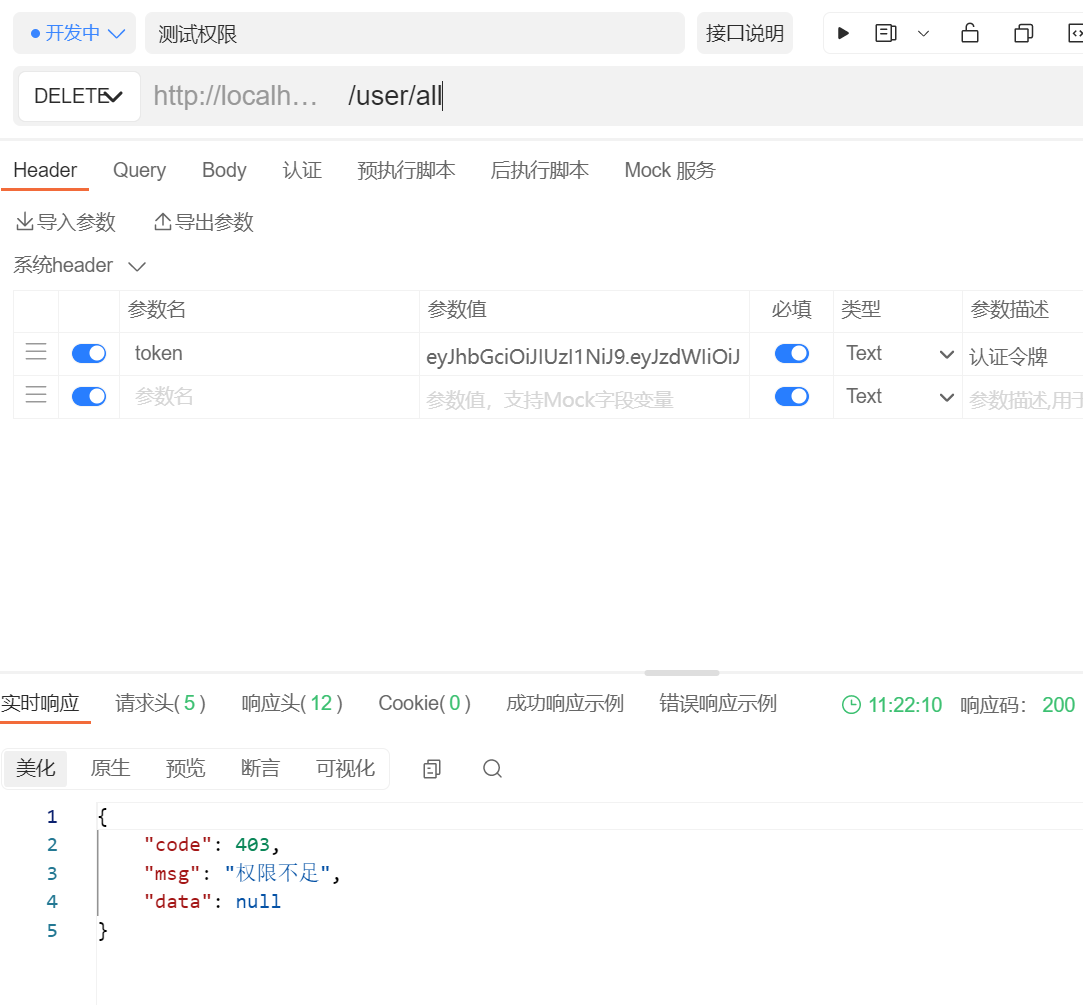

    访问权限接口2

    由于我们没有此接口的权限，因此会得到403状态码
    至此，我们的系统已经成功整合了JWT实现接口的登录、授权以及鉴权
