模拟订单支付超时场景

使用延时队列完成

订单实体

package com.ctgu.sheep.mq.model;
import com.fasterxml.jackson.annotation.JsonFormat;
import lombok.*;
import org.springframework.format.annotation.DateTimeFormat;
import javax.persistence.*;
import java.time.LocalDateTime;
/**
 * Created By Intellij IDEA
 *
 * @author ssssheep
 * @package com.ctgu.sheep.mq.model
 * @datetime 2022/9/18 星期日
 */
@Getter
@Setter
@ToString
@AllArgsConstructor
@NoArgsConstructor
@Entity
@Table(name = "t_orders")
public class Order {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer id;
    private String goodsName;
    private String buyerName;
    @ManyToOne
    @JoinColumn(name = "buyer_id", referencedColumnName = "id")
    private User buyer;
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    @DateTimeFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    private LocalDateTime createTime;
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    @DateTimeFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    private LocalDateTime payTime;
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    @DateTimeFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    private LocalDateTime finishTime;
    /**
     * orderStatus: 0:未支付 1:已支付 2:已完成 3:已取消
     */
    private Integer orderStatus;
    private String cancelReason;
}

用户实体

package com.ctgu.sheep.mq.model;
import lombok.*;
import javax.persistence.*;
/**
 * Created By Intellij IDEA
 *
 * @author ssssheep
 * @package com.ctgu.sheep.mq.model
 * @datetime 2022/9/18 星期日
 */
@Getter
@Setter
@ToString
@AllArgsConstructor
@NoArgsConstructor
@Entity
@Table(name = "t_users")
public class User {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer id;
    private String username;
}

延时队列配置

/**
 * Created By Intellij IDEA
 *
 * @author ssssheep
 * @package com.ctgu.sheep.mq.config
 * @datetime 2022/9/18 星期日
 */
@Configuration
public class OrderQueueConfig {
    public static final String ORDER_QUEUE_NAME = "order.queue";
    public static final String ORDER_EXCHANGE_NAME = "order.exchange";
    public static final String ORDER_ROUTING_KEY = "order.routingkey";
    @Bean("orderQueue")
    public Queue orderQueue() {
        return new Queue(ORDER_QUEUE_NAME);
    }
    @Bean("orderExchange")
    public CustomExchange orderExchange() {
        HashMap<String, Object> args = new HashMap<>();
        args.put("x-delayed-type", "direct");
        return new CustomExchange(ORDER_EXCHANGE_NAME, "x-delayed-message", true, false, args);
    }
    @Bean
    public Binding bindingOrderQueue(@Qualifier("orderQueue") Queue queue,
                                     @Qualifier("orderExchange") CustomExchange customExchange) {
        return BindingBuilder.bind(queue).to(customExchange).with(ORDER_ROUTING_KEY).noargs();
    }
}

订单业务控制器

/**
 * Created By Intellij IDEA
 *
 * @author ssssheep
 * @package com.ctgu.sheep.mq.controller
 * @datetime 2022/9/18 星期日
 */
@RestController
@RequestMapping("/order")
@Slf4j
public class OrderController {
    public static final String ORDER_EXCHANGE_NAME = "order.exchange";
    public static final String ORDER_ROUTING_KEY = "order.routingkey";
    @Autowired
    private OrderRepository orderRepository;
    @Autowired
    private UserRepository userRepository;
    @Autowired
    private RabbitTemplate rabbitTemplate;
    @PostMapping("/create")
    @Transactional(rollbackFor = Exception.class)
    public String createOrder(@RequestBody CreateOrderParam param) {
        User user = userRepository.findById(param.getBuyerId()).get();
        Order order = new Order();
        order.setGoodsName(param.getGoodsName());
        order.setBuyerName(user.getUsername());
        order.setBuyer(user);
        order.setCreateTime(LocalDateTime.now());
        order.setOrderStatus(0);
        Order entity = orderRepository.save(order);
        log.info("订单创建成功，订单id：{}", entity.getId());
        rabbitTemplate.convertAndSend(ORDER_EXCHANGE_NAME, ORDER_ROUTING_KEY, String.valueOf(entity.getId()), message -> {
            message.getMessageProperties().setDelay(30000);
            return message;
        });
        return "ok";
    }
    @PostMapping("/pay")
    public String payOrder(@RequestParam Integer orderId) {
        Order order = orderRepository.findById(orderId).get();
        order.setPayTime(LocalDateTime.now());
        order.setOrderStatus(1);
        orderRepository.save(order);
        return "支付成功";
    }
}

超期订单消费者

/**
 * Created By Intellij IDEA
 *
 * @author ssssheep
 * @package com.ctgu.sheep.mq.mq
 * @datetime 2022/9/18 星期日
 */
@Slf4j
@Component
public class DeadOrderQueueConsumer {
    @Autowired
    private OrderRepository orderRepository;
    public static final String ORDER_QUEUE_NAME = "order.queue";
    @RabbitListener(queues = ORDER_QUEUE_NAME)
    @Transactional(rollbackFor = Exception.class)
    public void orderOverTime(Message message) {
        String oid = new String(message.getBody());
        log.info("订单延时队列收到消息，订单id：{}", oid);
        Order order = orderRepository.findById(Integer.valueOf(oid)).get();
        if (order.getOrderStatus() == 0) {
            order.setOrderStatus(3);
            order.setCancelReason("订单超时未支付");
            orderRepository.save(order);
        }
    }
}

测试

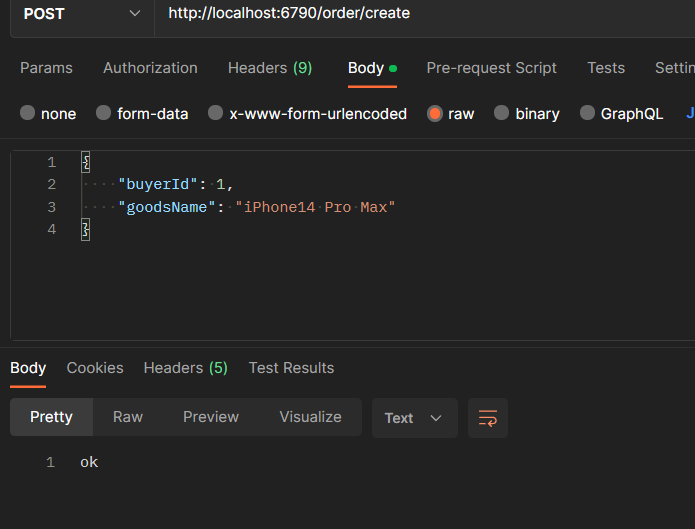

请求下单的接口

请求成功，订单数据存入到数据库中

30s后，消息进入延时队列中，查询到订单还未支付，因此就将订单的状态改为超时

当我们创建订单后，在30s内进行了支付，那么后续消息队列就不会再修改订单的状态
