一、博客系统分析

数据库的构建

首先，我们分析一个博客系统的功能：

  • 一个博客可以有多个标签（多对多）
  • 一个博客可以有多条评论(一对多）
  • 一个博客只可以有一个类别（多对一）

接下来，我们分析关系的属性：

博客：标题，作者，内容，发布时间，分类（外键），标签（多对多）等

标签：标签名

类别：分类名

评论：作者，博客（外键），邮箱，内容，发布时间等。

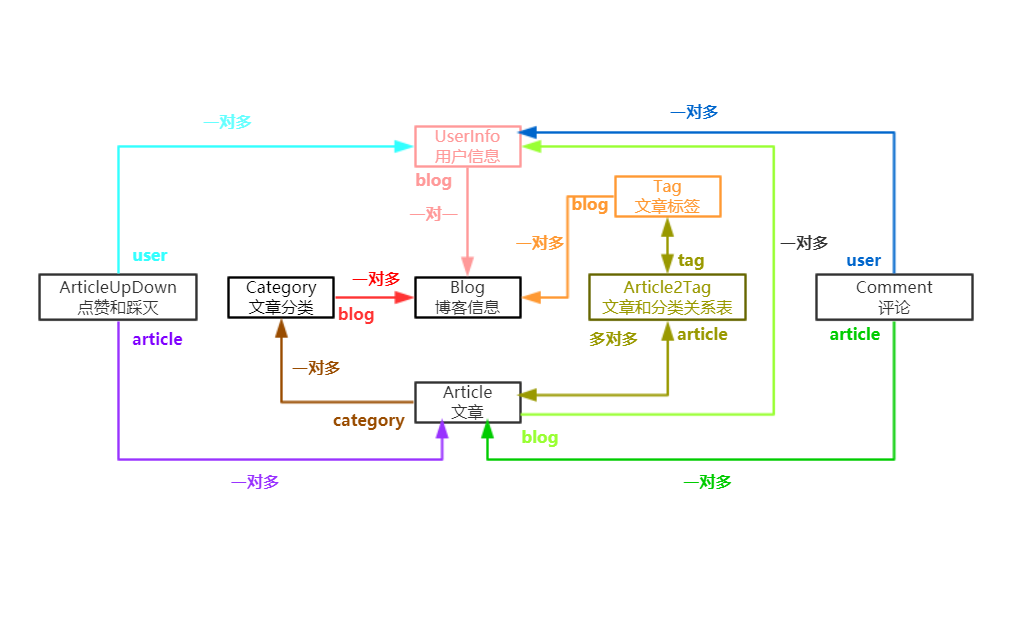

有8张表，表关系如下：

Day80 博客系统分析,博客主页展示 - 图1

图中箭头开始的英文字母表示关联字段

按照箭头方向查询，表示正向查询，否则为反向查询

新建项目cnblog，应用名为blog

修改models.py，必须导入模块

  1. from django.contrib.auth.models import AbstractUser

因为有一个表userinfo需要继承它。django自带的auth_user表也是继承AbstractUser

表模型如下：

  1. from django.db import models
  3. # Create your models here.
  6. from django.db import models
  8. # Create your models here.
  11. from django.contrib.auth.models import AbstractUser
  13. class UserInfo(AbstractUser):
  14.     """
  15.     用户信息
  16.     """
  17.     nid = models.AutoField(primary_key=True)
  18.     telephone = models.CharField(max_length=11, null=True, unique=True)
  19.     avatar = models.FileField(upload_to='avatars/', default="avatars/default.png")
  20.     create_time = models.DateTimeField(verbose_name='创建时间', auto_now_add=True)
  22.     blog = models.OneToOneField(to='Blog', to_field='nid', null=True, on_delete=models.CASCADE)
  24.     def __str__(self):
  25.         return self.username
  28. class Blog(models.Model):
  29.     """
  30.     博客信息
  31.     """
  32.     nid = models.AutoField(primary_key=True)
  33.     title = models.CharField(verbose_name='个人博客标题', max_length=64)
  34.     site_name = models.CharField(verbose_name='站点名称', max_length=64)
  35.     theme = models.CharField(verbose_name='博客主题', max_length=32)
  37.     def __str__(self):
  38.         return self.title
  41. class Category(models.Model):
  42.     """
  43.     博主个人文章分类表
  44.     """
  45.     nid = models.AutoField(primary_key=True)
  46.     title = models.CharField(verbose_name='分类标题', max_length=32)
  47.     blog = models.ForeignKey(verbose_name='所属博客', to='Blog', to_field='nid', on_delete=models.CASCADE)
  49.     def __str__(self):
  50.         return self.title
  53. class Tag(models.Model):
  54.     nid = models.AutoField(primary_key=True)
  55.     title = models.CharField(verbose_name='标签名称', max_length=32)
  56.     blog = models.ForeignKey(verbose_name='所属博客', to='Blog', to_field='nid', on_delete=models.CASCADE)
  58.     def __str__(self):
  59.         return self.title
  62. class Article(models.Model):
  64.     nid = models.AutoField(primary_key=True)
  65.     title = models.CharField(max_length=50, verbose_name='文章标题')
  66.     desc = models.CharField(max_length=255, verbose_name='文章描述')
  67.     create_time = models.DateTimeField(verbose_name='创建时间', auto_now_add=True)
  68.     content = models.TextField()
  70.     comment_count = models.IntegerField(default=0)
  71.     up_count = models.IntegerField(default=0)
  72.     down_count = models.IntegerField(default=0)
  74.     user = models.ForeignKey(verbose_name='作者', to='UserInfo', to_field='nid', on_delete=models.CASCADE)
  75.     category = models.ForeignKey(to='Category', to_field='nid', null=True, on_delete=models.CASCADE)
  76.     tags = models.ManyToManyField(
  77.         to="Tag",
  78.         #through参数可以指定用作中介的中间模型
  79.         through='Article2Tag',
  80.     )
  82.     def __str__(self):
  83.         return self.title
  88. class Article2Tag(models.Model):
  89.     nid = models.AutoField(primary_key=True)
  90.     article = models.ForeignKey(verbose_name='文章', to="Article", to_field='nid', on_delete=models.CASCADE)
  91.     tag = models.ForeignKey(verbose_name='标签', to="Tag", to_field='nid', on_delete=models.CASCADE)
  93.     class Meta:
  94.         #组合唯一约束
  95.         unique_together = [
  96.             ('article', 'tag'),
  97.         ]
  99.     def __str__(self):
  100.         v = self.article.title + "---" + self.tag.title
  101.         return v
  104. class ArticleUpDown(models.Model):
  105.     """
  106.     点赞表
  107.     """
  109.     nid = models.AutoField(primary_key=True)
  110.     user = models.ForeignKey('UserInfo', null=True, on_delete=models.CASCADE)
  111.     article = models.ForeignKey("Article", null=True, on_delete=models.CASCADE)
  112.     is_up = models.BooleanField(default=True)
  114.     class Meta:
  115.         # 组合唯一约束
  116.         unique_together = [
  117.             ('article', 'user'),
  118.         ]
  121. class Comment(models.Model):
  122.     """
  124.     评论表
  126.     """
  127.     nid = models.AutoField(primary_key=True)
  128.     article = models.ForeignKey(verbose_name='评论文章', to='Article', to_field='nid', on_delete=models.CASCADE)
  129.     user = models.ForeignKey(verbose_name='评论者', to='UserInfo', to_field='nid', on_delete=models.CASCADE)
  130.     content = models.CharField(verbose_name='评论内容', max_length=255)
  131.     create_time = models.DateTimeField(verbose_name='创建时间', auto_now_add=True)
  132.     parent_comment = models.ForeignKey('Comment', null=True, on_delete=models.CASCADE)
  134.     def __str__(self):
  135.         return self.content

相关参数解释：

through 表示orm，不要创建关系表。而制定一个表，这个表自己来创建！为什么呢？因为orm创建多对多关系表时，只有3个字段。那么需要关系表需要扩充字段时，就不行了！

所以设置through 字段，是为了方便添加额外的字段。使用through，那么这个表，称之为中间模型。

在Comment模型表中，有一个字段parent_comment。它关联的是本身表中的主键nid，它是一个父级评论id，用来展示谁评论谁！to=’Comment’等同于to=’self’

修改settings.py配置文件，覆盖默认的User模型**。**最后一行添加，否则执行创建表命令时会报错！

  1. AUTH_USER_MODEL="blog.UserInfo"

Django允许你通过修改setting.py文件中的 AUTH_USER_MODEL 设置覆盖默认的User模型，其值引用一个自定义的模型。

bolg，是应用名。

使用下面2个命令，生成表

  1. python manage.py makemigrations
  2. python manage.py migrate

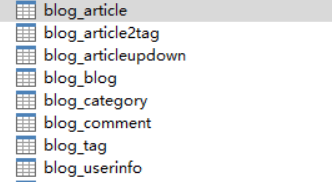

生成的表如下：

Day80 博客系统分析,博客主页展示 - 图2

注意：django自带的auth_user表没有了，取而代之的是blog_userinfo表。

查看表字段

Day80 博客系统分析,博客主页展示 - 图3

它在auth_user表的基础上，增加了5个字段！

登录验证

添加超级用户，密码必须是8位或者以上！

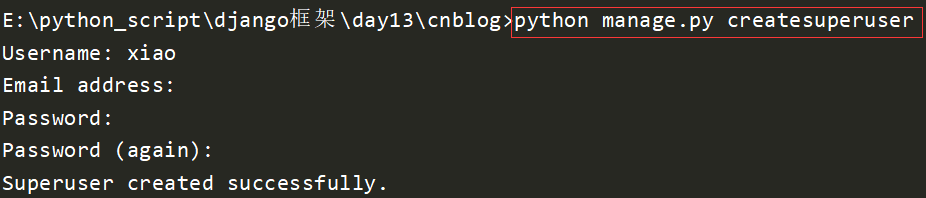

  1. python manage.py createsuperuser

效果如下：

Day80 博客系统分析,博客主页展示 - 图4

再创建2个用户，zhang和lisi。用来测试多个用户登录！

Day80 博客系统分析,博客主页展示 - 图5

lisi用户

Day80 博客系统分析,博客主页展示 - 图6

修改urls.py，增加路径

  1. from blog import views
  2. urlpatterns = [
  3.     path('admin/', admin.site.urls),
  4.     path('index/', views.index),
  5.     path('login/', views.login),
  6. ]

修改views.py，增加视图函数

  1. from django.shortcuts import render,HttpResponse,redirect
  2. from django.contrib import auth
  3. from blog.models import Article,UserInfo
  5. # Create your views here.
  6. def login(request):
  8.     if request.method=="POST":
  9.         user=request.POST.get("user")
  10.         pwd=request.POST.get("pwd")
  11.         # 用户验证成功,返回user对象,否则返回None
  12.         user=auth.authenticate(username=user,password=pwd)
  13.         if user:
  14.             # 登录,注册session
  15.             # 全局变量 request.user=当前登陆对象(session中)
  16.             auth.login(request,user)
  17.             return redirect("/index/")
  19.     return render(request,"login.html")
  21. def index(request):
  22.     return render(request,"index.html")

修改login.html

  1. <!DOCTYPE html>
  2. <html lang="en">
  3. <head>
  4.     <meta charset="UTF-8">
  5.     <title>Title</title>
  6. </head>
  7. <body>
  8. <form action="" method="post">
  9.     {% csrf_token %}
  10.     <lable>用户名</lable><input type="text" name="user">
  11.     <lable>密码</lable><input type="password" name="pwd">
  12.     <input type="submit">
  13. </form>
  14. </body>
  15. </html>

修改index.html

  1. <!DOCTYPE html>
  2. <html lang="en">
  3. <head>
  4.     <meta charset="UTF-8">
  5.     <title>Title</title>
  6. </head>
  7. <body>
  8. <h3>INDEX</h3>
  9. </body>
  10. </html>

访问登录页面

Day80 博客系统分析,博客主页展示 - 图7

跳转到首页

Day80 博客系统分析,博客主页展示 - 图8

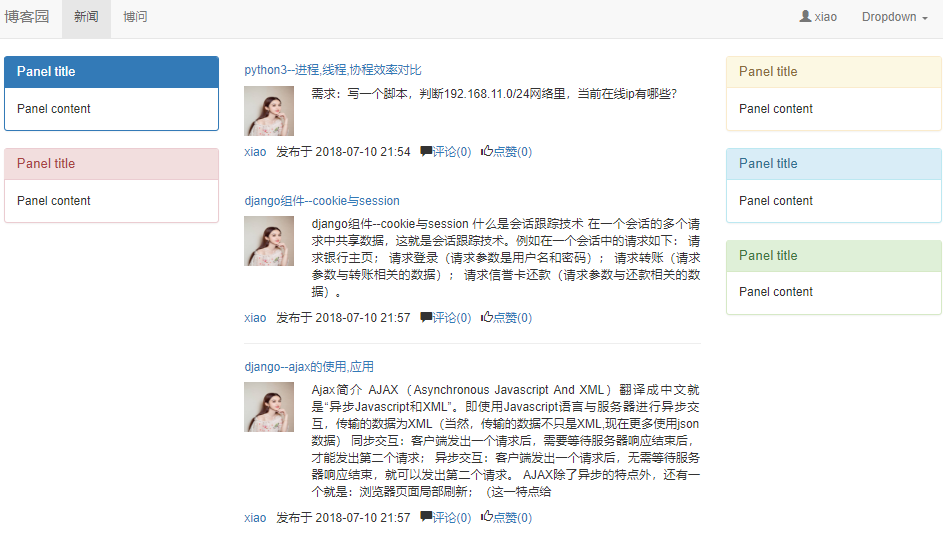

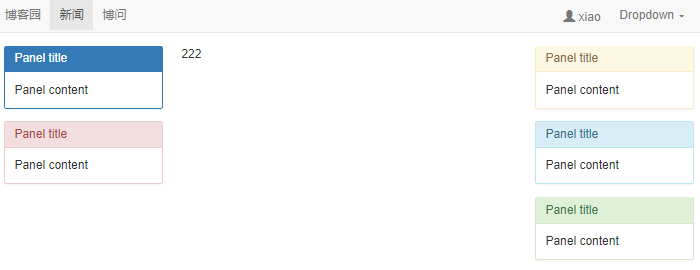

首页修饰

修改settings.py，设置静态文件目录。最后一行添加：

  1. STATICFILES_DIRS=[
  2.     os.path.join(BASE_DIR,"static")
  3. ]

下载bootsrtap，将压缩的包内容放到satic目录

img和js是新建的

目录如下：

Day80 博客系统分析,博客主页展示 - 图9

修改urls.py，增加路径

  1. urlpatterns = [
  2.     path('admin/', admin.site.urls),
  3.     path('login/', views.login),
  4.     path('index/', views.index),
  5.     path('logout/', views.logout),
  6.     path('', views.index),
  7. ]

修改views.py，增加注销

  1. def logout(request):  # 注销
  2.     auth.logout(request)
  3.     return redirect("/index/")

修改index.html

  1. <!DOCTYPE html>
  2. <html lang="en">
  3. <head>
  4.     <meta charset="UTF-8">
  5.     <title>Title</title>
  6.     <link rel="stylesheet" href="/static/bootstrap/css/bootstrap.css">
  7.     <script src="/static/js/jquery.js"></script>
  8.     <script src="/static/bootstrap/js/bootstrap.js"></script>
  9.     <style>
  10.         .desc{
  11.             text-align: justify;
  12.         }
  14.         .info{
  15.             margin-top: 10px;
  16.         }
  18.     </style>
  19. </head>
  20. <body>
  21. <nav class="navbar navbar-default">
  22.     <div class="container-fluid">
  23.         <!-- Brand and toggle get grouped for better mobile display -->
  24.         <div class="navbar-header">
  25.             <button type="button" class="navbar-toggle collapsed" data-toggle="collapse"
  26.                     data-target="#bs-example-navbar-collapse-1" aria-expanded="false">
  27.                 <span class="sr-only">Toggle navigation</span>
  28.                 <span class="icon-bar"></span>
  29.                 <span class="icon-bar"></span>
  30.                 <span class="icon-bar"></span>
  31.             </button>
  32.             <a class="navbar-brand" href="#">博客园</a>
  33.         </div>
  35.         <!-- Collect the nav links, forms, and other content for toggling -->
  36.         <div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
  37.             <ul class="nav navbar-nav">
  38.                 <li class="active"><a href="#">新闻 <span class="sr-only">(current)</span></a></li>
  39.                 <li><a href="#">博问</a></li>
  41.             </ul>
  43.             <ul class="nav navbar-nav navbar-right">
  44.                 {% if request.user.username %}
  45.                     <li><a href="#"><span class="glyphicon glyphicon-user"></span> {{ request.user.username }}</a>
  46.                     </li>
  47.                     <li class="dropdown">
  48.                         <a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true"
  49.                            aria-expanded="false">Dropdown <span class="caret"></span></a>
  50.                         <ul class="dropdown-menu">
  51.                             <li><a href="#">修改密码</a></li>
  52.                             <li><a href="#">个人信息</a></li>
  53.                             <li><a href="/logout/">注销</a></li>
  54.                             <li role="separator" class="divider"></li>
  55.                             <li><a href="#">Separated link</a></li>
  56.                         </ul>
  57.                     </li>
  59.                 {% else %}
  60.                     <li><a href="/login/">登陆</a></li>
  61.                     <li><a href="#">注册</a></li>
  62.                 {% endif %}
  65.             </ul>
  66.         </div><!-- /.navbar-collapse -->
  67.     </div><!-- /.container-fluid -->
  68. </nav>
  70. <div class="container-fluid">
  71.     <div class="row">
  72.         <div class="col-md-3">
  73.             <div class="panel panel-primary">
  74.                 <div class="panel-heading">
  75.                     <h3 class="panel-title">Panel title</h3>
  76.                 </div>
  77.                 <div class="panel-body">
  78.                     Panel content
  79.                 </div>
  80.             </div>
  82.             <div class="panel panel-danger">
  83.                 <div class="panel-heading">
  84.                     <h3 class="panel-title">Panel title</h3>
  85.                 </div>
  86.                 <div class="panel-body">
  87.                     Panel content
  88.                 </div>
  89.             </div>
  90.         </div>
  91.         <div class="col-md-6">
  93.             222
  95.         </div>
  96.         <div class="col-md-3">
  98.             <div class="panel panel-warning">
  99.                 <div class="panel-heading">
  100.                     <h3 class="panel-title">Panel title</h3>
  101.                 </div>
  102.                 <div class="panel-body">
  103.                     Panel content
  104.                 </div>
  105.             </div>
  106.             <div class="panel panel-info">
  107.                 <div class="panel-heading">
  108.                     <h3 class="panel-title">Panel title</h3>
  109.                 </div>
  110.                 <div class="panel-body">
  111.                     Panel content
  112.                 </div>
  113.             </div>
  114.             <div class="panel panel-success">
  115.                 <div class="panel-heading">
  116.                     <h3 class="panel-title">Panel title</h3>
  117.                 </div>
  118.                 <div class="panel-body">
  119.                     Panel content
  120.                 </div>
  121.             </div>
  123.         </div>
  124.     </div>
  125. </div>
  127. </body>
  128. </html>

重新登录，效果如下：

Day80 博客系统分析,博客主页展示 - 图10

添加内容

使用django自带的admin后台，快速添加数据。

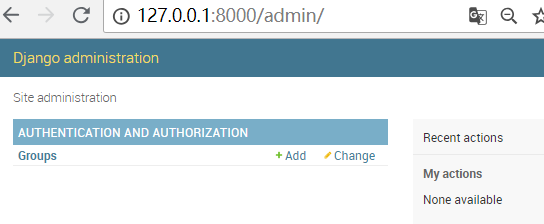

访问后台页面，这里必须是超级用户。上面已经创建了超级用户xiao

默认是空的

Day80 博客系统分析,博客主页展示 - 图11

操作表，必须要注册

修改views.py同级目录下的admin.py

注册所有的模型表

from django.contrib import admin

# Register your models here.

from blog import models

admin.site.register(models.UserInfo)
admin.site.register(models.Blog)
admin.site.register(models.Category)
admin.site.register(models.Tag)
admin.site.register(models.Article2Tag)
admin.site.register(models.Article)
admin.site.register(models.ArticleUpDown)
admin.site.register(models.Comment)

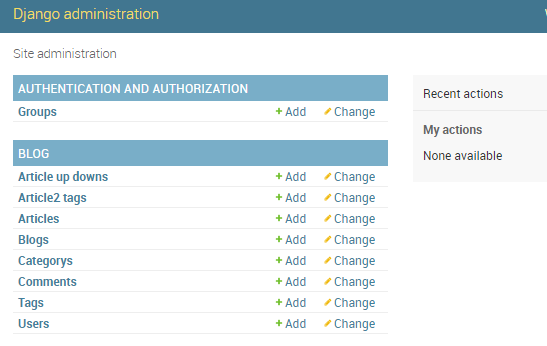

再次刷新页面

Day80 博客系统分析,博客主页展示 - 图12

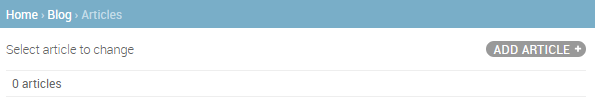

点击Articles，添加文章

Day80 博客系统分析,博客主页展示 - 图13

从http://www.py3study.com 上面copy一篇博客

注意内容都是html代码

Day80 博客系统分析,博客主页展示 - 图14

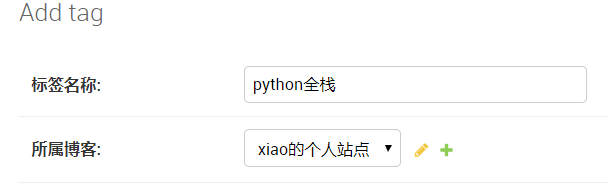

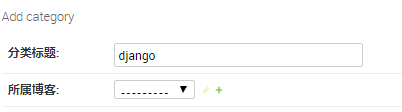

添加分类

Day80 博客系统分析,博客主页展示 - 图15

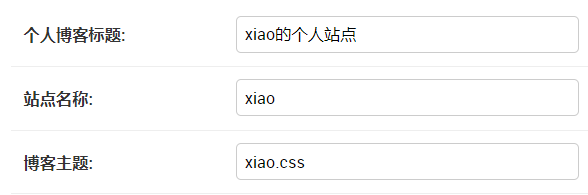

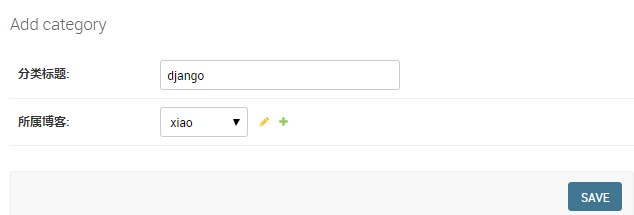

添加站点

Day80 博客系统分析,博客主页展示 - 图16

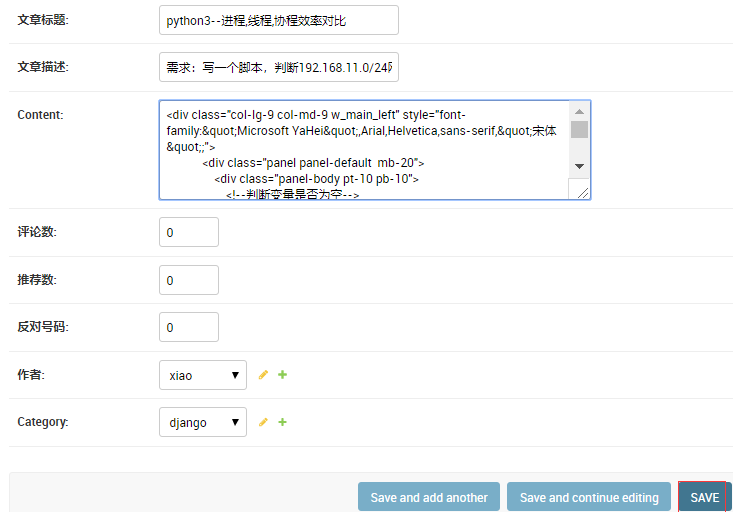

保存

Day80 博客系统分析,博客主页展示 - 图17

点击保存

Day80 博客系统分析,博客主页展示 - 图18

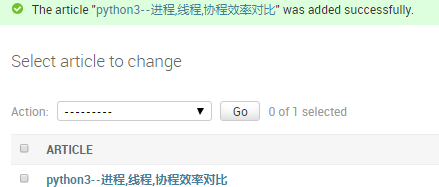

添加成功

Day80 博客系统分析,博客主页展示 - 图19

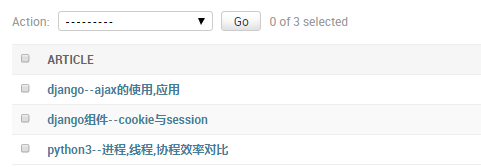

多添加几篇博客

Day80 博客系统分析,博客主页展示 - 图20

首页文章展示

修改settings.py，更改时区

TIME_ZONE = 'Asia/Shanghai'

修改index视图函数

def index(request):
    article_list=Article.objects.all()
    return render(request,"index.html",{"article_list":article_list})

修改index.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <link rel="stylesheet" href="/static/bootstrap/css/bootstrap.css">
    <script src="/static/js/jquery.js"></script>
    <script src="/static/bootstrap/js/bootstrap.js"></script>
    <style>
        .desc{
            text-align: justify;
        }

        .info{
            margin-top: 10px;
        }

    </style>
</head>
<body>
<nav class="navbar navbar-default">
    <div class="container-fluid">
        <!-- Brand and toggle get grouped for better mobile display -->
        <div class="navbar-header">
            <button type="button" class="navbar-toggle collapsed" data-toggle="collapse"
                    data-target="#bs-example-navbar-collapse-1" aria-expanded="false">
                <span class="sr-only">Toggle navigation</span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
            </button>
            <a class="navbar-brand" href="#">博客园</a>
        </div>

        <!-- Collect the nav links, forms, and other content for toggling -->
        <div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
            <ul class="nav navbar-nav">
                <li class="active"><a href="#">新闻 <span class="sr-only">(current)</span></a></li>
                <li><a href="#">博问</a></li>

            </ul>

            <ul class="nav navbar-nav navbar-right">
                {% if request.user.username %}
                    <li><a href="#"><span class="glyphicon glyphicon-user"></span> {{ request.user.username }}</a>
                    </li>
                    <li class="dropdown">
                        <a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true"
                           aria-expanded="false">Dropdown <span class="caret"></span></a>
                        <ul class="dropdown-menu">
                            <li><a href="#">修改密码</a></li>
                            <li><a href="#">个人信息</a></li>
                            <li><a href="/logout/">注销</a></li>
                            <li role="separator" class="divider"></li>
                            <li><a href="#">Separated link</a></li>
                        </ul>
                    </li>

                {% else %}
                    <li><a href="/login/">登陆</a></li>
                    <li><a href="#">注册</a></li>
                {% endif %}


            </ul>
        </div><!-- /.navbar-collapse -->
    </div><!-- /.container-fluid -->
</nav>

<div class="container-fluid">
    <div class="row">
        <div class="col-md-3">
            <div class="panel panel-primary">
                <div class="panel-heading">
                    <h3 class="panel-title">Panel title</h3>
                </div>
                <div class="panel-body">
                    Panel content
                </div>
            </div>

            <div class="panel panel-danger">
                <div class="panel-heading">
                    <h3 class="panel-title">Panel title</h3>
                </div>
                <div class="panel-body">
                    Panel content
                </div>
            </div>
        </div>
        <div class="col-md-6">

            <div class="article_list">
                {% for article in article_list %}
                 <div class="article_item">
                      <h5><a href="">{{ article.title }}</a></h5>
                      <div>
                          <span class="media-left"><a href=""><img width="60" height="60" src="https://ss0.baidu.com/6ONWsjip0QIZ8tyhnq/it/u=1758343206,1224786249&fm=58&bpow=1024&bpoh=1536" alt=""></a></span>

                          <span class="media-right small desc ">
                              {{ article.desc }}
                          </span>

                      </div>
                      <div class="info small">
                            <span><a href="">{{ article.user.username }}</a></span>
                            发布于 <span>{{ article.create_time|date:'Y-m-d H:i' }}</span>
                           <span class="glyphicon glyphicon-comment"></span><a href="">评论({{ article.comment_count }})</a>
                           <span class="glyphicon glyphicon-thumbs-up"></span><a href="">点赞({{ article.up_count }})</a>
                      </div>
                 </div>
                    <hr>
                {% endfor %}
            </div>



        </div>
        <div class="col-md-3">

            <div class="panel panel-warning">
                <div class="panel-heading">
                    <h3 class="panel-title">Panel title</h3>
                </div>
                <div class="panel-body">
                    Panel content
                </div>
            </div>
            <div class="panel panel-info">
                <div class="panel-heading">
                    <h3 class="panel-title">Panel title</h3>
                </div>
                <div class="panel-body">
                    Panel content
                </div>
            </div>
            <div class="panel panel-success">
                <div class="panel-heading">
                    <h3 class="panel-title">Panel title</h3>
                </div>
                <div class="panel-body">
                    Panel content
                </div>
            </div>

        </div>
    </div>
</div>

</body>
</html>

访问首页，效果如下：

Day80 博客系统分析,博客主页展示 - 图21

个人站点展示

比如博客园范围个人站点是域名加用户名，就可以了，比如：

https://www.cnblogs.com/xiao987334176

如果用户不存在，会提示404页面

增加404页面

修改urls.py，增加路径。注意导入re_path

from django.contrib import admin
from django.urls import path,re_path
from blog import views
urlpatterns = [
    path('admin/', admin.site.urls),
    path('login/', views.login),
    path('index/', views.index),
    path('logout/', views.logout),
    path('', views.index),
    re_path('(?P<username>\w+)', views.homesite),
]

修改views.py，增加视图函数

def homesite(request,username):
    """
    查询
    :param request:
    :param username:
    :return:
    """

    # 查询当前站点的用户对象
    user=UserInfo.objects.filter(username=username).first()
    if not user:
        return render(request,"not_found.html")

    return render(request,"homesite.html",{"user":user})

在templates目录创建文件not_found.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <link rel="stylesheet" href="/static/bootstrap/css/bootstrap.css">
</head>
<body>


<div class="container" style="margin-top: 100px">
    <div class="text-center">
        <a href="http://www.cnblogs.com/"><img src="/static/img/logo_small.gif" alt="cnblogs"></a>
        <p><b>404.</b> 抱歉! 您访问的资源不存在!</p>
        <p class="d">请确认您输入的网址是否正确，如果问题持续存在，请发邮件至 xx@qq.com 与 <strong style="font-size: 28px">xiao</strong> 联系。</p>
        <p><a href="/">返回网站首页</a></p>

    </div>
</div>
</body>
</html>

创建homesite.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<h3>{{ user }}</h3>
</body>
</html>

访问网页：http://127.0.0.1:8000/xiao

Day80 博客系统分析,博客主页展示 - 图22

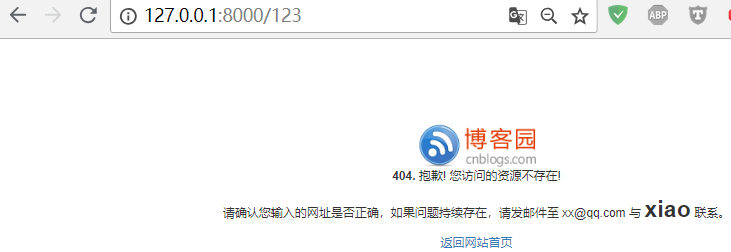

访问一个不存在的用户

http://127.0.0.1:8000/123

页面提示404

Day80 博客系统分析,博客主页展示 - 图23

展示文章列表

修改homesite视图函数

def homesite(request,username):
    """
    查询
    :param request:
    :param username:
    :return:
    """

    # 查询当前站点的用户对象
    user=UserInfo.objects.filter(username=username).first()
    if not user:
        return render(request,"not_found.html")
    # 查询当前站点对象
    blog=user.blog

    # 查询当前用户发布的所有文章
    article_list=Article.objects.filter(user__username=username)

    return render(request,"homesite.html",{"blog":blog,"article_list":article_list})

修改homesite.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>

    <style>
        *{
            margin: 0;
            padding: 0;
        }
        .header{
            width: 100%;
            height: 59px;
            background-color: #369;
        }
        .header .title{
            line-height: 59px;
            color: white;
            font-weight: lighter;
            margin-left: 20px;
            font-size: 18px;
        }

        .left_region{
            margin-top: 10px;
        }

        .info{
          margin-top: 10px;
          color: darkgray;

        }
    </style>
    <link rel="stylesheet" href="/static/bootstrap/css/bootstrap.css">
    <script src="/static/js/jquery.js"></script>
    <script src="/static/bootstrap/js/bootstrap.js"></script>
</head>
<body>
<div class="header">
    <p class="title">{{ blog.title }}</p>
</div>


<div class="container-fluid">
    <div class="row">
        <div class="col-md-3">
            <div class="left_region">
                 <div class="panel panel-success">
                <div class="panel-heading">
                    <h3 class="panel-title">Panel title</h3>
                </div>
                <div class="panel-body">
                    Panel content
                </div>
            </div>
                 <div class="panel panel-warning">
                    <div class="panel-heading">
                        <h3 class="panel-title">Panel title</h3>
                    </div>
                    <div class="panel-body">
                        Panel content
                    </div>
                </div>
                 <div class="panel panel-info">
                    <div class="panel-heading">
                        <h3 class="panel-title">Panel title</h3>
                    </div>
                    <div class="panel-body">
                        Panel content
                    </div>
                </div>
            </div>
        </div>
        <div class="col-md-9">

             <div class="article_list">
                {% for article in article_list %}
                 <div class="article_item clearfix">
                      <h5><a href="">{{ article.title }}</a></h5>
                      <div>

                          <span class="small desc ">
                              {{ article.desc }}
                          </span>

                      </div>
                      <div class="info small pull-right">
                            发布于 <span>{{ article.create_time|date:'Y-m-d H:i' }}</span>
                           <span class="glyphicon glyphicon-comment"></span><a href="">评论({{ article.comment_count }})</a>
                           <span class="glyphicon glyphicon-thumbs-up"></span><a href="">点赞({{ article.up_count }})</a>
                      </div>
                 </div>
                    <hr>
                {% endfor %}
            </div>

        </div>
    </div>
</div>


</body>
</html>

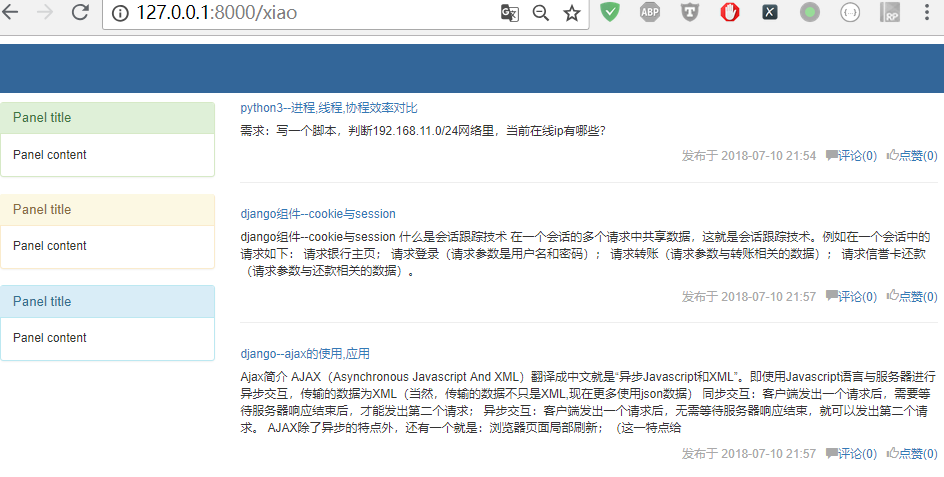

访问xiao的个人站点，效果如下：

Day80 博客系统分析,博客主页展示 - 图24

这个时候发现，左上角没有显示博客标题。那是因为用户认证表的blog_id字段默认为空，需要在admin后台绑定一下

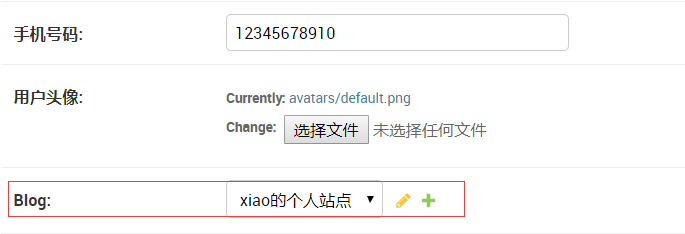

登录到后台，点击用户表，点击指定的用户xiao

拉到最下面，绑定blog，点击保存

Day80 博客系统分析,博客主页展示 - 图25

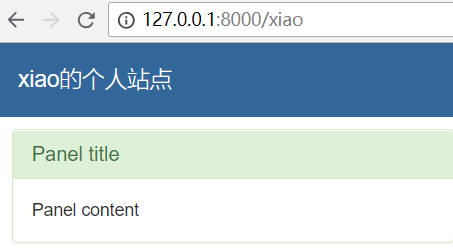

再次刷新个人站点，发现出来了！

Day80 博客系统分析,博客主页展示 - 图26

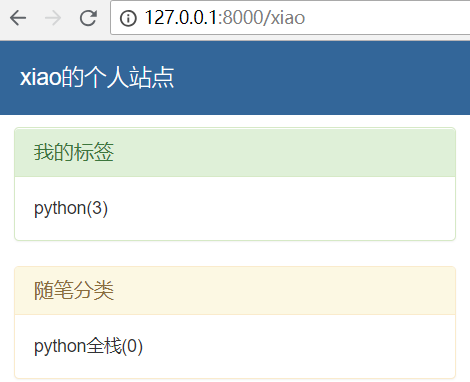

作业：

查询当前站点每一个分类的名称以及对应的文章数

查询当前站点每一个标签的名称以及对应的文章数

答案：

修改homesite视图函数

def homesite(request,username):
    """
    查询
    :param request:
    :param username:
    :return:
    """
    # 查询当前站点的用户对象
    user=UserInfo.objects.filter(username=username).first()
    if not user:
        return render(request,"not_found.html")
    # 查询当前站点对象

    blog=user.blog

    # 查询当前用户发布的所有文章
    article_list=Article.objects.filter(user__username=username)

    # 查询当前站点每一个分类的名称以及对应的文章数
    cate_list = Category.objects.filter(blog=blog).annotate(c=Count("article__title")).values("title","c")
    print(cate_list)

    # 查询当前站点每一个标签的名称以及对应的文章数
    tag_list = Tag.objects.filter(blog=blog).annotate(c=Count("article__title")).values("title","c")
    print(tag_list)

    dict = {"blog":blog,
            "article_list":article_list,
            "category_count":cate_list,
            "tag_count":tag_list,
            }

    return render(request,"homesite.html",dict)

修改homesite.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>

    <style>
        *{
            margin: 0;
            padding: 0;
        }
        .header{
            width: 100%;
            height: 59px;
            background-color: #369;
        }
        .header .title{
            line-height: 59px;
            color: white;
            font-weight: lighter;
            margin-left: 20px;
            font-size: 18px;
        }

        .left_region{
            margin-top: 10px;
        }

        .info{
          margin-top: 10px;
          color: darkgray;

        }
        h5 a {
            color: #105cb6;
            font-size: 14px;
            font-weight: bold;
            text-decoration: underline;
        }

    </style>
    <link rel="stylesheet" href="/static/bootstrap/css/bootstrap.css">
    <script src="/static/js/jquery.js"></script>
    <script src="/static/bootstrap/js/bootstrap.js"></script>
</head>
<body>
<div class="header">
    <p class="title">{{ blog.title }}</p>
</div>


<div class="container-fluid">
    <div class="row">
        <div class="col-md-3">
            <div class="left_region">
                 <div class="panel panel-success">
                <div class="panel-heading">
                    <h3 class="panel-title">我的标签</h3>
                </div>
                     {% for foo in category_count %}
                         <div class="panel-body">
                    {{ foo.title }}({{ foo.c }})
                </div>

                     {% endfor %}

            </div>
                 <div class="panel panel-warning">
                    <div class="panel-heading">
                        <h3 class="panel-title">随笔分类</h3>
                    </div>
                     {% for foo in tag_count %}
                         <div class="panel-body">
                    {{ foo.title }}({{ foo.c }})
                </div>

                     {% endfor %}

                </div>
                 <div class="panel panel-info">
                    <div class="panel-heading">
                        <h3 class="panel-title">随笔档案</h3>
                    </div>
                    <div class="panel-body">
                        Panel content
                    </div>
                </div>
            </div>
        </div>
        <div class="col-md-9">

             <div class="article_list">
                {% for article in article_list %}

                 <div class="article_item clearfix">
                      <h5><a href="">{{ article.title }}</a></h5>
                      <div>

                          <span class="small desc ">
                              {{ article.desc }}
                          </span>

                      </div>
                      <div class="info small pull-right">
                            发布于 <span>{{ article.create_time|date:'Y-m-d H:i' }}</span>
                           <img src="/static/img/icon_comment.gif" alt=""><a href="">评论({{ article.comment_count }})</a>
                           <span class="glyphicon glyphicon-thumbs-up"></span><a href="">点赞({{ article.up_count }})</a>
                      </div>
                 </div>
                    <hr>
                {% endfor %}
            </div>

        </div>
    </div>
</div>


</body>
</html>

进入admin后台，添加一个tag。增加一篇文章

Day80 博客系统分析,博客主页展示 - 图27

重新访问个人站点网页，效果如下：

Day80 博客系统分析,博客主页展示 - 图28
