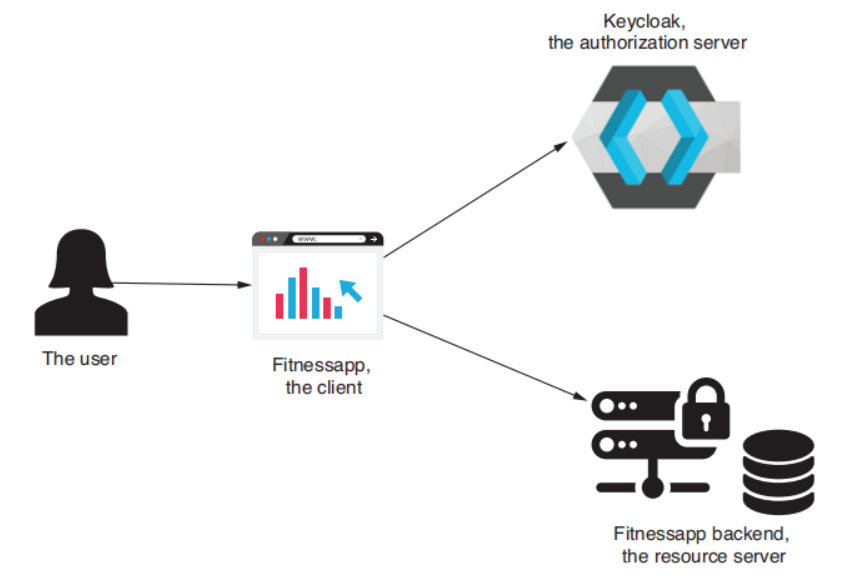

18.1 The application senario

• Add a new workout record for a user
• Find all the workouts for a user
• Delete a workout

18.2 Configuring Keycloak as an authorization server

docker 安装 Keycloak

docker network create keycloak-network
docker run --name mysql -d -p 3306:3306 --net keycloak-network -e MYSQL_DATABASE=keycloak -e MYSQL_USER=keycloak -e MYSQL_PASSWORD=keycloak -e MYSQL_ROOT_PASSWORD=keycloak mysql:5.7
docker run --name keycloak -d -p 8080:8080 --net keycloak-network  -e KEYCLOAK_USER=admin -e KEYCLOAK_PASSWORD=admin -e DB_USER=keycloak -e DB_PASSWORD=keycloak -e JDBC_PARAMS='useSSL=false'  jboss/keycloak

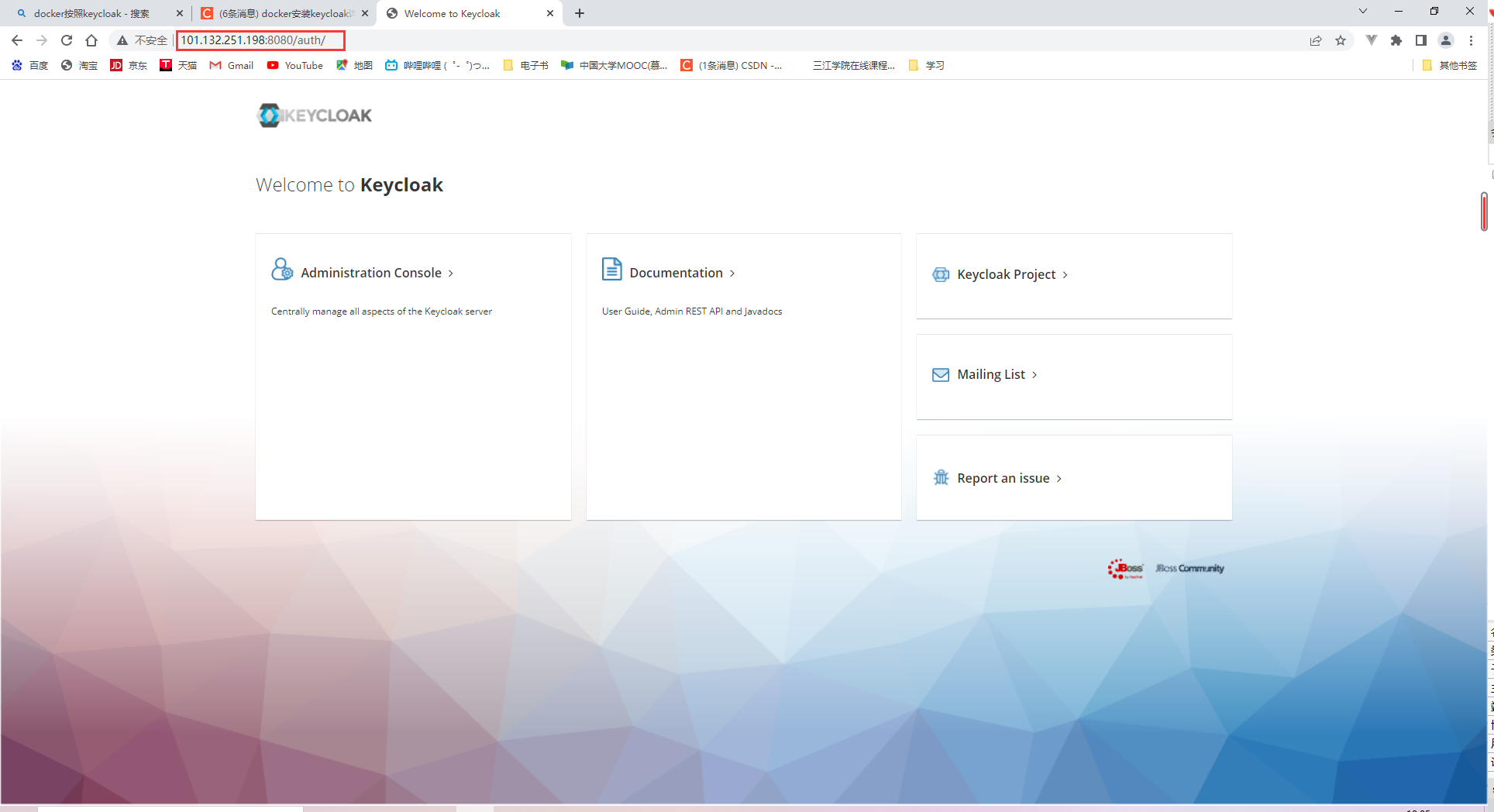

访问：101.132.251.198:8080

进入控制台页面会报错：
解决方案：
注意修改

docker run -d -p 8080:8080 -e KEYCLOAK_USER=admin -e KEYCLOAK_PASSWORD='admin1024' -e KEYCLOAK_BIND_ADDRESS=0.0.0.0 -e KEYCLOAK_ENABLE_TLS=false quay.io/keycloak/keycloak:15.0.2'
docker exec -it {contaierID} bash
cd /opt/jboss/keycloak/bin
./kcadm.sh config credentials --server http://localhost:8080/auth --realm master --user admin
./kcadm.sh update realms/master -s sslRequired=NONE

这个配置提供了token endpoint，authorization endpoint还有grand types列表


进一步配置authorization server：

1. 为系统注册一个client
2. 定义一个client scope
3. 添加users
4. 定义user roles以及自定义的访问tokens

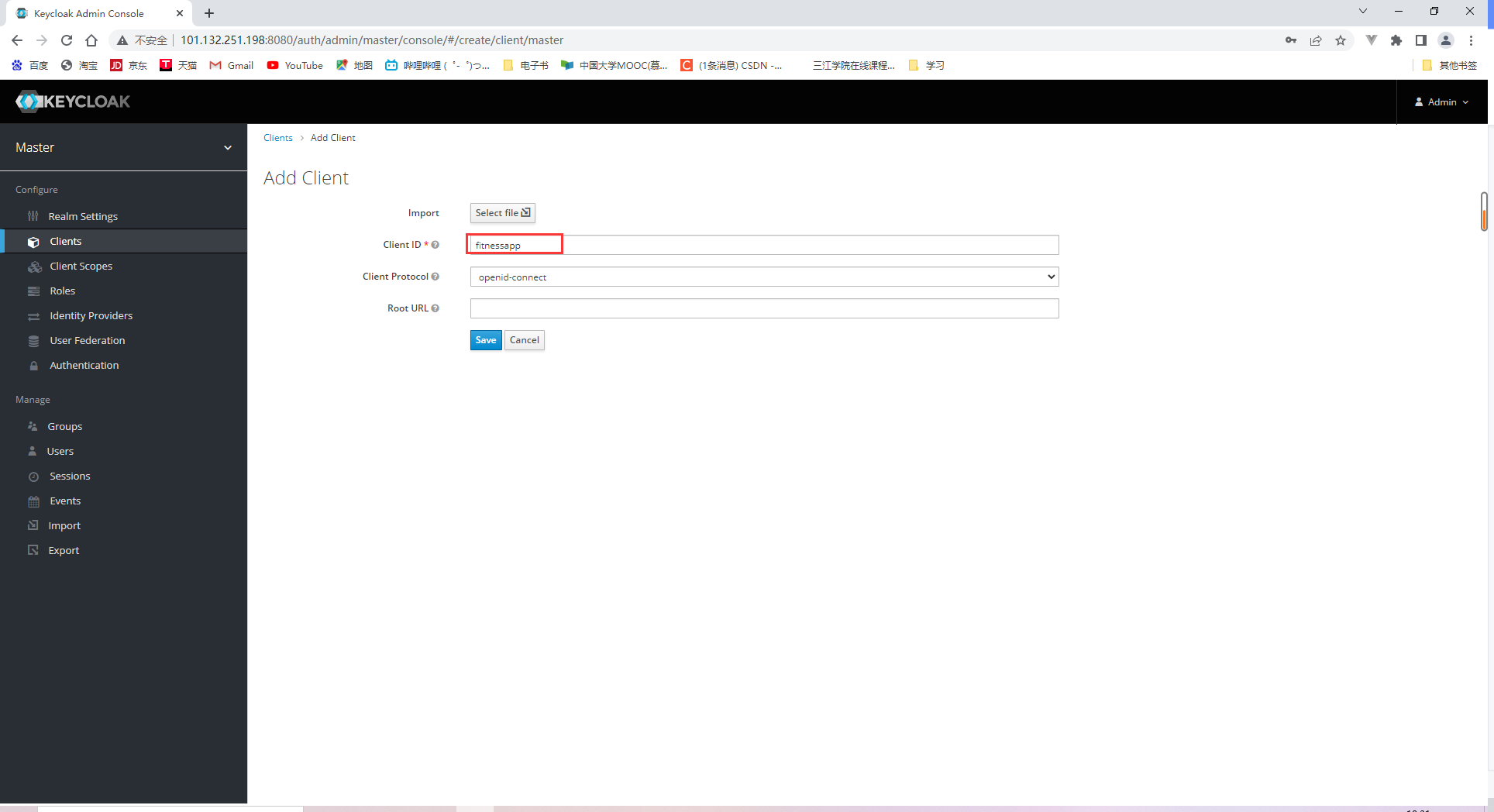

   18.2.1 Registering a client for our system

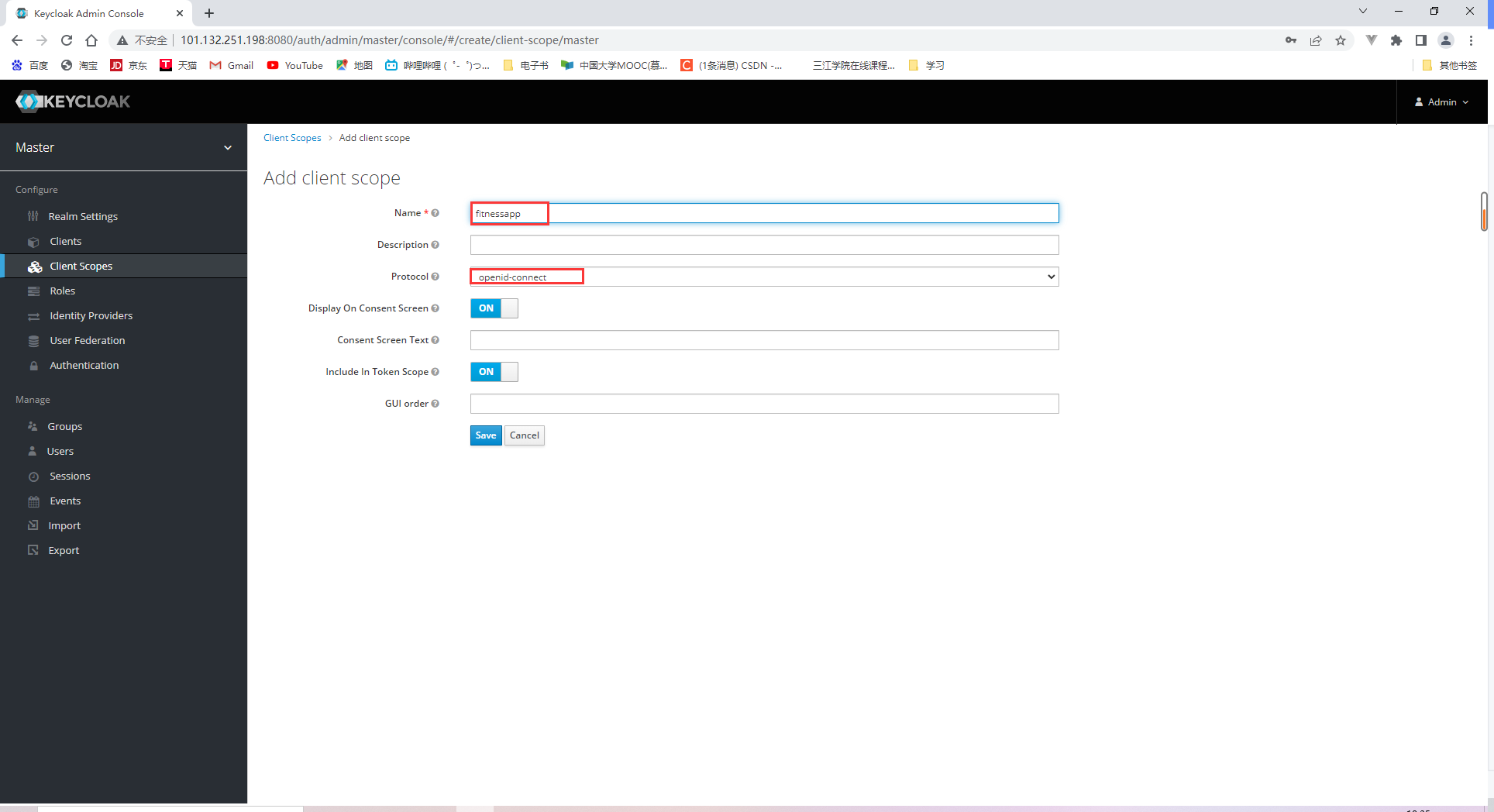

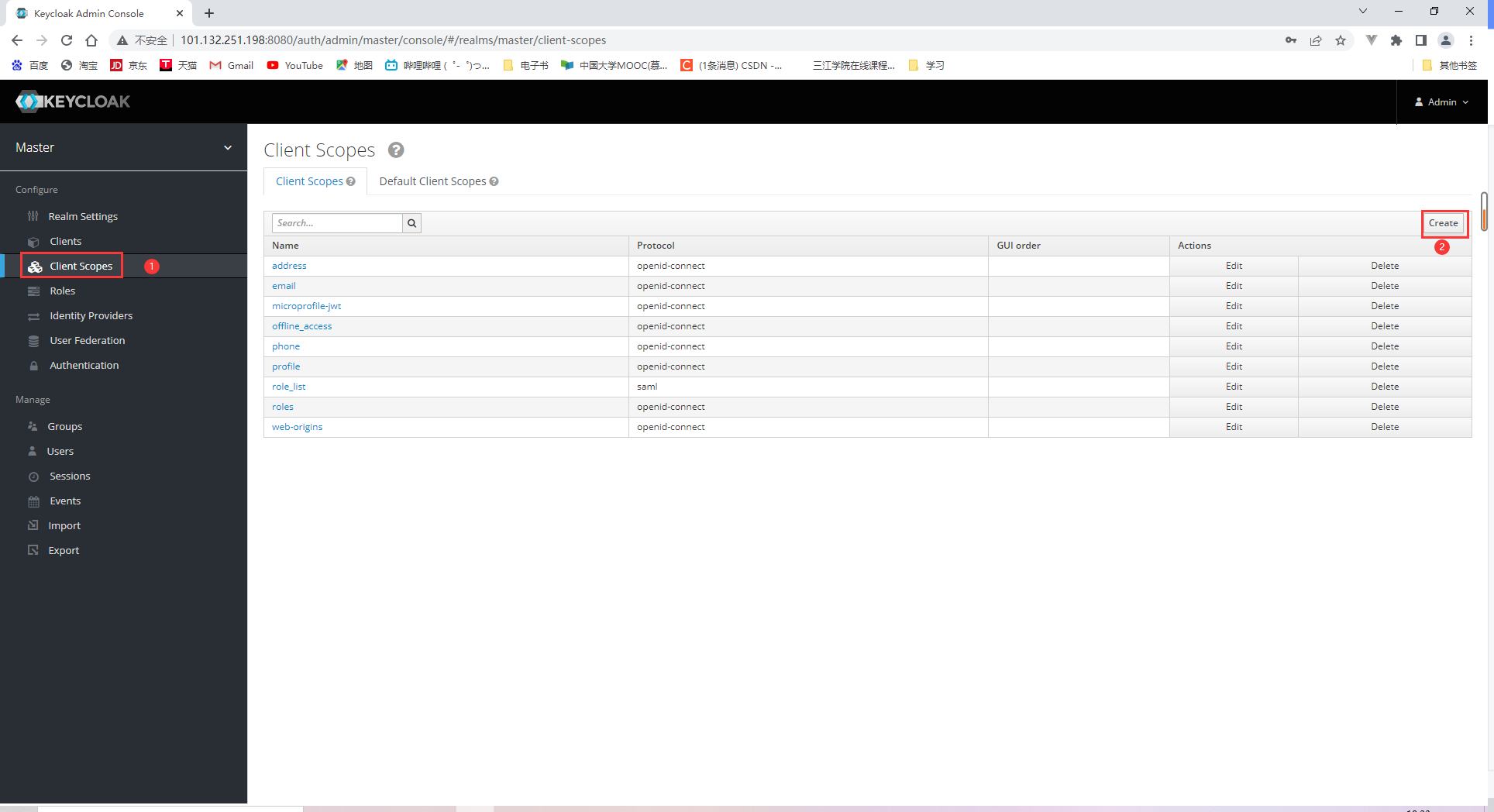

   18.2.2 Specifying client scopes

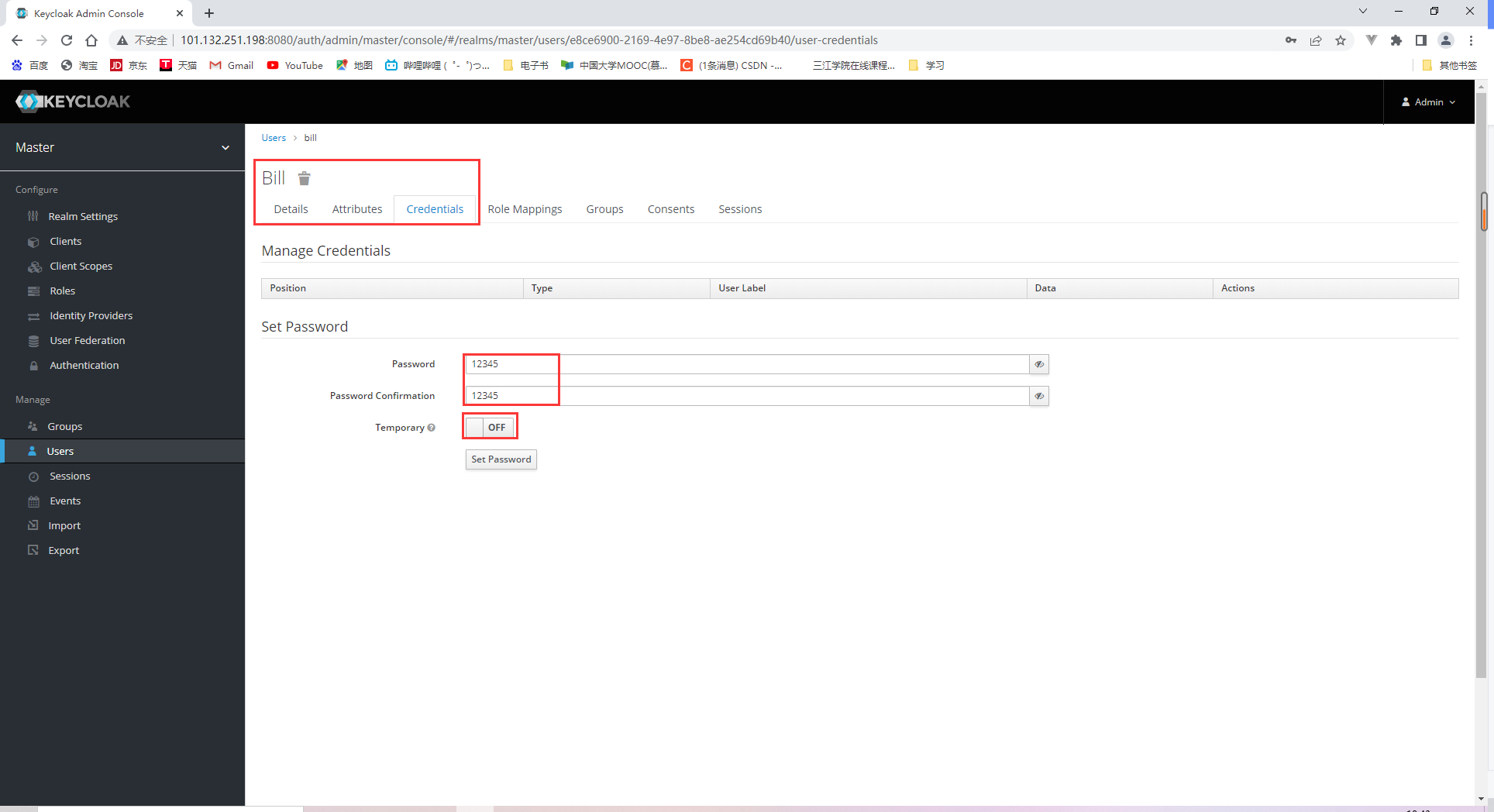

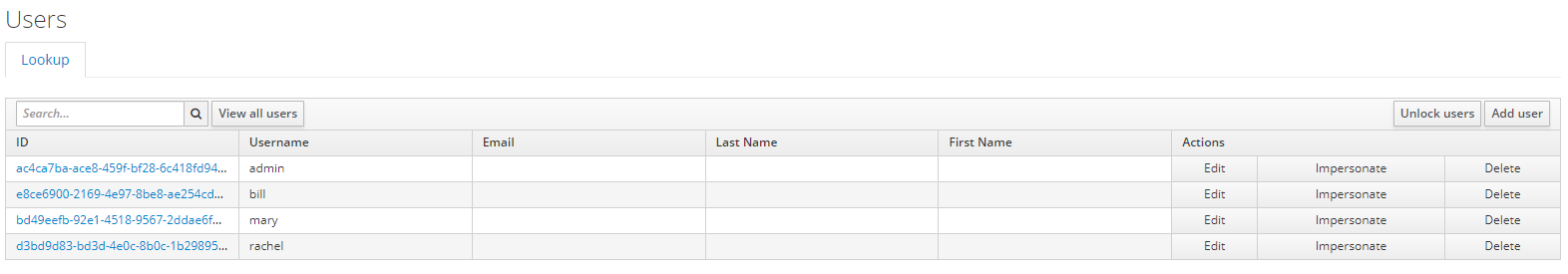

   18.2.3 Adding users and obtaining access tokens

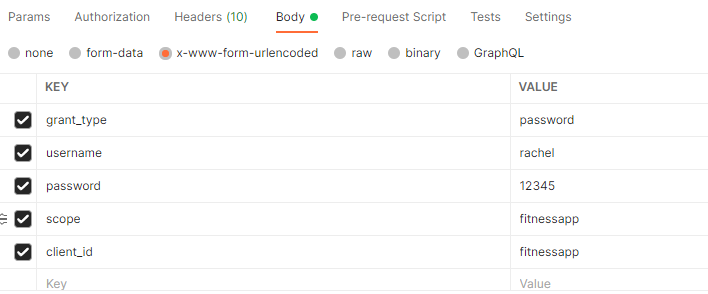

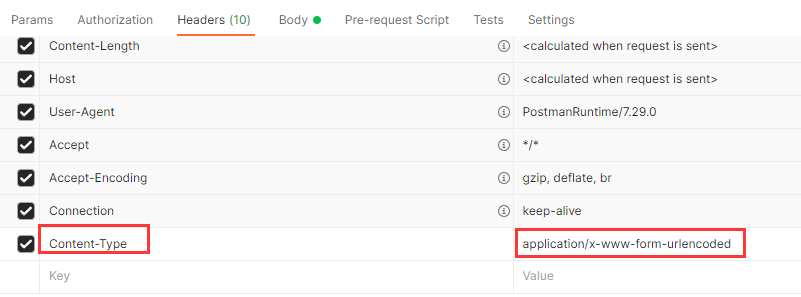

   调用授权服务的/token端点：

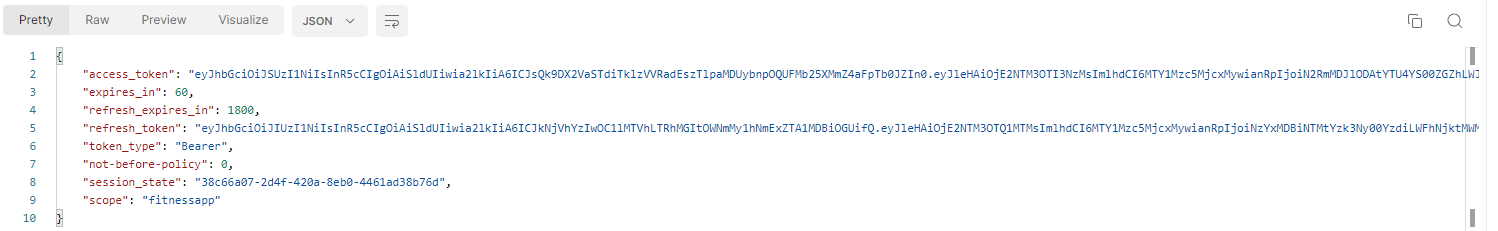

   发送请求之后：

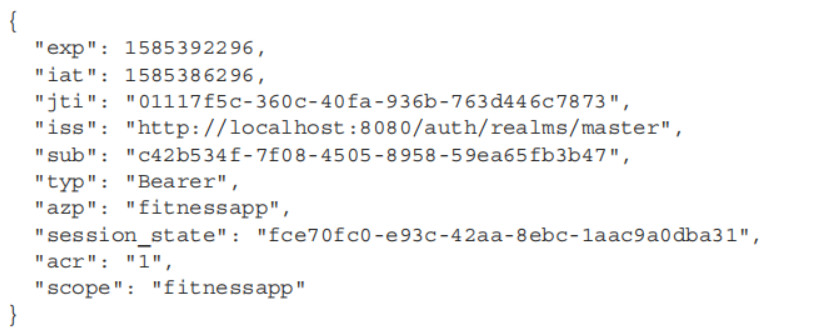

   对这个token解码之后发现：roles以及username都没有，所以接下来应该分配roles给users以及自定义jwt去包含所有的数据


   18.2.4 Defining the user roles

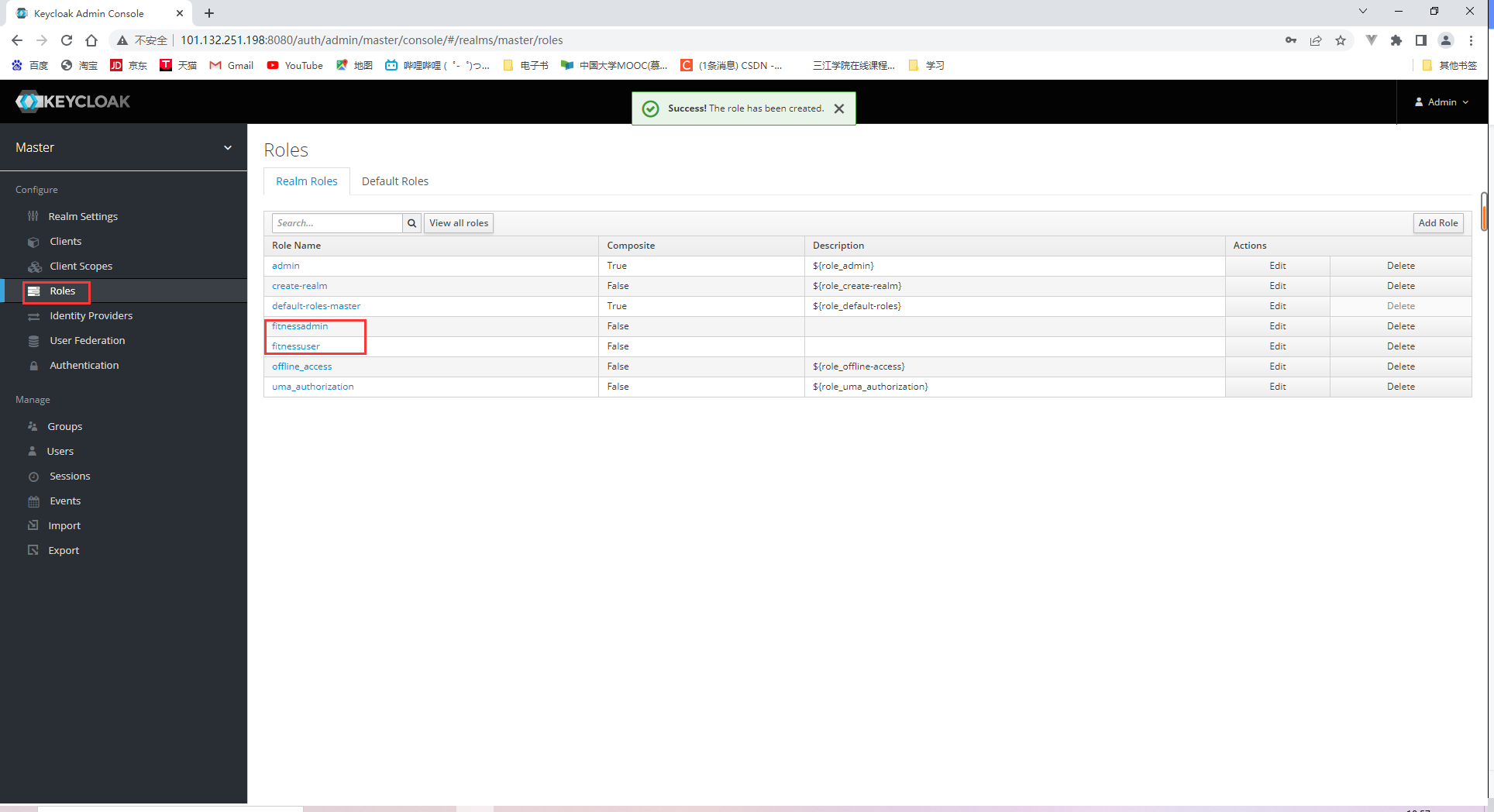

   创建roles

   将roles分配给users

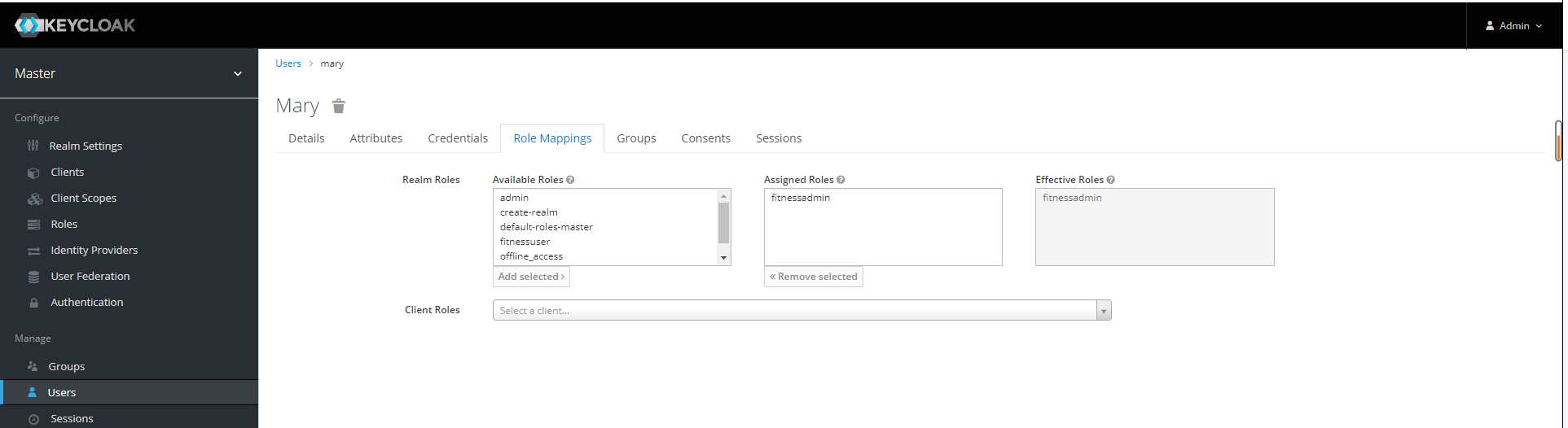

   将mary设置为fitnessadmin其他的为fitnessuser

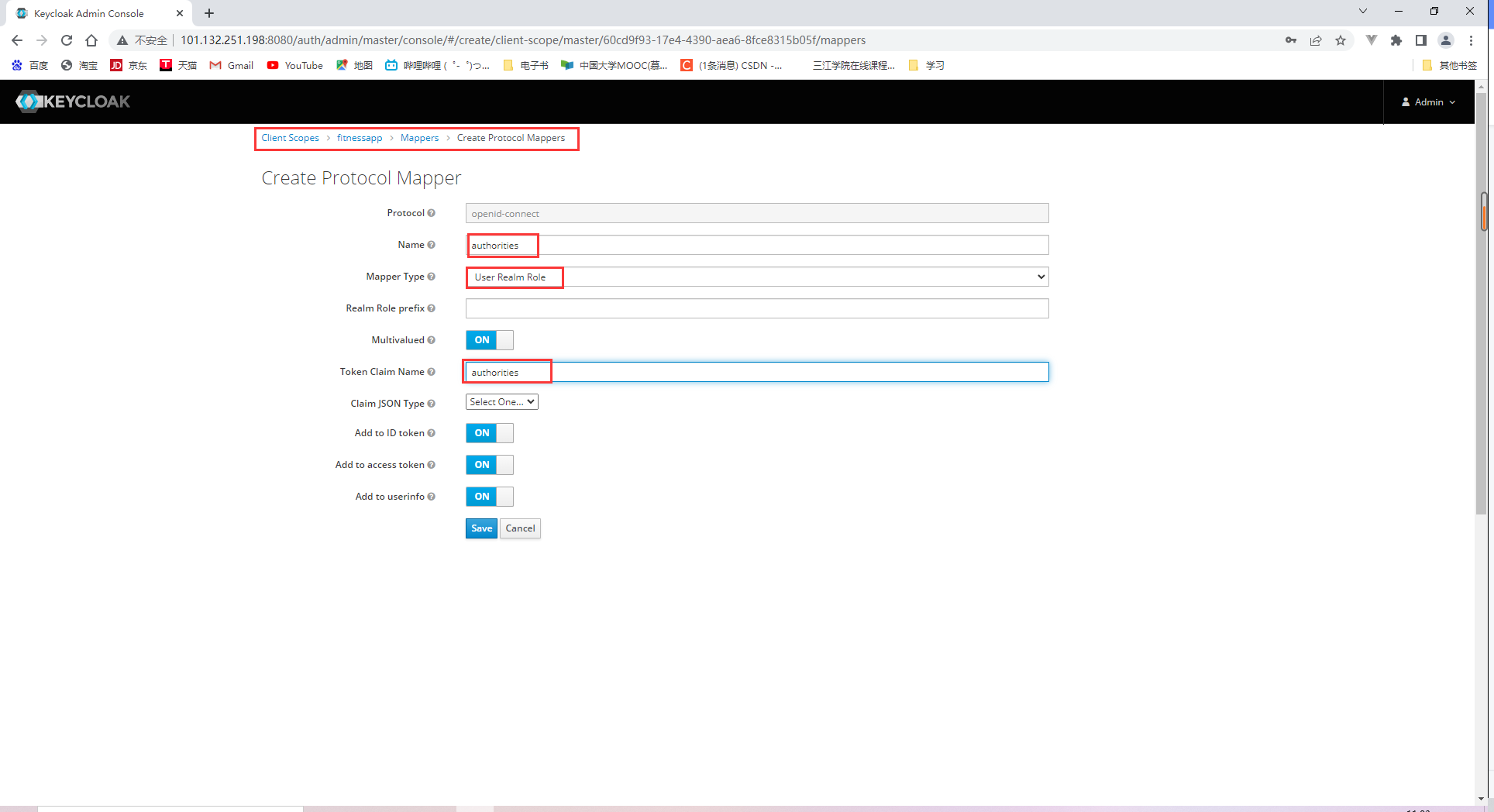

   我们还需要添加三个细节到tokens中：

• Roles

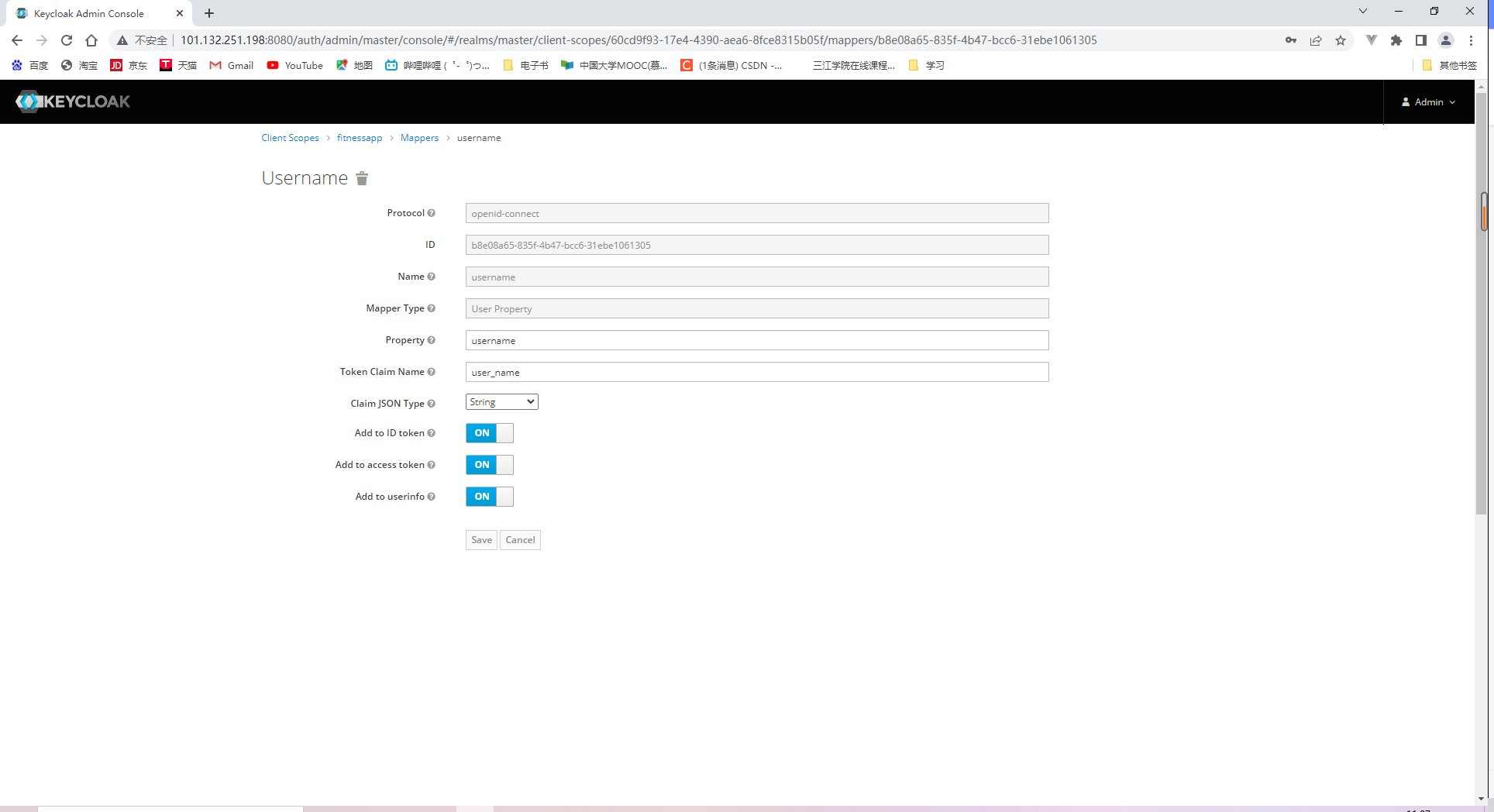

• Username
• Audience claim

全部设置之后，token解码后：

18.3 Implementing the resource server

依赖：

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-data</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
    </dependencies>

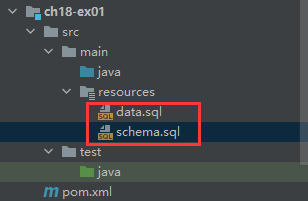

导入sql文件

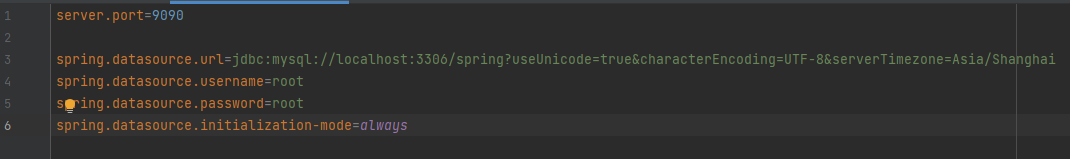

配置文件：

定义entity

@Entity
@Data
public class Workout {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private int id;
    private String user;
    private LocalDateTime start;
    private LocalDateTime end;
    private int difficulty;
}

定义repository

public interface WorkoutRepository extends JpaRepository<Workout, Integer> {
    @Query("select w from Workout w where w.user = ?#{authentication.name}")
    List<Workout> findAllByUser();
}

定义service

@Service
public class WorkoutService {
    @Autowired
    private WorkoutRepository workoutRepository;
    @PreAuthorize("#workout.user == authentication.name")
    public void saveWorkout(Workout workout){
        workoutRepository.save(workout);
    }
    public List<Workout> findWorkouts(){
        return workoutRepository.findAllByUser();
    }
    public void deleteWorkout(Integer id){
        workoutRepository.deleteById(id);
    }
}

定义controller

@RestController
@RequestMapping("/workout")
public class WorkoutController {
    @Autowired
    private WorkoutService workoutService;
    @PostMapping("/")
    public void add(@RequestBody Workout workout){
        workoutService.saveWorkout(workout);
    }
    @GetMapping("/")
    public List<Workout> findAll(){
        return workoutService.findWorkouts();
    }
    @DeleteMapping("/{id}")
    public void delete(@PathVariable Integer id){
        workoutService.deleteWorkout(id);
    }
}

添加两个自定义配置：

定义配置类：

@Configuration
@EnableResourceServer
@EnableGlobalMethodSecurity(prePostEnabled = true)
public class ResourceServerConfig extends ResourceServerConfigurerAdapter {
    @Value("${claim.aud}")
    private String claimAud;
    @Value("${jwkSetUri}")
    private String urlJwk;
    @Override
    public void configure(ResourceServerSecurityConfigurer resources) throws Exception {
        resources.tokenStore(tokenStore());
        resources.resourceId(claimAud);
    }
    @Bean
    public TokenStore tokenStore() {
        return new JwkTokenStore(urlJwk);
    }
    @Override
    public void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .mvcMatchers(HttpMethod.DELETE, "/**")
                .hasAnyAuthority("fitnessadmin")
                .anyRequest().authenticated();
    }
    @Bean
    public SecurityEvaluationContextExtension securityEvaluationContextExtension(){
        return new SecurityEvaluationContextExtension();
    }
}

18.4 Testing the application

18.4.1 Proving an authenticated user can only add a record for themself

{
    "access_token": "eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJsQk9DX2VaSTdiTklzVVRadEszTlpaMDUybnpOQUFMb25XMmZ4aFpTb0JZIn0.eyJleHAiOjE2NTM3OTgwNzMsImlhdCI6MTY1Mzc5ODAxMywianRpIjoiYzQ1ZDkwZjctNmE4Mi00NmRjLWJjZjUtMzZiYjM4YTMyMjQ1IiwiaXNzIjoiaHR0cDovLzEwMS4xMzIuMjUxLjE5ODo4MDgwL2F1dGgvcmVhbG1zL21hc3RlciIsImF1ZCI6ImZpdG5lc3NhcHAiLCJzdWIiOiJlOGNlNjkwMC0yMTY5LTRlOTctOGJlOC1hZTI1NGNkNjliNDAiLCJ0eXAiOiJCZWFyZXIiLCJhenAiOiJmaXRuZXNzYXBwIiwic2Vzc2lvbl9zdGF0ZSI6IjQxMWRiN2M0LTUzMDMtNDNjZS04NmY1LWE1M2NhNWNkMDZiNCIsImFjciI6IjEiLCJzY29wZSI6ImZpdG5lc3NhcHAiLCJzaWQiOiI0MTFkYjdjNC01MzAzLTQzY2UtODZmNS1hNTNjYTVjZDA2YjQiLCJ1c2VyX25hbWUiOiJiaWxsIiwiYXV0aG9yaXRpZXMiOlsiZml0bmVzc3VzZXIiXX0.HEG7B7ICjeSjIixTU4jgx6r4V6jfLFU7l2cXEQIiVlTB1Q8j3ForbIY7QbkBb6w-yp1GbirBUTsfF7RDgK1vHWEe8sgVHIsjWPXcwLIh9DHG63b3h9sbPmPqGU53ZIuxZSwOzhrHn_y9reS0weskoU5fvhWk3YP84Te4vWCxtPVAJ650NG49ZzsND5pMWKQQmLfjm-apB9h9wZW8Zy9eH9aHOjwQvCqvdTaDM6dZu2AHnYwuCYZJe8Pslgyle7rIHJJzgXqguFeiDXBNDCNirTLtuiosaMmZuihhtN_DgXc6UcWE-RLlDAeteT5eoZq7r2eMDBPwu4GT8RN0tBaGfw",
    "expires_in": 60,
    "refresh_expires_in": 1800,
    "refresh_token": "eyJhbGciOiJIUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJkNjVhYzIwOC1lMTVhLTRhMGItOWNmMy1hNmExZTA1MDBiOGUifQ.eyJleHAiOjE2NTM3OTk4MTMsImlhdCI6MTY1Mzc5ODAxMywianRpIjoiYjBiYTM1ZTItZDc3MC00YTRjLWI2MGQtNTgwNjdkZGRjYmY1IiwiaXNzIjoiaHR0cDovLzEwMS4xMzIuMjUxLjE5ODo4MDgwL2F1dGgvcmVhbG1zL21hc3RlciIsImF1ZCI6Imh0dHA6Ly8xMDEuMTMyLjI1MS4xOTg6ODA4MC9hdXRoL3JlYWxtcy9tYXN0ZXIiLCJzdWIiOiJlOGNlNjkwMC0yMTY5LTRlOTctOGJlOC1hZTI1NGNkNjliNDAiLCJ0eXAiOiJSZWZyZXNoIiwiYXpwIjoiZml0bmVzc2FwcCIsInNlc3Npb25fc3RhdGUiOiI0MTFkYjdjNC01MzAzLTQzY2UtODZmNS1hNTNjYTVjZDA2YjQiLCJzY29wZSI6ImZpdG5lc3NhcHAiLCJzaWQiOiI0MTFkYjdjNC01MzAzLTQzY2UtODZmNS1hNTNjYTVjZDA2YjQifQ.JMildS3qX1hV2P7jGVr96Zkj3mDL5AcVYAs7PKEEn9M",
    "token_type": "Bearer",
    "not-before-policy": 0,
    "session_state": "411db7c4-5303-43ce-86f5-a53ca5cd06b4",
    "scope": "fitnessapp"
}

eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJsQk9DX2VaSTdiTklzVVRadEszTlpaMDUybnpOQUFMb25XMmZ4aFpTb0JZIn0.eyJleHAiOjE2NTM4MDA5NDQsImlhdCI6MTY1MzgwMDg4NCwianRpIjoiM2U5MDQyNGMtMDY4MC00Njg0LTgxNmMtMDFmMjQwMGY0ZTMxIiwiaXNzIjoiaHR0cDovLzEwMS4xMzIuMjUxLjE5ODo4MDgwL2F1dGgvcmVhbG1zL21hc3RlciIsImF1ZCI6ImZpdG5lc3NhcHAiLCJzdWIiOiJlOGNlNjkwMC0yMTY5LTRlOTctOGJlOC1hZTI1NGNkNjliNDAiLCJ0eXAiOiJCZWFyZXIiLCJhenAiOiJmaXRuZXNzYXBwIiwic2Vzc2lvbl9zdGF0ZSI6IjI3YjY4MjAzLWIwNDYtNDc5ZS05YmZhLWE4NDllZTAxN2Y4ZCIsImFjciI6IjEiLCJzY29wZSI6ImZpdG5lc3NhcHAiLCJzaWQiOiIyN2I2ODIwMy1iMDQ2LTQ3OWUtOWJmYS1hODQ5ZWUwMTdmOGQiLCJ1c2VyX25hbWUiOiJiaWxsIiwiYXV0aG9yaXRpZXMiOlsiZml0bmVzc3VzZXIiXX0.hesAxNDtMcSsbaeCsF430TMRJ8CAlQnjftnG1WA1tt6_RfVVqXr0v8j1y3vPX9ytWYhxmZ8IVphYp2VbpLog1G0ORMroAFPiqqAScX-GmVdPBPF6dkPRLAGUnRpjxwYIxtia-FQIFbSZYP8o-Bg0ZysADlvgzVa6xKMT246NbOQJbAtcE4N8z-jgXX5JtrTqTltuWzXoGDY_P-g-mrPCpsq0bgnSMmzUflK5epACrTpaEvT4hZ_ylODCO5Iq2Ri3fZFtQkzllpDcxgSweuJfSqrRKYr-Ha3xZyiUUplMyNwqamH0CHpREX0Hr2DsUQDAr06j7J_em0ATZqubIQ-RCA
