Gitlab主要涉及到3个应用：Redis、Postgresql、Gitlab 核心程序，实际上我们只要将这3个应用分别启动起来，然后加上对应的配置就可以很方便的安装 Gitlab 了，我们这里选择使用的镜像不是官方的，而是 Gitlab 容器化中使用非常多的一个第三方镜像：sameersbn/gitlab，基本上和官方保持同步更新，地址：http://www.damagehead.com/docker-gitlab/

如果我们已经有可使用的 Redis 或 Postgresql 服务的话，那么直接配置在 Gitlab 环境变量中即可，如果没有的话就单独部署。创建一个用于存储密码的secret文件:

1、redis

创建PVC和storageclass做持久化


apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: gitlab-redis-pvc
  namespace: kube-ops
  annotations:
    volume.beta.kubernetes.io/storage-class: "managed-nfs-storage"
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 1Gi

redis

apiVersion: apps/v1
kind: Deployment
metadata:
  name: redis
  namespace: kube-ops
  labels:
    name: redis
spec:
  replicas: 1
  selector:
    matchLabels:
      app: redis
  template:
    metadata:
      name: redis
      labels:
        app: redis
    spec:
      containers:
      - name: redis
        image: redis # sameersbn/redis
        imagePullPolicy: IfNotPresent
        ports:
        - name: redis
          containerPort: 6379
        volumeMounts:
        - mountPath: /var/lib/redis
          name: data
        livenessProbe:
          exec:
            command:
            - redis-cli
            - ping
          initialDelaySeconds: 30
          timeoutSeconds: 5
        readinessProbe:
          exec:
            command:
            - redis-cli
            - ping
          initialDelaySeconds: 5
          timeoutSeconds: 1
      volumes:
      - name: data
        persistentVolumeClaim:
          claimName: gitlab-redis-pvc
---
apiVersion: v1
kind: Service
metadata:
  name: redis
  namespace: kube-ops
  labels:
    name: redis
spec:
  ports:
    - name: redis
      port: 6379
      targetPort: redis
  selector:
    name: redis

2、PG

secret

apiVersion: v1
data:
  PG_USER: cG9zdGdyZXM= # postgres
  PG_PASSWORD: cGdfcGFzcw== # pg_pass
kind: Secret
metadata:
  name: postgres-secret
  namespace: kube-ops
type: Opaque

加密

echo -n "postgres" | base64
echo -n "pg_pass" | base64

PVC

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: gitlab-postgresql-pvc
  namespace: kube-ops
  annotations:
    volume.beta.kubernetes.io/storage-class: "managed-nfs-storage"
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 1Gi

创建用户并指定id（或者查看用户ID，根据具体的id屁【配置安全上下文】）

PG需要使用普通用户进行启动

-u 指定用户id

-g 指定所属组id

# 需要在挂载的节点上创建，并授权挂载路径
useradd postgres -u 1000 -g 1000
# 修改用户和组的id
groupmod -g 5000 foo # 修改foo组
usermod -u 5000 foo  # 修改foo用户
# chown -R postgres:postgres kube-ops-gitlab-postgresql-pvc-pvc-efe927e9-c4ea-4581-9826-c727196a281b/

PVC挂载路径的命名格式：<名称空间>--

kubectl get pvc -n kube-ops
NAME                    STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS          AGE
gitlab-postgresql-pvc   Bound    pvc-efe927e9-c4ea-4581-9826-c727196a281b   1Gi        RWX            managed-nfs-storage   4h33m
gitlab-redis-pvc        Bound    pvc-c863945e-2726-43c5-9f6c-7737ea0bbb2a   1Gi        RWX            managed-nfs-storage   4h43m

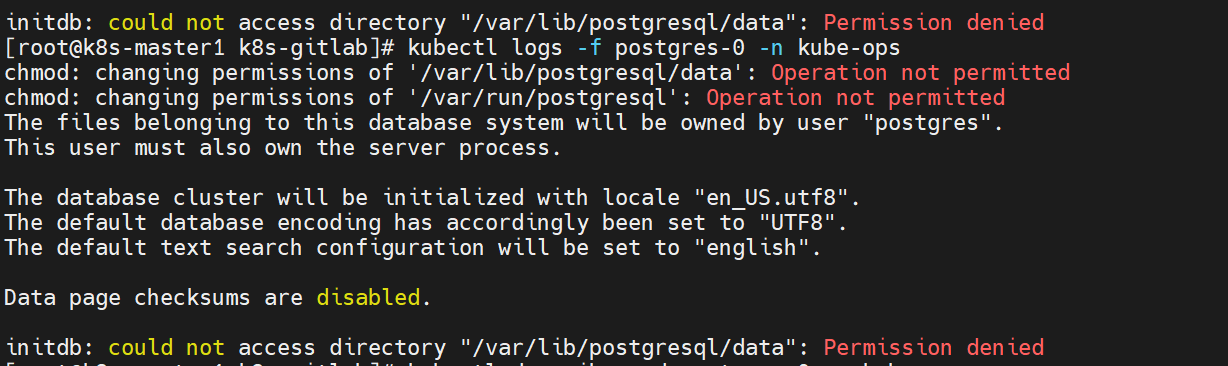

否则会报如下错误无法启动：

Gitlab - 图1

Postgresql

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: postgres
  namespace: kube-ops
spec:
  serviceName: "postgres"    # 声明它属于哪个Headless Service.
  replicas: 1
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      labels:
        app: postgres
    spec:
      securityContext:
        runAsUser: 1000
        runAsGroup: 1000
        fsGroup: 1000
      containers:
        - name: postgres
          image: postgres:9.5
          env:
            - name: POSTGRES_USER
              valueFrom:
                secretKeyRef:
                  name: postgres-secret
                  key: PG_USER
                  optional: false
            - name: POSTGRES_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: postgres-secret
                  key: PG_PASSWORD
                  optional: false
          ports:
            - containerPort: 5432
              name: postgredb
          volumeMounts:
            - name: postgres-data
              mountPath: /var/lib/postgresql/data
              subPath: postgres
      volumes:
      - name: postgres-data
        persistentVolumeClaim:
          claimName: gitlab-postgresql-pvc
---
apiVersion: v1
kind: Service
metadata:
  name: postgresql
  namespace: kube-ops
  labels:
    app: postgresql
spec:
  ports:
    - name: postgres
      port: 5432
      targetPort: postgres
  selector:
    app: postgresql

3、Gitlab

PVC

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: gitlab-data-pvc
  namespace: kube-ops
  annotations:
    volume.beta.kubernetes.io/storage-class: "managed-nfs-storage"
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: gitlab-log-pvc
  namespace: kube-ops
  annotations:
    volume.beta.kubernetes.io/storage-class: "managed-nfs-storage"
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: gitlab-etc-pvc
  namespace: kube-ops
  annotations:
    volume.beta.kubernetes.io/storage-class: "managed-nfs-storage"
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 1Gi

Gitlab

apiVersion: apps/v1
kind: Deployment
metadata:
  name: gitlab
  namespace: kube-ops
  labels:
    name: gitlab
spec:
  replicas: 1
  selector:
    matchLabels:
      name: gitlab
  template:
    metadata:
      name: gitlab
      labels:
        name: gitlab
    spec:
      containers:
      - name: gitlab
        image: gitlab/gitlab-ce:13.7.4-ce.0
        imagePullPolicy: IfNotPresent
        env:
        - name: TZ
          value: Asia/Shanghai
        - name: GITLAB_TIMEZONE
          value: Beijing
        - name: GITLAB_SECRETS_DB_KEY_BASE
          value: long-and-random-alpha-numeric-string
        - name: GITLAB_SECRETS_SECRET_KEY_BASE
          value: long-and-random-alpha-numeric-string
        - name: GITLAB_SECRETS_OTP_KEY_BASE
          value: long-and-random-alpha-numeric-string
        - name: GITLAB_ROOT_PASSWORD
          value: admin321
        - name: GITLAB_ROOT_EMAIL
          value: 1690014753@qq.com
        - name: GITLAB_HOST
          value: 0.0.0.0:30004
        - name: GITLAB_PORT
          value: "80"
        - name: GITLAB_SSH_PORT
          value: "22"
        - name: DB_TYPE
          value: postgres
        - name: DB_HOST
          value: postgresql
        - name: DB_PORT
          value: "5432"
        - name: DB_USER
          value: postgres
        - name: DB_PASS
          value: pg_pass
        - name: DB_NAME
          value: gitlab_production
        - name: REDIS_HOST
          value: redis
        - name: REDIS_PORT
          value: "6379"
        ports:
        - name: http
          containerPort: 80
        - name: ssh
          containerPort: 22
        volumeMounts:
        - mountPath: /var/opt/gitlab
          name: data
        - mountPath: /var/log/gitlab
          name: logs
        - mountPath: /etc/gitlab
          name: etc
        livenessProbe:
          httpGet:
            path: /
            port: 80
          initialDelaySeconds: 180
          timeoutSeconds: 5
        readinessProbe:
          httpGet:
            path: /
            port: 80
          initialDelaySeconds: 5
          timeoutSeconds: 1
      volumes:
      - name: data
        persistentVolumeClaim:
          claimName: gitlab-data-pvc
      - name: logs
        persistentVolumeClaim:
          claimName: gitlab-log-pvc
      - name: etc
        persistentVolumeClaim:
          claimName: gitlab-etc-pvc
---
apiVersion: v1
kind: Service
metadata:
  name: gitlab
  namespace: kube-ops
  labels:
    name: gitlab
spec:
  type: NodePort
  ports:
    - name: http
      port: 80
      targetPort: http
      nodePort: 30004
    - name: ssh
      port: 22
      targetPort: ssh
  selector:
    name: gitlab
