导图

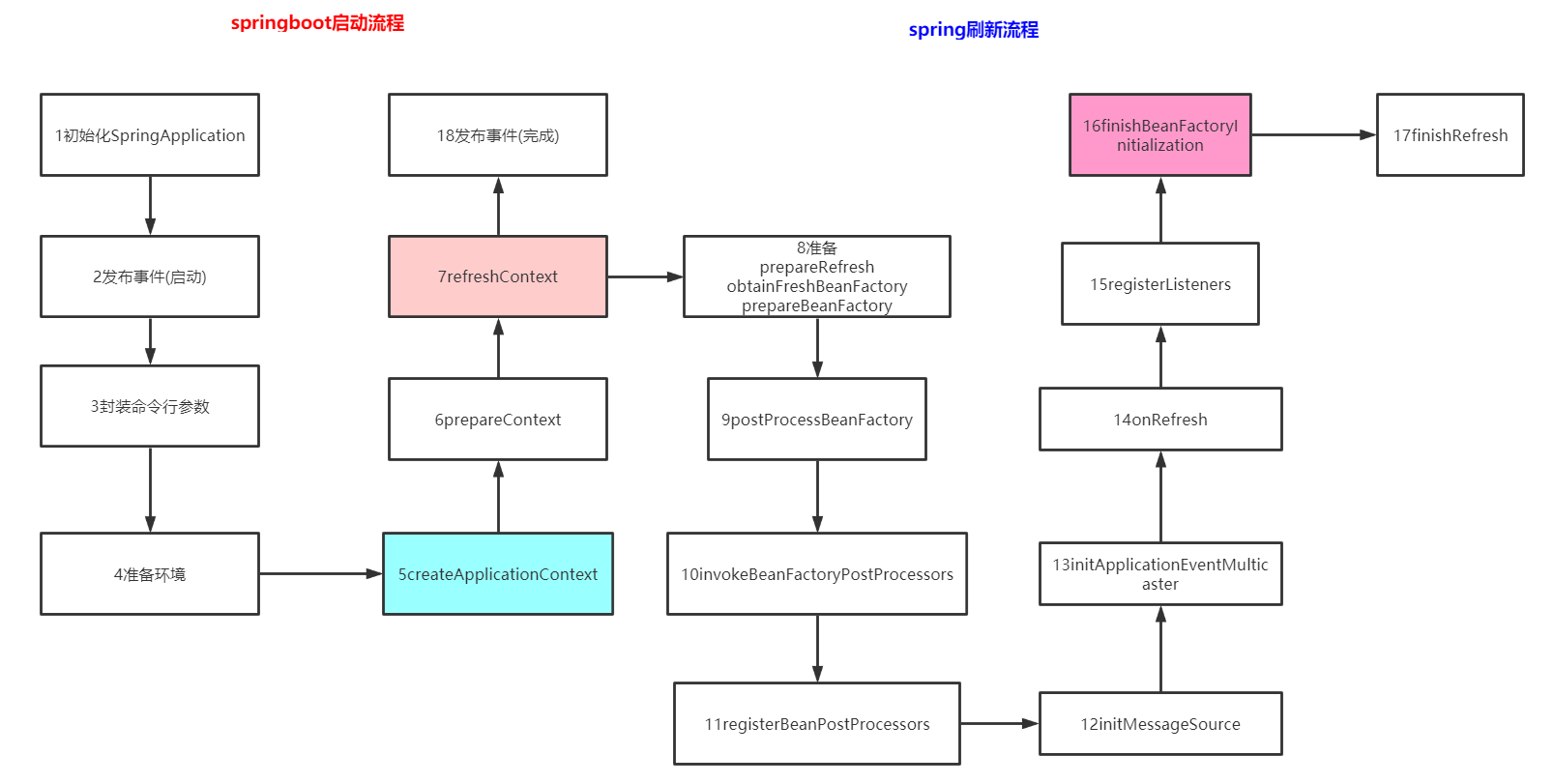

整体流程图

故事的小黄花.从AnnotationConfigApplicationContext的第十六步开始:
接下来调用

// Instantiate all remaining (non-lazy-init) singletons.
beanFactory.preInstantiateSingletons();

看看整体图

然后进入DefaultListableBeanFactory(BeanFactory),看看我们自定义的初始化函数在什么时候执行

public class DefaultListableBeanFactory{
    /**
     * Ensure that all non-lazy-init singletons are instantiated, also considering
     * {@link org.springframework.beans.factory.FactoryBean FactoryBeans}.
     * Typically invoked at the end of factory setup, if desired.
     * Note: This may have left the factory with some beans already initialized!
     * Call {@link #destroySingletons()} for full cleanup in this case.
     * @see #destroySingletons()
     */
    public void preInstantiateSingletons() throws BeansException {
        // Trigger initialization of all non-lazy singleton beans...
        if (isFactoryBean(beanName)) {
            Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
            if (bean instanceof FactoryBean) {
        }else{
            getBean(beanName);
        }
        // Trigger post-initialization callback for all applicable beans...
    }
    //Implementation of BeanFactory interface     原始
    @Override
    public Object getBean(String name) throws BeansException {
        return doGetBean(name, null, null, false);
    }
    /**
     * Return an instance, which may be shared or independent, of the specified bean.
     * @return an instance of the bean
     * @throws BeansException if the bean could not be created
     */
    protected <T> T doGetBean(
        /**
         * 1.Eagerly check singleton cache for manually registered singletons.    是否缓存中有了(手动注册)
         * 2.缓存没有
         *     2.1// We're assumably within a circular reference.处理循环引用
             2.2 Check if bean definition exists in this factory.检查定义在工厂
            2.3Guarantee initialization of beans that the current bean depends on.确保依赖都已经有了
            2.4真正创建逻辑getSingleton
         */
        // Create bean instance.
        if (mbd.isSingleton()) {
            sharedInstance = getSingleton(beanName, () -> {
                try {
                    return createBean(beanName, mbd, args);
                }
                catch (BeansException ex) {
                    // Explicitly remove instance from singleton cache: It might have been put there
                    // eagerly by the creation process, to allow for circular reference resolution.
                    // Also remove any beans that received a temporary reference to the bean.
                    destroySingleton(beanName);
                    throw ex;
                }
            });
            bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
        }
    }
    /**
     * Return the (raw) singleton object registered under the given name,
     * creating and registering a new one if none registered yet.
     * @param singletonFactory the ObjectFactory to lazily create the singleton with, if necessary    这里的singletonFactory就是上面的那个lambda方法
     * @return the registered singleton object
     */
    public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
        singletonObject = singletonFactory.getObject();//lambda调用createBean
    }
    /**
     * Implementation of relevant AbstractBeanFactory template methods!
     * Central method of this class:
     * 1.creates a bean instance,
     * 2.populates the bean instance
     * 3.applies post-processors, etc.
     * @see #doCreateBean
     */
    @Override
    protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) throws BeanCreationException {
        Object beanInstance = doCreateBean(beanName, mbdToUse, args);
    }
    /**
     * Actually create the specified bean. Pre-creation processing has already happened at this point, e.g. checking {@code postProcessBeforeInstantiation} callbacks.
     * <p>Differentiates between default bean instantiation, use of a factory method, and autowiring a constructor.
     * @param mbd the merged bean definition for the bean
     */
    protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
            throws BeanCreationException {
        // Instantiate the bean.
        // Initialize the bean instance.
        Object exposedObject = bean;
        try {
            populateBean(beanName, mbd, instanceWrapper);
            exposedObject = initializeBean(beanName, exposedObject, mbd);
        }
        // Register bean as disposable.
    }
    /**
          后置处理器前处理
         执行初始化方法
        后置处理器后处理
     */
    protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {
        invokeAwareMethods(beanName, bean);
        if (mbd == null || !mbd.isSynthetic()) {
            wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
        }
        invokeInitMethods(beanName, wrappedBean, mbd);
        if (mbd == null || !mbd.isSynthetic()) {
            wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
        }
        return wrappedBean;
    }
    /**
     * Give a bean a chance to react now all its properties are set,
     * and a chance to know about its owning bean factory (this object).
     * This means checking whether the bean implements InitializingBean or defines
     * a custom init method, and invoking the necessary callback(s) if it does.
     * @param beanName the bean name in the factory (for debugging purposes)
     * @param bean the new bean instance we may need to initialize
     * @param mbd the merged bean definition that the bean was created with
     * (can also be {@code null}, if given an existing bean instance)
     * @throws Throwable if thrown by init methods or by the invocation process
     * @see #invokeCustomInitMethod
     */
    protected void invokeInitMethods(String beanName, Object bean, @Nullable RootBeanDefinition mbd) throws Throwable {
        //先执行    InitializingBean实现类逻辑afterPropertiesSet方法调用
        ((InitializingBean) bean).afterPropertiesSet();
        //在执行    手动指定@Bean(initMethod="init", destroyMethod="destroy")逻辑
        invokeCustomInitMethod(beanName, bean, mbd);//反射调用
    }
    //后置处理器的[前处理]相关逻辑
    @Override
    public Object applyBeanPostProcessorsBeforeInitialization(Object existingBean, String beanName)
            throws BeansException {
        Object result = existingBean;
        for (BeanPostProcessor processor : getBeanPostProcessors()) {
            Object current = processor.postProcessBeforeInitialization(result, beanName);
            if (current == null) {
                return result;
            }
            result = current;
        }
        return result;
    }
    //后置处理器的[后处理]相关逻辑
    @Override
    public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
            throws BeansException {
        Object result = existingBean;
        for (BeanPostProcessor processor : getBeanPostProcessors()) {
            Object current = processor.postProcessAfterInitialization(result, beanName);
            if (current == null) {
                return result;
            }
            result = current;
        }
        return result;
    }
}

看看spring默认的beanPostProcessors
这些后置处理器在DefaultListableBeanFactory中 作为一个属性,肯定就有一个顺序的问题

如果我们用了JSR-250的注解

那么CommonAnnotationBeanPostProcessor这个就会帮我们在某个时机(周期)执行对应的方法,底层也是反射调用方法

第三个

解析

全流程图

分析部分代码

public abstract class AbstractBeanFactory extends FactoryBeanRegistrySupport implements ConfigurableBeanFactory {
    protected <T> T doGetBean(
            String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
            throws BeansException {
        // ①处理别名BeanName、②处理带&符的工厂BeanName
        String beanName = transformedBeanName(name);
        Object bean;
        // Eagerly check singleton cache for manually registered singletons.
        // 先尝试从缓存中获取Bean实例，这个位置就是三级缓存解决循环依赖的方法
        Object sharedInstance = getSingleton(beanName);
        if (sharedInstance != null && args == null) {
            if (logger.isTraceEnabled()) {
                if (isSingletonCurrentlyInCreation(beanName)) {
                    logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
                            "' that is not fully initialized yet - a consequence of a circular reference");
                }
                else {
                    logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
                }
            }
            // 1. 如果 sharedInstance 是普通的 Bean 实例，则下面的方法会直接返回
            // 2. 如果 sharedInstance 是工厂Bean类型，则需要获取 getObject 方法，可以参考关于 FactoryBean 的实现类 工厂的会走这里
            bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
        }
        else {
            // Fail if we're already creating this bean instance:
            // We're assumably within a circular reference.
            if (isPrototypeCurrentlyInCreation(beanName)) {
                throw new BeanCurrentlyInCreationException(beanName);
            }
            // Check if bean definition exists in this factory.
            BeanFactory parentBeanFactory = getParentBeanFactory();
            //父工厂存在并且当前 bean 不存在于当前bean工厂    则到父工厂查找 bean 实例
            if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
                // Not found -> check parent.
                String nameToLookup = originalBeanName(name);
                if (parentBeanFactory instanceof AbstractBeanFactory) {
                    return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
                            nameToLookup, requiredType, args, typeCheckOnly);
                }
                else if (args != null) {
                    // Delegation to parent with explicit args.
                    return (T) parentBeanFactory.getBean(nameToLookup, args);
                }
                else if (requiredType != null) {
                    // No args -> delegate to standard getBean method.
                    return parentBeanFactory.getBean(nameToLookup, requiredType);
                }
                else {
                    return (T) parentBeanFactory.getBean(nameToLookup);
                }
            }
            if (!typeCheckOnly) {
                markBeanAsCreated(beanName);
            }
            try {
                // 从容器 getMergedLocalBeanDefinition 获取 beanName 对应的 GenericBeanDefinition，转换为 RootBeanDefinition
                RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
                checkMergedBeanDefinition(mbd, beanName, args);
                // Guarantee initialization of beans that the current bean depends on.
                // 处理使用了 depends-on 注解的依赖创建 bean 实例
                String[] dependsOn = mbd.getDependsOn();
                if (dependsOn != null) {
                    for (String dep : dependsOn) {
                        // 监测是否存在 depends-on 循环依赖，若存在则会抛出异常    注解的话会处理@DependsOn("adidas") xml的话会处理<bean id="userService" class="com.lcd.demo.service.UserService" depends-on="userDao"/>
                        if (isDependent(beanName, dep)) {
                            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                    "Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
                        }
                        // 注册依赖记录
                        registerDependentBean(dep, beanName);
                        try {
                            // 加载 depends-on 依赖（dep 是 depends-on 缩写）
                            getBean(dep);
                        }
                        catch (NoSuchBeanDefinitionException ex) {
                            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                    "'" + beanName + "' depends on missing bean '" + dep + "'", ex);
                        }
                    }
                }
                // 创建单例 bean 实例
                // Create bean instance.
                if (mbd.isSingleton()) {
                    //真正逻辑
                    sharedInstance = getSingleton(beanName, () -> {
                        try {
                            //创建Bean
                            return createBean(beanName, mbd, args);
                        }
                        catch (BeansException ex) {
                            // Explicitly remove instance from singleton cache: It might have been put there
                            // eagerly by the creation process, to allow for circular reference resolution.
                            // Also remove any beans that received a temporary reference to the bean.
                            destroySingleton(beanName);
                            throw ex;
                        }
                    });
                    bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
                }
                // 创建多例 bean 实例
                else if (mbd.isPrototype()) {
                    // It's a prototype -> create a new instance.
                    Object prototypeInstance = null;
                    try {
                        beforePrototypeCreation(beanName);
                        prototypeInstance = createBean(beanName, mbd, args);
                    }
                    finally {
                        afterPrototypeCreation(beanName);
                    }
                    bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
                }
                else {
                    String scopeName = mbd.getScope();
                    if (!StringUtils.hasLength(scopeName)) {
                        throw new IllegalStateException("No scope name defined for bean ´" + beanName + "'");
                    }
                    Scope scope = this.scopes.get(scopeName);
                    if (scope == null) {
                        throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
                    }
                    try {
                        Object scopedInstance = scope.get(beanName, () -> {
                            beforePrototypeCreation(beanName);
                            try {
                                return createBean(beanName, mbd, args);
                            }
                            finally {
                                afterPrototypeCreation(beanName);
                            }
                        });
                        bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
                    }
                    catch (IllegalStateException ex) {
                        throw new BeanCreationException(beanName,
                                "Scope '" + scopeName + "' is not active for the current thread; consider " +
                                "defining a scoped proxy for this bean if you intend to refer to it from a singleton",
                                ex);
                    }
                }
            }
            catch (BeansException ex) {
                cleanupAfterBeanCreationFailure(beanName);
                throw ex;
            }
        }
        // 如果需要类型转换，这里会进行操作
        // Check if required type matches the type of the actual bean instance.
        if (requiredType != null && !requiredType.isInstance(bean)) {
            try {
                T convertedBean = getTypeConverter().convertIfNecessary(bean, requiredType);
                if (convertedBean == null) {
                    throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
                }
                return convertedBean;
            }
            catch (TypeMismatchException ex) {
                if (logger.isTraceEnabled()) {
                    logger.trace("Failed to convert bean '" + name + "' to required type '" +
                            ClassUtils.getQualifiedName(requiredType) + "'", ex);
                }
                throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
            }
        }
        return (T) bean;
    }
}
