有群友觉得thingsboard的图例设置不能满足需求，想要最大值减最小值。怎么自己实现呢？

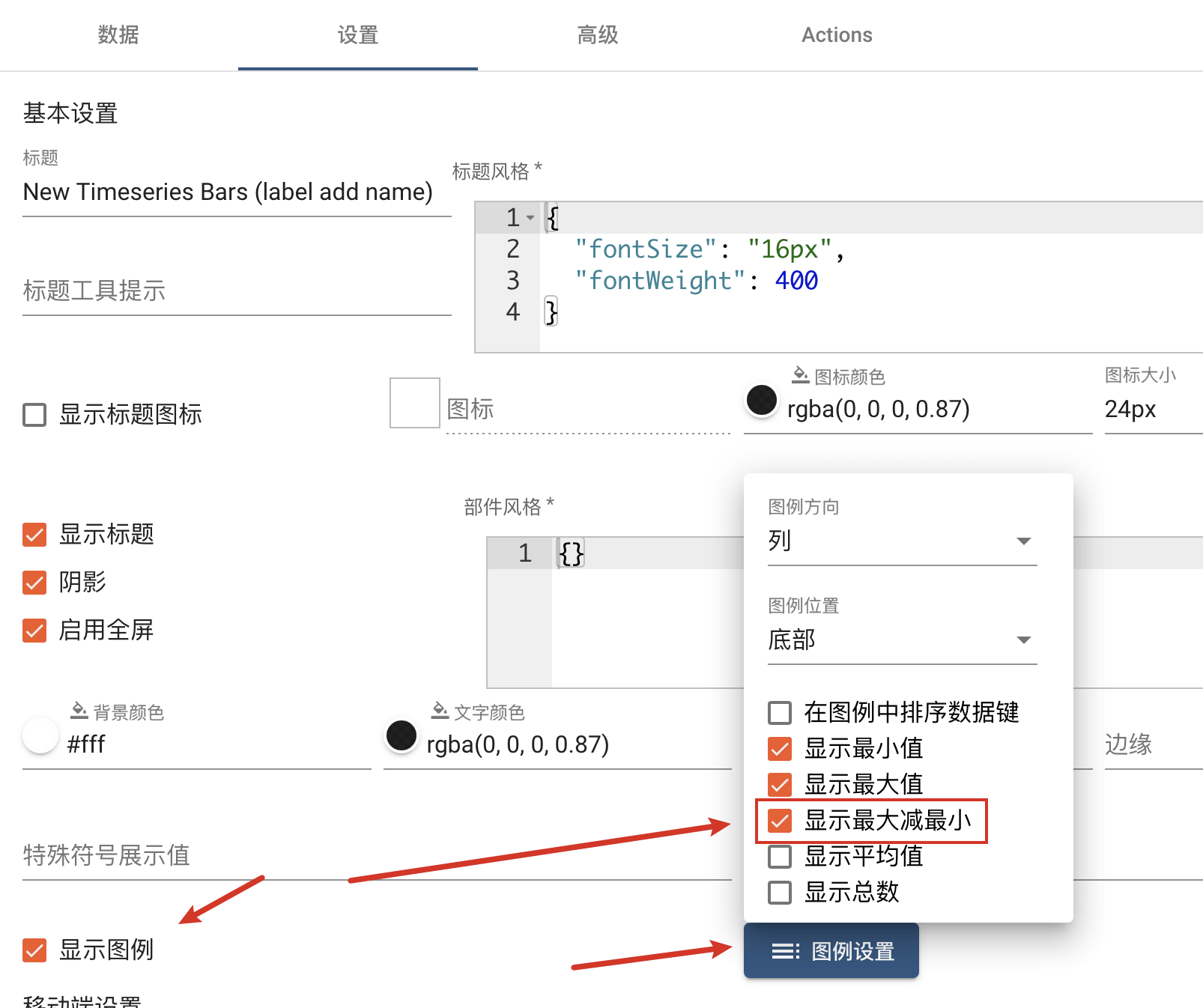

效果说明

原版未提供 显示最大值减最小值选项。「差值」和「显示最大减最小」想改成别的文字，在最后面的locale.constant-zh_CN.json中修改即可。

数据准备

使用下面这篇文章的数据 https://www.yuque.com/kuwei-g0lft/tb/rkwzft
仪表改造-图例(Label)自动加设备名称

ui-ngx代码修改

改的内容不多，为了容易找到对应位置，贴出代码较多。
ui-ngx/src/app/shared/models/widget.models.ts 增加有注释的内容

export interface LegendConfig {
  position: LegendPosition;
  direction?: LegendDirection;
  sortDataKeys: boolean;
  showMin: boolean;
  showMax: boolean;
  showAvg: boolean;
  showDelta: boolean;  //添加是否显示最大值最小值差值
  showTotal: boolean;
}
export function defaultLegendConfig(wType: widgetType): LegendConfig {
  return {
    direction: LegendDirection.column,
    position: LegendPosition.bottom,
    sortDataKeys: false,
    showMin: false,
    showMax: false,
    showDelta: false, //默认不显示
    showAvg: wType === widgetType.timeseries,
    showTotal: false
  };
}
export interface LegendKeyData {
  min: string;
  max: string;
  avg: string;
  total: string;
  delta: string; //LegendKeyData添加delta
  hidden: boolean;
}

ui-ngx/src/app/modules/home/components/widget/legend.component.html 增加有注释的内容

<tr class="tb-legend-header" *ngIf="!isRowDirection">
    <th colspan="2"></th>
    <th *ngIf="legendConfig.showMin === true">{{ 'legend.min' | translate }}</th>
    <th *ngIf="legendConfig.showMax === true">{{ 'legend.max' | translate }}</th>
    <th *ngIf="legendConfig.showAvg === true">{{ 'legend.avg' | translate }}</th>
    <!--增加下面这行-->
    <th *ngIf="legendConfig.showDelta === true">{{ 'legend.delta' | translate }}</th>
    <th *ngIf="legendConfig.showTotal === true">{{ 'legend.total' | translate }}</th>
</tr>
<tr class="tb-legend-keys" *ngFor="let legendKey of legendKeys()">
  <td><span class="tb-legend-line" [ngStyle]="{backgroundColor: legendKey.dataKey.color}"></span></td>
  <td class="tb-legend-label"
      (click)="toggleHideData(legendKey.dataIndex)"
      [ngClass]="{ 'tb-hidden-label': legendKey.dataKey.hidden, 'tb-horizontal': isHorizontal }">
    {{ legendKey.dataKey.label }}
  </td>
  <td class="tb-legend-value" *ngIf="legendConfig.showMin === true">{{ legendData.data[legendKey.dataIndex].min }}</td>
  <td class="tb-legend-value" *ngIf="legendConfig.showMax === true">{{ legendData.data[legendKey.dataIndex].max }}</td>
  <td class="tb-legend-value" *ngIf="legendConfig.showAvg === true">{{ legendData.data[legendKey.dataIndex].avg }}</td>
  <td class="tb-legend-value" *ngIf="legendConfig.showTotal === true">{{ legendData.data[legendKey.dataIndex].total }}</td>
   <!--增加下面这行-->
  <td class="tb-legend-value" *ngIf="legendConfig.showDelta === true">{{ legendData.data[legendKey.dataIndex].delta }}</td>
</tr>
<tr class="tb-legend-keys" *ngIf="isRowDirection && legendConfig.showTotal === true">
  <td class="tb-legend-type">{{ 'legend.total' | translate }}</td>
  <td class="tb-legend-value" *ngFor="let legendKey of legendKeys()">
    {{ legendData.data[legendKey.dataIndex].total }}
  </td>
</tr>
<!--增加下面tr全部-->
<tr class="tb-legend-keys" *ngIf="isRowDirection && legendConfig.showDelta === true">
  <td class="tb-legend-type">{{ 'legend.delta' | translate }}</td>
  <td class="tb-legend-value" *ngFor="let legendKey of legendKeys()">
    {{ legendData.data[legendKey.dataIndex].delta }}
  </td>
</tr>

ui-ngx/src/app/modules/home/components/widget/legend-config-panel.component.html 增加注释部分

<mat-checkbox formControlName="showMax">
  {{ 'legend.show-max' | translate }}
</mat-checkbox>
<!--增加下面mat-checkbox全部-->
<mat-checkbox formControlName="showDelta">
  {{ 'legend.show-delta' | translate }}
</mat-checkbox>

ui-ngx/src/app/modules/home/components/widget/legend-config-panel.component.ts 增加注释部分

this.legendConfigForm = this.fb.group({
  direction: [this.data.legendConfig.direction, []],
  position: [this.data.legendConfig.position, []],
  sortDataKeys: [this.data.legendConfig.sortDataKeys, []],
  showMin: [this.data.legendConfig.showMin, []],
  showMax: [this.data.legendConfig.showMax, []],
  showAvg: [this.data.legendConfig.showAvg, []],
  //增加下面这行
  showDelta: [this.data.legendConfig.showDelta, []],
  showTotal: [this.data.legendConfig.showTotal, []]
});

ui-ngx/src/app/core/api/widget-subscription.ts 增加注释部分

const legendKeyData: LegendKeyData = {
  min: null,
  max: null,
  avg: null,
  //增加下面这行
  delta: null,
  total: null,
  hidden: false
};
private updateLegend(dataIndex: number, data: DataSet, detectChanges: boolean) {
  const dataKey = this.legendData.keys.find(key => key.dataIndex === dataIndex).dataKey;
  const decimals = isDefinedAndNotNull(dataKey.decimals) ? dataKey.decimals : this.decimals;
  const units = dataKey.units && dataKey.units.length ? dataKey.units : this.units;
  const legendKeyData = this.legendData.data[dataIndex];
  if (this.legendConfig.showMin) {
    legendKeyData.min = this.ctx.widgetUtils.formatValue(calculateMin(data), decimals, units);
  }
  if (this.legendConfig.showMax) {
    legendKeyData.max = this.ctx.widgetUtils.formatValue(calculateMax(data), decimals, units);
  }
  if (this.legendConfig.showAvg) {
    legendKeyData.avg = this.ctx.widgetUtils.formatValue(calculateAvg(data), decimals, units);
  }
  if (this.legendConfig.showTotal) {
    legendKeyData.total = this.ctx.widgetUtils.formatValue(calculateTotal(data), decimals, units);
  }
  //增加if全部内容
  if (this.legendConfig.showDelta) {
    legendKeyData.delta = this.ctx.widgetUtils.formatValue(calculateMax(data) - calculateMin(data), decimals, units);
  }
  this.callbacks.legendDataUpdated(this, detectChanges !== false);
}

ui-ngx/src/assets/locale/locale.constant-zh_CN.json 增加有delta的部分，不要加注释

"legend": {
  "avg": "平均值",
  "comparison-time-ago": {
    "days": "（一天前）",
    "months": "（一个月前）",
    "weeks": "（一周前）",
    "years": "（一年前）"
  },
  "direction": "图例方向",
  "max": "最大值",
  "min": "最小值",
  "delta": "差值",//使用时去掉注释
  "position": "图例位置",
  "settings": "图例设置",
  "show-avg": "显示平均值",
  "show-max": "显示最大值",
  "show-min": "显示最小值",
  "show-total": "显示总数",
  "show-delta": "显示最大减最小",//使用时去掉注释
  "sort-legend": "在图例中排序数据键",
  "total": "总数"
},
