TDengine整合MyBatisPlus

1.搭建环境

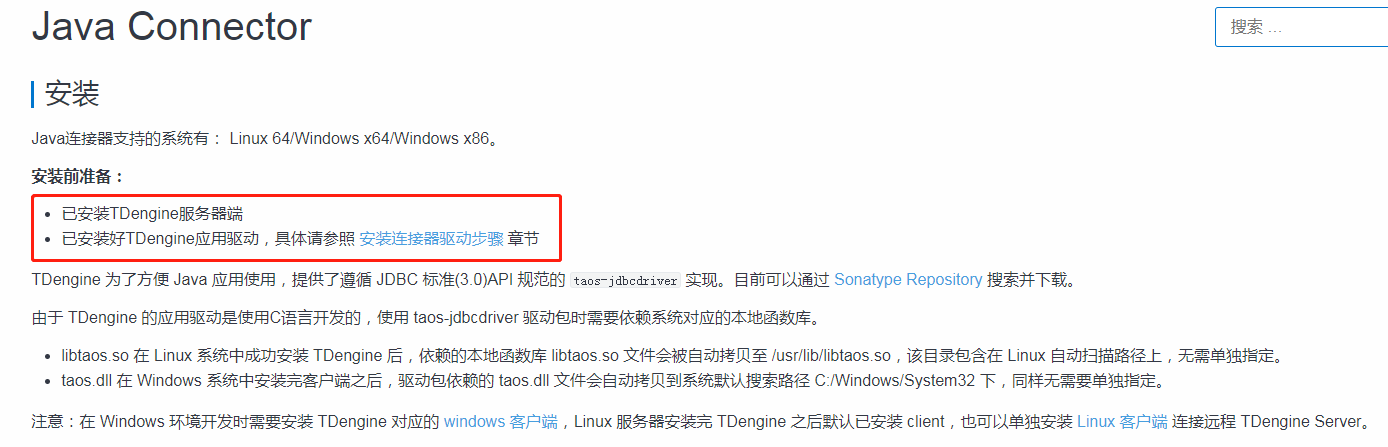

首先根据官方给出的内容，先做下图红框内的两个操作

为了更接近于真实的环境，这里我们来整合一下SpringBoot、MyBatisPlus与TDengine

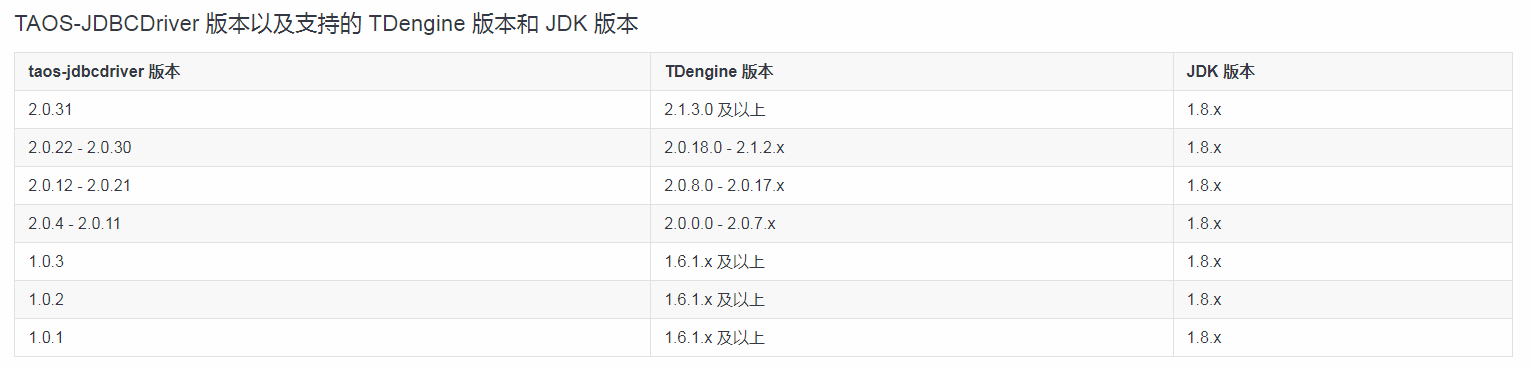

TDengine给我们提供了TAOS-JDBCDriver用来整合，我们经过官网查看得到了一些对应关系

然后我们查看一下我们安装的是哪个版本

我们这里安装的是2.1.0版本，所以我们的JDBCDriver版本可以选择2.0.22~2.0.30之间的任意一个

首先我们用IDEA创建一个SpringBoot项目，然后导入所需的依赖

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--MyBatisPlus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.1.2</version>
        </dependency>
        <!--Druid连接池-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.17</version>
        </dependency>
        <!--TAOSJDBCDriver-->
        <dependency>
            <groupId>com.taosdata.jdbc</groupId>
            <artifactId>taos-jdbcdriver</artifactId>
            <version>2.0.30</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.1</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

我们这里模拟一个温度传感器的场景来进行演示，我们创建我们需要的entity与mapper

entity：

@Data
public class Temperature {
    private Timestamp ts;
    private float temperature;
    private String location;
    private int index;
}

mapper：

@Mapper
public interface TemperatureMapper extends BaseMapper<Temperature> {
    @Update("CREATE STABLE if not exists temperature (ts timestamp, temperature float) TAGS (location nchar(64), index int)")
    int createSuperTable();
    @Update("create table #{tbName} using temperature tags( #{location}, #{index})")
    int createTable(@Param("tbName") String tbName,@Param("location") String location,@Param("index") int index);
    @Update("drop table if exists temperature")
    void dropSuperTable();
    @Insert("insert into tb${index}(ts, temperature) values(#{ts}, #{temperature})")
    int insertOne(Temperature one);
}

Test：

@RunWith(SpringJUnit4ClassRunner.class)
@SpringBootTest
public class TemperatureMapperTest{
    @Autowired
    private TemperatureMapper mapper;
    private static Random random = new Random();
    private static String[] locations = {"北京", "上海", "深圳", "广州", "杭州"};
    @Before
    public void before() {
        mapper.dropSuperTable();
        mapper.createSuperTable();
        for (int i = 0; i < 10; i++) {
            mapper.createTable("tb" + i, locations[random.nextInt(locations.length)], i);
        }
        int affectRows = 0;
        long ts = System.currentTimeMillis();
        for (int i = 0; i < 10; i++) {
            for (int j = 0; j < 5; j++) {
                Temperature one = new Temperature();
                one.setTs(new Timestamp(new Date().getTime()));
                one.setTemperature(new Random().nextInt(40));
                one.setLocation("望京");
                one.setIndex(i);
                affectRows += mapper.insertOne(one);
            }
        }
        Assert.assertEquals(50, affectRows);
    }
    @After
    public void after() {
        mapper.dropSuperTable();
    }
    @Test
    public void testSelectList() {
        List<Temperature> temperatureList = mapper.selectList(null);
        temperatureList.forEach(System.out::println);
    }
    @Test
    public void testInsert() {
        Temperature one = new Temperature();
        one.setTs(new Timestamp(new Date().getTime()));
        one.setTemperature(new Random().nextInt(40));
        one.setLocation("望京");
        int affectRows = mapper.insertOne(one);
        Assert.assertEquals(1, affectRows);
    }
    @Test
    public void testSelectByMap() {
        Map<String, Object> map = new HashMap<>();
        map.put("location", "北京");
        List<Temperature> temperatures = mapper.selectByMap(map);
        System.out.println(temperatures);
    }
    @Test
    public void testSelectPage() {
        IPage page = new Page(1, 2);
        IPage<Temperature> temperatureIPage = mapper.selectPage(page, null);
        System.out.println("total : " + temperatureIPage.getTotal());
        System.out.println("pages : " + temperatureIPage.getPages());
        for (Temperature temperature : temperatureIPage.getRecords()) {
            System.out.println(temperature);
        }
    }
}

2.遇到的问题

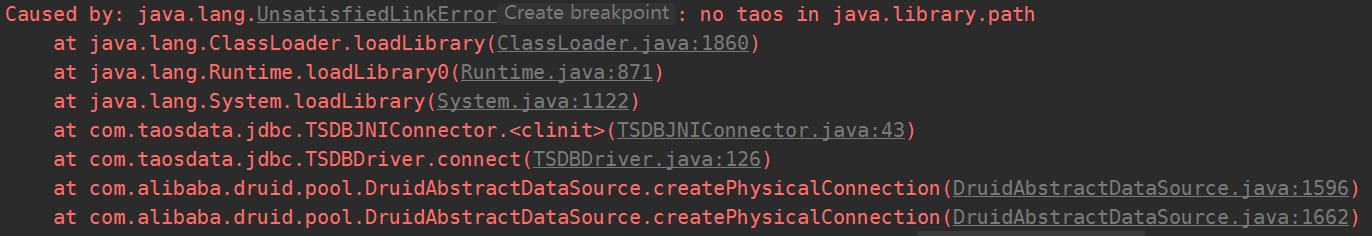

（一）no taos in java.library.path

因为我是在windows操作系统下链接，所以需要在本地安装一个windows的TDengine连接器，下载地址：

https://www.taosdata.com/assets-download/TDengine-client-2.1.0.0-Windows-x64.exe (根据你们的版本进行修改版本号后再下载)

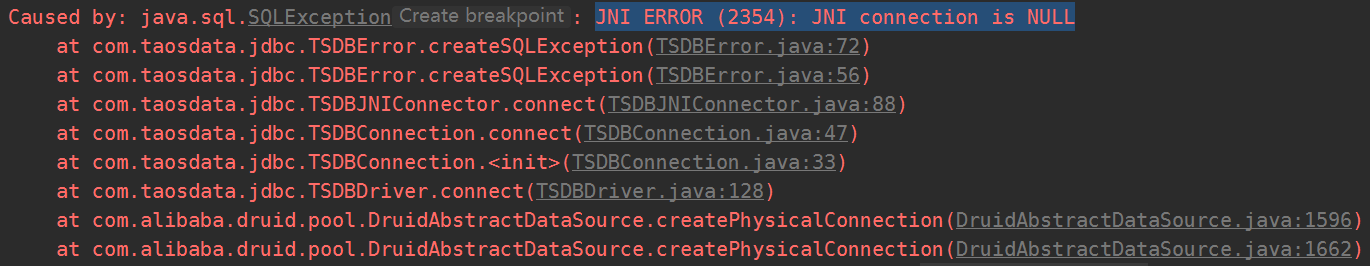

（二）JNI ERROR (2354): JNI connection is NULL

解决方法：除了开启6030的TCP端口外，还需要开放6030的UDP端口，因为我的TDengine是用docker安装，所以要修改启动命令，开放端口出来

docker run -d --name tdengine -p 6030-6041:6030-6041 -p 6030:6030/udp tdengine/tdengine:latest

因为链接使用的是FQDN链接，我也配置了hostname

但是还是链接失败，应该是Docker网络配置的原因，因为我对Docker也不是很精通，这里暂未解决，所以我们直接在服务器上装一个接着测，具体安装看第一篇，然后开放端口即可

firewall-cmd --add-port=6030-6041/tcp --permanent
firewall-cmd --add-port=6030/udp --permanent
firewall-cmd --reload

Reference

因为代码和教程我也是参考其他人的，这里贴作者的就好

• https://blog.csdn.net/u013810234/article/details/119234603?spm=1001.2014.3001.5501
• https://github.com/heartsuit/demo-spring-boot/tree/master/springboot-tdengine
