1. 大模型交互三层架构

• 通用大语言模型(> 100B)
• 领域大语言模型(10~70B)
• 工具类模型(<10B)

2. DB-GPT的架构与特点

关键特性

• 私域问答&数据处理&RAG

• 多数据源&GBI

• 多模型管理

• 自动化微调

• Data-Driven Multi-Agents&Plugins

• 隐私安全

3.面向未来

• 可视化层: 可视化层主要的工作是对话、交互、图表显示、可视化编排等能力。
• 应用层: 基于底层能力的应用构建，如GBI应用、ChatDB类应用、ChatData类应用、ChatExcel类应用等。
• 服务层: 服务层主要是对外暴露的服务，比如LLMServer、APIServer、RAGServer、dbgptserver等
• 核心模块层: 核心模块主要有三个分别是，SMMF、RAGs、Agents
• 协议层：协议层主要是指AWEL(Agentic Workflow Expression Language), 即智能体编排语言，是专门为大模型应用开发设计的智能体工作流表达式语言。
• 训练层: 训练层会主要关注Text2SQL、Text2DSL、Text2API方向的微调，提供标准的微调脚手架。
• 运行环境: 运行环境是指整个框架的运行在什么环境当中，我们后期会优先支持基于Ray与Kubernetes的环境。

3.1 多模型管理(SMMF)

import openai
openai.api_key = "EMPTY"
openai.api_base = "http://127.0.0.1:8100/api/v1"
model = "vicuna-13b-v1.5"
completion = openai.ChatCompletion.create(
    model=model,
    messages=[{"role": "user", "content": "hello"}]
)
# print the completion
print(completion.choices[0].message.content)

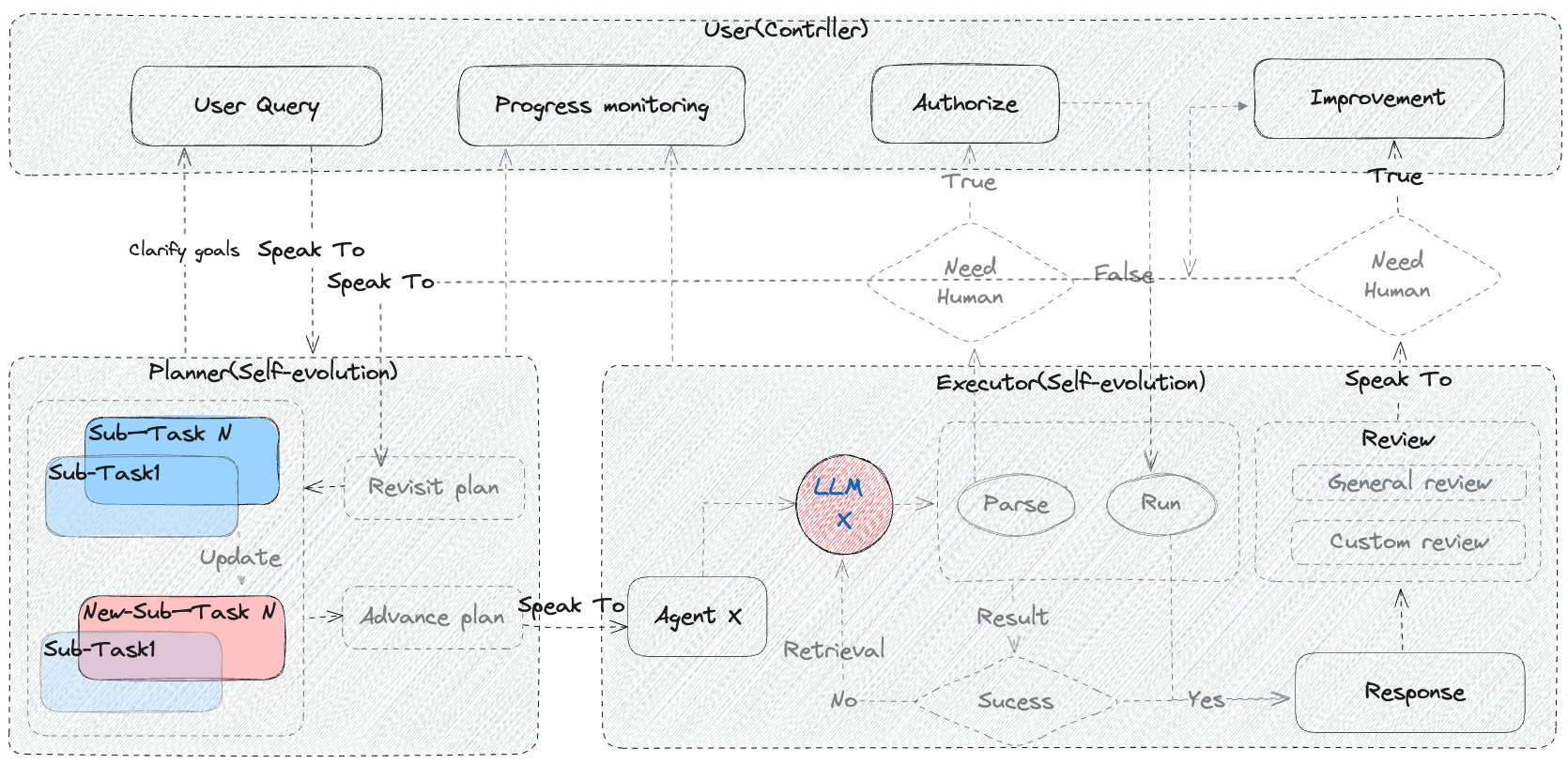

3.3 Agents

3.4 AWEL

AWEL分层设计

• 算子层

• AgentFream层

• DSL层

使用案例

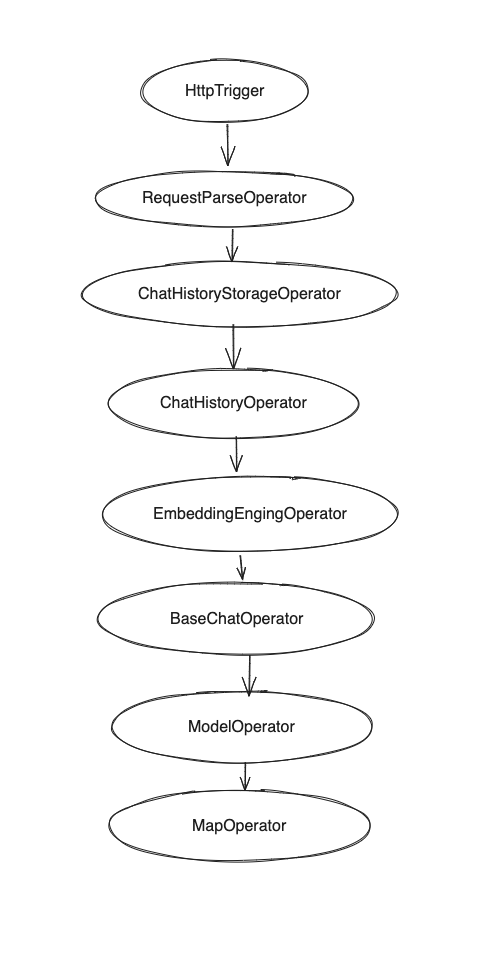

算子层API-RAG例子

源码在项目中位置 examples/awel/simple_rag_example.py

with DAG("simple_rag_example") as dag:
    trigger_task = HttpTrigger(
        "/examples/simple_rag", methods="POST", request_body=ConversationVo
    )
    req_parse_task = RequestParseOperator()
    # TODO should register prompt template first
    prompt_task = PromptManagerOperator()
    history_storage_task = ChatHistoryStorageOperator()
    history_task = ChatHistoryOperator()
    embedding_task = EmbeddingEngingOperator()
    chat_task = BaseChatOperator()
    model_task = ModelOperator()
    output_parser_task = MapOperator(lambda out: out.to_dict()["text"])
    (
        trigger_task
        >> req_parse_task
        >> prompt_task
        >> history_storage_task
        >> history_task
        >> embedding_task
        >> chat_task
        >> model_task
        >> output_parser_task
    )

算子层API调用模型+缓存例子

AgentFream层API样例

af = AgentFream(HttpSource("/examples/run_code", method = "post"))
result = (
    af
    .text2vec(model="text2vec")
    .filter(vstore, store = "chromadb", db="default")
    .llm(model="vicuna-13b", temperature=0.7)
    .map(code_parse_func)
    .map(run_sql_func)
    .reduce(lambda a, b: a + b)
)
result.write_to_sink(type='source_slink')

DSL层API样例

CREATE WORKFLOW RAG AS
BEGIN
    DATA requestData = RECEIVE REQUEST FROM
            http_source("/examples/rags", method = "post");
    DATA processedData = TRANSFORM requestData USING embedding(model = "text2vec");
    DATA retrievedData = RETRIEVE DATA
            FROM vstore(database = "chromadb", key = processedData)
            ON ERROR FAIL;
    DATA modelResult = APPLY LLM "vicuna-13b"
            WITH DATA retrievedData AND PARAMETERS (temperature = 0.7)
            ON ERROR RETRY 2 TIMES;
    RESPOND TO http_source WITH modelResult
            ON ERROR LOG "Failed to respond to request";
END;

3.5 Train

pip install dbgpt_hub

查看模型基线

from dbgpt_hub.baseline import show_scores
show_scores()

微调

from dbgpt_hub.data_process import preprocess_sft_data
from dbgpt_hub.train import start_sft
from dbgpt_hub.predict import start_predict
from dbgpt_hub.eval import start_evaluate
data_folder = "dbgpt_hub/data"
data_info = [
    {
        "data_source": "spider",
        "train_file": ["train_spider.json", "train_others.json"],
        "dev_file": ["dev.json"],
        "tables_file": "tables.json",
        "db_id_name": "db_id",
        "is_multiple_turn": False,
        "train_output": "spider_train.json",
        "dev_output": "spider_dev.json",
    }
]
train_args = {
            "model_name_or_path": "codellama/CodeLlama-13b-Instruct-hf",
            "do_train": True,
            "dataset": "example_text2sql_train",
            "max_source_length": 2048,
            "max_target_length": 512,
            "finetuning_type": "lora",
            "lora_target": "q_proj,v_proj",
            "template": "llama2",
            "lora_rank": 64,
            "lora_alpha": 32,
            "output_dir": "dbgpt_hub/output/adapter/CodeLlama-13b-sql-lora",
            "overwrite_cache": True,
            "overwrite_output_dir": True,
            "per_device_train_batch_size": 1,
            "gradient_accumulation_steps": 16,
            "lr_scheduler_type": "cosine_with_restarts",
            "logging_steps": 50,
            "save_steps": 2000,
            "learning_rate": 2e-4,
            "num_train_epochs": 8,
            "plot_loss": True,
            "bf16": True,
}
predict_args = {
            "model_name_or_path": "codellama/CodeLlama-13b-Instruct-hf",
            "template": "llama2",
            "finetuning_type": "lora",
            "checkpoint_dir": "dbgpt_hub/output/adapter/CodeLlama-13b-sql-lora",
            "predict_file_path": "dbgpt_hub/data/eval_data/dev_sql.json",
            "predict_out_dir": "dbgpt_hub/output/",
            "predicted_out_filename": "pred_sql.sql",
}
evaluate_args =  {
            "input": "./dbgpt_hub/output/pred/pred_sql_dev_skeleton.sql",
            "gold": "./dbgpt_hub/data/eval_data/gold.txt",
            "gold_natsql": "./dbgpt_hub/data/eval_data/gold_natsql2sql.txt",
            "db": "./dbgpt_hub/data/spider/database",
            "table": "./dbgpt_hub/data/eval_data/tables.json",
            "table_natsql": "./dbgpt_hub/data/eval_data/tables_for_natsql2sql.json",
            "etype": "exec",
            "plug_value": True,
            "keep_distict": False,
            "progress_bar_for_each_datapoint": False,
            "natsql": False,
}
preprocess_sft_data(
      data_folder = data_folder,
      data_info = data_info
)
start_sft(train_args)
start_predict(predict_args)
start_evaluate(evaluate_args)

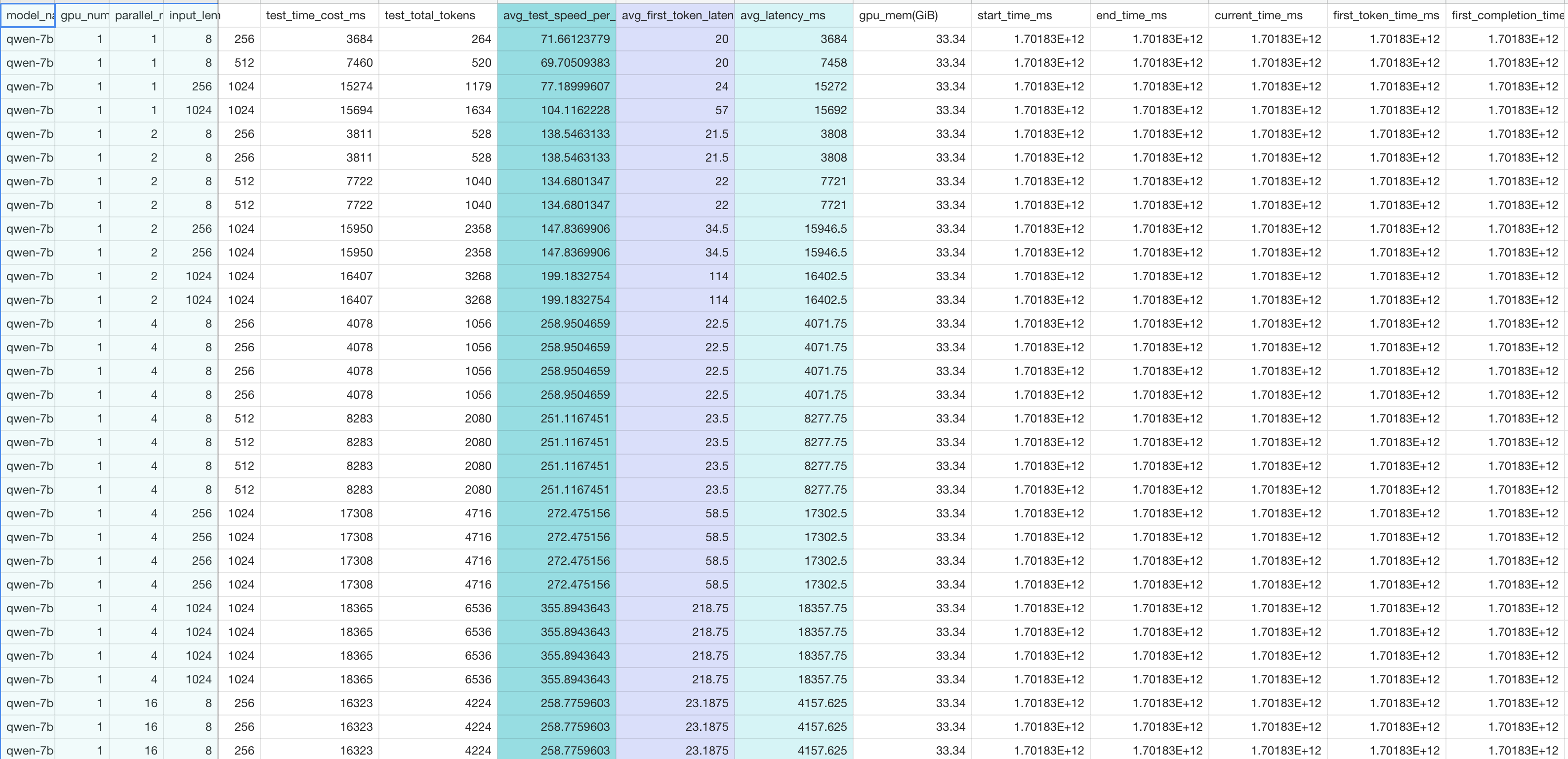

指标

1. 首字延迟（First Token Latency）

延迟（**Latency**）

2. 吞吐量（**Throughput**）

硬件配置

GPU： NVIDIA A100-PCIE-40GB * 1

CPU： Intel Xeon Processor (Skylake, IBRS) 40核80线程 2992.953 MHz

内存：629 GB

硬盘： 1T HDD

推理框架和模型

VLLM

hg

Benchmark代码地址： https://github.com/eosphoros-ai/DB-GPT/blob/main/dbgpt/util/benchmarks

async def run_model(wh: WorkerManager) -> None:
    global result_csv_file
    if not result_csv_file:
        result_csv_file = get_result_csv_file()
    if os.path.exists(result_csv_file):
        now = datetime.now()
        now_str = now.strftime("%Y-%m-%d")
        os.rename(result_csv_file, f"{result_csv_file}.bak_{now_str}.csv")
    for parallel_num in parallel_nums:
        for input_len, output_len in zip(input_lens, output_lens):
            try:
                await run_batch(
                    wh, input_len, output_len, parallel_num, result_csv_file
                )
            except Exception:
                msg = traceback.format_exc()
                logging.error(
                    f"Run benchmarks error, input_len: {input_len}, output_len: {output_len}, parallel_num: {parallel_num}, error message: {msg}"
                )
                if "torch.cuda.OutOfMemoryError" in msg:
                    return
    sys.exit(0)
async def run_batch(
    wh: WorkerManager,
    input_len: int,
    output_len: int,
    parallel_num: int,
    output_file: str,
):
    tasks = []
    prompt = read_prompt_from_file("11k")
    if model_type == "vllm":
        max_input_str_len = input_len
        if "baichuan" in model_name:
            # TODO prompt handle first
            max_input_str_len *= 2
        prompt = prompt[-max_input_str_len:]
    # Warmup first
    params = build_param(input_len, output_len, prompt, system_prompt="")
    await wh.generate(params)
    for _ in range(parallel_num):
        params = build_param(input_len, output_len, prompt, system_prompt="")
        tasks.append(wh.generate(params))
    print(
        f"Begin run benchmarks, model name: {model_name}, input_len: {input_len}, output_len: {output_len}, parallel_num: {parallel_num}, save result to {output_file}"
    )
    start_time_ms = time.time_ns() // 1_000_000
    results: List[ModelOutput] = await asyncio.gather(*tasks)
    end_time_ms = time.time_ns() // 1_000_000
    test_time_cost_ms = end_time_ms - start_time_ms
    test_total_tokens = 0
    first_token_latency_ms = 0
    latency_ms = 0
    gpu_nums = 0
    avg_gpu_mem = 0
    rows = []
    for r in results:
        metrics = r.metrics
        if isinstance(metrics, dict):
            metrics = ModelInferenceMetrics(**metrics)
        print(r)
        test_total_tokens += metrics.total_tokens
        first_token_latency_ms += metrics.first_token_time_ms - metrics.start_time_ms
        latency_ms += metrics.end_time_ms - metrics.start_time_ms
        row_data = metrics.to_dict()
        del row_data["collect_index"]
        if "avg_gpu_infos" in row_data:
            avg_gpu_infos = row_data["avg_gpu_infos"]
            gpu_nums = len(avg_gpu_infos)
            avg_gpu_mem = (
                sum(i["allocated_memory_gb"] for i in avg_gpu_infos) / gpu_nums
            )
            del row_data["avg_gpu_infos"]
            del row_data["current_gpu_infos"]
        rows.append(row_data)
    avg_test_speed_per_second = test_total_tokens / (test_time_cost_ms / 1000.0)
    avg_first_token_latency_ms = first_token_latency_ms / len(results)
    avg_latency_ms = latency_ms / len(results)
    with open(output_file, "a", newline="", encoding="utf-8") as f:
        writer = csv.DictWriter(f, fieldnames=METRICS_HEADERS)
        if f.tell() == 0:
            # Fist time
            writer.writeheader()
        for row in rows:
            row["model_name"] = model_name
            row["parallel_nums"] = parallel_num
            row["input_length"] = input_len
            row["output_length"] = output_len
            row["test_time_cost_ms"] = test_time_cost_ms
            row["test_total_tokens"] = test_total_tokens
            row["avg_test_speed_per_second(tokens/s)"] = avg_test_speed_per_second
            row["avg_first_token_latency_ms"] = avg_first_token_latency_ms
            row["avg_latency_ms"] = avg_latency_ms
            row["gpu_nums"] = gpu_nums
            row["gpu_mem(GiB)"] = avg_gpu_mem
            writer.writerow(row)
    print(
        f"input_len: {input_len}, output_len: {output_len}, parallel_num: {parallel_num}, save result to {output_file}"
    )
