环境说明

kubectl get node
NAME             STATUS   ROLES    AGE   VERSION
docker-desktop   Ready    master   50m   v1.19.7

安装NFS

关闭防火墙和禁止开启启动防火墙

$ sudo systemctl stop firewalld.service
$ sudo systemctl disable firewalld.service
$ sudo systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:firewalld(1)

安装nfs

$ sudo yum -y install nfs-utils rpcbind

创建/data/k8s/ 目录

$ sudo mkdir -p /data/k8s/
$ sudo chmod 755 /data/k8s/

配置 nfs，nfs 的默认配置文件在 /etc/exports 文件下，在该文件中添加下面的配置信息：

$ sudo vim /etc/exports
/data/k8s  *(rw,sync,no_root_squash)

配置说明：

/data/k8s：是共享的数据目录
*：表示任何人都有权限连接，当然也可以是一个网段，一个 IP，也可以是域名
rw：读写的权限
sync：表示文件同时写入硬盘和内存
no_root_squash：当登录 NFS 主机使用共享目录的使用者是 root 时，其权限将被转换成为匿名使用者，通常它的 UID 与 GID，都会变成 nobody 身份

启动服务 nfs

启动服务 nfs 需要向 rpc 注册，rpc 一旦重启了，注册的文件都会丢失，向他注册的服务都需要重启
注意启动顺序，

启动 rpcbind

$ sudo systemctl start rpcbind.service
$ sudo systemctl enable rpcbind
$ sudo systemctl status rpcbind
● rpcbind.service - RPC bind service
   Loaded: loaded (/usr/lib/systemd/system/rpcbind.service; enabled; vendor preset: enabled)
   Active: active (running) since Sun 2021-07-11 22:31:08 CST; 33s ago
 Main PID: 4392 (rpcbind)
   CGroup: /system.slice/rpcbind.service
           └─4392 /sbin/rpcbind -w
Jul 11 22:31:08 VM-8-5-centos systemd[1]: Starting RPC bind service...
Jul 11 22:31:08 VM-8-5-centos systemd[1]: Started RPC bind service.

启动 nfs

$ sudo systemctl start nfs.service
$ sudo systemctl enable nfs
$ sudo systemctl status nfs
● nfs-server.service - NFS server and services
   Loaded: loaded (/usr/lib/systemd/system/nfs-server.service; enabled; vendor preset: disabled)
  Drop-In: /run/systemd/generator/nfs-server.service.d
           └─order-with-mounts.conf
   Active: active (exited) since Sun 2021-07-11 22:32:35 CST; 53s ago
 Main PID: 4642 (code=exited, status=0/SUCCESS)
   CGroup: /system.slice/nfs-server.service
Jul 11 22:32:35 VM-8-5-centos systemd[1]: Starting NFS server and services...
Jul 11 22:32:35 VM-8-5-centos systemd[1]: Started NFS server and services.

查看挂载权限

$ cat /var/lib/nfs/etab
/data/k8s       *(rw,sync,wdelay,hide,nocrossmnt,secure,no_root_squash,no_all_squash,no_subtree_check,secure_locks,acl,no_pnfs,anonuid=65534,anongid=65534,sec=sys,rw,secure,no_root_squash,no_all_squash)

检查下 nfs 是否有共享目录

showmount -e 10.0.8.5
Export list for 10.0.8.5:
/data/k8s *

本地客户端挂载$HOME/k8s/data

$ mkdir -p $HOME/k8s/data
$ mount -t nfs 10.0.8.5:/data/k8s $HOME/k8s/data
$ cd $HOME/k8s/data/
$ sudo echo "hello world" >> test.txt

创建pv

apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-nfs
spec:
  capacity:
    storage: 2Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Recycle
  nfs:
    path: /data/k8s
    server: 10.0.8.5

Capacity（存储能力）

一般来说，一个 PV 对象都要指定一个存储能力，通过 PV 的 capacity属性来设置的，目前只支持存储空间的设置，就是我们这里的 storage=1Gi，不过未来可能会加入 IOPS、吞吐量等指标的配置。

AccessModes（访问模式）

AccessModes 是用来对 PV 进行访问模式的设置，用于描述用户应用对存储资源的访问权限，访问权限包括下面几种方式：

ReadWriteOnce（RWO）：读写权限，但是只能被单个节点挂载
ReadOnlyMany（ROX）：只读权限，可以被多个节点挂载
ReadWriteMany（RWX）：读写权限，可以被多个节点挂载

注意：一些 PV 可能支持多种访问模式，但是在挂载的时候只能使用一种访问模式，多种访问模式是不会生效的。

persistentVolumeReclaimPolicy（回收策略）

我这里指定的 PV 的回收策略为 Recycle，目前 PV 支持的策略有三种：

Retain（保留）- 保留数据，需要管理员手工清理数据
Recycle（回收）- 清除 PV 中的数据，效果相当于执行 rm -rf /thevoluem/*
Delete（删除）- 与 PV 相连的后端存储完成 volume 的删除操作，当然这常见于云服务商的存储服务，比如 ASW EBS。

不过需要注意的是，目前只有 NFS 和 HostPath 两种类型支持回收策略。当然一般来说还是设置为 Retain 这种策略保险一点。

状态

一个 PV 的生命周期中，可能会处于4中不同的阶段：

Available（可用）：表示可用状态，还未被任何 PVC 绑定
Bound（已绑定）：表示 PV 已经被 PVC 绑定
Released（已释放）：PVC 被删除，但是资源还未被集群重新声明

Failed（失败）：表示该 PV 的自动回收失败

kubectl get pv
NAME   CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS      CLAIM   STORAGECLASS   REASON   AGE
pv1    1Gi        RWO            Recycle          Available                                   3m

StorageClass

参考这个创建https://github.com/kubernetes-retired/external-storage/tree/master/nfs-client/deploy

创建ServiceAccount及相关权限

创建rbac-nfs.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: nfs-client-provisioner
  namespace: default
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: nfs-client-provisioner-runner
rules:
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: run-nfs-client-provisioner
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    # replace with namespace where provisioner is deployed
    namespace: default
roleRef:
  kind: ClusterRole
  name: nfs-client-provisioner-runner
  apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
    # replace with namespace where provisioner is deployed
  namespace: default
rules:
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    # replace with namespace where provisioner is deployed
    namespace: default
roleRef:
  kind: Role
  name: leader-locking-nfs-client-provisioner
  apiGroup: rbac.authorization.k8s.io

执行

kubectl apply -f rbac-nfs.yaml
serviceaccount/nfs-client-provisioner created
clusterrole.rbac.authorization.k8s.io/nfs-client-provisioner-runner created
clusterrolebinding.rbac.authorization.k8s.io/run-nfs-client-provisioner created
role.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created
rolebinding.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created

创建NFS provisioner

创建provisioner 文件provisioner-nfs.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nfs-client-provisioner
  labels:
    app: nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: default  #与RBAC文件中的namespace保持一致
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nfs-client-provisioner
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: nfs-client-provisioner
    spec:
      serviceAccountName: nfs-client-provisioner
      containers:
        - name: nfs-client-provisioner
          image: quay.io/external_storage/nfs-client-provisioner:latest
          volumeMounts:
            - name: nfs-client-root
              mountPath: /persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: nfs-storage  #provisioner名称,请确保该名称与 sc-nfs.yaml文件中的provisioner名称保持一致
            - name: NFS_SERVER
              value: 81.71.154.47   #NFS Server IP地址
            - name: NFS_PATH
              value: /data/k8s    #NFS挂载卷
      volumes:
        - name: nfs-client-root
          nfs:
            server: 81.71.154.47  #NFS Server IP地址
            path: /data/k8s     #NFS 挂载卷

执行

kubectl apply -f provisioner-nfs.yaml
deployment.apps/nfs-client-provisioner created

创建NFS资源的StorageClass

创建StorageClass 文件sc-nfs.yaml，这里provisioner的名称要和provisioner配置文件中的环境变量PROVISIONER_NAME保持一致

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: managed-nfs-storage
provisioner: nfs-storage
parameters:
  archiveOnDelete: "false"

执行

kubectl apply -f sc-nfs.yaml
storageclass.storage.k8s.io/managed-nfs-storage created

验证

声明pvc文件test-claim.yaml

kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: test-claim
spec:
  storageClassName: managed-nfs-storage
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 1Mi

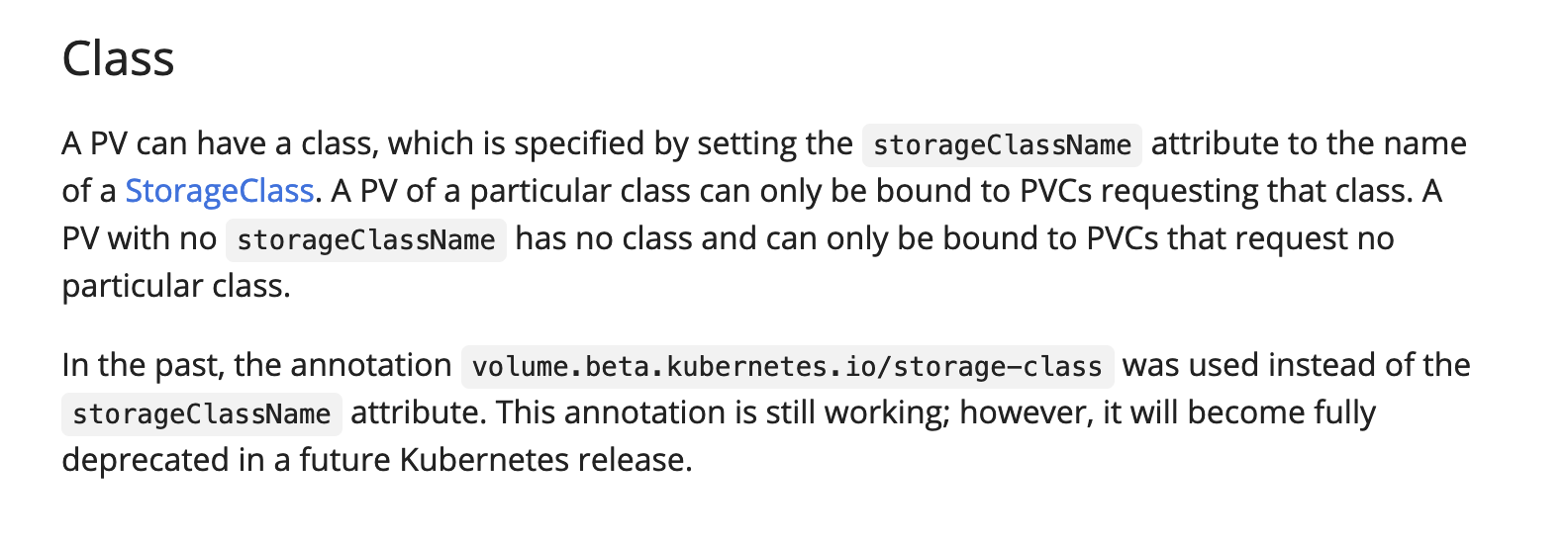

也谢说使用annotations:volume.beta.kubernetes.io/storage-class 这个建议大家放弃使用。
官方文档已经准备弃用了。https://kubernetes.io/docs/concepts/storage/persistent-volumes/#class

执行

 ✗ kubectl get sc
NAME                  PROVISIONER          RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
hostpath (default)    docker.io/hostpath   Delete          Immediate           false                  19m
managed-nfs-storage   nfs-storage          Delete          Immediate           false                  11s
 ✗ kubectl patch storageclass managed-nfs-storage -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'
storageclass.storage.k8s.io/managed-nfs-storage patched
kubectl patch storageclass hostpath -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"false"}}}'storageclass.storage.k8s.io/hostpath patched

执行

$ kubectl apply -f test-claim.yaml
persistentvolumeclaim/test-claim created
➜  pv git:(master) ✗ kubectl get pvc
NAME         STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS          AGE
test-claim   Bound    pvc-050e4039-935c-4f18-8623-8580d1295e3a   1Mi        RWX            managed-nfs-storage   7s
$ kubectl get pv
NAME                                       CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                STORAGECLASS          REASON   AGE
pvc-050e4039-935c-4f18-8623-8580d1295e3a   1Mi        RWX            Delete           Bound    default/test-claim   managed-nfs-storage            32s

创建pod文件test-pod.yaml

kind: Pod
apiVersion: v1
metadata:
  name: test-pod
spec:
  containers:
  - name: test-pod
    image: busybox
    command:
      - "/bin/sh"
    args:
      - "-c"
      - "touch /mnt/SUCCESS && exit 0 || exit 1"   #创建一个SUCCESS文件后退出
    volumeMounts:
      - name: nfs-pvc
        mountPath: "/mnt"
  restartPolicy: "Never"
  volumes:
    - name: nfs-pvc
      persistentVolumeClaim:
        claimName: test-claim  #与PVC名称保持一致

pvc

声明pvc-nfs.yaml 配置文件

kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: pvc-nfs
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi

执行创建pvc

$ kubectl apply -f pvc-nfs.yaml
persistentvolumeclaim/pvc-nfs created

查看pvc

$ kubectl get pvc
NAME      STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
pvc-nfs   Bound    pvc-aec6f5cf-c3a6-422f-9063-82ce0cdbf53a   1Gi        RWO            hostpath       13s

查看pv

✗ kubectl get pv
NAME                                       CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS      CLAIM             STORAGECLASS   REASON   AGE
pv-nfs                                     1Gi        RWO            Recycle          Available                                             85s
pvc-b9de43c1-ecd7-4e58-94d7-f5c24092ad3c   1Gi        RWO            Delete           Bound       default/pvc-nfs   hostpath                61s        Bound       default/pvc-nfs   hostpath                2m37s

错误处理

1 controller.go:1004] provision "default/test-claim" class "managed-nfs-storage": unexpected error getting claim reference: selfLink was empty, can't make reference

[root@master ~]# grep -B 5 'feature-gates' /etc/kubernetes/manifests/kube-apiserver.yaml
    - --service-account-key-file=/etc/kubernetes/pki/sa.pub
    - --service-account-signing-key-file=/etc/kubernetes/pki/sa.key
    - --service-cluster-ip-range=10.96.0.0/12
    - --tls-cert-file=/etc/kubernetes/pki/apiserver.crt
    - --tls-private-key-file=/etc/kubernetes/pki/apiserver.key
    - --feature-gates=RemoveSelfLink=false #添加内容
