1、写一个简单的贪吃蛇

需求分析

使用pixijs写一个简单的贪吃蛇

搭建环境

使用@webpack-cli/generators搭建一个ts环境
@webpack-cli/generators

//add npm
npm init
//add webpack
yarn add -D @webpack-cli/generators webpack  webpack-cli
//webpack init 新版本可以不推荐使用webpack-cli，根据返回提示来操作就行了
yarn webpack init
// 启动项目
yarn serve

根据选项，选择ts

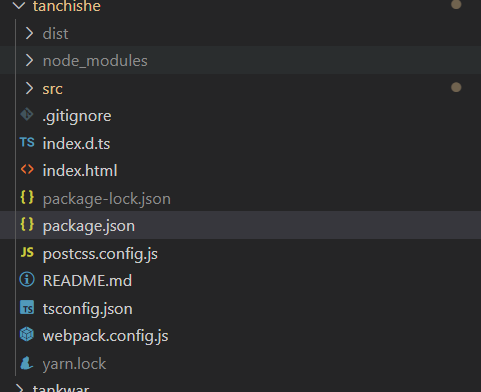

项目结构

在src中创建一个tanchishe.ts的文件，在index.ts中调用

//index.ts
import Tanchishe from './tanchishe';
Tanchishe;

//tanchishe.ts
import PIXI from 'pixi.js';
class Core {
}
const Tanchishe = new Core();
export default Tanchishe;

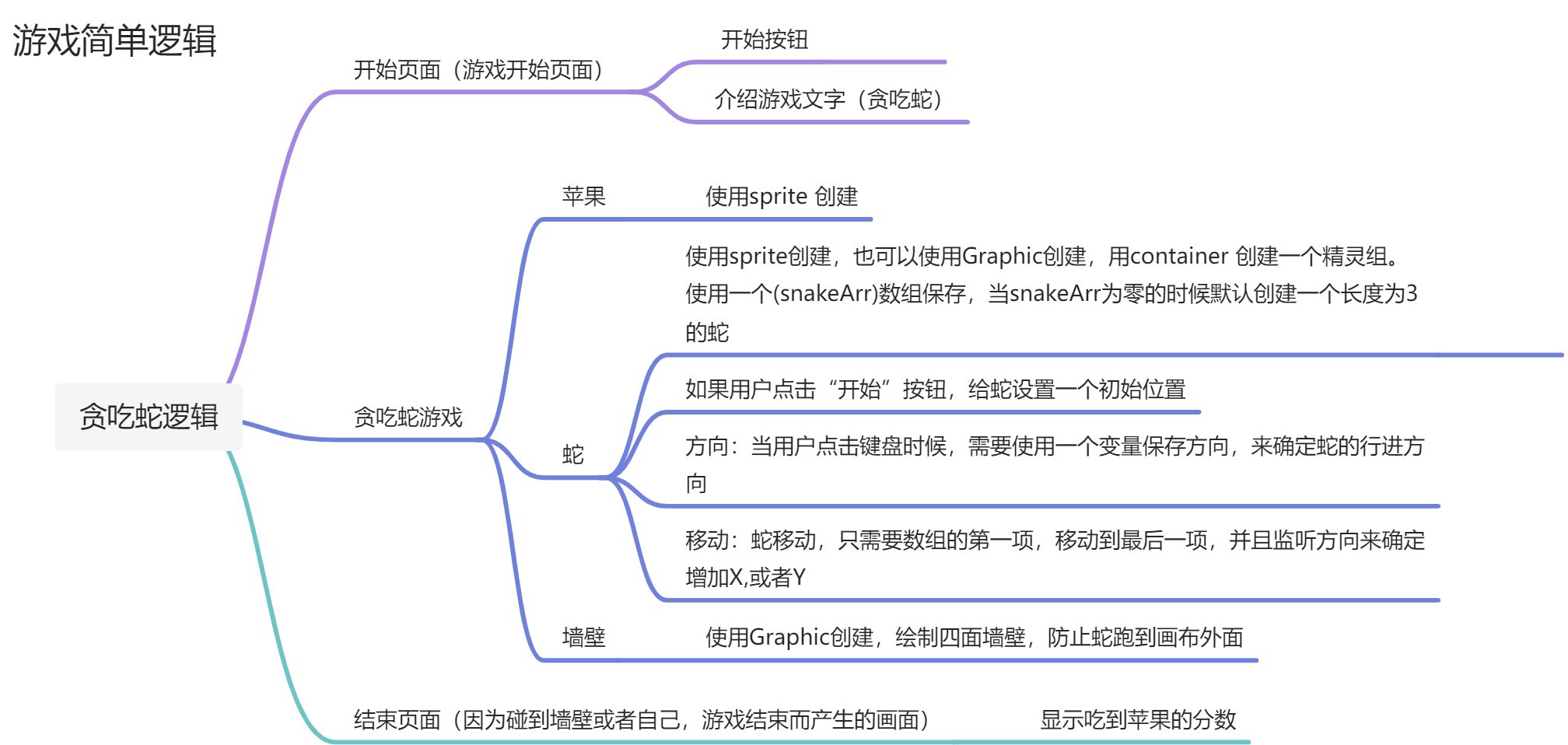

根据思维导图的逻辑来

i
mport {
  Application,
  Container,
  Sprite,
  Loader,
  Graphics,
  Text,
  TextStyle,
  ParticleContainer,
  Texture,
  TilingSprite,
} from "pixi.js";
import { keyboard } from "./keyboard";
import Apple from "./assets/apple.jpg";
interface CoreProps {
  element: string;
  width: string | number;
  height: string | number;
  isLoader?: boolean;
}
interface snakeAxisProps {
  x?: number;
  y?: number;
  width?: number;
  height?: number;
}
interface directionProps {
  upIsDown: boolean;
  leftIsDown: boolean;
  downIsDown: boolean;
  rightIsDown: boolean;
}
class Core {
  element: Element;
  width: string | number;
  height: string | number;
  renderer!: any;
  loader!: any;
  isLoader?: boolean;
  isVisible: boolean;
  speed: snakeAxisProps;
  snake?: any;
  snakeArr?: any[];
  isInitSnake: boolean;
  apple?: any;
  wallArr?: any;
  state: any;
  score: number;
  direction: directionProps;
  timer:null | NodeJS.Timer
  constructor(option: CoreProps) {
    const { element, width, height, isLoader = false } = option;
    this.element = document.querySelector(`#${element}`);
    this.width = width;
    this.height = height;
    this.isLoader = isLoader;
    this.snake = null;
    this.snakeArr = [];
    this.apple = null;
    this.score = 0;
    this.isVisible = false;
    this.renderer = null;
    this.isInitSnake = true;
    this.direction = {
      upIsDown: true,
      leftIsDown: true,
      downIsDown: true,
      rightIsDown: true,
    };
    this.timer = null;
    this.speed = {};
    this.init();
  }
  init() {
    console.log("init");
    this.apple = null;
    this.wallArr = null;
    this.renderer = new Application({
      width: this.width as number,
      height: this.height as number,
      backgroundColor: 0xffffff,
    });
    this.getScore();
    this.createRender();
  }
  loaderImg(option: {
    imgUrl: string;
    loaded: (loader: any, resources: any) => void;
  }) {
    const { imgUrl, loaded } = option;
    this.loader = Loader.shared;
    this.loader.add("apple", imgUrl).load(loaded);
  }
  createRender() {
    this.renderer.stage.removeChildren();
    this.element?.appendChild(this.renderer.view);
    console.log(this.isVisible);
    if (this.isVisible) {
      this.createWalls();
      this.createSnake();
      this.createApple();
      //移动蛇
      this.timer = setInterval(()=>{
        this.snakeMove();
      },100)
    } else {
      this.startPage();
    }
  }
  getScore() {
    const body = document.body;
    const scoreWrapper = document.createElement("div");
    scoreWrapper.innerHTML = `
    <span>分数：</span><span id="Score">0</span>
    `;
    body.appendChild(scoreWrapper);
  }
  setScore() {
    this.score++;
    const Score = document.querySelector("#Score");
    Score.innerHTML = `${this.score}`;
  }
  over() {
    this.renderer.stage.removeChildren();
    clearInterval(this.timer);
    this.endPage();
  }
  endPage() {
    const { width, height, renderer, score } = this;
    const graphics = new Graphics();
    graphics.beginFill(0x000000);
    graphics.drawRect(0, 0, width as number, height as number);
    graphics.endFill();
    renderer.stage.addChild(graphics);
    const endText = new Text(
      `游戏结束，你的分数为:${score}`,
      new TextStyle({
        fill: 0xcccccc,
      })
    );
    renderer.stage.addChild(endText);
  }
  startPage() {
    const { width, height, renderer } = this;
    const startContainer = new Container();
    const graphics = new Graphics();
    graphics.beginFill(0x000000);
    graphics.drawRect(0, 0, width as number, height as number);
    graphics.endFill();
    startContainer.addChild(graphics);
    const style = new TextStyle({
      fontFamily: "Arial",
      fontSize: 36,
      fill: "white",
      stroke: "#ff3300",
      strokeThickness: 4,
      dropShadow: true,
      dropShadowColor: "#cccccc",
      dropShadowBlur: 4,
      dropShadowAngle: Math.PI / 6,
      dropShadowDistance: 6,
    });
    const message = new Text("贪吃蛇（乞丐版）", style);
    message.position.set((width as number) / 3, (height as number) / 4);
    startContainer.addChild(message);
    const border = new Graphics();
    border.beginFill(0xcccccc);
    border.lineStyle({ color: 0xffffff, width: 4, alignment: 0 });
    border.drawRect(0, 0, 120, 60);
    border.endFill();
    border.position.set((this.width as number) / 2.5, (height as number) / 2);
    startContainer.addChild(border);
    const button = new Text("游戏开始");
    border.interactive = true;
    border.on("pointerdown", (e) => {
      this.isVisible = true;
      this.createRender();
    });
    button.position.set((width as number) / 2.45, (height as number) / 1.9);
    startContainer.addChild(button);
    renderer.stage.addChild(startContainer);
  }
  createWalls() {
    console.log("created Wall");
    const container = new Container();
    this.renderer.stage.addChild(container);
    //eftWall
    const leftWall = new Graphics();
    leftWall.beginFill(0xde3249);
    leftWall.drawRect(0, 0, 10, this.height as number);
    leftWall.position.set(0, 0);
    leftWall.endFill();
    container.addChild(leftWall);
    //rightWall
    const rightWall = new Graphics();
    rightWall.beginFill(0xde3249);
    rightWall.drawRect(0, 0, 10, this.height as number);
    rightWall.endFill();
    rightWall.position.set((this.width as number) - 10, 0);
    container.addChild(rightWall);
    //topWall
    const topWall = new Graphics();
    topWall.beginFill(0xde3249);
    topWall.drawRect(0, 0, this.width as number, 10 as number);
    topWall.position.set(0, 0);
    topWall.endFill();
    container.addChild(topWall);
    //bottomWall
    const bottomWall = new Graphics();
    bottomWall.beginFill(0xde3249);
    bottomWall.drawRect(0, 0, this.width as number, 10);
    bottomWall.position.set(0, (this.height as number) - 10);
    bottomWall.endFill();
    this.wallArr = {
      wall: container,
      leftWall: leftWall,
      rightWall: rightWall,
      topWall: topWall,
      bottomWall: bottomWall,
    };
    container.addChild(bottomWall);
  }
  createApple() {
    const { width, height } = this;
    this.apple = new Container();
    this.renderer.stage.addChild(this.apple);
    const sprite = Sprite.from(Apple);
    sprite.width = 25;
    sprite.height = 30;
    this.apple.position.set(
      Math.floor(Math.random() * (width as number) * 0.8),
      Math.floor(Math.random() * (height as number) * 0.8)
    );
    this.apple.addChild(sprite);
  }
  initSnake() {
    if (!this.snake) {
      // console.log('~~~ create snake container  ~~~~')
      this.snake = new Container();
      this.snake.position.set(10, 10);
      this.renderer.stage.addChild(this.snake);
    }
    if (this.snake.children.length !== 0) {
      // console.log('~~~ removeSprite ~~~~');
      this.snake.removeChildren();
    }
    if (this.snake.children.length === 0 && this.isInitSnake) {
      // console.log('~~~ first create snake ~~~');
      for (let i = 0; i < 3; i++) {
        let snake = new Graphics();
        snake.beginFill(0x000000);
        snake.drawRect(0, 0, 25, 25);
        snake.position.set(27 * i, 27);
        snake.endFill();
        this.snake.addChild(snake);
        this.snakeArr.push({
          x: snake.x,
          y: snake.y,
          width: snake.width,
          height: snake.height,
        });
      }
      this.isInitSnake = false;
    } else {
      // console.log('~~~ re-render snake ~~~');
      for (let i = 0; i < this.snakeArr.length; i++) {
        let snake = new Graphics();
        snake.beginFill(0x000000);
        snake.drawRect(0, 0, 25, 25);
        snake.position.set(this.snakeArr[i].x, this.snakeArr[i].y);
        snake.endFill();
        this.snake.addChild(snake);
      }
    }
  }
  createSnake() {
    this.initSnake();
    this.move();
    this.state = this.play;
    // 每秒帧数
    this.renderer.ticker.add((delta: any) => {
      this.gameLoop(delta);
    });
  }
  addSnake({ x, y, width, height }: snakeAxisProps) {
    this.snakeArr.unshift({
      x: x,
      y: y,
      width: width,
      height: height,
    });
  }
  gameLoop(delta: number) {
    this.play(delta);
  }
  play(_delta?: any) {
    const { snakeArr, apple, wallArr, hitTestRectangle } = this;
    const { leftWall, rightWall, topWall, bottomWall } = wallArr;
    const snakeHead = snakeArr[snakeArr.length - 1];
    const snakeLast = snakeArr[0];
    if (hitTestRectangle(snakeHead, apple)) {
      this.apple.removeChildren();
      this.createApple();
      this.setScore();
      this.addSnake({ ...snakeLast, x: snakeLast.x - 27 });
    }
    if (hitTestRectangle(snakeHead, leftWall)) {
      this.over();
    }
    if (hitTestRectangle(snakeHead, rightWall)) {
      this.over();
    }
    if (hitTestRectangle(snakeHead, topWall)) {
      this.over();
    }
    if (hitTestRectangle(snakeHead, bottomWall)) {
      this.over();
    }
  }
  snakeMove(dir?: any) {
    const {
      upIsDown,
      leftIsDown,
      downIsDown,
      rightIsDown,
    } = this.direction;
    if (!(this.snake.children.length === 0 && this.isInitSnake) && (!upIsDown || !leftIsDown || !downIsDown || !rightIsDown)) {
      const lastChildSprite = this.snakeArr[this.snakeArr.length - 1];
      if (!rightIsDown) {
        console.log('left');
        this.speed = { ...lastChildSprite, x: lastChildSprite.x - 27 };
      }
      if (!downIsDown) {
        console.log('up');
        this.speed = { ...lastChildSprite, y: lastChildSprite.y - 27 };
      }
      if (!leftIsDown) {
        console.log("right");
        this.speed = { ...lastChildSprite, x: lastChildSprite.x + 27 };
      }
      if (!upIsDown) {
        console.log('down');
        this.speed = { ...lastChildSprite, y: lastChildSprite.y + 27  };
      }
      const { x, y, width, height } = this.speed;
      this.snakeArr.shift();
      this.snakeArr.push({
        x: x,
        y: y,
        width: width,
        height: height,
        centerX: x + width / 2,
        centerY: y + width / 2,
        halfWidth: width / 2,
        halfHeight: height / 2,
      });
    };
    this.initSnake();
  }
  move() {
    let left = keyboard("ArrowLeft"),
        up = keyboard("ArrowUp"),
        right = keyboard("ArrowRight"),
        down = keyboard("ArrowDown");
    right.release = () => {
      this.direction = { upIsDown: true, leftIsDown: left.isDown, rightIsDown: true, downIsDown: true };
    };
    down.release = () => {
      this.direction = { upIsDown: up.isDown, leftIsDown: true, rightIsDown: true, downIsDown: true }
    };
    left.release = () => {
      this.direction = { upIsDown: true, leftIsDown: true, rightIsDown: right.isDown, downIsDown: true };
    };
    up.release = () => {
      this.direction = { upIsDown: true, leftIsDown: true, rightIsDown: true, downIsDown: down.isDown };
    };
  }
  hitTestRectangle(r1: any, r2: any) {
    let hit, combinedHalfWidths, combinedHalfHeights, vx, vy;
    hit = false;
    r1.centerX = r1.x + r1.width / 2;
    r1.centerY = r1.y + r1.height / 2;
    r2.centerX = r2.x + r2.width / 2;
    r2.centerY = r2.y + r2.height / 2;
    r1.halfWidth = r1.width / 2;
    r1.halfHeight = r1.height / 2;
    r2.halfWidth = r2.width / 2;
    r2.halfHeight = r2.height / 2;
    vx = r1.centerX - r2.centerX;
    vy = r1.centerY - r2.centerY;
    combinedHalfWidths = r1.halfWidth + r2.halfWidth;
    combinedHalfHeights = r1.halfHeight + r2.halfHeight;
    if (Math.abs(vx) < combinedHalfWidths) {
      if (Math.abs(vy) < combinedHalfHeights) {
        hit = true;
      } else {
        hit = false;
      }
    } else {
      hit = false;
    }
    return hit;
  }
}
const Tanchishe = new Core({
  element: "container",
  width: "800",
  height: "600",
});
export default Tanchishe;

打包成docker 部署

跟目录下新增一个文件夹 deploy创建，nginx.conf。新增一个文件dockerfile
输入

server {
    listen 80;
    root /usr/share/nginx/html;
    location / {
        try_files $uri $uri/ /index.html;
    }
    location /api.test/ {
        proxy_pass http://127.0.0.1:8080/;
        proxy_set_header Host $host;
    }
}

dockfile 输入

FROM nginx:latest
COPY ../dist/ /usr/share/nginx/html/
COPY deploy/nginx.conf /etc/nginx/conf.d/default.conf

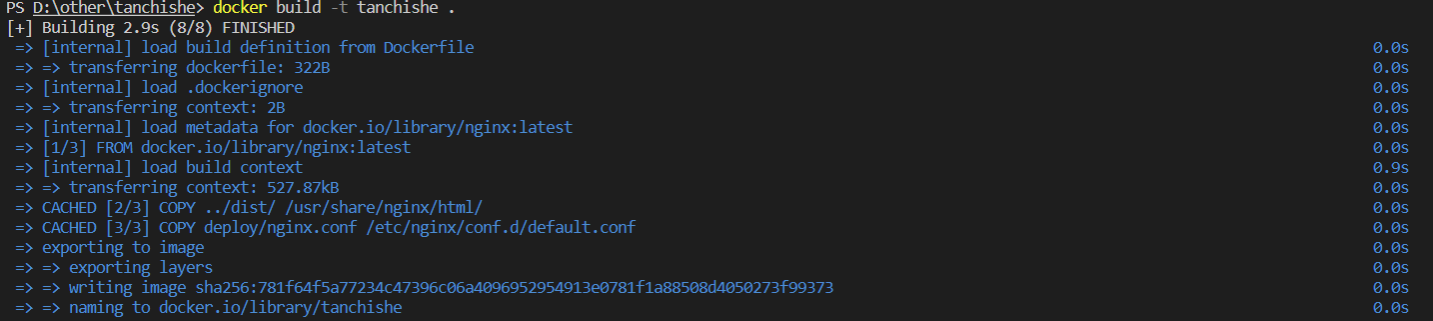

运行docker build -t tanchishe .

demo：github:tanchishe
