1.5 基于DataProtection的数据保护方案

准备工作

DataProtectionOption

将使用数据保护需要的参数做成Option，方便配置调用

    public class ProtectionOption
    {
        /// <summary>应用程序名称</summary>
        /// <value>The name of the application.</value>
        public string ApplicationName { get; set; }
        /// <summary>证书指纹</summary>
        /// <value>The thumbprint.</value>
        public string Thumbprint { get; set; }
        /// <summary>私钥存储路径</summary>
        /// <value>The secret key path.</value>
        public string SecretKeyPath { get; set; }
        /// <summary>保护器名称</summary>
        /// <value>The purpose.</value>
        public string Purpose { get; set; }
    }

ProtectionOptionBase

真实项目中，不可能只对单个字符串进行加解密，大多数时候是对某个Option配置进行加解密，定义需要解密的Option需要继承的基类，Option上带有EncryptedAttribute标记的属性将会被解密

    /// <summary>使用数据保护的Option要继承的基类,带有EncryptedAttribute标记的将会被解密</summary>
    public abstract class ProtectionOptionBase
    {
        private bool Decrypted { get; set; } = false;
        public void Decrypt(IDataProtector protector)
        {
            if (Decrypted) return;
            foreach (PropertyInfo property in GetType().GetProperties())
            {
                if (property.GetCustomAttribute<EncryptedAttribute>() != null)
                {
                    string text = property.GetValue(this).ToString();
                    property.SetValue(this, protector.Unprotect(text));
                }
            }
            Decrypted = true;
        }
        public void CopyTo(ProtectionOptionBase option)
        {
            foreach (PropertyInfo property in GetType().GetProperties())
            {
                property.SetValue(option, property.GetValue(this));
            }
        }
    }

EncryptedAttribute

定义特性，用于标识属性是否需要被解密

 public class EncryptedAttribute : Attribute
 {
 }

DataProtectionExtensions

基于数据保护服务的扩展方法，提供注入服务并使用指定证书进行解密的能力

 public static class DataProtectionExtensions
    {
        /// <summary>注册数据保护服务,使用x509证书加密</summary>
        /// <param name="services">The services.</param>
        /// <returns></returns>
        /// <exception cref="Exception">not found X509Certificate</exception>
        public static IDataProtector AddDataProtectionWithX509(this IServiceCollection services)
        {
            ServiceProvider provider = services.BuildServiceProvider();
            // 获取用户配置数据保护的Option
            ProtectionOption protectionOption = provider
                .GetRequiredService<IOptions<ProtectionOption>>().Value;
            // 获取证书
            X509Certificate2 cert = GetCertificateFromStore(protectionOption.Thumbprint);
            // 注册服务
            services.AddDataProtection()
                // 设置应用程序名称
                .SetApplicationName(protectionOption.ApplicationName)
                // 设置秘钥存储路径
                .PersistKeysToFileSystem(new DirectoryInfo(protectionOption.SecretKeyPath))
                // 设置用于加密的证书
                .UnprotectKeysWithAnyCertificate(cert);
            provider = services.BuildServiceProvider();
            IDataProtectionProvider protectionProvider = provider.GetRequiredService<IDataProtectionProvider>();
            // 创建数据保护器
            IDataProtector protector = protectionProvider.CreateProtector(protectionOption.Purpose);
            // 注册单例的数据保护器
            services.AddSingleton<IDataProtector>(serviceProvider => protector);
            return protector;
        }
        public static IServiceCollection ProtectedConfigure<TOptions>(this IServiceCollection services
            , IConfigurationSection section)
             where TOptions : ProtectionOptionBase, new()
        {
            ServiceProvider provider = services.BuildServiceProvider();
            IDataProtector protector = provider.GetRequiredService<IDataProtector>();
            services.Configure<TOptions>(option =>
            {
                var config = section.Get<TOptions>();
                config.Decrypt(protector);
                config.CopyTo(option);
            });
            return services;
        }
        /// <summary>
        /// Get the certifcate to use to encrypt the key
        /// CertSearchArea：StoreLocation.CurrentUser/StoreLocation.LocalMachine
        /// </summary>
        /// <param name="thumbprint"></param>
        /// <returns></returns>
        public static X509Certificate2 GetCertificateFromStore(string thumbprint)
        {
            X509Certificate2 signingCert =
                GetCertificateFromStore(thumbprint, StoreLocation.CurrentUser);
            if (signingCert != null)
            {
                return signingCert;
            }
            else
            {
                signingCert =
                   GetCertificateFromStore(thumbprint, StoreLocation.LocalMachine);
                if (signingCert != null)
                {
                    return signingCert;
                }
            }
            throw new X509Certificate2Exception("本机和当前用户证书存储区都未找到对应证书");
        }
        /// <summary>Gets the certificate from store.</summary>
        /// <param name="thumbprint">The thumbprint.</param>
        /// <param name="storeLocation">The store location.</param>
        /// <returns></returns>
        public static X509Certificate2 GetCertificateFromStore(string thumbprint, StoreLocation storeLocation)
        {
            // 获取本地机器证书存储
            X509Store localMachineStore = new X509Store(storeLocation);
            try
            {
                localMachineStore.Open(OpenFlags.ReadOnly);
                X509Certificate2Collection certCollection = localMachineStore.Certificates;
                X509Certificate2Collection localMachineCerts =
                    certCollection.Find(X509FindType.FindByTimeValid, DateTime.Now, false);
                X509Certificate2Collection signingCert =
                    localMachineCerts.Find(X509FindType.FindByThumbprint, thumbprint, false);
                if (signingCert.Count == 0)
                {
                    return null;
                }
                return signingCert[0];
            }
            finally
            {
                localMachineStore.Close();
            }
        }
    }

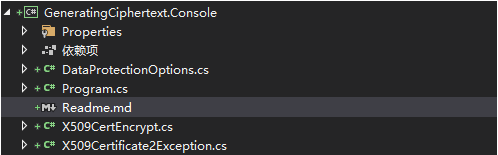

GeneratingCiphertext.Console

依赖指定证书生成加密文件secret.xml以及对应{key}.xml文件；{key}.xml是生成秘钥文件，secret.xml在之后的管道集成中会使用到

注意：在启动时必须提供必需的参数才可生成secret.xml及{key}.xml文件；在管道中使用命令行操作，在Visual Studio中可以使用如下方式设置

示例：

--cpath="C:\\Users\\WangPengLiang\\Desktop\\DataProtection\\dev.pfx"  --cpass="wpl19950815" --purpose="RedPI.Todo" --spath="C:\\Users\\WangPengLiang\\Desktop\\DataProtection\\app-keys" --appname="RedPI.Todo" --snodes="a:1, b:2"  --soutputpath="C:\Users\WangPengLiang\Desktop\DataProtection"

项目应用

appsettings.json

appsettings.json中包含了通用的Option的配置；

{
  // 数据保护相关配置;SecretKeyPath:固定目录
  "ProtectionOption": {
    "Thumbprint": "CD Replace",
    "ApplicationName": "CD Replace",
    "SecretKeyPath": "DataProtection\\app-keys",
    "Purpose": "CD Replace"
  }
}

appsettings.Development.json

appsettings.Development.json只包含针对当前环境的配置，直接明文存储

{
  // 开发环境：明文存储
  "TestOption": {
    "Test1": "dev-test1",
    "Test2": "dev-test2"
  },
  "DataBase": {
    "DbConnection": "Server=.;Database=WebApp01.Database;uid=sa;pwd=wpl19950815;"
  }
}

appsettings.Sit.json

appsettings.Sit.json只包含针对当前环境的配置；TestOption.Test2添加了Encrypted标记用于测试解密Option；DataBase.DbConnection用于测试解密字符串

namespace WebApp01.Options
{
    using WebApp01.CustomDataProtection;
    public class TestOption : ProtectionOptionBase
    {
        public string Test1 { get; set; }
        [Encrypted]
        public string Test2 { get; set; }
    }
}

{
  // 数据保护相关配置;SecretKeyPath:固定目录
  "ProtectionOption": {
    "Thumbprint": "CD Replace",
    "ApplicationName": "CD Replace",
    "SecretKeyPath": "DataProtection\\app-keys",
    "Purpose": "CD Replace"
  },
  // 测试Option解密
  "TestOption": {
    "Test1": "sit-test1",
    "Test2": "CD Replace"
  },
  // Sit环境：需要加密的配置在CD时进行替换
  "DataBase": {
    "DbConnection": "CD Replace"
  }
}

Startup

在Startup中使用服务

public void ConfigureServices(IServiceCollection services)
{
    if (Environment.IsDevelopment())
    {
        services.Configure<TestOption>(Configuration.GetSection("TestOption"));
    }
    else
    {
        // 注入数据保护需要的Option
        services.Configure<ProtectionOption>(Configuration.GetSection("ProtectionOption"));
        // 注入数据保护服务（依赖指定证书）
        IDataProtector dataProtector = services.AddDataProtectionWithX509();
        // 解密字符串
        string connStr = dataProtector.Unprotect(Configuration.GetSection("Database:ConnectString").Value);
        Console.WriteLine(connStr);
        // 解密Option;Option上带有EncryptedAttribute标记的属性将会被解密
        services.ProtectedConfigure<TestOption>(Configuration.GetSection("TestOption"));
    }
    services.AddControllers();
}

EnvironmentController

定义测试接口

[ApiController]
[Route("[controller]")]
public class EnvironmentController : ControllerBase
{
    private readonly IOptions<TestOption> testOption;
    public EnvironmentController(IOptions<TestOption> testOption)
    {
        this.testOption = testOption;
    }
    [HttpGet]
    public IActionResult GetEnvironmentVariables()
    {
        Dictionary<string, string> dicts = new Dictionary<string, string>();
        ConfigurationBuilder builder = new ConfigurationBuilder();
        builder.AddJsonFile("appsettings.json");
        IConfigurationRoot configuration = builder.Build();
        dicts.Add("ProtectionOption.Thumbprint", configuration.GetSection("ProtectionOption:Thumbprint").Value);
        dicts.Add("ProtectionOption.ApplicationName", configuration.GetSection("ProtectionOption:ApplicationName").Value);
        dicts.Add("ProtectionOption.SecretKeyPath", configuration.GetSection("ProtectionOption:SecretKeyPath").Value);
        dicts.Add("ProtectionOption.Purpose", configuration.GetSection("ProtectionOption:Purpose").Value);
        dicts.Add("TestOption.Test1", testOption.Value.Test1);
        dicts.Add("TestOption.Test2", testOption.Value.Test2);
        dicts.Add("DataBase.DbConnection", configuration.GetSection("DataBase:DbConnection").Value);
        return Ok(JsonConvert.SerializeObject(dicts));
    }
}
