slides

https://www.slideshare.net/team-WIBU/licensing-in-virtual-environments

CodeMeter® in Virtual Environments http://buildsoftsupport.com/wp-content/uploads/2018/07/Wibu-Systems_White_Paper_CodeMeter_in_Virtual_Environments.pdf

关键技术

SmartBind


CodeMeter

wibu - 图1

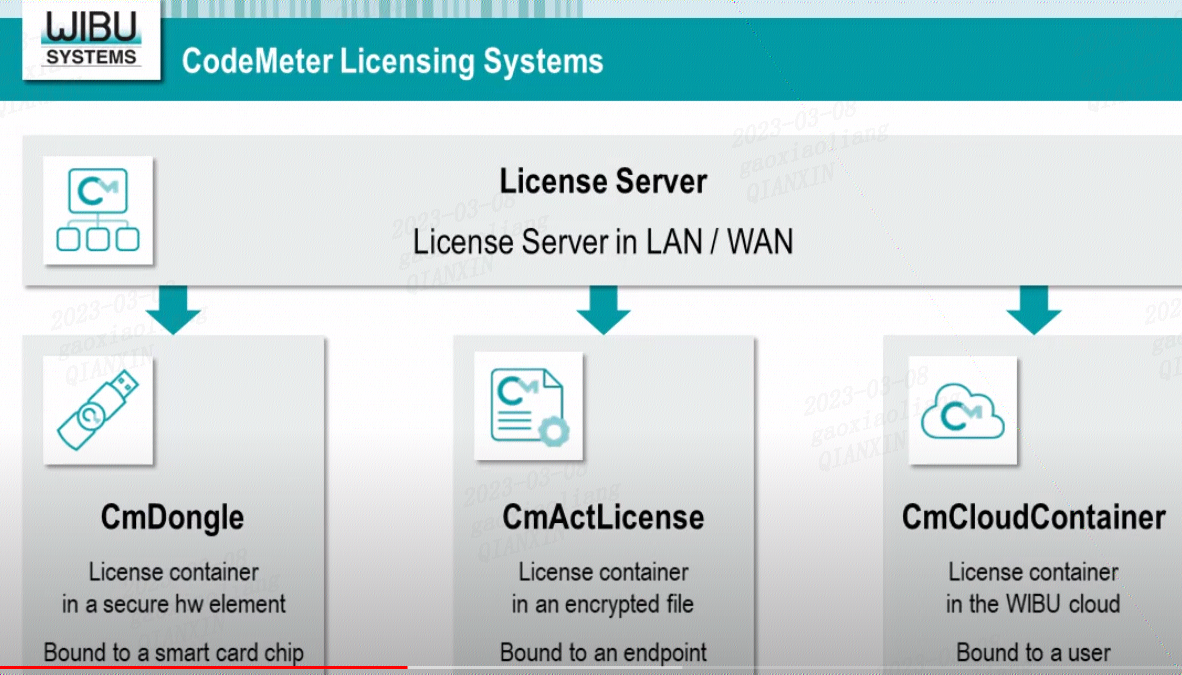

Flexible Licensing: Dongle – PC-bound – Cloud – License Server

CodeMeter提供了最大的灵活性。你可以完全自由地定义许可证模型和存储许可证的仓库,并有机会混合和匹配大量的可用选项。
wibu - 图2 + CmDongle: The license is stored securely in a CmDongle. The device embeds a smart card chip, which offers additional security to CodeMeter’s technology. Once saved, the secret keys never leave the unit. CmDongles are available in several form factors, such as USB, SD card, microSD card, CF card, CFast Card, and ASIC. + 许可证被安全地存储在CmDongle中。该设备嵌入了一个智能卡芯片,为CodeMeter的技术提供了额外的安全性。一旦被保存,密匙就不会离开设备。CmDongle有多种形式,如USB、SD卡、microSD卡、CF卡、CFast卡和ASIC。
  • CmActLicense: The license is saved in a special file that is bound to the hardware of the target computer. You define the degree of tolerance to changes in the computer. When using virtual machines, you can specify whether the license remains valid if it is moved or copied to a virtual machine. Alternatively, you can employ unbound CmActLicenses via the CodeMeter Protection Only or the CodeMeter Trial License options.
  • 许可证被保存在一个特殊的文件中,与目标计算机的硬件绑定。你可以定义对计算机变化的容忍程度。当使用虚拟机时,你可以指定如果许可证被移动或复制到虚拟机上是否仍然有效。另外,你可以通过CodeMeter Protection Only或CodeMeter Trial License选项使用非绑定的CmActLicenses。
  • CmCloudLicense: The license is typically tied to one user and located on a secure server operated by Wibu-Systems in the cloud.
  • 许可证通常与一个用户绑定,并位于由Wibu-Systems在云端运营的安全服务器上。
  • License Server: The license is stored in a CmDongle or a CmActLicense on a license server in the LAN of the user. The user can also reserve licenses for network users, Active Directory groups, or specific computers and create usage reports.
  • 许可证存储在用户局域网内的许可证服务器上的CmDongle或CmActLicense中。用户还可以为网络用户、活动目录组或特定计算机保留许可证,并创建使用报告。

授权模式

License Models

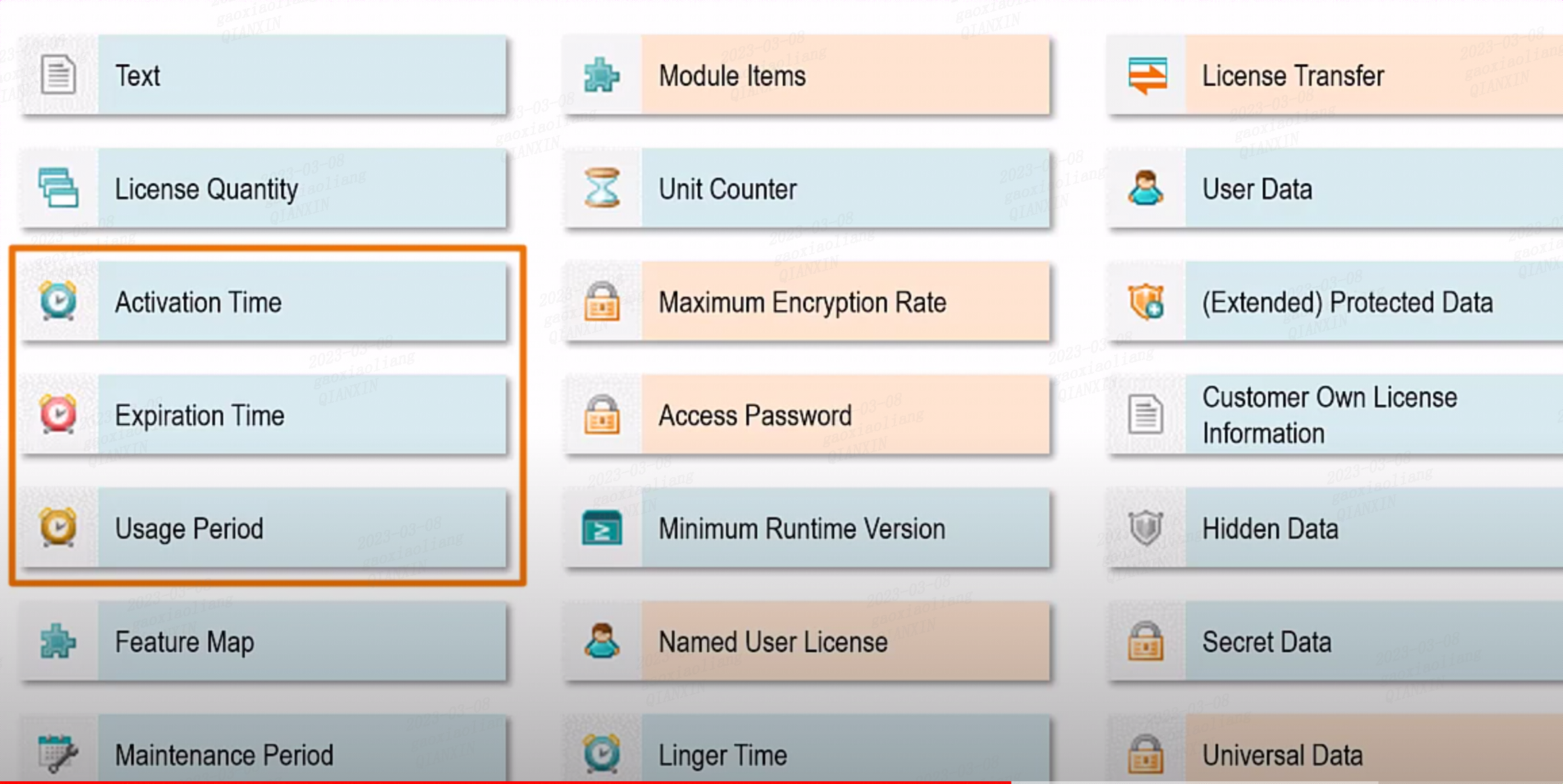

With CodeMeter, you can cover all common license models. These include:
  • Single user licenses
  • Network licenses
  • Feature-based licenses
  • Pay-per-use licenses
  • Time-based licenses
  • Named user licenses

wibu - 图3

绑定机器特征(machine finger)

借助SmartBind, 对于虚拟机和云主机,混合使用硬件和环境属性(a special mixture of hardware and environment properties)。因此,允许移动虚拟机,不允许复制虚拟机。

wibu - 图4

wibu - 图5

Wibu-Systems’ Tutorials: CodeMeter Software Developer’s Kit

wibu - 图6

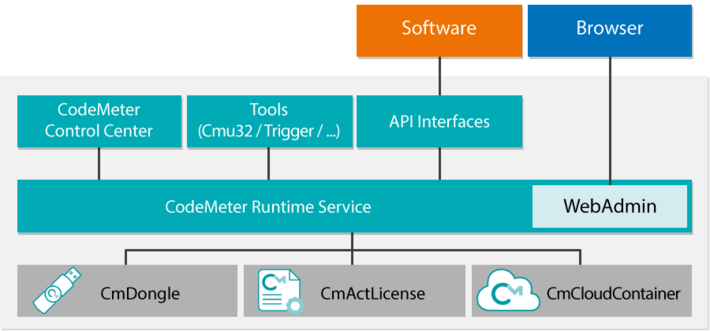

CodeMeter Runtime

https://www.wibu.com/products/codemeter/runtime.html

CodeMeter Runtime是一个开箱即用的软件包,与您的软件一起交付。它包含了你创建基于CodeMeter的许可证所需的所有组件。CodeMeter Runtime可以作为独立的安装程序和合并模块使用。

CodeMeter Runtime includes:

  • CodeMeter Runtime Service
  • CodeMeter WebAdmin
  • CodeMeter Control Center
  • API for C/C++, C#, Java, Delphi, Visual Basic, and other programming languages
  • Additional tools

wibu - 图7

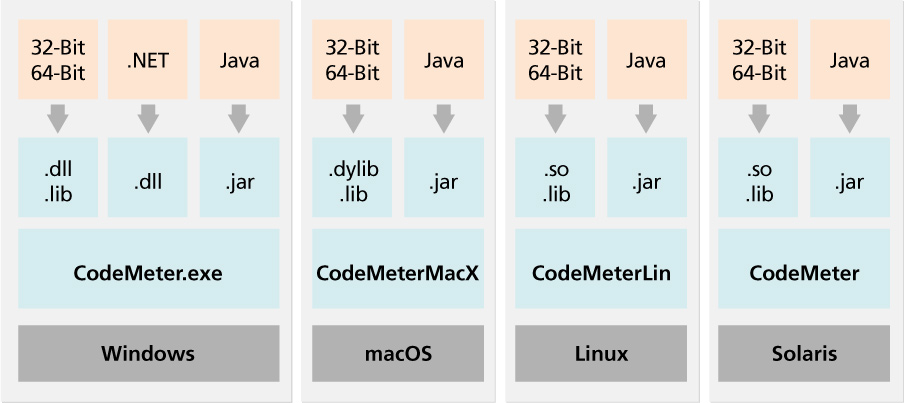

支持的平台

wibu - 图8

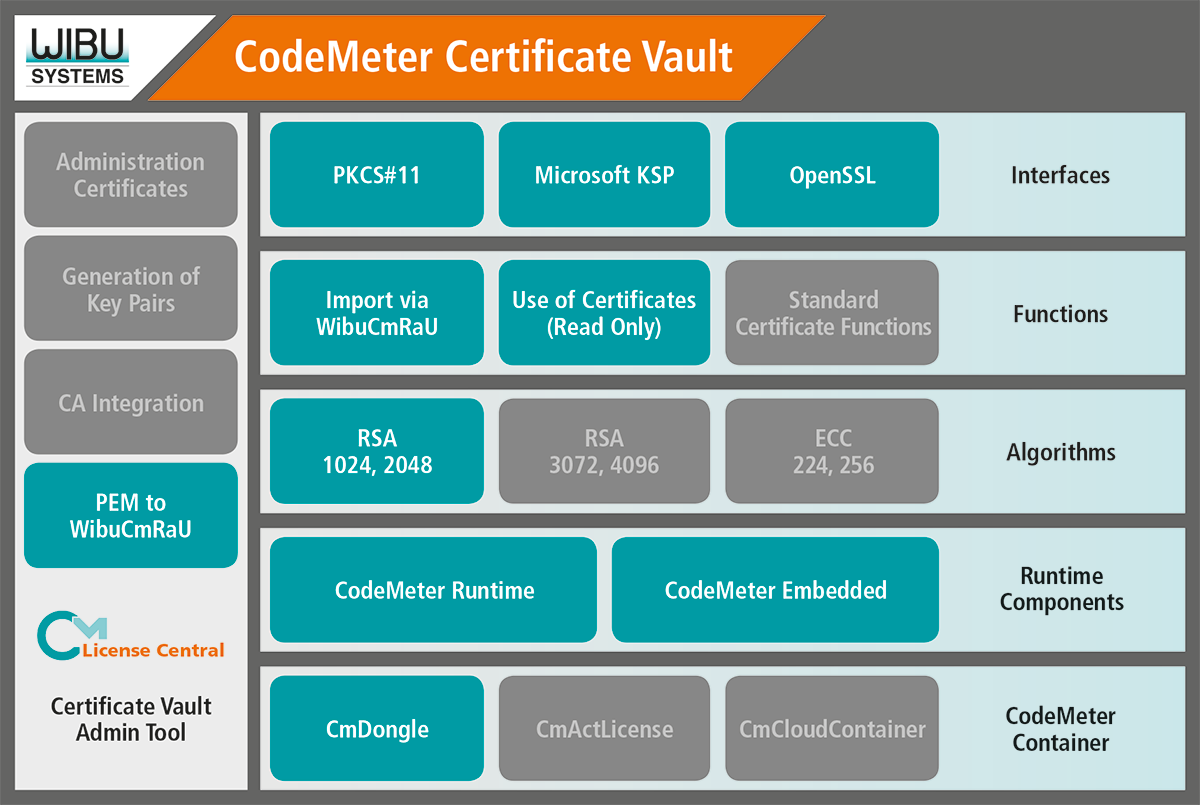

Vault

wibu - 图9
