阻塞队列的产生来自于典型的生产者-消费者模式。

记住2个阻塞的方法

take：从队列中取
put：放入队列

两者个方法在队列满或空时都会阻塞

不可放Null值

阻塞队列中不可put一个null

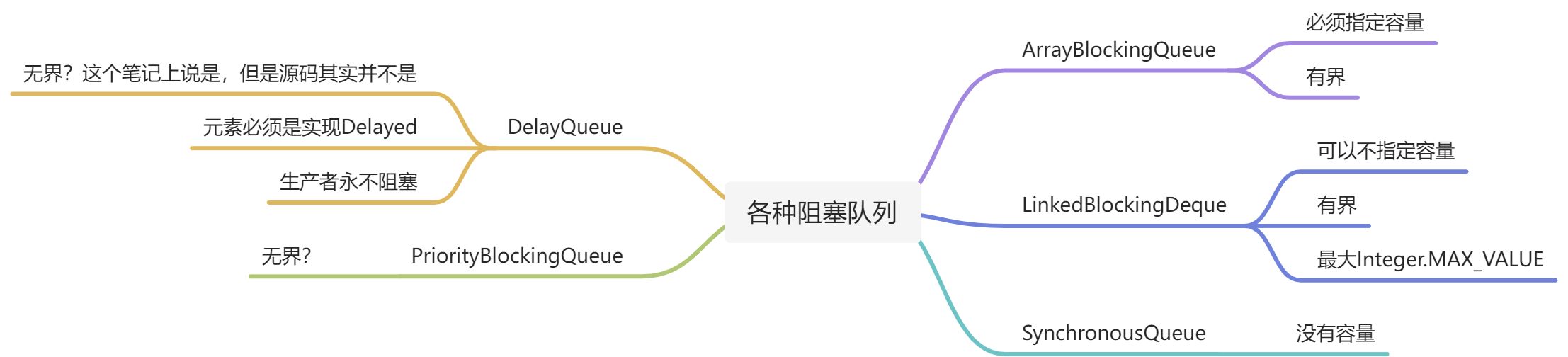

各种阻塞队列

阻塞队列 - 图1

其中有两个阻塞队列说是无界的。我大致看了一下源码好像并不对。

阻塞队列原理

这里我们就以ArrayBlockingQueue为例，阅读其put()和take()的方法

构造方法


    /**
     * Serialization ID. This class relies on default serialization
     * even for the items array, which is default-serialized, even if
     * it is empty. Otherwise it could not be declared final, which is
     * necessary here.
     */
    private static final long serialVersionUID = -817911632652898426L;
    /** 存放元素的数组 */
    final Object[] items;
    /** 下一个取数位置 */
    int takeIndex;
    /** 下一个入队列位置 */
    int putIndex;
    /** 元素个数 */
    int count;
    /*
     * Concurrency control uses the classic two-condition algorithm
     * found in any textbook.
     */
    /** 可重入锁 */
    final ReentrantLock lock;
    /** 等待有元素入队列条件 */
    private final Condition notEmpty;
    /** 等待队列不满条件 */
    private final Condition notFull;
   /**
     * Creates an {@code ArrayBlockingQueue} with the given (fixed)
     * capacity and default access policy.
     *
     * @param capacity the capacity of this queue
     * @throws IllegalArgumentException if {@code capacity < 1}
     */
    public ArrayBlockingQueue(int capacity) {
        this(capacity, false);
    }
    /**
     * Creates an {@code ArrayBlockingQueue} with the given (fixed)
     * capacity and the specified access policy.
     *
     * @param capacity the capacity of this queue
     * @param fair if {@code true} then queue accesses for threads blocked
     *        on insertion or removal, are processed in FIFO order;
     *        if {@code false} the access order is unspecified.
     * @throws IllegalArgumentException if {@code capacity < 1}
     */
    public ArrayBlockingQueue(int capacity, boolean fair) {
        if (capacity <= 0)
            throw new IllegalArgumentException();
        this.items = new Object[capacity];
        lock = new ReentrantLock(fair);
        notEmpty = lock.newCondition();
        notFull =  lock.newCondition();
    }

创建对象时，需要初始化可重入锁，以及2创建两个条件

put操作
```java public void put(E e) throws InterruptedException { //检查不为null checkNotNull(e); final ReentrantLock lock = this.lock; lock.lockInterruptibly(); try {
```
   //当元素个数==队列（数组长度） 循环等待 notFull 条件
   while (count == items.length)
       notFull.await();
   //入队列
   enqueue(e);
```
} finally {
```
   lock.unlock();
```
} }

private static void checkNotNull(Object v) { if (v == null)
```
   throw new NullPointerException();
```
}

/**
- Inserts element at current put position, advances, and signals.
- Call only when holding lock.
- 入队列时还通知不为空 */ private void enqueue(E x) { // assert lock.getHoldCount() == 1; // assert items[putIndex] == null; final Object[] items = this.items; items[putIndex] = x; if (++putIndex == items.length)
```
 putIndex = 0;
```
  count++; notEmpty.signal(); }


   - 入队列时，判断元素不为空
   - 若队列已满，通过 NotFull阻塞
   - 入队列后，唤醒NotEmpty
<a name="HttPy"></a>
## take操作
```java
    public E take() throws InterruptedException {
        final ReentrantLock lock = this.lock;
        lock.lockInterruptibly();
        try {
            while (count == 0)
                notEmpty.await();
            return dequeue();
        } finally {
            lock.unlock();
        }
    }
        /**
     * Extracts element at current take position, advances, and signals.
     * Call only when holding lock.
     */
    private E dequeue() {
        // assert lock.getHoldCount() == 1;
        // assert items[takeIndex] != null;
        final Object[] items = this.items;
        @SuppressWarnings("unchecked")
        E x = (E) items[takeIndex];
        items[takeIndex] = null;
        if (++takeIndex == items.length)
            takeIndex = 0;
        count--;
        if (itrs != null)
            itrs.elementDequeued();
        notFull.signal();
        return x;
    }

若队列元素为0则，等待notEmpty条件
出队列后，唤醒等待notFull条件的线程
参考文章

http://concurrent.redspider.group/article/03/13.html
