1.体验四种模式

1.1项目搭建

1.1.1导入依赖

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>

1.1.2编写配置类

1.SpringSecurity的配置类

@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {
    @Bean
    public PasswordEncoder passwordEncoder(){
        return new BCryptPasswordEncoder();
    }
    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        super.configure(http);
    }
    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.inMemoryAuthentication()
                .withUser("gaoxi")
                .password(passwordEncoder().encode("123456")).roles("admin");
    }
}

2.AuthorizationServerConfig认证服务器配置类

@Configuration
@EnableAuthorizationServer
public class AuthorizationServerConfig extends AuthorizationServerConfigurerAdapter {
    @Autowired
    private PasswordEncoder passwordEncoder;
    @Autowired
    private AuthenticationManager authenticationManager;
    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
        endpoints.authenticationManager(authenticationManager);
    }
    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
        clients.inMemory().withClient("yurun")
                .secret(passwordEncoder.encode("yurun"))
                .resourceIds("demo")
                .scopes("all")
                .authorizedGrantTypes("password","refresh_token","implicit","client_credentials","authorization_code")
                .redirectUris("http://www.baidu.com");
    }
    @Override
    public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {
        security.allowFormAuthenticationForClients()
                .checkTokenAccess("isAuthenticated()");
    }
}

1.2授权码模式

1.浏览器输入 http://localhost:8080/oauth/authorize?response_type=code&client_id=yurun&redirct_uri=http://www.baidu.com&scope=all自动跳转到登录页面

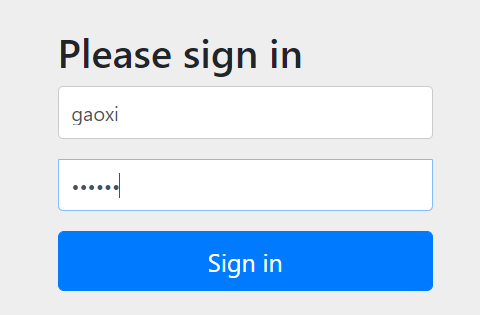

2.输入用户名和密码（程序中设置的），并点击登录

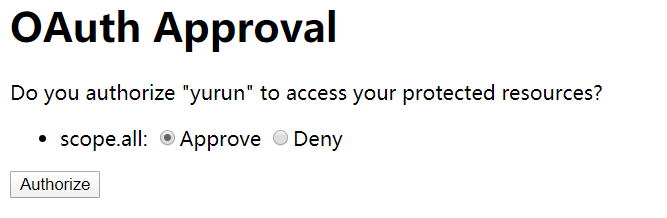

3.浏览器提示是否授权，点击授权后，自动跳转到回调地址并携带授权码

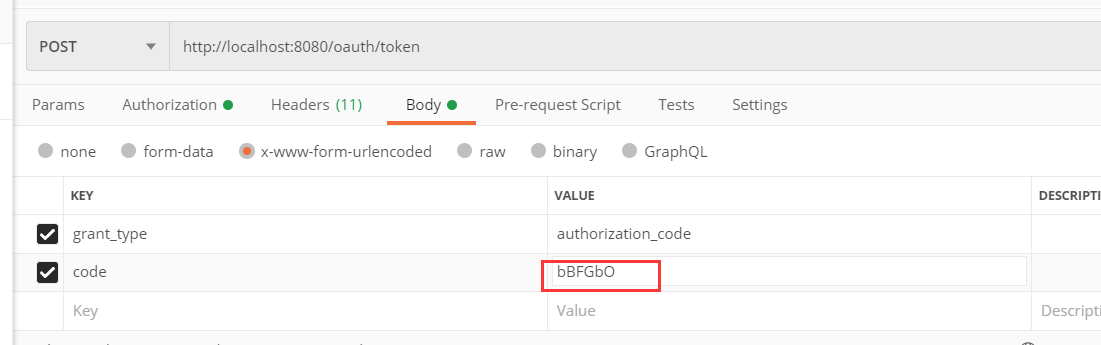

4.使用postman获取accesstoken

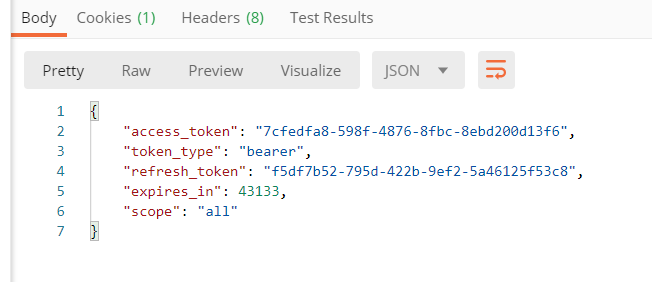

5.点击发送后，得到access_token

1.3密码模式

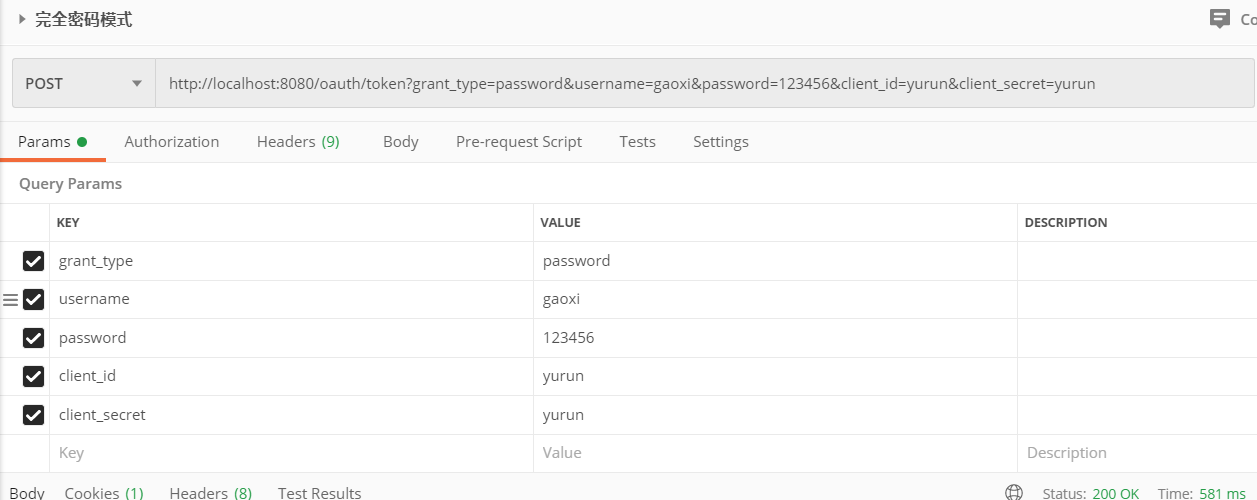

1.使用post发送获取access_token的请求（http://localhost:8080/oauth/token?grant_type=password&username=gaoxi&password=123456&client_id=yurun&client_secret=yurun)

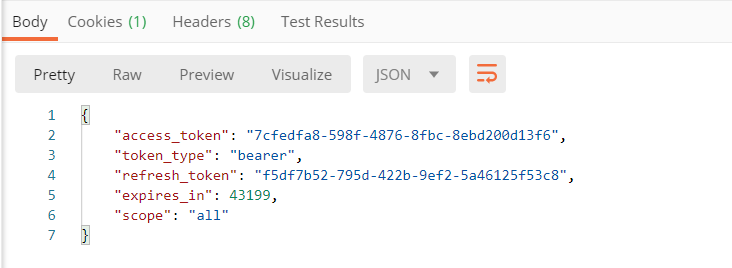

2.查看获取到的信息

1.4简化模式（implicit）

1.浏览器请求地址（http://localhost:8080/oauth/authorize?response_type=token&client_id=yurun）

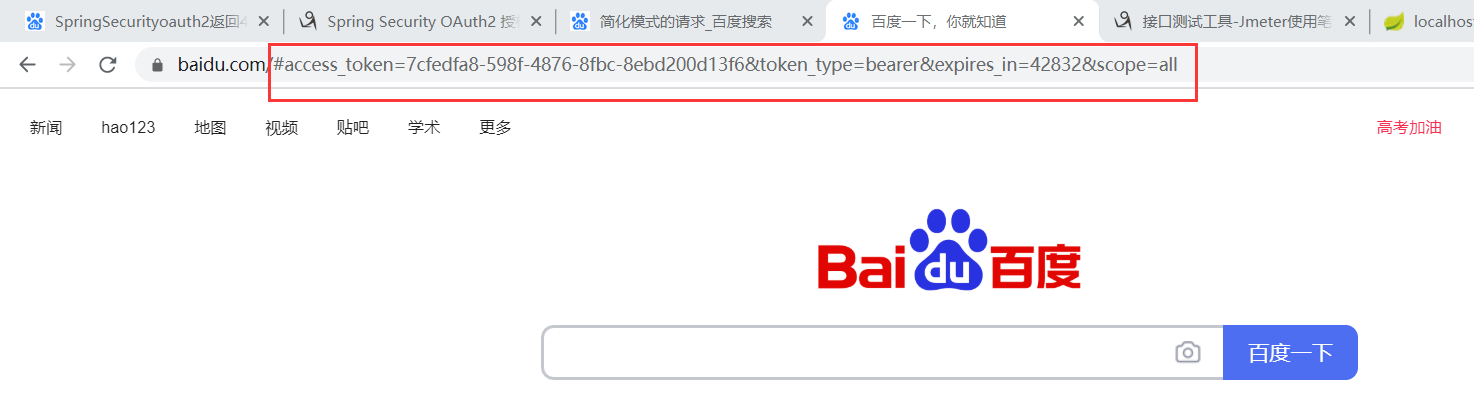

2.自动跳转到回调地址并携带token

1.5客户端模式

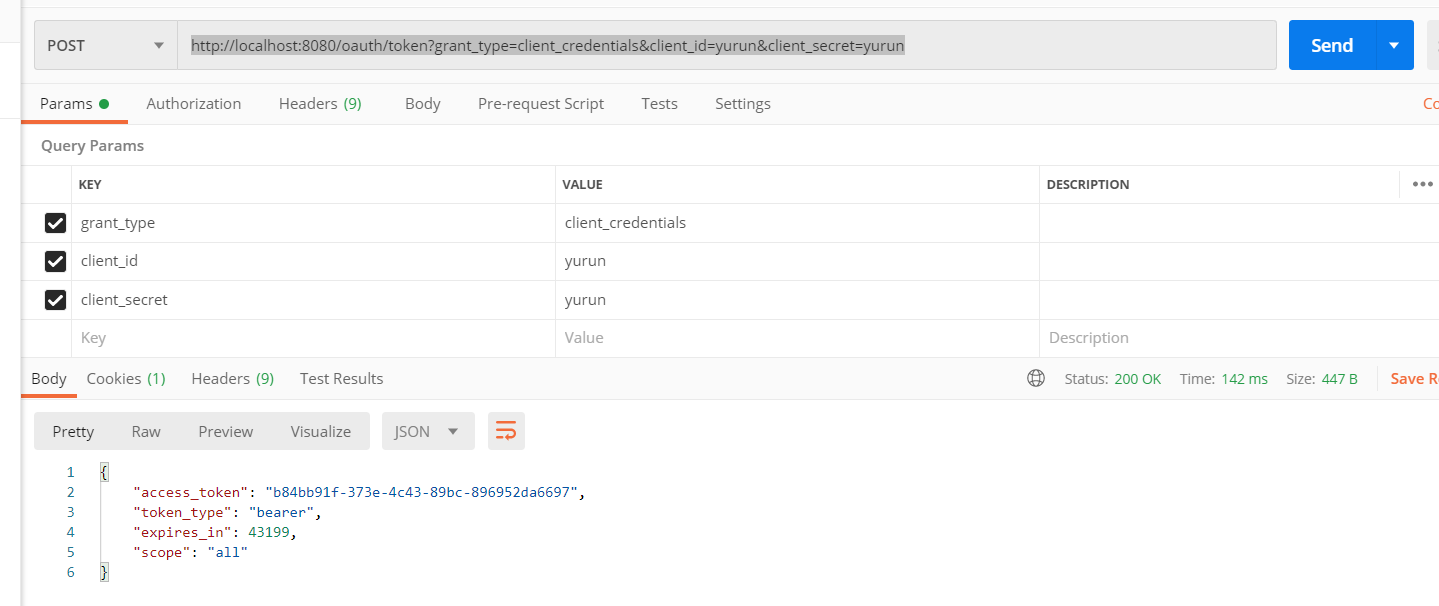

使用postman请求地址（http://localhost:8080/oauth/token?grant_type=client_credentials&client_id=yurun&client_secret=yurun）

2.一个简单DEMO

功能描述：搭建2个服务，1个提供Oauth2的认证服务，颁发access_token。另一个作为资源服务。

2.1认证服务器的搭建

1.导入依赖

     <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

2.编写SpringSecurity配置类

@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {
    @Bean
    public PasswordEncoder passwordEncoder(){
        return new BCryptPasswordEncoder();
    }
    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }
    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.inMemoryAuthentication()
                .withUser("gaoxi")
                .password(passwordEncoder().encode("123456"))
                .roles("admin");
    }
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        super.configure(http);
    }
}

3.编写认证服务配置类

@Configuration
@EnableAuthorizationServer
public class AuthorizationServerConfig extends AuthorizationServerConfigurerAdapter {
    @Autowired
    private PasswordEncoder passwordEncoder;
    @Autowired
    private AuthenticationManager authenticationManager;
    @Override
    public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {
        security.allowFormAuthenticationForClients()
                .checkTokenAccess("isAuthenticated()");
    }
    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
        endpoints.tokenStore(tokenStore())
                .authenticationManager(authenticationManager)
                .accessTokenConverter(jwtAccessTokenConverter());
    }
    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
        clients.inMemory()
                .withClient("yurun")
                .secret(passwordEncoder.encode("yurun"))
                .authorizedGrantTypes("refresh_token","password")
                .scopes("all")
                .resourceIds("resource1") ;
    }
    @Bean
    public JwtAccessTokenConverter jwtAccessTokenConverter(){
        JwtAccessTokenConverter converter = new JwtAccessTokenConverter();
        converter.setSigningKey("my-sign-key"); //资源服务器需要配置此选项方能解密jwt的token
        return converter;
    }
    @Bean
    public TokenStore tokenStore(){
        return new JwtTokenStore(jwtAccessTokenConverter());
    }
}

2.2资源服务器的搭建

1.pom文件（同上）
2.资源服务器配置类

@Configuration
@EnableResourceServer
@EnableGlobalMethodSecurity(securedEnabled = true,jsr250Enabled = true,prePostEnabled = true)
public class ResourceServerConfig  extends ResourceServerConfigurerAdapter {
    @Bean
    public JwtAccessTokenConverter jwtAccessTokenConverter(){
        JwtAccessTokenConverter converter = new JwtAccessTokenConverter();
        converter.setSigningKey("my-sign-key");
        return converter;
    }
    @Bean
    public TokenStore tokenStore(){
        return new JwtTokenStore(jwtAccessTokenConverter());
    }
    @Override
    public void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .anyRequest().authenticated();
    }
    @Override
    public void configure(ResourceServerSecurityConfigurer resources) {
        resources.resourceId("resource1").stateless(true);
        resources.tokenStore(tokenStore());
    }
}

3.Controller层的编写

@RestController
public class MyController {
    //用户没有user角色，登录后也不可访问
    @Secured(value = "ROLE_user")
    @RequestMapping("queryList")
    public String queryList(){
        return "stu List";
    }
    //用户有admin角色，这个接口在登录后可以访问
    @Secured(value = "ROLE_admin")
    @RequestMapping("queryById")
    public String queryById(){
        return "user";
    }
}

2.3运行流程

1.认证服务器在 8080端口、资源服务器在8081端口

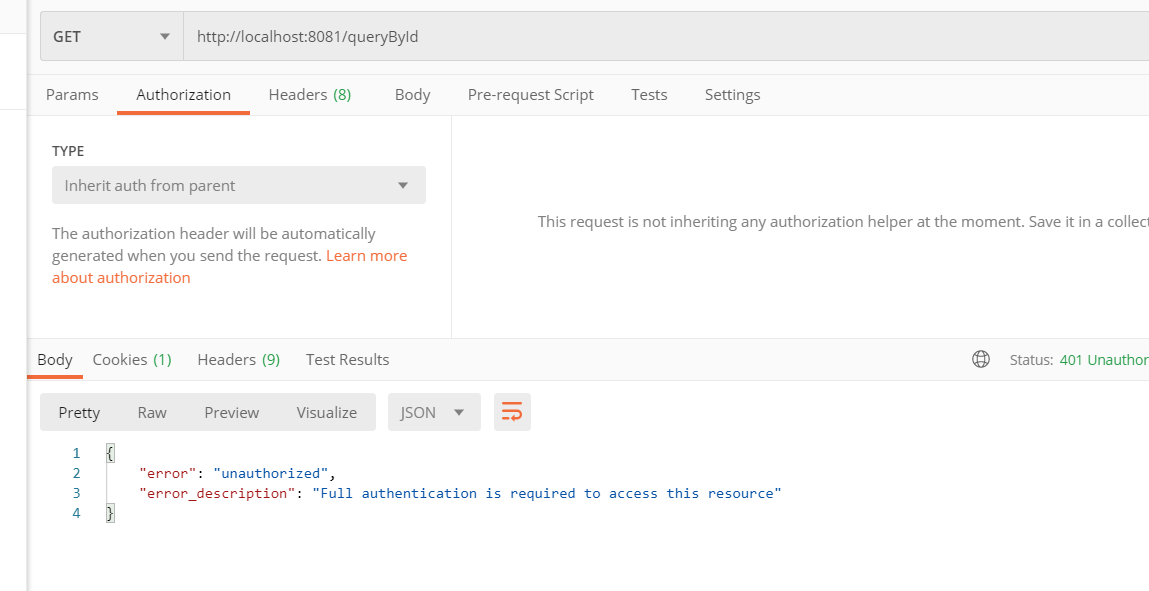

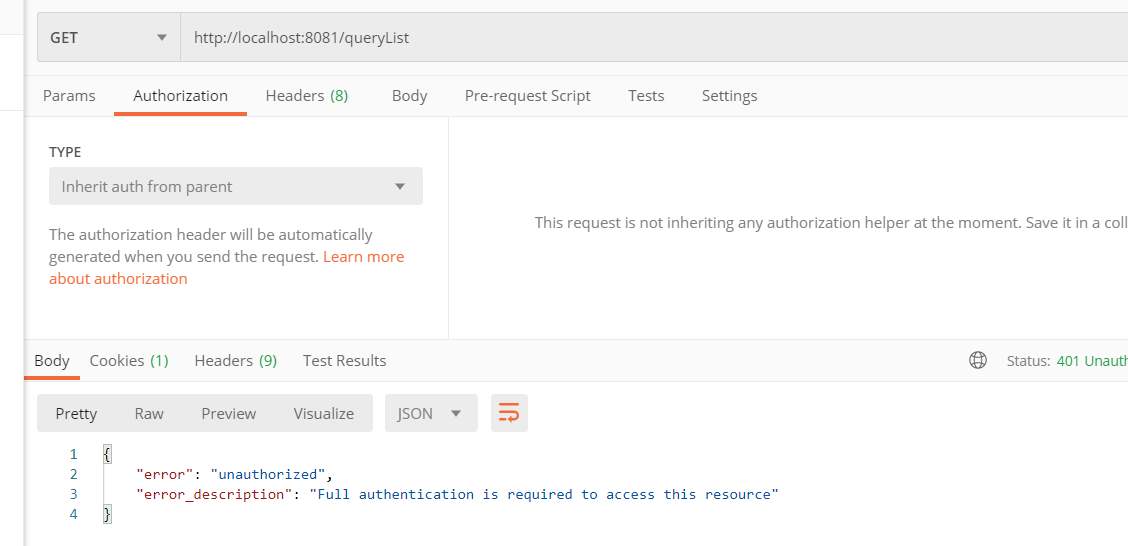

2.尝试访问资源服务器上的2个接口

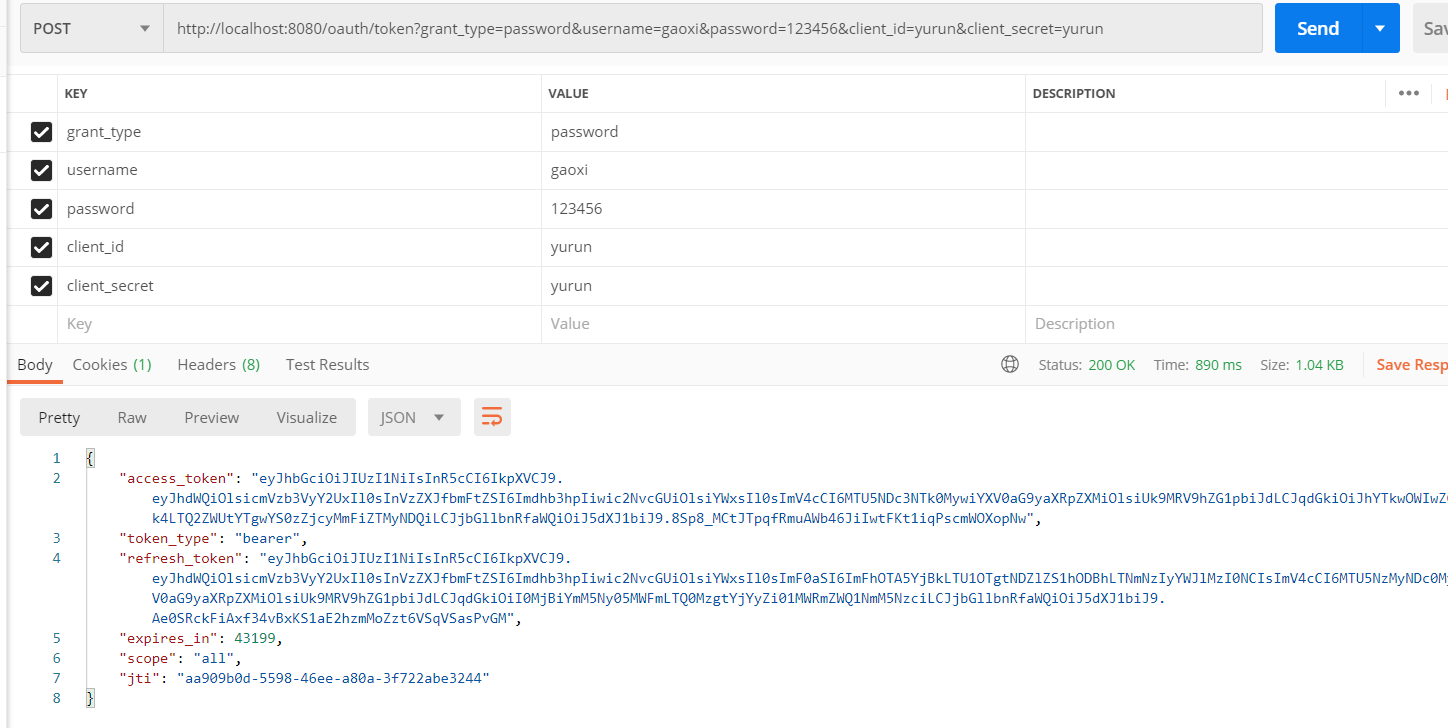

2.postman使用密码模式请求认证服务器（端口8080），获取access_token

3.拷贝access_token,放入请求资源服务的接口参数中

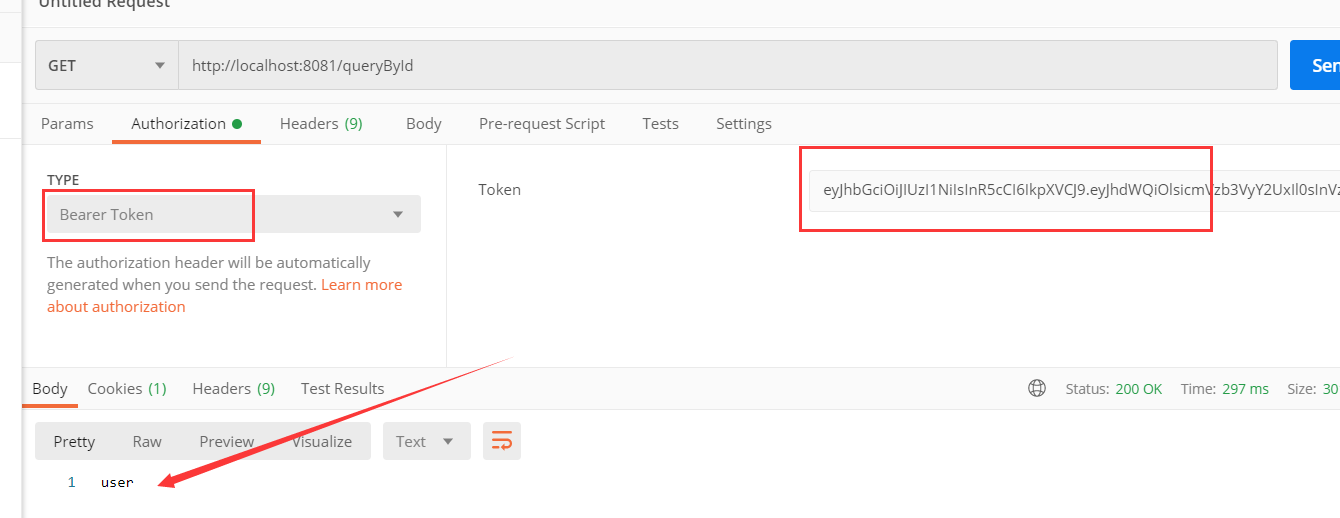

①对于queryById，需要角色admin，用户名为gaoxi的这个用户有admin角色所以可以访问成功

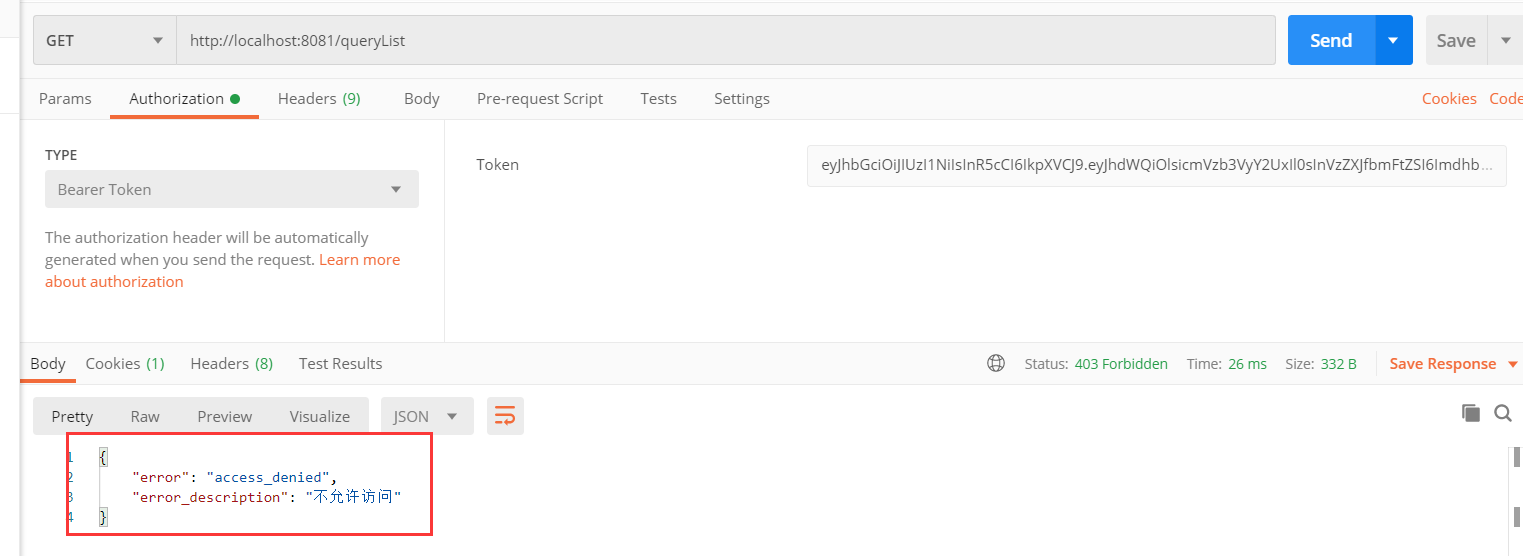

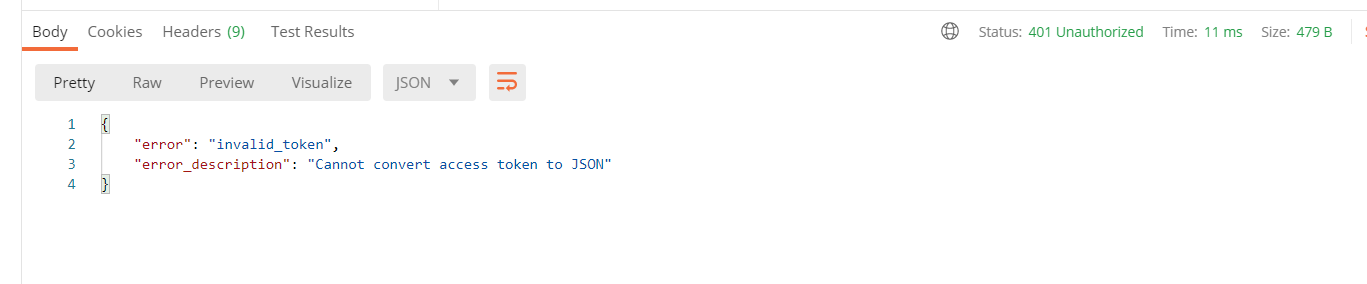

②对于queryList，需要user角色，此用户没有角色所以仍然访问失败

③用户名：gaoxi这个用户是放在内存中的，角色也是在代码中设定的。
