离线安装打包编译keepalived-2.2.7 - 《运维管理备忘录》

查看配置的规则

编译环境：centos7.9
依赖安装：

yum install curl gcc openssl-devel libnl3-devel net-snmp-devel

离线安装：

yum localinstall *.rpm -y

下载解压：
也可以使用：curl -o keepalived-2.2.7.tar.gz https://keepalived.org/software/keepalived-2.2.7.tar.gz 下载到本地

curl —progress https://keepalived.org/software/keepalived-2.2.7.tar.gz \| tar xz cd keepalived-2.2.7 ./configure —prefix=/usr/local/keepalived-2.2.7 —with-init=systemd make make install

配置：

cd /usr/local/keepalived-2.2.7/etc/keepalived/ cp keepalived.conf.sample keepalived.conf cd /usr/local/keepalived-2.2.7/etc/sysconfig/ sed -i ‘s@KEEPALIVED_OPTIONS=.*@KEEPALIVED_OPTIONS=”-f /usr/local/keepalived-2.2.7/etc/keepalived/keepalived.conf -D -S 0”@’ keepalived

查看日志：tail -f /var/log/messages
修改配置文件：keepalived.conf
查看：/etc/sysconfig/network-scripts下的本地网卡名称或使用ifconfig

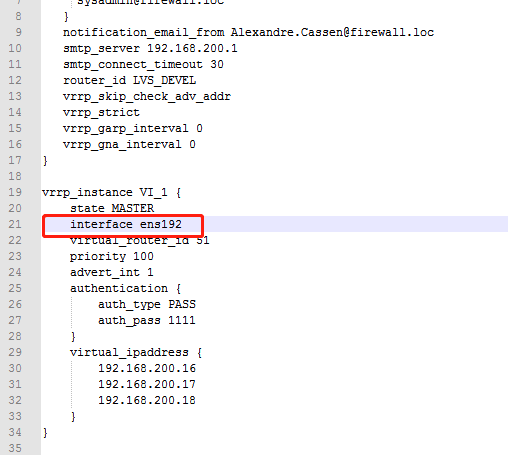

离线安装打包编译keepalived-2.2.7 - 图2
修改：将etho改为上一步查询到的网卡名称
离线安装打包编译keepalived-2.2.7 - 图3
state:MASTER(主节点)、BACKUP（备份节点）
priority: 优先级数字越大节点将依次进行选举
设置软连接：ln -s /etc/rc.d/init.d/keepalived.init /etc/rc.d/rc3.d/S99keepalived
设置开机启动：systemctl enable keepalived
启动服务：systemctl start keepalived
卸载：make uninstall
清除编译：make clean
清除编译及configure：make distclean
建立备忘录：

cd /usr/local/keepalived-2.2.7 cat >>README <1、启动服务在/usr/lib/systemd/system/keepalived.service,并设置了开机启动 2、修改日志文件存放位置/var/log/keepalived/keepalived.log echo ‘local0.* /var/log/keepalived/keepalived.log’ >>/etc/rsyslog.conf eof

rpm-build
安装构建工具
yum install rpm-build
安装构建依赖
yum install autoconf automake kmod-devel pcre2-devel glib2-devel
配置：

./configure --with-init=systemd --enable-snmp-checker --enable-snmp --enable-snmp-vrrp --enable-bfd --enable-snmp-rfc --enable-snmp-rfcv2 --enable-snmp-rfcv3 --enable-dbus --enable-sha1 --enable-regex --enable-regex-timers --enable-dependency-tracking --enable-json --enable-stacktrace --enable-dump-threads --enable-select-debug --enable-regex-debug --enable-tsm-debug --enable-strict-config-checks

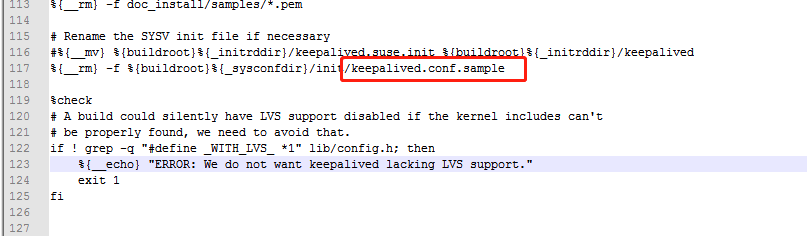

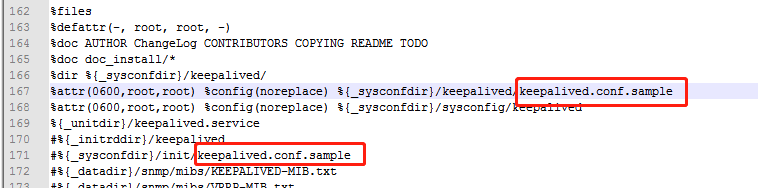

修改：keepalived.spec文件，从2.2.4起，打包文件中keepalived.conf变更为keepalived.conf.sample

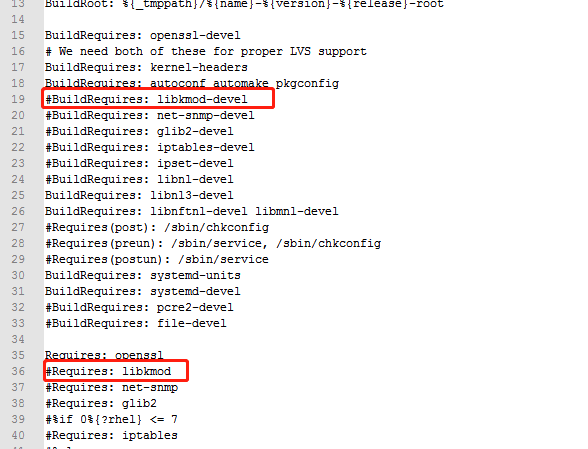

不知道什么原因，我的报libkmod缺少，我已经安装了kmod-devel，无法打包，索性注释掉

注意需要先：make rpm之后再改keepalived.spec文件

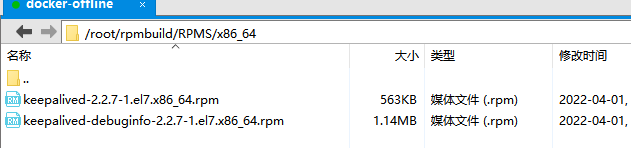

打包完成。
卸载Keepalived:

rpm -qa|grep keepalived
rpm -e keepalived-2.2.7-1.el7.x86_64

查找遗留文件：

find / -iname keepalived

删除遗留文件：

rm -rf /etc/keepalived
rm -rf 其他文件

错误处理：Can’t open PID file /var/run/keepalived.pid
可能有进程引用文件，关闭关联进程：

systemctl stop keepalived
pkill keepalived

查询是否漂移：

ip addr|grep 192.168.2.16

最基本配置：

! Configuration File for keepalived
global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 192.168.200.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL_108
   vrrp_skip_check_adv_addr
   vrrp_strict
   vrrp_garp_interval 0
   vrrp_gna_interval 0
}
vrrp_instance VI_1 {
    state BACKUP
    interface ens192
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.2.16
    }
}

主备模式：state都配置为BACKUP,方式主节点恢复后ip漂移。
global_defs->router_id:网络中要保持唯一性，一般选用主机名。
vrrp_instance->virtual_router_id:主备节点要保持一致。
检测脚本：

#!/bin/bash
pidof nginx
if [ $? -ne 0 ];then
    systemctl start nginx
    sleep 2
    pidof nginx
    if [ $? -ne 0 ]; then
        systemctl stop keepalived
    fi
fi

防火墙配置：

firewall-cmd --direct --permanent --add-rule ipv4 filter INPUT 0 --destination 224.0.0.18 --protocol vrrp -j ACCEPT
firewall-cmd --direct --permanent --add-rule ipv4 filter OUTPUT 0 --destination 224.0.0.18 --protocol vrrp -j ACCEPT
firewall-cmd --reload

查看配置的规则

firewall-cmd —direct —get-rules ipv4 filter INPUT
firewall-cmd —direct —get-rules ipv4 filter OUTPUT
