1. #user  nobody;
  2. worker_processes  4;
  3. #error_log  logs/error.log;
  4. #error_log  logs/error.log  notice;
  5. #error_log  logs/error.log  info;
  6. #pid        logs/nginx.pid;
  7. events {
  8.     worker_connections  8192;
  9. }
  10. http {
  11.     include       mime.types;
  12.     default_type  application/octet-stream;
  13.     log_format  main  '$remote_addr - $remote_user [$time_local] "$request,,GL-Uid:$http_GL_Uid,,GL-Version:$http_GL_Version,,GL-DeviceId:$http_GL_DeviceId" '
  14.                       '$status $body_bytes_sent "$http_referer" '
  15.                       '"$http_user_agent" "$http_x_forwarded_for" "$my_scheme://$host:$server_port:$my_https" $upstream_addr $request_time $upstream_response_time';
  16.     log_format message '$time_local "$request" $status $http_CurTime $http_MD5 "$http_user_agent"';
  17.     access_log  logs/access.log  main;
  18.         ssi on;
  19.         ssi_silent_errors       off;
  20.     sendfile        on;
  21.     tcp_nopush      on;
  22.     tcp_nodelay     on;
  23.     client_header_timeout 5s;
  24.     client_body_timeout 15s;
  25.     send_timeout 15s;
  26.     resolver_timeout 5s;
  27.     types_hash_max_size 2048;
  28.     types_hash_bucket_size 64;
  29.     server_names_hash_bucket_size 64;
  30. #    keepalive_timeout  0;
  31.     keepalive_timeout 60s;
  32.     keepalive_requests 1024;
  33.     server_tokens  off;
  34.     gzip  on;
  35.     gzip_disable "msie6";
  36.     gzip_min_length 1024;
  37.     gzip_proxied any;
  38.     gzip_comp_level 3;
  39.     gzip_types text/plain application/x-javascript text/css application/xml text/javascript application/x-httpd-php image/jpeg image/gif image/png application/javascript;
  40.     set_real_ip_from 10.0.0.0/8;
  41.     real_ip_header proxy_protocol;
  42.     include http_common.conf;
  43.         upstream backend-app-server {
  44.         server 127.0.0.1:8888 max_fails=3 fail_timeout=20s;
  45.         keepalive 2000;
  46.     }
  47.     upstream backend-search-server {
  48.         server 127.0.0.1:8788 max_fails=3 fail_timeout=20s;
  49.         keepalive 2000;
  50.     }
  51.     upstream backend-im-server {
  52.         server 10.202.32.27:9588 max_fails=3 fail_timeout=20s;
  53.         keepalive 2000;
  54.     }
  55.     # god-dev-in.gameyw.netease.com, 内网lbc
  56.     server {
  57.         listen       80 proxy_protocol;
  58.         server_name  god-dev-in.gameyw.netease.com;
  59.         # 限制内网ip
  60.         allow 10.0.0.0/8;
  61.         deny  all;
  62. #        include location-block-url.conf;
  63.         location /v1/app {
  64.             include location-cors-common-test.conf;
  65.             proxy_pass    http://backend-app-server;
  66.             proxy_set_header host $host:$server_port;
  67.             proxy_set_header X-Real-IP $http_x_forwarded_for;
  68.         }
  69.                 location /v1/search {
  70.             include location-cors-common-test.conf;
  71.             proxy_pass    http://backend-search-server;
  72.             proxy_set_header host $host:$server_port;
  73.             proxy_set_header X-Real-IP $remote_addr;
  74.         }
  75.         location /v1/server {
  76.             proxy_pass    http://backend-app-server;
  77.             proxy_set_header host $host:$server_port;
  78.             proxy_set_header X-Real-IP $remote_addr;
  79.         }
  80.     }
  81.     # god-test.gameyw.netease.com， 外网lbc
  82.     server {
  83.         listen       80 proxy_protocol;
  84.         server_name  god-test.gameyw.netease.com god-dev.gameyw.netease.com;
  85.         root /home/website;
  86.         set $my_scheme "http";
  87.         if ($http_x_forwarded_proto = 'https'){
  88.             set $my_scheme "https";
  89.             set $my_https "on";
  90.         }
  91.         location / {
  92.             root   /home/website;
  93.             index  index.html index.htm;
  94.         }
  95. #        include location-block-url.conf;
  96.         location /v1/app {
  97.             include location-cors-common-test.conf;
  98.                         proxy_pass    http://backend-app-server;
  99.                         proxy_set_header host $host:$server_port;
  100.                         proxy_set_header X-Real-IP $http_x_forwarded_for;
  101.         }
  102.         location /v1/log {
  103.             include location-cors-common-test.conf;
  104.             proxy_pass    http://backend-app-server;
  105.             proxy_set_header host $host:$server_port;
  106.             proxy_set_header X-Real-IP $http_x_forwarded_for;
  107.         }
  108.         location /v1/im/ {
  109.             include location-cors-common-test.conf;
  110.             proxy_pass    http://backend-im-server;
  111.             proxy_set_header host $host:$server_port;
  112.             proxy_set_header X-Real-IP $http_x_forwarded_for;
  113.         }
  114.         location /v1/gameServer {
  115.             proxy_pass    http://backend-app-server;
  116.             proxy_set_header host $host:$server_port;
  117.             proxy_set_header X-Real-IP $http_x_forwarded_for;
  118.         }
  119.         location /v1/search {
  120.             include location-cors-common-test.conf;
  121.             proxy_pass    http://backend-search-server;
  122.             proxy_set_header host $host:$server_port;
  123.             proxy_set_header X-Real-IP $remote_addr;
  124.         }
  125.         location /v1/server {
  126.             #图片审核系统调用
  127.             allow 60.191.80.12;
  128.             allow 60.191.80.11;
  129.             allow 60.191.80.19;
  130.                         #cc图片审核
  131.                         allow 218.107.55.252;
  132.             allow 218.107.55.254;
  133.             allow 218.107.55.253;
  134.             deny  all;
  136.             proxy_pass    http://backend-app-server;
  137.             proxy_set_header host $host:$server_port;
  138.             proxy_set_header X-Real-IP $remote_addr;
  139.         }
  140.         location ~ ^/(swagger|webjars|v2/api|doc) {
  141.                         allow 58.248.246.3;
  142.                         allow 218.107.55.254;
  143.                         allow 218.107.55.252;
  144.                         deny all;
  145. #            proxy_pass    http://backend-app-server;
  146.                         rewrite ^ http://god-dev.gameyw.netease.com:8080/app-swagger/swagger-ui.html permanent;
  147.         }
  148.         location /dashen/messageCallback {
  149.             access_log logs/message.log message;
  150.             return 200;
  151.         }
  152.     }
  153. }

我们在实际开发过程中，经常会使用Nginx做反向代理，有时候甚至使用多级Nginx做反向代理，如果我们使用多级Nginx如何获取真实IP呢？下面我将通过两种姿势来解决

环境

  1. 服务器2台:安装Nginx和web服务
  2. 一个服务：springboot启动web服务

  3. pc->14.23(nginx)->14.22(nginx)->14.22(web服务)

    姿势一

    14.23的nginx的配置文件
    重要参数：proxy_set_header X-Forwarded-For $remote_addr; 第一层nginx获取客户端的IP

    1.  server {
    2.  listen 7050;
    4.      location /{
    5.           proxy_pass http://xx.xx.14.22:8081/TestServer;
    6.           proxy_set_header X-Real-PORT $remote_port;
    7.           proxy_set_header X-Real-IP $remote_addr;
    8.           proxy_set_header X-Forwarded-For $remote_addr;
    9.      }

14.22的nginx的配置文件
重要参数：proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
第二层nginx，在真是IP上+上一层nginx所在服务器的地址。
此刻X-Forwarded-For的值为： “真实IP,第一层Nginx的Ip”

  1.     server {
  2.         listen 8081;
  3.         listen [::]:8081 ipv6only=on;
  5.         location / {
  6.             proxy_set_header Host $host;
  7.             proxy_http_version 1.1;
  8.             proxy_set_header Connection "";
  9.             proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
  10.             proxy_pass http://xx.xx.14.22:8080;
  11.         }
  13.     }


TestServer

  1.         @Autowired
  2.         HttpServletRequest request;
  4.         @GetMapping("/test")
  5.         public String test(){
  6.             //获取多个ip，用逗号隔开
  7.             String ips = request.getHeader("X-Forwarded-For");
  8.             //真正的ip为ips的第一个
  9.             String ip = ips.split(",")[0];
  10.             return ip;
  11.         }

原理分析

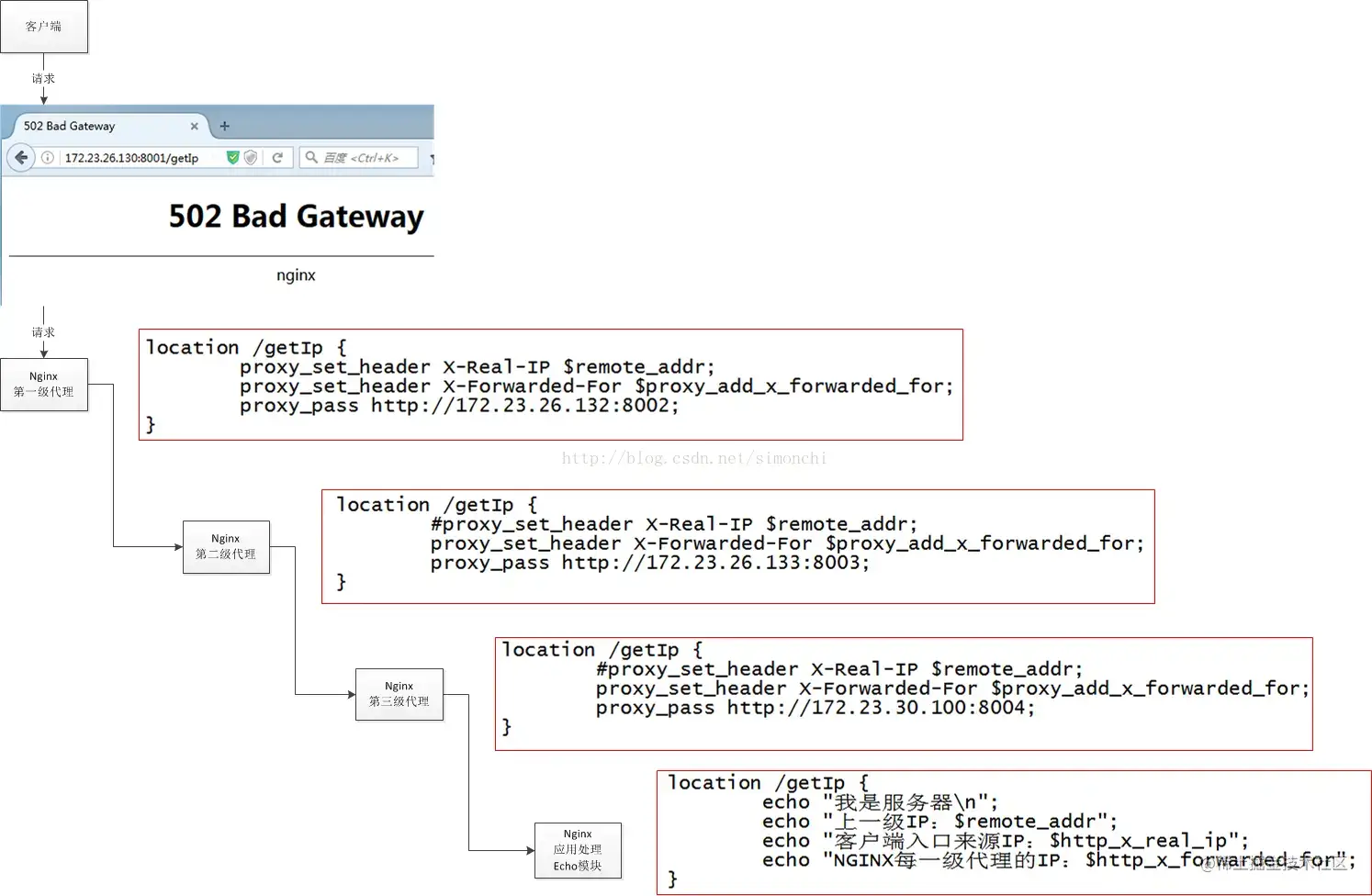

nginx配置 - 图1
只有客户端直接请求到第一个nginx能够拿到客户端的真实IP， 所以第一级nginx配置了 proxy_set_header X-Real-IP $remote_addr; 这个配置就会将客户端IP放到http的header里，这样到最后的应用里可以通过request.getHeader去拿到客户端真实IP了
姿势一的优点和缺点

  • 优点：可以获取多级Nginx的ip

  • 缺点：需要获取第一个ip为真实Ip

    姿势二

    14.23的nginx的配置文件
    重要参数：proxy_set_header X-CustomnReal-IP $remote_addr; 第一层nginx获取客户端的IP，自定义X-CustomnReal-IP

    1. server {
    2.   listen 7050;
    4.       location /{
    5.            proxy_pass http://xx.xx.14.22:8081/TestServer;
    6.            proxy_set_header X-CustomnReal-IP $remote_addr;
    7.       }


    14.22的nginx的配置文件

    1.   server {
    2.       listen 8081;
    3.       listen [::]:8081 ipv6only=on;
    5.       location / {
    6.           proxy_set_header Host $host;
    7.           proxy_http_version 1.1;
    8.           proxy_set_header Connection "";
    9.           proxy_pass http://xx.xx.14.22:8080;
    10.       }
    12.   }

TestServer

  1.     @GetMapping("/test2")
  2.     public String test2(){
  3.         //真正的ip
  4.         String ip = request.getHeader("X-CustomnReal-IP");
  6.         return ip;
  7.     }

姿势一的优点和缺点

  • 优点：直接获取真实IP
  • 缺点：无法获取多级IP
