react-performance 执行

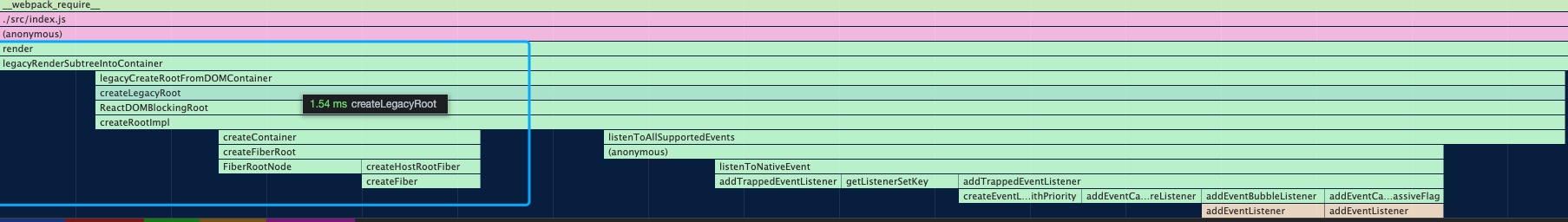

第一次加载页面

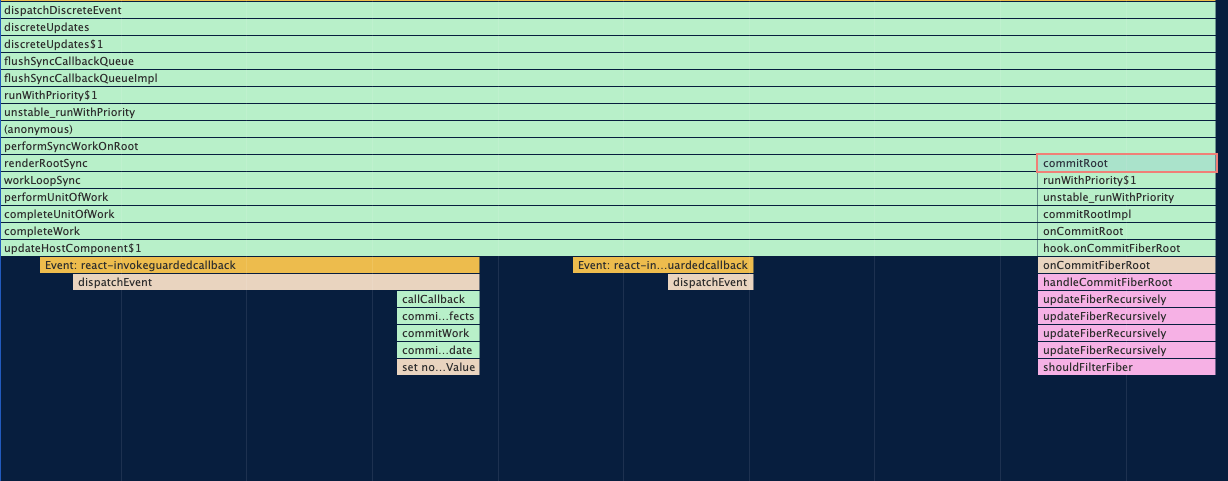

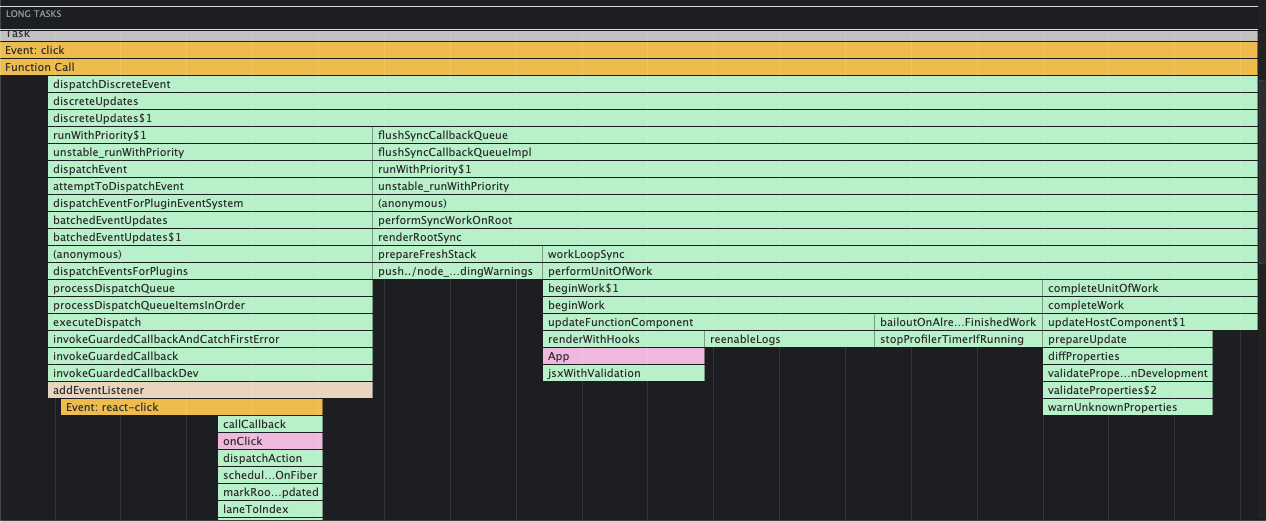

发生事件点击后

commitRoot(root)
root.current
// 包含有 effect fiber 环形链表
root.current.nextEffect
root.current.firstEffect
root.current.lastEffect

卡颂老师课件

https://www.bilibili.com/video/BV1Ki4y1u7Vr?from=search&seid=8355098943507069182

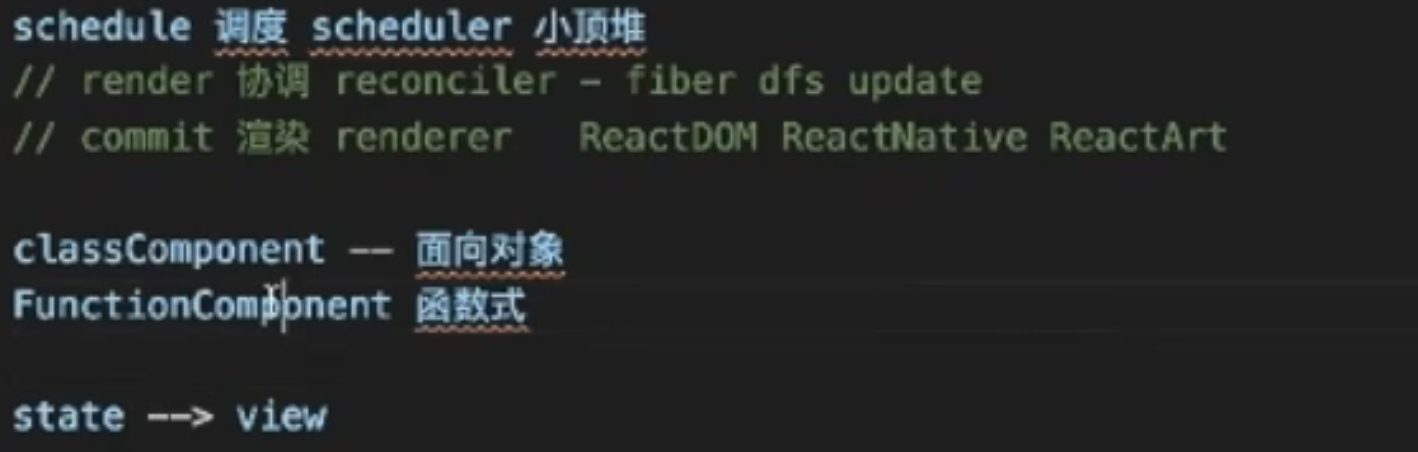

React16架构可以分为三层：

• Scheduler（调度器）—— 调度任务的优先级，高优任务优先进入Reconciler (requestIdleCallback放弃使用)
• Reconciler（协调器）—— 负责找出变化的组件
• Renderer（渲染器）—— 负责将变化的组件渲染到页面上

• Reconciler工作的阶段被称为render阶段。因为在该阶段会调用组件的render方法。
• Renderer工作的阶段被称为commit阶段。就像你完成一个需求的编码后执行git commit提交代码。commit阶段会把render阶段提交的信息渲染在页面上。
• render与commit阶段统称为work，即React在工作中。相对应的，如果任务正在Scheduler内调度，就不属于work。

相关执行流程博文

https://segmentfault.com/a/1190000037447202

代码主线跟踪

// 以 useState 为例 代码如下:
import { useState } from "react";
import "./styles.css";
export default function App() {
  const [state, setState] = useState(0);
  return (
    <div className="App">
      <h1 onClick={() => setState(state + 1)}>
        Hello CodeSandbox state:{state}
      </h1>
      <h2>Start editing to see some magic happen!</h2>
    </div>
  );
}
// setState -> dispatchAction->创建 update ->scheduleUpdateOnFiber->  diff 算法(与其他scheduleUpdateOnFiber抢优先级) ->得出需要更新的 dom(新增,修改,删除)
//  ->操作完了以后,render 阶段结束
// -> 然后进入 commit 阶段 执行 commitRoot(root)同步方法
/*
* 相关代码引用 HooksDispatcherOnMount 另外还有  HooksDispatcherOnUpdate
*/
const HooksDispatcherOnMount: Dispatcher = {
  readContext,
  useCallback: mountCallback,
  useContext: readContext,
  useEffect: mountEffect,
  useImperativeHandle: mountImperativeHandle,
  useLayoutEffect: mountLayoutEffect,
  useMemo: mountMemo,
  useReducer: mountReducer,
  useRef: mountRef,
  useState: mountState,
  useDebugValue: mountDebugValue,
  useDeferredValue: mountDeferredValue,
  useTransition: mountTransition,
  useMutableSource: mountMutableSource,
  useOpaqueIdentifier: mountOpaqueIdentifier,
  unstable_isNewReconciler: enableNewReconciler,
};
function mountState<S>(
  initialState: (() => S) | S,
): [S, Dispatch<BasicStateAction<S>>] {
  const hook = mountWorkInProgressHook();
  if (typeof initialState === 'function') {
    // $FlowFixMe: Flow doesn't like mixed types
    initialState = initialState();
  }
  hook.memoizedState = hook.baseState = initialState;
  const queue = (hook.queue = {
    pending: null,
    interleaved: null,
    lanes: NoLanes,
    dispatch: null,
    lastRenderedReducer: basicStateReducer,
    lastRenderedState: (initialState: any),
  });
  const dispatch: Dispatch<
    BasicStateAction<S>,
  > = (queue.dispatch = (dispatchAction.bind(
    null,
    currentlyRenderingFiber,
    queue,
  ): any));
  return [hook.memoizedState, dispatch];
}
function dispatchAction(fiber, queue, action){
    // ....构建相关 fiber 参数
  scheduleUpdateOnFiber(fiber, lane, eventTime)
}
function FiberNode (tag, key) {
  // 节点 key，主要用于了优化列表 diff
  this.key = key
  // 节点类型；FunctionComponent: 0, ClassComponent: 1, HostRoot: 3 ...
  this.tag = tag
    // 子节点
  this.child = null
  // 父节点
  this.return = null
  // 兄弟节点
  this.sibling = null
  // 更新队列，用于暂存 setState 的值
  this.updateQueue = null
  // 新传入的 props
  this.pendingProps = pendingProps;
  // 之前的 props
  this.memoizedProps = null;
  // 之前的 state
  this.memoizedState = null;
  // 节点更新过期时间，用于时间分片
  // react 17 改为：lanes、childLanes
  this.expirationTime = NoLanes
  this.childExpirationTime = NoLanes
  // 对应到页面的真实 DOM 节点
  this.stateNode = null
  // Fiber 节点的副本，可以理解为备胎，主要用于提升更新的性能
  this.alternate = null
  // 副作用相关，用于标记节点是否需要更新
  // 以及更新的类型：替换成新节点、更新属性、更新文本、删除……
  this.effectTag = NoEffect
  // 指向下一个需要更新的节点
  this.nextEffect = null
  this.firstEffect = null
  this.lastEffect = null
}
function commitRootImpl(root, renderPriorityLevel) {
  do {
    // `flushPassiveEffects` will call `flushSyncUpdateQueue` at the end, which
    // means `flushPassiveEffects` will sometimes result in additional
    // passive effects. So we need to keep flushing in a loop until there are
    // no more pending effects.
    // TODO: Might be better if `flushPassiveEffects` did not automatically
    // flush synchronous work at the end, to avoid factoring hazards like this.
    flushPassiveEffects();
  } while (rootWithPendingPassiveEffects !== null);
  flushRenderPhaseStrictModeWarningsInDEV();
  invariant(
    (executionContext & (RenderContext | CommitContext)) === NoContext,
    'Should not already be working.',
  );
  const finishedWork = root.finishedWork;
  const lanes = root.finishedLanes;
  if (__DEV__) {
    if (enableDebugTracing) {
      logCommitStarted(lanes);
    }
  }
  if (enableSchedulingProfiler) {
    markCommitStarted(lanes);
  }
  if (finishedWork === null) {
    if (__DEV__) {
      if (enableDebugTracing) {
        logCommitStopped();
      }
    }
    if (enableSchedulingProfiler) {
      markCommitStopped();
    }
    return null;
  } else {
    if (__DEV__) {
      if (lanes === NoLanes) {
        console.error(
          'root.finishedLanes should not be empty during a commit. This is a ' +
            'bug in React.',
        );
      }
    }
  }
  root.finishedWork = null;
  root.finishedLanes = NoLanes;
  invariant(
    finishedWork !== root.current,
    'Cannot commit the same tree as before. This error is likely caused by ' +
      'a bug in React. Please file an issue.',
  );
  // commitRoot never returns a continuation; it always finishes synchronously.
  // So we can clear these now to allow a new callback to be scheduled.
  root.callbackNode = null;
  root.callbackPriority = NoLane;
  // Update the first and last pending times on this root. The new first
  // pending time is whatever is left on the root fiber.
  let remainingLanes = mergeLanes(finishedWork.lanes, finishedWork.childLanes);
  markRootFinished(root, remainingLanes);
  if (root === workInProgressRoot) {
    // We can reset these now that they are finished.
    workInProgressRoot = null;
    workInProgress = null;
    workInProgressRootRenderLanes = NoLanes;
  } else {
    // This indicates that the last root we worked on is not the same one that
    // we're committing now. This most commonly happens when a suspended root
    // times out.
  }
  // If there are pending passive effects, schedule a callback to process them.
  // Do this as early as possible, so it is queued before anything else that
  // might get scheduled in the commit phase. (See #16714.)
  // TODO: Delete all other places that schedule the passive effect callback
  // They're redundant.
  if (
    (finishedWork.subtreeFlags & PassiveMask) !== NoFlags ||
    (finishedWork.flags & PassiveMask) !== NoFlags
  ) {
    if (!rootDoesHavePassiveEffects) {
      rootDoesHavePassiveEffects = true;
      scheduleCallback(NormalSchedulerPriority, () => {
        flushPassiveEffects();
        return null;
      });
    }
  }
  // Check if there are any effects in the whole tree.
  // TODO: This is left over from the effect list implementation, where we had
  // to check for the existence of `firstEffect` to satisfy Flow. I think the
  // only other reason this optimization exists is because it affects profiling.
  // Reconsider whether this is necessary.
  const subtreeHasEffects =
    (finishedWork.subtreeFlags &
      (BeforeMutationMask | MutationMask | LayoutMask | PassiveMask)) !==
    NoFlags;
  const rootHasEffect =
    (finishedWork.flags &
      (BeforeMutationMask | MutationMask | LayoutMask | PassiveMask)) !==
    NoFlags;
  if (subtreeHasEffects || rootHasEffect) {
    const prevTransition = ReactCurrentBatchConfig.transition;
    ReactCurrentBatchConfig.transition = 0;
    const previousPriority = getCurrentUpdatePriority();
    setCurrentUpdatePriority(DiscreteEventPriority);
    const prevExecutionContext = executionContext;
    executionContext |= CommitContext;
    // Reset this to null before calling lifecycles
    ReactCurrentOwner.current = null;
    // The commit phase is broken into several sub-phases. We do a separate pass
    // of the effect list for each phase: all mutation effects come before all
    // layout effects, and so on.
    // The first phase a "before mutation" phase. We use this phase to read the
    // state of the host tree right before we mutate it. This is where
    // getSnapshotBeforeUpdate is called.
    const shouldFireAfterActiveInstanceBlur = commitBeforeMutationEffects(
      root,
      finishedWork,
    );
    if (enableProfilerTimer) {
      // Mark the current commit time to be shared by all Profilers in this
      // batch. This enables them to be grouped later.
      recordCommitTime();
    }
    if (enableProfilerTimer && enableProfilerNestedUpdateScheduledHook) {
      // Track the root here, rather than in commitLayoutEffects(), because of ref setters.
      // Updates scheduled during ref detachment should also be flagged.
      rootCommittingMutationOrLayoutEffects = root;
    }
    // The next phase is the mutation phase, where we mutate the host tree.
    commitMutationEffects(root, finishedWork, lanes);
    if (enableCreateEventHandleAPI) {
      if (shouldFireAfterActiveInstanceBlur) {
        afterActiveInstanceBlur();
      }
    }
    resetAfterCommit(root.containerInfo);
    // The work-in-progress tree is now the current tree. This must come after
    // the mutation phase, so that the previous tree is still current during
    // componentWillUnmount, but before the layout phase, so that the finished
    // work is current during componentDidMount/Update.
    root.current = finishedWork;
    // The next phase is the layout phase, where we call effects that read
    // the host tree after it's been mutated. The idiomatic use case for this is
    // layout, but class component lifecycles also fire here for legacy reasons.
    if (__DEV__) {
      if (enableDebugTracing) {
        logLayoutEffectsStarted(lanes);
      }
    }
    if (enableSchedulingProfiler) {
      markLayoutEffectsStarted(lanes);
    }
    commitLayoutEffects(finishedWork, root, lanes);
    if (__DEV__) {
      if (enableDebugTracing) {
        logLayoutEffectsStopped();
      }
    }
    if (enableSchedulingProfiler) {
      markLayoutEffectsStopped();
    }
    if (enableProfilerTimer && enableProfilerNestedUpdateScheduledHook) {
      rootCommittingMutationOrLayoutEffects = null;
    }
    // Tell Scheduler to yield at the end of the frame, so the browser has an
    // opportunity to paint.
    requestPaint();
    executionContext = prevExecutionContext;
    // Reset the priority to the previous non-sync value.
    setCurrentUpdatePriority(previousPriority);
    ReactCurrentBatchConfig.transition = prevTransition;
  } else {
    // No effects.
    root.current = finishedWork;
    // Measure these anyway so the flamegraph explicitly shows that there were
    // no effects.
    // TODO: Maybe there's a better way to report this.
    if (enableProfilerTimer) {
      recordCommitTime();
    }
  }
  const rootDidHavePassiveEffects = rootDoesHavePassiveEffects;
  if (rootDoesHavePassiveEffects) {
    // This commit has passive effects. Stash a reference to them. But don't
    // schedule a callback until after flushing layout work.
    rootDoesHavePassiveEffects = false;
    rootWithPendingPassiveEffects = root;
    pendingPassiveEffectsLanes = lanes;
  }
  // Read this again, since an effect might have updated it
  remainingLanes = root.pendingLanes;
  // Check if there's remaining work on this root
  if (remainingLanes === NoLanes) {
    // If there's no remaining work, we can clear the set of already failed
    // error boundaries.
    legacyErrorBoundariesThatAlreadyFailed = null;
  }
  if (__DEV__ && enableStrictEffects) {
    if (!rootDidHavePassiveEffects) {
      commitDoubleInvokeEffectsInDEV(root.current, false);
    }
  }
  if (includesSomeLane(remainingLanes, (SyncLane: Lane))) {
    if (enableProfilerTimer && enableProfilerNestedUpdatePhase) {
      markNestedUpdateScheduled();
    }
    // Count the number of times the root synchronously re-renders without
    // finishing. If there are too many, it indicates an infinite update loop.
    if (root === rootWithNestedUpdates) {
      nestedUpdateCount++;
    } else {
      nestedUpdateCount = 0;
      rootWithNestedUpdates = root;
    }
  } else {
    nestedUpdateCount = 0;
  }
  onCommitRootDevTools(finishedWork.stateNode, renderPriorityLevel);
  if (enableUpdaterTracking) {
    if (isDevToolsPresent) {
      root.memoizedUpdaters.clear();
    }
  }
  if (__DEV__) {
    onCommitRootTestSelector();
  }
  // Always call this before exiting `commitRoot`, to ensure that any
  // additional work on this root is scheduled.
  ensureRootIsScheduled(root, now());
  if (hasUncaughtError) {
    hasUncaughtError = false;
    const error = firstUncaughtError;
    firstUncaughtError = null;
    throw error;
  }
  // If the passive effects are the result of a discrete render, flush them
  // synchronously at the end of the current task so that the result is
  // immediately observable. Otherwise, we assume that they are not
  // order-dependent and do not need to be observed by external systems, so we
  // can wait until after paint.
  // TODO: We can optimize this by not scheduling the callback earlier. Since we
  // currently schedule the callback in multiple places, will wait until those
  // are consolidated.
  if (
    includesSomeLane(pendingPassiveEffectsLanes, SyncLane) &&
    root.tag !== LegacyRoot
  ) {
    flushPassiveEffects();
  }
  // If layout work was scheduled, flush it now.
  flushSyncCallbacks();
  if (__DEV__) {
    if (enableDebugTracing) {
      logCommitStopped();
    }
  }
  if (enableSchedulingProfiler) {
    markCommitStopped();
  }
  return null;
}
