Java IO(4)

例子

public class TestIO {
    public static void main(String[] args) throws IOException {
        ServerSocketChannel serverSocketChannel = ServerSocketChannel.open();
        //int kqfd = kqueue()
        final Selector selector = Selector.open();
        //f_cntl
        serverSocketChannel.socket().setReuseAddress(true);
        //bind(fd)
        serverSocketChannel.socket().bind(new InetSocketAddress("localhost", 9998));
        //配置非阻塞,如果设置成true还是阻塞的配置
        //fcntl(fd,flags|n_noblack);
        serverSocketChannel.configureBlocking(false);
        //注意这里的第三个参数，会attach到SelectorKey上
        serverSocketChannel.register(selector, SelectionKey.OP_ACCEPT, serverSocketChannel);
        System.out.println("-- server ready");
        while (true) {
            //jdk 11才有的方法
            selector.select(key -> {
                if (!key.isValid()) {
                    return;
                }
                //获取到attach的key
                final ServerSocketChannel ch = (ServerSocketChannel) key.attachment();
                try {
                    if (key.isAcceptable()) {
                        //获取endpoint，对应了serverSocket.accpet()返回的socket
                        SocketChannel client_ch = ch.accept();
                        if (client_ch != null) { // accept() may return null...
                            System.out.printf("accepted connection from %s\n", client_ch.getRemoteAddress());
                            //客户端也需要配置成非阻塞
                            client_ch.configureBlocking(false);
                            //监听可读时间
                            client_ch.register(selector, SelectionKey.OP_READ, key.attachment());
                        }
                    } else if (key.isReadable()) {
                        //整体的流程就是从socket中读取数据
                        //然后写入到队列中，然后注册监听可写事件
                        //当触发可写事件时，从队列中获取数据并写回
                        SocketChannel socketChannel = (SocketChannel) key.channel();
                        socketChannel.register(selector, SelectionKey.OP_WRITE);
                        ByteBuffer buffer = ByteBuffer.allocate(1024);
                        int read = socketChannel.read(buffer);
                        buffer.flip();
                        if (read == -1) {
                            throw new IOException("Socket closed");
                        }
                        String result = new String(buffer.array()).trim();
                        System.out.println("receive:" + result);
                        ByteBuffer writeBuffer = ByteBuffer.wrap(ACK);
                        Queue<Object> pendingWrites = channelToPendingWrites.get(key.channel());
                        if (pendingWrites == null) {
                            synchronized (channelToPendingWrites) {
                                pendingWrites = channelToPendingWrites.get(key.channel());
                                if (pendingWrites == null) {
                                    pendingWrites = new ConcurrentLinkedQueue<>();
                                    channelToPendingWrites.put(key.channel(), pendingWrites);
                                }
                            }
                        }
                        pendingWrites.add(writeBuffer);
                        socketChannel.register(selector, SelectionKey.OP_WRITE);
                    } else if (key.isWritable()) {
                        //参考可读事件的注释
                        SocketChannel socketChannel = (SocketChannel) key.channel();
                        final Queue<Object> objects = channelToPendingWrites.get(socketChannel);
                        if (objects == null || objects.size() == 0) {
                            final ByteBuffer allocate = ByteBuffer.allocate(12);
                            allocate.put("hello,world!".getBytes());
                            socketChannel.write(allocate);
                        } else {
                            final Object poll = objects.poll();
                            socketChannel.write((ByteBuffer) poll);
                        }
                        socketChannel.register(selector, SelectionKey.OP_READ);
                    }
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }, 10000L);
        }
    }
    private static final Map<SelectableChannel, Queue<Object>> channelToPendingWrites = new ConcurrentHashMap<>();
    private static final byte[] ACK = "Data logged successfully\n".getBytes();
}

讨论什么?

• 理解IO多路复用，Java中的概念分别代表了什么.
• 零拷贝? 不再需要拷贝了么？

• Java NIO中的register，Acceptable，Readable, writeable代表什么意思。

  • serverSocketChannel.register，注册到底是注册什么?
  • socketChannel.register(selector, SelectionKey.OP_WRITE)， 不注册OP_WRITE也能响应数据到客户端么
    • 如果不需要register，那么添加这个register是为了干啥，直接在writeAndFlush响应回去不就可以了么？
    • 如果需要register，那么数据什么时候写回去? 怎么写回去，

      IO模型

• IO模型I — 阻塞

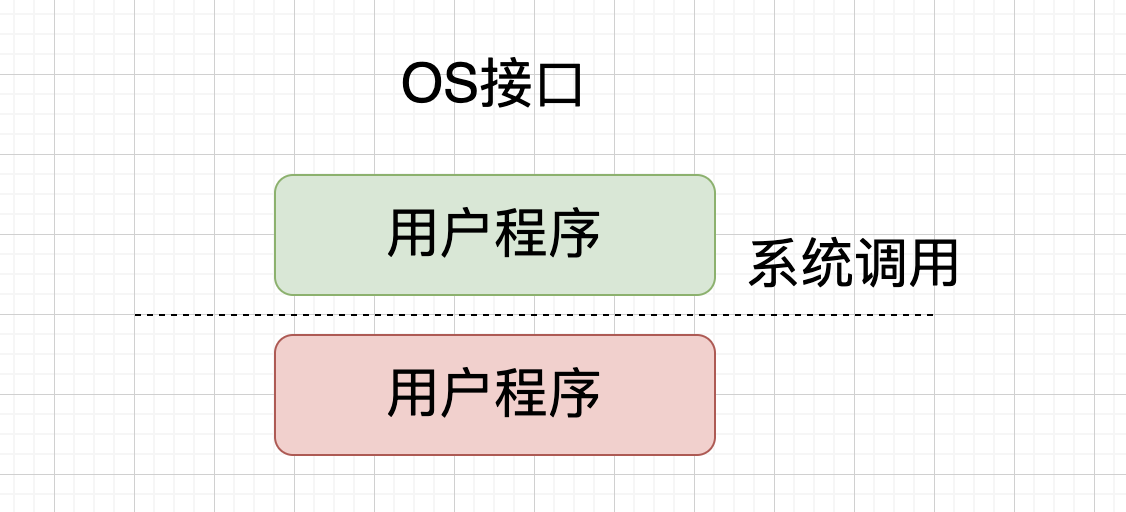

  • 系统调用

#include <stdio.h>
int main() {
    printf("Hello, World!");
    return 0;
}

输出结果

[root@iZbp11om21c05wzu8e4tx0Z test]# vim hello.c
[root@iZbp11om21c05wzu8e4tx0Z test]# gcc hello.c -o hello
[root@iZbp11om21c05wzu8e4tx0Z test]# strace ./hello
execve("./hello", ["./hello"], [/* 22 vars */]) = 0
brk(NULL)                               = 0x6fe000
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7f1fa6d87000
access("/etc/ld.so.preload", R_OK)      = -1 ENOENT (No such file or directory)
open("/etc/ld.so.cache", O_RDONLY|O_CLOEXEC) = 3
fstat(3, {st_mode=S_IFREG|0644, st_size=30947, ...}) = 0
mmap(NULL, 30947, PROT_READ, MAP_PRIVATE, 3, 0) = 0x7f1fa6d7f000
close(3)                                = 0
open("/lib64/libc.so.6", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\3\0\0\0\0\0\0\0\0\3\0>\0\1\0\0\0\20&\2\0\0\0\0\0"..., 832) = 832
fstat(3, {st_mode=S_IFREG|0755, st_size=2156160, ...}) = 0
mmap(NULL, 3985888, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7f1fa6799000
mprotect(0x7f1fa695c000, 2097152, PROT_NONE) = 0
mmap(0x7f1fa6b5c000, 24576, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x1c3000) = 0x7f1fa6b5c000
mmap(0x7f1fa6b62000, 16864, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_ANONYMOUS, -1, 0) = 0x7f1fa6b62000
close(3)                                = 0
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7f1fa6d7e000
mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7f1fa6d7c000
arch_prctl(ARCH_SET_FS, 0x7f1fa6d7c740) = 0
mprotect(0x7f1fa6b5c000, 16384, PROT_READ) = 0
mprotect(0x600000, 4096, PROT_READ)     = 0
mprotect(0x7f1fa6d88000, 4096, PROT_READ) = 0
munmap(0x7f1fa6d7f000, 30947)           = 0
fstat(1, {st_mode=S_IFCHR|0620, st_rdev=makedev(136, 0), ...}) = 0
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7f1fa6d86000
write(1, "Hello, World!", 13Hello, World!)           = 13
exit_group(0)                           = ?
+++ exited with 0 +++

• 缓冲区
  • https://flylib.com/books/en/3.475.1.30/1/
  • https://stackoverflow.com/questions/53691760/what-are-the-differences-between-kernel-buffer-tcp-socket-buffer-and-sliding-wi
  • https://superuser.com/questions/1540053/do-socket-and-buffer-mean-the-same-thing
    • IO模型II— IO多路复用
• 概念
  • 多路
  • 复用
  • 可读、可写事件
  • 边缘触发、水平触发
• 数据结构 - O(n), O(logn)
  • Epoll 红黑树
  • kqueue 两个队列
    • https://people.freebsd.org/~jlemon/papers/kqueue.pdf
    • https://www.yuque.com/chenshun00/sbny2o/hl2t0h
• 关联Java中的NIO
  • Channel: endpoint
  • ByteBuffer: read from buffer
  • Selector: queue

    发散

    为什么叫事件驱动(Event driven). 什么是事件? 又驱动什么?

• 零拷贝
  • 什么是零拷贝? 完全没有拷贝么?
    • https://www.yuque.com/chenshun00/sbny2o/xk5mn1
• Reactor 模型 (原文章已经不能下载了) 《Scalable IO in Java》
  • https://haoxpdp.github.io/categories/sth/scalableIOinJava/
• Redis中的使用（强烈建读）
  • https://redis.io/topics/internals-rediseventlib

• Netty中的使用

  • 无

    实操

    单线程

    int main() {
    int serv_sock = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP);   //AF_INT:ipv4, SOCK_STREAM:tcp协议
    //将套接字和IP、端口绑定
    struct sockaddr_in *serv_addr = malloc(sizeof(struct sockaddr_in));
    serv_addr->sin_family = AF_INET;  //使用IPv4地址
    serv_addr->sin_addr.s_addr = inet_addr("127.0.0.1");  //具体的IP地址
    serv_addr->sin_port = htons(11234);  //端口
    int on = 1;
    if (setsockopt(serv_sock, SOL_SOCKET, SO_REUSEPORT, &on, sizeof(on)) == -1) {
       printf("处理失败SO_REUSEPORT失败");
       exit(1);
    }
    bind(serv_sock, (struct sockaddr *) serv_addr, sizeof(struct sockaddr));
    listen(serv_sock, 20);
    for (;;) {
       int fd = accept(serv_sock, NULL, NULL);
       char *hello = "hello chenshun!";
       char cc[20];
       ssize_t rr = read(fd, cc, 10);
       if (rr == -1) {
           close(fd);
       }
       printf("i receive your message:%s\n", cc);
       write(fd, hello, strlen(hello));
       write(fd, "good bye!", strlen("good bye!"));
       close(fd);
    }
    return 0;
    }

    多线程

    ```c void run(void ff) { int fd = (int ) (ff); char *hello = “hello chenshun!”; char cc[11]; ssize_t rr = read(fd, cc, 10); if (rr == -1) { close(fd); } printf(“i receive your message:%s\n”, cc); write(fd, hello, strlen(hello)); write(fd, “good bye!”, strlen(“good bye!”)); close(fd); return 0; }

int main() { int serv_sock = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP); //AF_INT:ipv4, SOCK_STREAM:tcp协议 //将套接字和IP、端口绑定 struct sockaddr_in serv_addr = malloc(sizeof(struct sockaddr_in)); serv_addr->sin_family = AF_INET; //使用IPv4地址 serv_addr->sin_addr.s_addr = inet_addr(“127.0.0.1”); //具体的IP地址 serv_addr->sin_port = htons(11234); //端口 int on = 1; if (setsockopt(serv_sock, SOL_SOCKET, SO_REUSEPORT, &on, sizeof(on)) == -1) { printf(“处理失败SO_REUSEPORT失败”); exit(1); } bind(serv_sock, (struct sockaddr ) serv_addr, sizeof(struct sockaddr)); listen(serv_sock, 20);

for (;;) {
    int fd = accept(serv_sock, NULL, NULL);
    pthread_attr_t attr;
    pthread_t thread;
    size_t stacksize;
    pthread_attr_init(&attr);
    pthread_attr_getstacksize(&attr, &stacksize);
    if (!stacksize) stacksize = 1; /* The world is full of Solaris Fixes */
    while (stacksize < REDIS_THREAD_STACK_SIZE) stacksize *= 2;
    pthread_attr_setstacksize(&attr, stacksize);
    int res = pthread_create(&thread, &attr, run, &fd);
    printf("创建线程执行:%d\n", res);
    if (res != 0) {
        exit(-1);
    }
}
return 0;

}

<a name="ga2zT"></a>
#### IO多路复用
```c
//
// Created by chenshun on 2022/3/21.
//
#include <sys/socket.h>
#include <sys/event.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <fcntl.h>
#include <unistd.h>
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
const size_t PAGE = 1024 * 16;
const int kReadEvent = 1;
const int kWriteEvent = 2;
void updateEvent(int kqFd, int fd, int events) {
    struct kevent ke;
    if (events & kReadEvent) {
        EV_SET(&ke, fd, EVFILT_READ, EV_ADD, 0, 0, 0);
        kevent(kqFd, &ke, 1, NULL, 0, NULL);
    }
    if (events & kWriteEvent) {
        EV_SET(&ke, fd, EVFILT_WRITE, EV_ADD, 0, 0, 0);
        kevent(kqFd, &ke, 1, NULL, 0, NULL);
    }
}
void delEvent(int kqFd, int fd, int events) {
    struct kevent ke;
    if (events & kReadEvent) {
        EV_SET(&ke, fd, EVFILT_READ, EV_DELETE, 0, 0, 0);
        kevent(kqFd, &ke, 1, NULL, 0, NULL);
    }
    if (events & kWriteEvent) {
        EV_SET(&ke, fd, EVFILT_WRITE, EV_DELETE, 0, 0, 0);
        kevent(kqFd, &ke, 1, NULL, 0, NULL);
    }
}
void handleAccept(int kq, int socket_fd) {
    struct sockaddr_storage sa;
    socklen_t salen = sizeof(sa);
    int client = accept(socket_fd, (struct sockaddr *) &sa, &salen);
    int flags = fcntl(client, F_GETFL, 0);
    fcntl(client, F_SETFL, flags | O_NONBLOCK);
    updateEvent(kq, client, kReadEvent);
}
void handleRead(int kq, int fd) {
    char buf[PAGE];
    size_t rr = read(fd, &buf, PAGE);
    if (rr == 0) {
        delEvent(kq, fd, kReadEvent | kWriteEvent);
        close(fd);
        return;
    }
    delEvent(kq, fd, kReadEvent);
    if (rr == 6 && !strcmp("exit\r\n", buf)) {
        write(fd, "good bye!\n", strlen("good bye!\n"));
        close(fd);
        return;
    }
    printf("receive bytes: %zu, i have receive your message: %s\n", rr, buf);
    updateEvent(kq, fd, kWriteEvent);
}
void handleWrite(int kq, int fd) {
    char *send = "i have receive your message, expect your next message\n";
    write(fd, send, strlen(send));
    delEvent(kq, fd, kWriteEvent);
    updateEvent(kq, fd, kReadEvent);
}
void loop_once(int kq, int socket_fd, int waitms) {
    struct timespec timeout;
    timeout.tv_sec = waitms / 1000;
    timeout.tv_nsec = (waitms % 1000) * 1000 * 1000;
    struct kevent *event = malloc(sizeof(struct kevent *));
    int retval = kevent(kq, NULL, 0, event, 20, &timeout);
    if (retval > 0) {
        printf("收到事件: %d 件\n", retval);
    }
    for (int i = 0; i < retval; i++) {
        struct kevent ev = event[i];
        uintptr_t fd = ev.ident;
        if (ev.filter == EVFILT_READ) {
            //处理可读时间
            if (fd == socket_fd) {
                handleAccept(kq, socket_fd);
            } else {
                handleRead(kq, (int) fd);
            }
        }
        if (ev.filter == EVFILT_WRITE) {
            //处理可写事件
            handleWrite(kq, (int) fd);
        }
    }
    free(event);
}
int main() {
    int port = 19999;
    int socket_fd = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP);
    struct sockaddr_in *serv_addr = malloc(sizeof(struct sockaddr_in));
    if (serv_addr == NULL) {
        printf("分配内存失败");
        exit(1);
    }
    serv_addr->sin_family = AF_INET;
    serv_addr->sin_addr.s_addr = inet_addr("127.0.0.1");
    serv_addr->sin_port = htons(port);
    //
    int on = 1;
    setsockopt(socket_fd, SOL_SOCKET, SO_REUSEPORT, &on, sizeof(on));
    int flags = fcntl(socket_fd, F_GETFL, 0);
    fcntl(socket_fd, F_SETFL, flags | O_NONBLOCK);
    if (bind(socket_fd, (struct sockaddr *) serv_addr, sizeof(struct sockaddr)) < 0) {
        printf("bind 失败!");
        exit(1);
    }
    listen(socket_fd, 20);
    printf("使用telnet 127.0.0.1 19999 来进行测试\n");
    printf("输入exit来断开TCP链接\n");
    int queue = kqueue();
    //注册
    updateEvent(queue, socket_fd, kReadEvent);
    for (;;) {
        loop_once(queue, socket_fd, 10000);
    }
    return 0;
}

多线程IO多路复用

无
