Thingsboard源码分析-规则引擎表设计

rule_node(规则节点表)

属性

数据

DDL

CREATE TABLE IF NOT EXISTS rule_node (
    id uuid NOT NULL CONSTRAINT rule_node_pkey PRIMARY KEY,
    created_time bigint NOT NULL,
    rule_chain_id uuid,
    additional_info varchar,
    configuration varchar(10000000),
    type varchar(255),
    name varchar(255),
    debug_mode boolean,
    search_text varchar(255)
);Copy to clipboardErrorCopied

页面展示

rule_chain(规则链表)

属性

数据

DDL

CREATE TABLE IF NOT EXISTS rule_chain (
    id uuid NOT NULL CONSTRAINT rule_chain_pkey PRIMARY KEY,
    created_time bigint NOT NULL,
    additional_info varchar,
    configuration varchar(10000000),
    name varchar(255),
    first_rule_node_id uuid,
    root boolean,
    debug_mode boolean,
    search_text varchar(255),
    tenant_id uuid
);Copy to clipboardErrorCopied

页面展示

relation(关联关系表)

属性

数据

DDL

CREATE TABLE IF NOT EXISTS relation (
    from_id uuid,
    from_type varchar(255),
    to_id uuid,
    to_type varchar(255),
    relation_type_group varchar(255),
    relation_type varchar(255),
    additional_info varchar,
    CONSTRAINT relation_pkey PRIMARY KEY (from_id, from_type, relation_type_group, relation_type, to_id, to_type)
);Copy to clipboardErrorCopied

页面展示

alarm(警报表)

属性

DDL

CREATE TABLE IF NOT EXISTS alarm (
    id uuid NOT NULL CONSTRAINT alarm_pkey PRIMARY KEY,
    created_time bigint NOT NULL,
    ack_ts bigint,
    clear_ts bigint,
    additional_info varchar,
    end_ts bigint,
    originator_id uuid,
    originator_type integer,
    propagate boolean,
    severity varchar(255),
    start_ts bigint,
    status varchar(255),
    tenant_id uuid,
    propagate_relation_types varchar,
    type varchar(255)
);Copy to clipboardErrorCopied

页面展示

event(事件表)

属性

数据

DDL

CREATE TABLE IF NOT EXISTS event (
    id uuid NOT NULL CONSTRAINT event_pkey PRIMARY KEY,
    created_time bigint NOT NULL,
    body varchar(10000000),
    entity_id uuid,
    entity_type varchar(255),
    event_type varchar(255),
    event_uid varchar(255),
    tenant_id uuid,
    ts bigint NOT NULL,
    CONSTRAINT event_unq_key UNIQUE (tenant_id, entity_type, entity_id, event_type, event_uid)
);Copy to clipboardErrorCopied

audit_log(审计日志表)

属性

数据

DDL

CREATE TABLE IF NOT EXISTS audit_log (
    id uuid NOT NULL CONSTRAINT audit_log_pkey PRIMARY KEY,
    created_time bigint NOT NULL,
    tenant_id uuid,
    customer_id uuid,
    entity_id uuid,
    entity_type varchar(255),
    entity_name varchar(255),
    user_id uuid,
    user_name varchar(255),
    action_type varchar(255),
    action_data varchar(1000000),
    action_status varchar(255),
    action_failure_details varchar(1000000)
);Copy to clipboardErrorCopied

页面展示

component_descriptor(组件描述表)

属性

数据

DDL

CREATE TABLE IF NOT EXISTS component_descriptor (
    id uuid NOT NULL CONSTRAINT component_descriptor_pkey PRIMARY KEY,
    created_time bigint NOT NULL,
    actions varchar(255),
    clazz varchar UNIQUE,
    configuration_descriptor varchar,
    name varchar(255),
    scope varchar(255),
    search_text varchar(255),
    type varchar(255)
);Copy to clipboardErrorCopied

页面展示

dashboard(大屏展示表)

属性

数据

DDL

CREATE TABLE IF NOT EXISTS dashboard (
    id uuid NOT NULL CONSTRAINT dashboard_pkey PRIMARY KEY,
    created_time bigint NOT NULL,
    configuration varchar(10000000),
    assigned_customers varchar(1000000),
    search_text varchar(255),
    tenant_id uuid,
    title varchar(255)
);Copy to clipboardErrorCopied

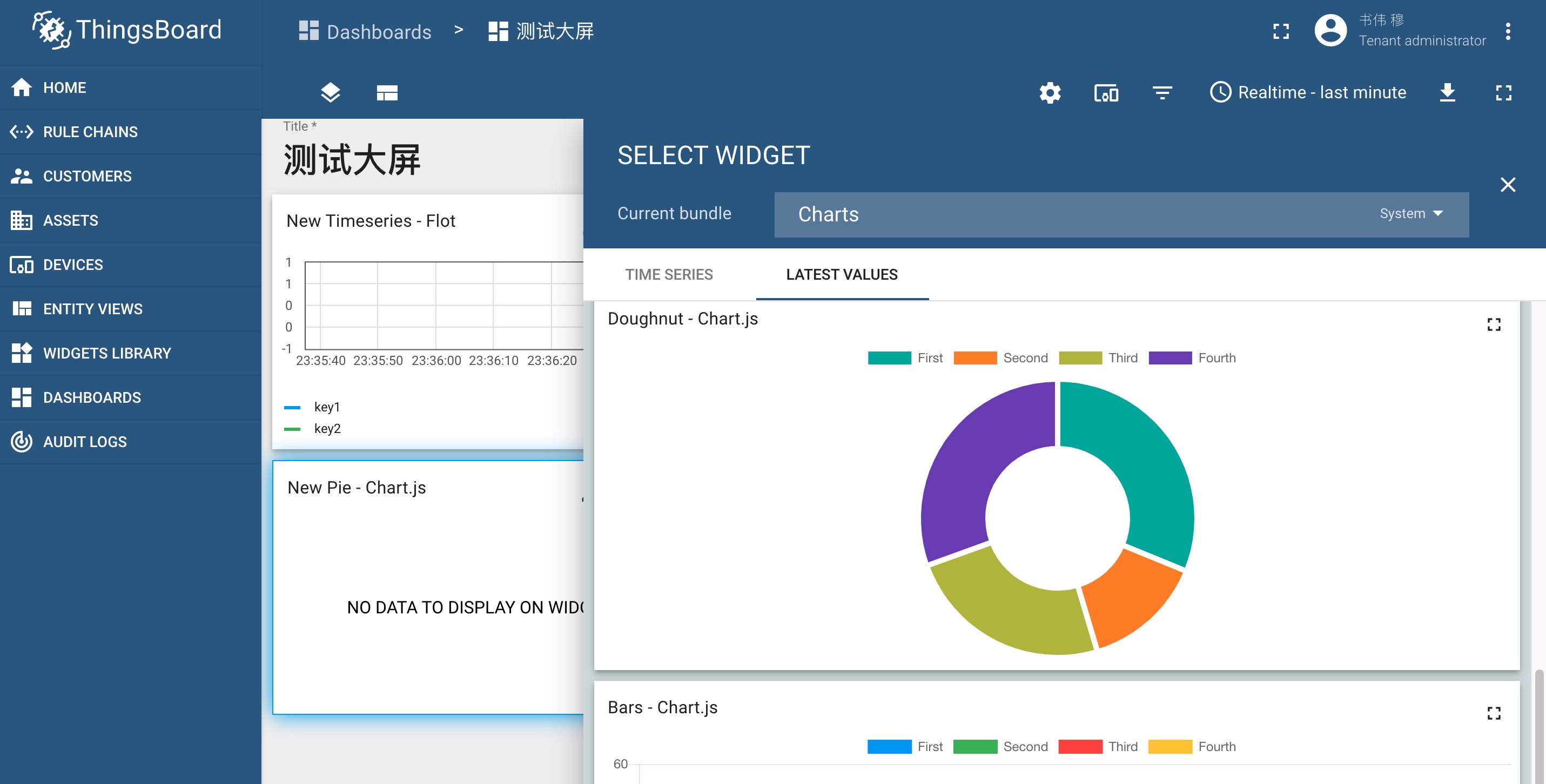

页面展示
