一、环境搭建

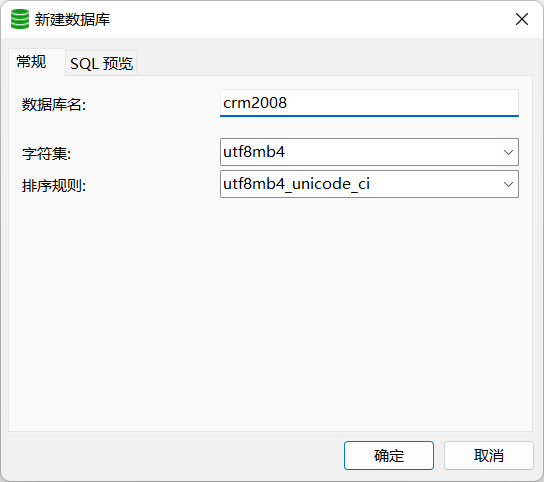

1.数据库


表

crm-3_市场活动.sqlcrm-4线索客户联系人交易.sqldictionary.sqltbl_user.sql

数据字典表数据

tbl_dic_type.sqltbl_dic_value.sql

2.创建一个空的工程(IDEA2022.2.1)

3.创建一个新的meaven项目(IDEA2022.2.1)

3.1设置相关的meaven
meaven修改本地仓库地址
第一步:找到 apache-maven-3.8.6-bin\apache-maven-3.8.6\conf
第二步:打开conf中settings.xml修改如下

<settings xmlns="http://maven.apache.org/SETTINGS/1.2.0"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.2.0 https://maven.apache.org/xsd/settings-1.2.0.xsd">
  <!-- localRepository
  | The path to the local repository maven will use to store artifacts.
  |
  | Default: ${user.home}/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->
   <localRepository>修改为你想要改的地址</localRepository>
  例如:
   <localRepository>E:/Program/Project/Projectjava/reposity</localRepository>

在IDEA中修改设置

3.2创建一个新的Module项目

4.修改目录

设置编码格式

5.添加依赖

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.bjpowernode</groupId>
  <artifactId>crm</artifactId>
  <packaging>war</packaging>
  <version>1.0-SNAPSHOT</version>
  <name>crm Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <!-- 集中定义依赖版本号 -->
  <properties>
    <!--单元测试的依赖-->
    <junit.version>4.12</junit.version>
    <!--spring的相关依赖-->
    <spring.version>5.2.5.RELEASE</spring.version>
    <!--mybatis的相关依赖-->
    <mybatis.version>3.5.1</mybatis.version>
    <!--mybaits与spring整合的依赖-->
    <mybatis.spring.version>1.3.1</mybatis.spring.version>
    <!--mybatis支持的分页插件的依赖-->
    <mybatis.paginator.version>1.2.15</mybatis.paginator.version>
    <!--mysql的依赖-->
        <mysql.version>5.1.32</mysql.version>
    <!--slf4j日志依赖-->
    <slf4j.version>1.6.4</slf4j.version>
    <!--阿里的数据库连接池-->
    <druid.version>1.1.12</druid.version>
    <!--分页插件的依赖-->
    <pagehelper.version>5.1.2</pagehelper.version>
    <!--JSTL的依赖(jsp的标准标签库)-->
    <jstl.version>1.2</jstl.version>
    <!--servlet的依赖-->
    <servlet-api.version>3.0.1</servlet-api.version>
    <!--jsp的依赖-->
    <jsp-api.version>2.0</jsp-api.version>
    <!--jackson的依赖,springmvc框架默认进行JSON转换的依赖工具-->
    <jackson.version>2.9.6</jackson.version>
  </properties>
  <dependencies>
    <!-- spring -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jms</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>5.2.5.RELEASE</version>
    </dependency>
    <!-- Mybatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>${mybatis.spring.version}</version>
    </dependency>
    <dependency>
      <groupId>com.github.miemiedev</groupId>
      <artifactId>mybatis-paginator</artifactId>
      <version>${mybatis.paginator.version}</version>
    </dependency>
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>${pagehelper.version}</version>
    </dependency>
    <!-- MySql -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
    </dependency>
    <!-- 连接池 -->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>${druid.version}</version>
    </dependency>
    <!-- junit -->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>${junit.version}</version>
      <scope>test</scope>
    </dependency>
    <!-- JSP相关 -->
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>${jstl.version}</version>
    </dependency>
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.0.1</version>
      <scope>provided</scope>
    </dependency>
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>jsp-api</artifactId>
      <scope>provided</scope>
      <version>${jsp-api.version}</version>
    </dependency>
    <!-- Jackson Json处理工具包 -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>${jackson.version}</version>
    </dependency>
    <!--poi依赖-->
    <dependency>
      <groupId>org.apache.poi</groupId>
      <artifactId>poi</artifactId>
      <version>3.15</version>
    </dependency>
    <!-- 文件上传 -->
    <dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.3.1</version>
    </dependency>
    <!-- Log4j2依赖的JAR配置 -->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-api</artifactId>
      <version>2.3</version>
    </dependency>
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-core</artifactId>
      <version>2.3</version>
    </dependency>
  </dependencies>
  <!-- 插件配置 -->
  <build>
    <finalName>crm</finalName>
    <plugins>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-compiler-plugin</artifactId>
        <configuration>
          <source>1.8</source>
          <target>1.8</target>
          <encoding>UTF-8</encoding>
        </configuration>
      </plugin>
    </plugins>
    <!--识别所有的配置文件-->
    <resources>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
      </resource>
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
      </resource>
    </resources>
  </build>
</project>

6.添加配置文件

jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://127.0.0.1:3306/crm2008?useUnicode=true&characterEncoding=UTF-8
jdbc.username=root
jdbc.password=123456

<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
  <!--设置日志输出语句,显示相应操作的sql语名-->
  <settings>
    <setting name="logImpl" value="STDOUT_LOGGING"/>
  </settings>
</configuration>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xmlns:context="http://www.springframework.org/schema/context"
  xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">
  <!--读取属性文件-->
  <context:property-placeholder location="classpath:jdbc.properties"></context:property-placeholder>
  <!--配置数据源-->
  <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
    <property name="driverClassName" value="${jdbc.driverClassName}"></property>
    <property name="url" value="${jdbc.url}"></property>
    <property name="username" value="${jdbc.username}"></property>
    <property name="password" value="${jdbc.password}"></property>
  </bean>
  <!--配置SqlSessionFactoryBean-->
  <bean class="org.mybatis.spring.SqlSessionFactoryBean">
    <!--配置数据源-->
    <property name="dataSource" ref="dataSource"></property>
    <!--配置SqlMapConfig.xml核心配置-->
    <property name="configLocation" value="classpath:SqlMapConfig.xml"></property>
    <!--注册实体类-->
    <property name="typeAliasesPackage" value="com.bjpowernode.crm.model"></property>
  </bean>
  <!--注册mapper.xml文件-->
  <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
    <property name="basePackage" value="com.bjpowernode.crm.mapper"></property>
  </bean>
</beans>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd">
    <!--添加包扫描-->
    <context:component-scan base-package="com.bjpowernode.crm.service.impl"></context:component-scan>
    <!--添加事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!--切记切记:配置数据源-->
        <property name="dataSource" ref="dataSource"></property>
    </bean>
    <!--配置事务切面-->
    <tx:advice id="myadvice" transaction-manager="transactionManager">
        <tx:attributes>
            <tx:method name="*select*" read-only="true"/>
            <tx:method name="*find*" read-only="true"/>
            <tx:method name="*serach*" read-only="true"/>
            <tx:method name="*get*" read-only="true"/>
            <tx:method name="*insert*" propagation="REQUIRED"/>
            <tx:method name="*add*" propagation="REQUIRED"/>
            <tx:method name="*save*" propagation="REQUIRED"/>
            <tx:method name="*set*" propagation="REQUIRED"/>
            <tx:method name="*update*" propagation="REQUIRED"/>
            <tx:method name="*change*" propagation="REQUIRED"/>
            <tx:method name="*modify*" propagation="REQUIRED"/>
            <tx:method name="*delete*" propagation="REQUIRED"/>
            <tx:method name="*drop*" propagation="REQUIRED"/>
            <tx:method name="*remove*" propagation="REQUIRED"/>
            <tx:method name="*clear*" propagation="REQUIRED"/>
            <tx:method name="*" propagation="SUPPORTS"/>
        </tx:attributes>
    </tx:advice>
    <!--配置切入点+绑定-->
    <aop:config>
        <aop:pointcut id="mycut" expression="execution(* com.bjpowernode.crm..service.*.*(..))"></aop:pointcut>
        <aop:advisor advice-ref="myadvice" pointcut-ref="mycut"></aop:advisor>
    </aop:config>
</beans>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!--添加包扫描-->
    <context:component-scan base-package="com.bjpowernode.crm.controller"></context:component-scan>
    <!--添加注解驱动-->
    <mvc:annotation-driven></mvc:annotation-driven>
    <!-- 配置视图解析器 -->
    <bean id="viewResolver"
          class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/pages/"/>
        <property name="suffix" value=".jsp"/>
    </bean>
    <!-- 配置文件上传解析器 id:必须是multipartResolver-->
    <!--<bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <property name="maxUploadSize" value="#{1024*1024*80}"/>
        <property name="defaultEncoding" value="utf-8"/>
    </bean>-->
</beans>

修改web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/javaee"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
          http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
           version="3.0">
    <!--添加中文编码过滤器
            private String encoding;
            private boolean forceRequestEncoding;
            private boolean forceResponseEncoding;
        -->
    <filter>
        <filter-name>encode</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceRequestEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
        <init-param>
            <param-name>forceResponseEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encode</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <!--注册SpringMVC框架-->
    <servlet>
        <servlet-name>springmvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:springmvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <url-pattern>*.do</url-pattern>
    </servlet-mapping>
    <!--注册Spring框架,目的就是启动spring容器-->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext_*.xml</param-value>
    </context-param>
    <!-- 欢迎页，默认进入index controller -->
    <welcome-file-list>
        <welcome-file>/</welcome-file>
    </welcome-file-list>
</web-app>

7.修改前端页面

8.部署到Tomcat服务器上
