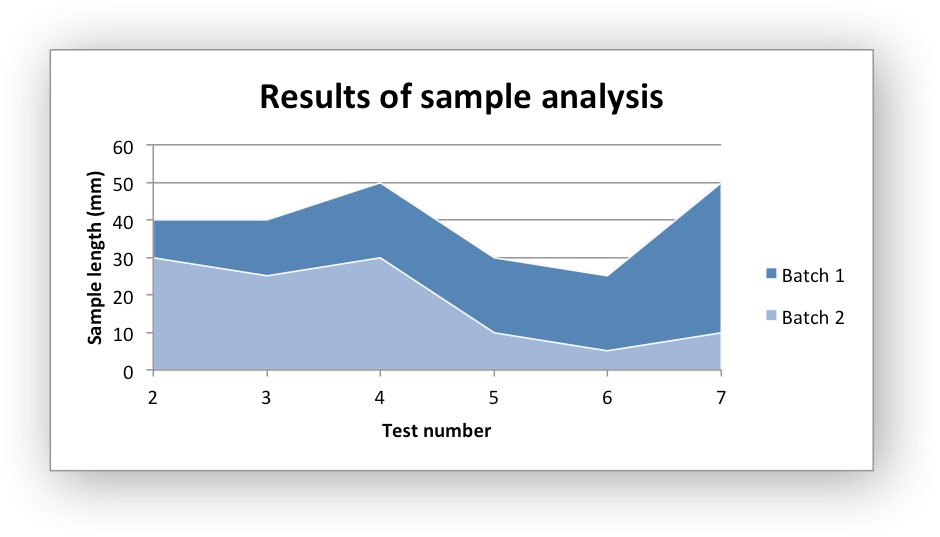

面积图 - 图1

    1. $config = ['path' => './tests'];
    3. $fileObject = new \Vtiful\Kernel\Excel($config);
    5. $fileObject = $fileObject->fileName('tutorial.xlsx');
    6. $fileHandle = $fileObject->getHandle();
    8. $chart = new \Vtiful\Kernel\Chart($fileHandle, \Vtiful\Kernel\Chart::CHART_AREA);
    10. $chartResource = $chart
    11.     ->series('=Sheet1!$B$2:$B$7', '=Sheet1!$A$2:$A$7')
    12.     ->seriesName('=Sheet1!$B$1')
    13.     ->series('=Sheet1!$C$2:$C$7', '=Sheet1!$A$2:$A$7')
    14.     ->seriesName('=Sheet1!$C$1')
    15.     ->style(11)// 值为 1 - 48，可参考 Excel 2007 "设计" 选项卡中的 48 种样式
    16.     ->axisNameX('Test number') // 设置 X 轴名称
    17.     ->axisNameY('Sample length (mm)') // 设置 Y 轴名称
    18.     ->title('Results of sample analysis') // 设置图表 Title
    19.     ->toResource();
    21. $filePath = $fileObject->header(['Number', 'Batch 1', 'Batch 2'])
    22.     ->data([
    23.         [2, 40, 30],
    24.         [3, 40, 25],
    25.         [4, 50, 30],
    26.         [5, 30, 10],
    27.         [6, 25, 5],
    28.         [7, 50, 10],
    29.     ])->insertChart(0, 3, $chartResource)->output();
